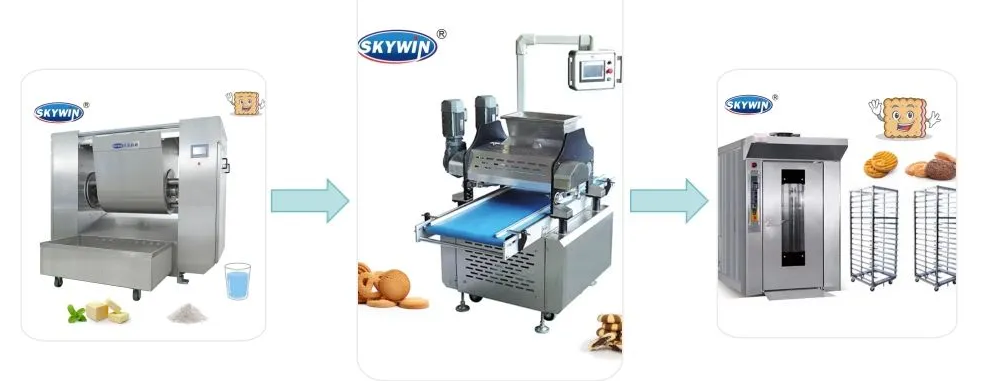

Mixing：
Horizontal Dough Mixer Capacity:150KG/300KG/400KG/600KG/750KG
↓
Forming：
Wire-Cut Cookie/Deposit Cookie
Model:400mm/600mm/800mm
↓
Baking：
Gas/Electricity Rotary Oven
↓
Cooling
Specification:
1.304 Stainless steel Cover, thickness 1.5-2.0mm
2.Feeding roller diameter 160mm, with groove
3.Oven belt width 1000mm-1100mm
4.Dynamic structure, total 2 servo motor control. Feeding roller motor 2kw, wire cut forming 2kw
5.Deposit forming by 5 servo motor controlled
6.Provided two sets of cookies moulds as per pictures
7.Dimension: 1700 x 1300 x 1600mm (L x W x H)
8.Capacity: Wire cut 600-700kg per hour
9.Speed: Cut 90-110times/min, Deposit 50-60times/min
10.Siemens electric parts and PLC touch screen control
11.Delta servo motor & gearbox
Mixing：
Horizontal Dough Mixer Capacity:150KG/300KG/400KG/600KG/750KG
↓
Forming：
Wire-Cut Cookie/Deposit Cookie
Model:400mm/600mm/800mm
↓
Baking：
Gas/Electricity Rotary Oven
↓
Cooling
Specification:
1.304 Stainless steel Cover, thickness 1.5-2.0mm
2.Feeding roller diameter 160mm, with groove
3.Oven belt width 1000mm-1100mm
4.Dynamic structure, total 2 servo motor control. Feeding roller motor 2kw, wire cut forming 2kw
5.Deposit forming by 5 servo motor controlled
6.Provided two sets of cookies moulds as per pictures
7.Dimension: 1700 x 1300 x 1600mm (L x W x H)
8.Capacity: Wire cut 600-700kg per hour
9.Speed: Cut 90-110times/min, Deposit 50-60times/min
10.Siemens electric parts and PLC touch screen control
11.Delta servo motor & gearbox
