In the world of commercial cookie production, the choice between wire-cut and deposit forming technologies has traditionally forced manufacturers into a difficult decision: invest in two dedicated lines, or accept the limitations of a single-purpose machine.
That compromise is no longer necessary.

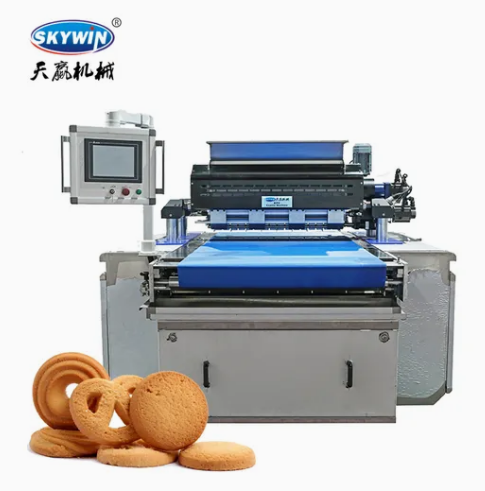

Modern dual-mode cookie machines integrate both forming technologies into a single platform, enabling producers to switch between wire-cut and deposit production without sacrificing performance, accuracy, or output. This article examines how these machines achieve this flexibility, the engineering principles that make it possible, and what manufacturers should evaluate when considering this approach.
The Fundamental Difference Between Wire-Cut and Deposit
Before examining the dual-mode solution, it is essential to understand what distinguishes these two forming methods.

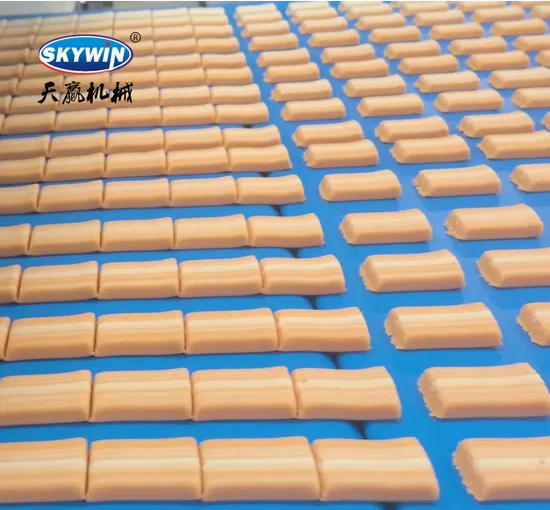

Wire-cut technology is designed for stiff, high-viscosity doughs—typically those with fat content between 18% and 30%, such as butter cookies, shortbread, and chocolate chip varieties. The dough is extruded through a die plate in a continuous column, and a tensioned wire cuts individual pieces at precise intervals. This method excels at handling doughs containing inclusions like nuts, chocolate chunks, or dried fruit, as the cutting action preserves particle integrity.

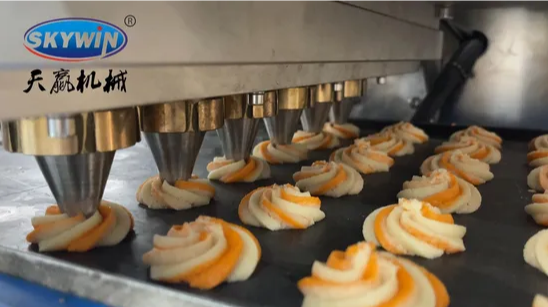

Deposit technology, by contrast, is engineered for soft, flowable batters—high-fat, high-sugar formulations where fat content can exceed 30%, such as filled cookies, piped designs, and delicate butter-based recipes. The batter is pumped through a manifold and ejected through specially shaped nozzles, with a servo-controlled cut-off mechanism that prevents tailing or dripping. This method delivers the aesthetic appeal of hand-piped cookies at industrial speeds.
These two technologies impose fundamentally different demands on equipment—different flow paths, different cutting mechanisms, different control logic. A dual-mode machine must accommodate both within a single architecture.
The Mechanical Architecture of Dual-Mode Systems

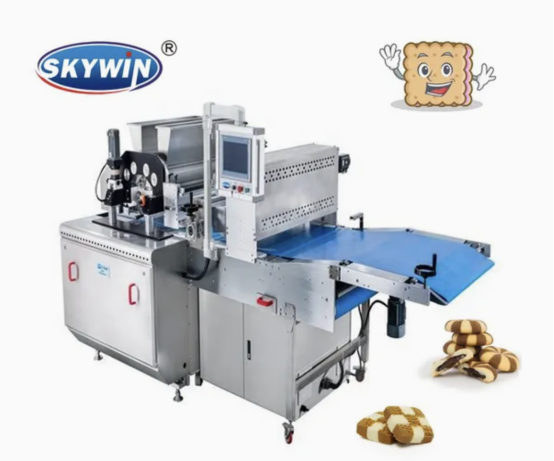

A dual-mode cookie machine achieves its flexibility through modular forming head design. The base platform—comprising the main drive system, servo motors, conveyor, and control interface—remains constant. The forming section, however, is designed as a removable cartridge that can be swapped between configurations.

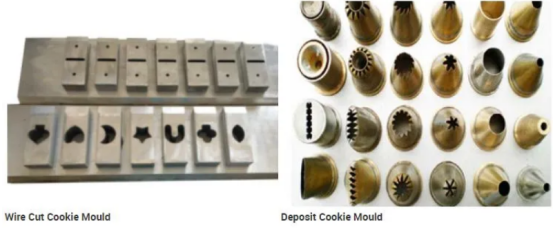

In wire-cut mode, the forming head houses:

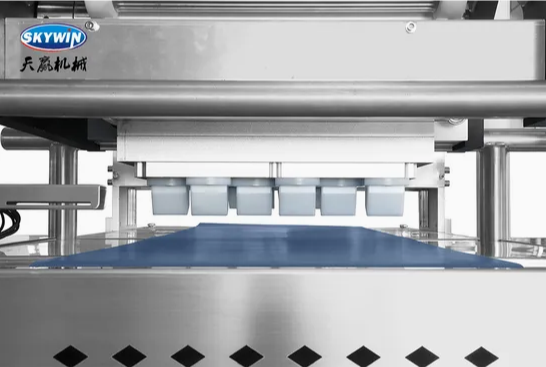

A die plate with precision-cut apertures defining the cookie cross-section;A reciprocating wire cutter with tension control mechanism;A pressure-controlled feed system (typically auger or piston) that maintains consistent extrusion rates.
In deposit mode, the forming head contains:

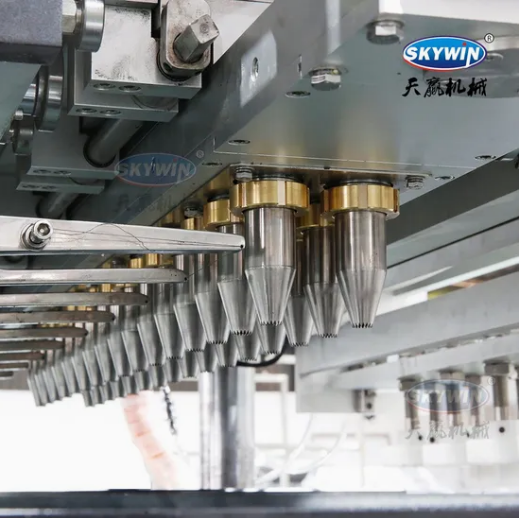

A nozzle manifold with individually controllable outlets;A servo-driven cut-off system (pinch valves, rotating knives, or retraction mechanisms);A low-shear pump system (piston or peristaltic) that preserves batter aeration.
The interchange between these modules is achieved through standardized mounting interfaces, quick-release clamping mechanisms, and pre-aligned locating pins.
The Role of Servo Control in Dual-Mode Operation
The same servo system that drives a dual-mode machine must deliver fundamentally different motion profiles depending on the active forming technology.
For wire-cut operation, the servo logic manages:
Synchronization between extrusion pressure and wire cutting frequency;Acceleration and deceleration profiles that minimize dough shear during cut-off;Compensation for dough temperature-induced viscosity fluctuations.
For deposit operation, the same servo system controls:
Precise volumetric filling with nozzle-by-nozzle adjustment;Retraction timing to achieve clean cut-off without tailing;Synchronization between pump flow and conveyor indexing.
This flexibility is achieved through recipe-based programming. Each cookie formulation—whether intended for wire-cut or deposit—is stored as a complete machine setup file containing all relevant parameters: servo motion profiles, pump speeds, cutting timing, and temperature settings. Operators select the recipe, swap the forming head, and the machine automatically configures itself for the required mode.
Performance Consistency Across Modes
The value of a dual-mode machine rests on its ability to deliver consistent results in both configurations. Key performance indicators to evaluate include:
Weight accuracy: In wire-cut mode, well-calibrated systems achieve weight variation within ±1.5% of target. In deposit mode, servo-controlled volumetric filling typically delivers ±1.0% consistency, with some gravimetric feedback systems achieving even tighter tolerances.
Cut quality: Wire-cut edges should be clean, with no tearing or ragged edges. This requires precise synchronization between extrusion speed and wire velocity, as well as proper wire tension and diameter selection matched to dough characteristics.
Nozzle performance: Deposit nozzles must produce clean cut-off without tailing, even with high-sugar formulations. This demands servo-controlled retraction or knife systems with response times under 50 milliseconds.
Throughput: Maximum speeds vary by mode and formulation, but typical dual-mode platforms achieve wire-cut outputs of 90 to 110 cuts per minute and deposit outputs of 50 to 60 deposits per minute, depending on cookie size and pattern complexity.
Sanitary Design Considerations
Dual-mode machines introduce additional complexity for sanitation, as the equipment must accommodate two different forming configurations without compromising cleanability.
Critical design features include:
Tool-free disassembly for forming head components;No crevices or dead zones where dough or batter can accumulate;Stainless steel construction with food-grade finishes throughout;CIP-ready interfaces for pump systems and feed sections.
The interchangeability of forming heads also allows one head to undergo cleaning while the other remains in production, supporting continuous operation in multi-recipe environments.
Economic Justification: When Dual-Mode Makes Sense
The decision between a dual-mode machine and dedicated lines depends on production profile and volume requirements.
Dual-mode offers clear advantages for:
Manufacturers producing both wire-cut and deposit cookies in medium volumes.Facilities with limited floor space that cannot accommodate two dedicated lines.Operations requiring flexibility to respond to changing market demands.R&D environments where formulation experimentation requires both technologies.
Dedicated lines remain preferable for:
High-volume continuous production of a single product type.Operations where changeover time losses outweigh equipment cost savings.Products with extreme technical requirements that demand optimized dedicated equipment.
For many medium-scale producers,the dual-mode platform delivers optimal return on investment by maximizing equipment utilization while minimizing capital expenditure.
The dual-mode cookie machine represents a practical engineering response to the realities of modern cookie production: diverse product portfolios, fluctuating demand, and the need for capital efficiency. By integrating wire-cut and deposit capabilities into a single platform with modular forming heads, servo-driven control systems, and intelligent recipe management, these machines offer manufacturers genuine flexibility without compromising on quality or throughput.
For producers navigating the complexity of both stiff doughs and soft batters, the dual-mode approach provides a compelling alternative to the traditional trade-off between versatility and performance.
