Skywin Two-Lane Cream Jam Biscuit Cookie Sandwiching&Packing Machine

Name: Skywin Two-Lane Cream Jam Biscuit Cookie Sandwiching&Packing Machine
Brand: skywin
Rating: 5.0 (4 reviews)

Skywin Two-Lane Cream Jam Biscuit Cookie Sandwiching&Packing Machine offered by China manufacturer Skywin. Buy Skywin Two-Lane Cream Jam Biscuit Cookie Sandwiching&Packing Machine directly with low price and high quality.

Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

e5b621c50c6b82fd665a83c9980bbfdd

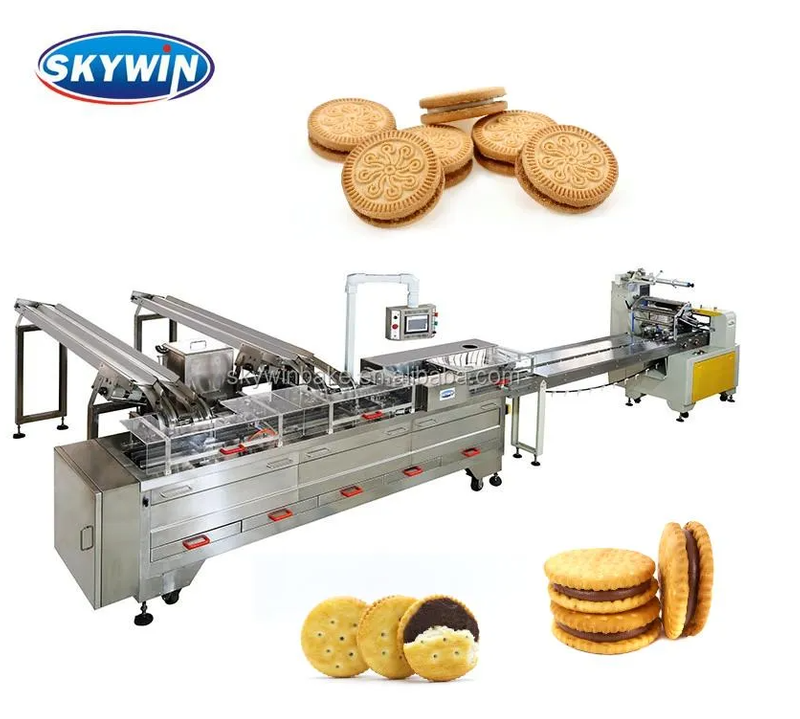

TWO LANES ONE COLOR SANDWICHING MACHINE with 380 Packing Machine

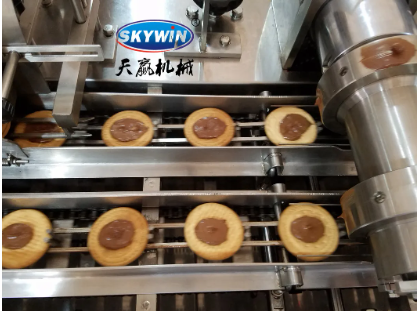

This machine can produce jam or chocolate or cream sandwich biscuits and the production speed of 800-1200 pieces per minute. Automated conveying reduces labor use.

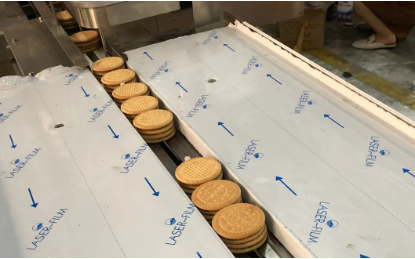

Automatic feeding lane connects sandwich machine with 380 flow packing machine.

1).Two lane output creaming,capacity about 800-1200 pcs/min

2).One color cream filling

3).Size of biscuit:Rectangle L(35-80)*W(30-70)mm

4).Round diameter 35-70 mm

5).Power 4 kw/220 V/50 Hz

6).Weight:1450 kg

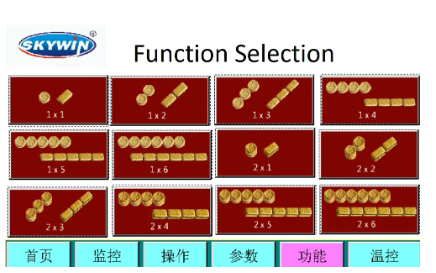

3 Servo Motors, Painted steel cover, PLC control system, High Speed Flow Packing Machine, conveyor length 2.4m
1). Included packing conveyor
2).double frequency conversion machine, film width 320mm
3). included date printer
4).Speed:MAX 250 packs/minute
5).Bag size: Length 80-300mm, Width 35-145mm, Height 5-55mm
6).Max outer diameter < 300 mm,
7).Max width of the packing film: 380mm,
8).Packing film thickness: 0.04-0.07mm
9).Machine dimension: (L x W x H): 5200 x 950mm x 1650
10).Power consumption: 3.6KW/Single phase: 220V/50Hz
11).G. weight: 750kg

94de09da91f9eaaba26441c711454209

4691a1cf8c6889441ebc87d1763e1194

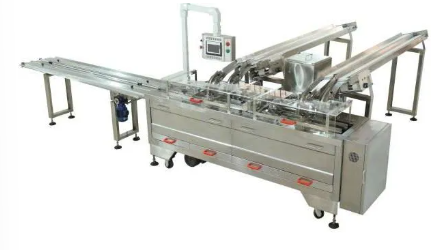

wo-lane One-color Sandwich Biscuit with Flow Packing Machine
Size of biscuit:
Round: diameter: 35-65mm, thickness: 4-7mm
Rectangle: L: (35-70)mm x W: (35-55)mm, thickness: 4-7mm
Power: 7.5kw
Voltage: 220v/50hz
Weight: 1100kg
Dimension: 7000x1500x1500mm

2f25d6edc0c9304a0febf285c917f94c

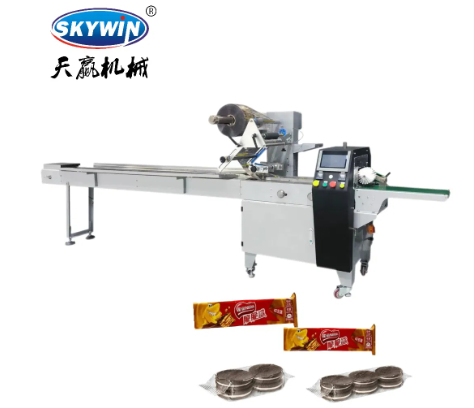

Flow packing machine

Packing speed: 30-300bag/min
Bag size: L (80-500) x W (60-380) x H (5-45) mm
Max width of the packing film: 370mm
Total power/voltage: 5KW/Single 220VAC/50Hz
Machine weight: 650 kg
Power type: 220V/50HZ

a87a62d8d1b086dd6c672804bceb66a3 7dff3b5878f836545b626a82a6b51a9b 82f27d23abbfefe5bf5926c8cc10dab0 e64d6aa331c90077996d8481cf163e96 9d890c12067499287e02295a73bfaccd 54a9817399d7c65a2b912adbfc0a5c19 652dc1dc09e428b4367e55ec45873a27 99aa4ca61fa67ad01f8b6e28daa77890

7ff020d50de7b1ebb17e691f019234ea c1fcbd7b979e99d53db25764578fd092

sandwiching biscuit machine with packing machine packing machine auto feeding packing system onedge packing machine flow packing machine sandwiching biscuit machine connected flow packing machine combined flow packing machine
