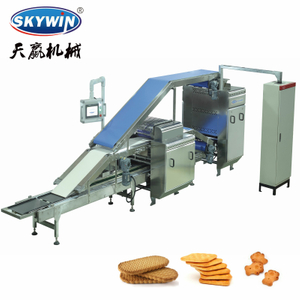

Semi Auto Tray Type Soft Biscuit Making Machine for Biscuit Production Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Semi-automatic soft biscuit production line:
1.Horizontal dough mixer
2.Tray type rotary moulder
3.Rotary oven

Main Features:
--Capacity: 50-150 kgs/hr
--Biscuit size:depends on moulds
--Working width 400mm
--Tray size: W400 x L600mm
--Strong Stainless steel 420# Dough scrap knife
--Max Automatic loading speed:10 trays
--Tray delivery Max speed:16 trays
  • Skywin

Availability:
Quantity:

tray type soft biscuit machine line

Semi Auto Tray Type Soft Biscuit  Machine Production Line

Technical Specification:

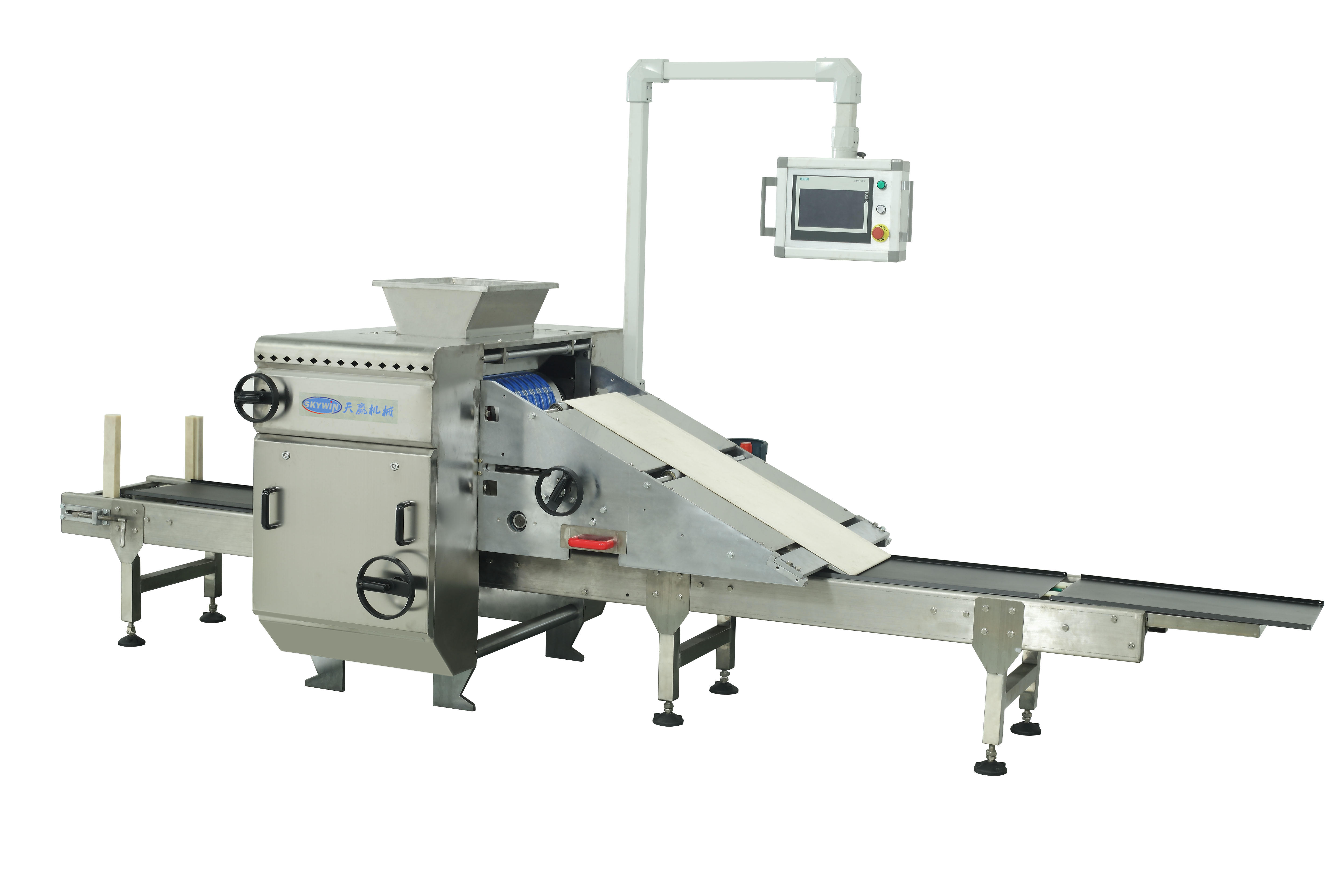

Tray Type Rotary Moulder is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit,
biscuit machine suitable for rectangular biscuit,square and round, animal shape and other shapes depends on biscuit mould.The
machine can reduce labor costs and waste, increase production, efficiency, quality and flexibility.


Main Features:

1. Specification:
* Capacity:about 50kgs/hour~150kgs/hour
* Biscuit size:depends on mould
* Working width 400mm.
* Tray size: W400 x L600mm
* Double motor driver, Chain driverfor dough feeding and moulding,more stronger.
* Stainless steel 304#cover thickness 1.0mm
* Frequency speed adjusted, Siemensbrand PLC&Touch Screen.
* Dough Grooved roller ¢216 216mm,galvanization plated.
* Food standard Rubber roller ¢220,endless canvas conveyor.Ø
* Belts support by stainless steel 304# 3mm thickness.
* Strong Stainless steel 420# Dough scrap knife .
* Transducer: Chinese famous quality brand Motor
* Reducer: Chinese famous quality brand GUOMAO
* With pan holding space and pan longer transport conveyor
* With flexible waste dough collection pans, easier cleaning.
* Machine dimension: 4000mm length x 1000mm width x 1050mm height
* Voltage:Power: 4.5kw,380V/50Hz
* Power:4. 3kw
* Gross Weight:1300kg

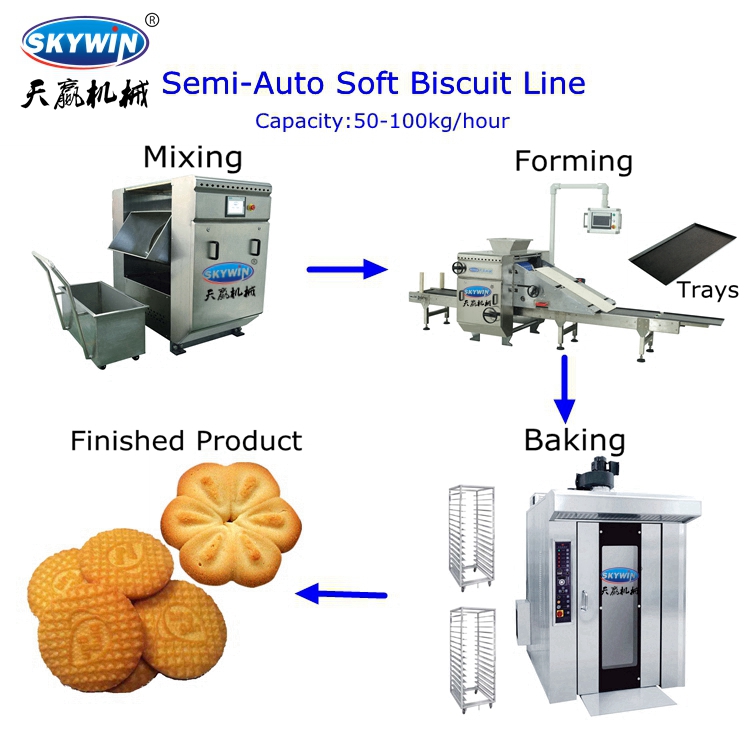

Semi auto soft biscuit production line consist of

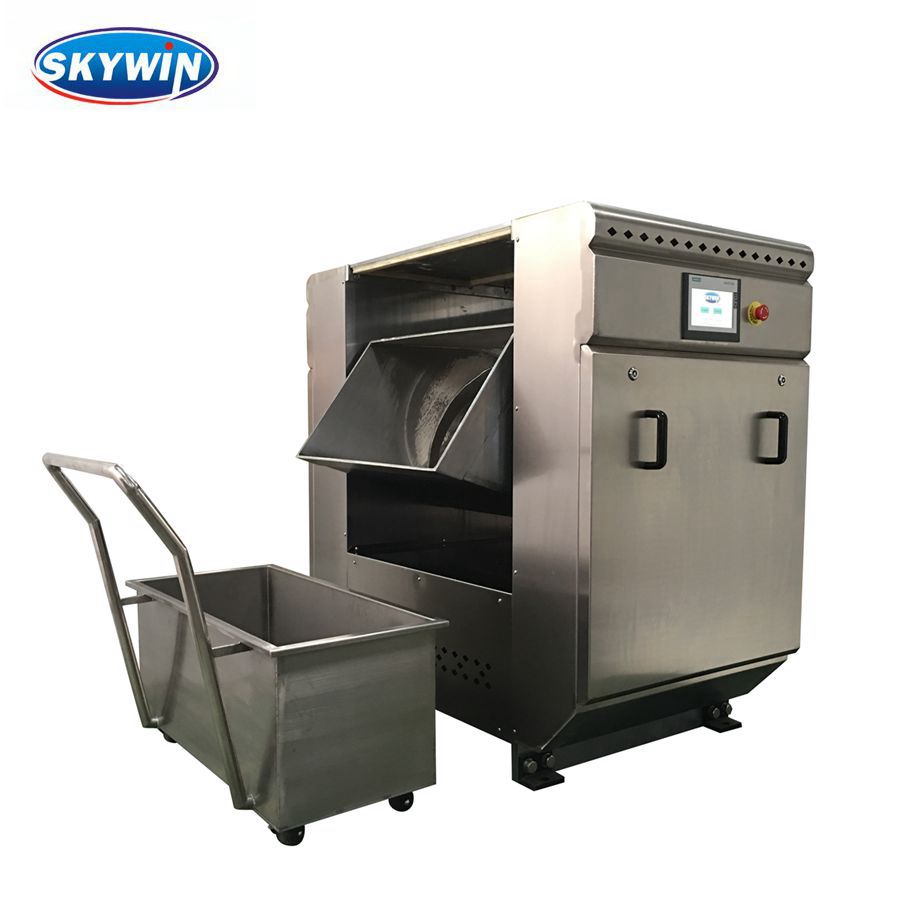

150KGS Dough Mixer


Horizontal dough mixer


Function: Mix the dough Features: After mixing, dough’s surface would be smooth, flexible and extensible.

1. Suitable for soft and hard biscuit dough

2. Mixing blade is 304 Stainless steel

3. Bowl covered by 304 Stainless steel

4. Tipping by Hydraulic pressure

5. Capacity:150,250,300,500,750kg types.(Other type can be customized)

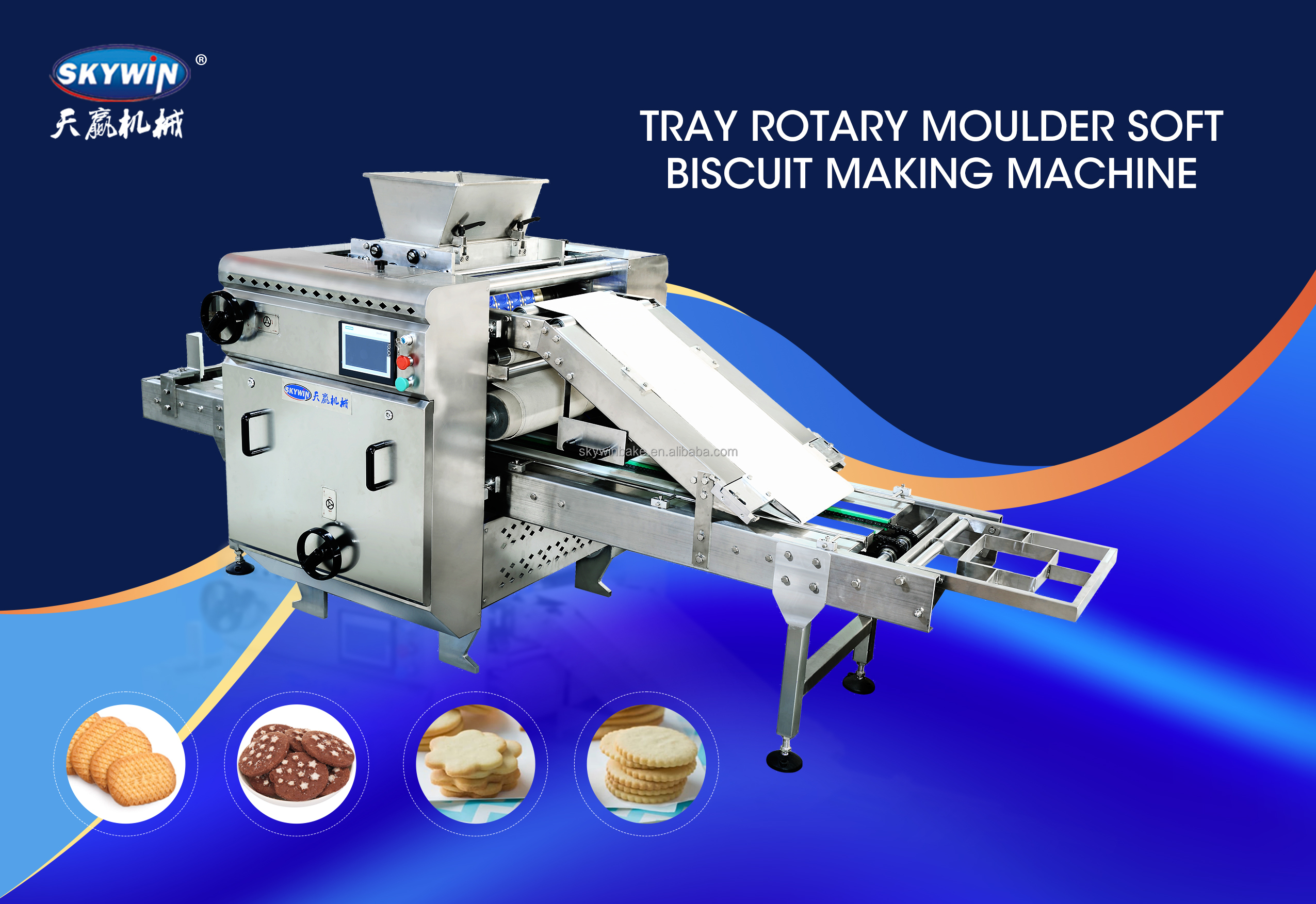

tray type rotary moulder

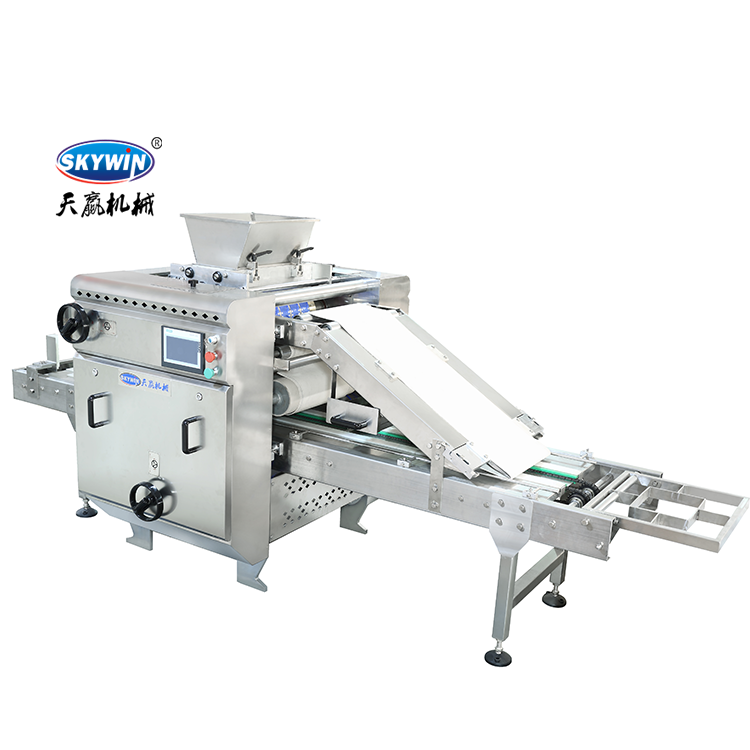

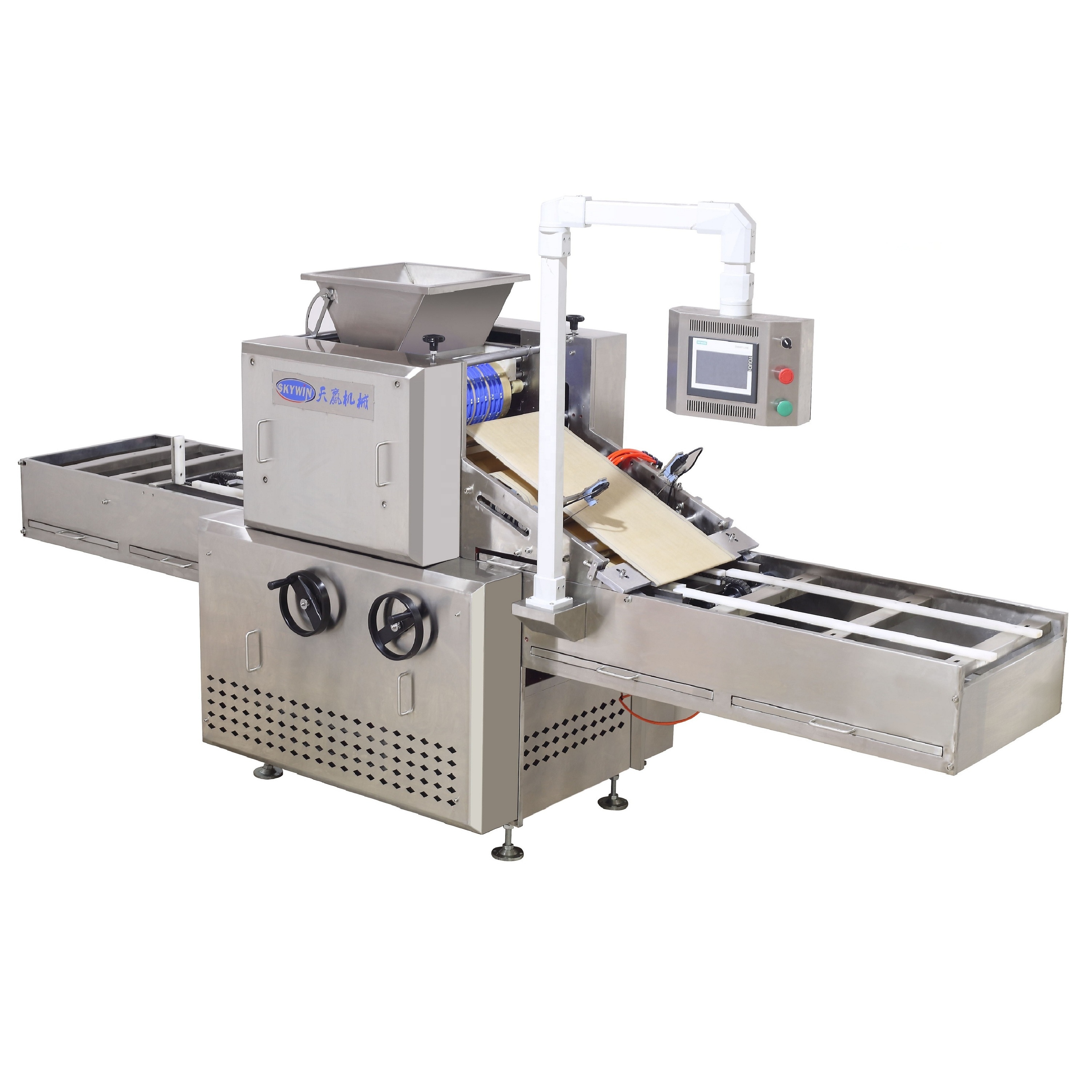

Tray type rotary moulder


1. Flexible structure: with a series of quick-change biscuit molds device,can produce different shapes of biscuits.

2. With automatic loading and belt centering adjustment device. Ensure the automatic alignment of pallets and canvas;

3 .Adopt 304 stainless steel, chromed plated treatment, to meet food hygiene requirements.

4. The machine is using frequency converters, Siemens brand PLC&touch screen control system,and other electrical components, mechanical stability and durability;

5.Machine control by Siemens Touch screen, easy to operate, no downtime at any speed will not be affected.

6.The machine is easy to clean and maintenance, waste collection pan for automatic collection of waste materials, avoid waste.




rotary oven


Rotary Oven


1)Whole stainless steel material,PLC control
2)High heating efficiency,imported burner,heating duct and high quality heat preservation material
3)The temperature can be adjusted automatically
4)Large capacity and suitable for various kinds of baking food
5)Good baking effect, Soft hot aircirculation system,baking product well distributed and wonderful taste
6)Suitable for individual baking house, food processing plant, supermarket, department, units and others.





mould

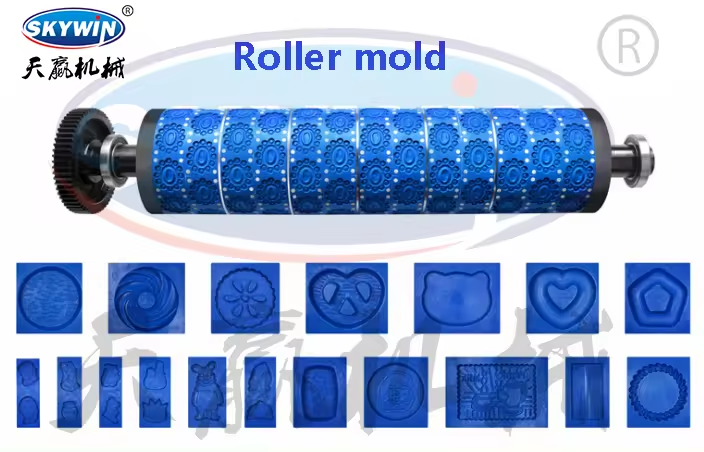

Customized Hard And Soft Biscuit Mould

Use for all kinds of hard and soft biscuits forming, full brass covered steel cylinder, steel handle coated hard chrome, computer carving biscuit shapes, high quality food grade, NSK bearing, the different shapes can be design as customer's requested.
