Hello Panda-style biscuits—typically small, shaped short dough biscuits with a sweet cream filling—occupy a distinctive segment in the biscuit market. Unlike plain crackers or sandwich biscuits, these products combine three elements that require careful coordination: a characteristic panda (or other animal) embossing on one side, a hollow interior for cream injection, and a crisp yet tender texture. The difference between a visually appealing, consistent product and one with defects often lies in how well the forming, baking, and filling stages are integrated and controlled.

For manufacturers seeking to produce such shaped cream biscuits—or to run both these and laminated crackers on the same line—a flexible production system may offer advantages. The Skywin Hello Panda Biscuit and Cracker Biscuit Production Line Machine is designed to accommodate both short-dough shaping and laminated cracker processing within a modular framework.

The Foundation: Understanding Two Dough Systems

A line capable of producing both Hello Panda-style biscuits and laminated crackers typically handles two fundamentally different dough types.

Short Dough for Shaped Biscuits

• Higher fat content (approx. 25–35%) and sugar (20–30%)

• Lower water absorption

• No fermentation; relies on creaming for texture

• Dough is crumbly, not elastic—suitable for rotary molding or stamping

Laminated Dough for Crackers

• Lower fat (8–15%) and minimal sugar

• Higher water content and yeast or chemical leavening

• Requires fermentation and lamination to create flaky layers

• Dough is elastic and extensible

A well-designed production line may allow changeover between these dough types, though the transition may require adjustments to sheeting, forming, and oven parameters.

Stage One: Dough Preparation for Shaped Cream Biscuits

For Hello Panda-style biscuits, the process often begins with a creaming stage, where fat and sugar are mixed before flour addition. This method limits gluten development, resulting in a tender, short texture.

The typical formulation includes:

• Flour (moderate protein, 8–10%)

• Sugar (fine granulation for even distribution)

• Fat (shortening or butter, at room temperature for proper creaming)

• Leavening agents (sodium bicarbonate and ammonium bicarbonate)

• Milk solids or flavorings (vanilla, cocoa for darker biscuits)

• Water (added gradually to achieve a cohesive dough without over-hydration)

Mixing continues until the dough forms a uniform mass but is not over-worked. Over-mixing in short dough may lead to gluten formation, producing tougher biscuits.

Stage Two: Forming – Rotary Molding vs. Sheeting and Cutting

Shaped biscuits like Hello Panda rely on precise embossing. Two primary methods are available:

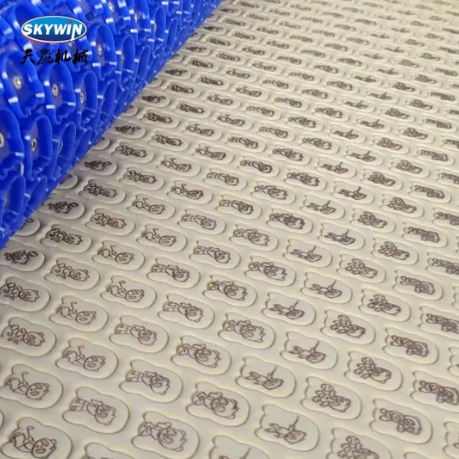

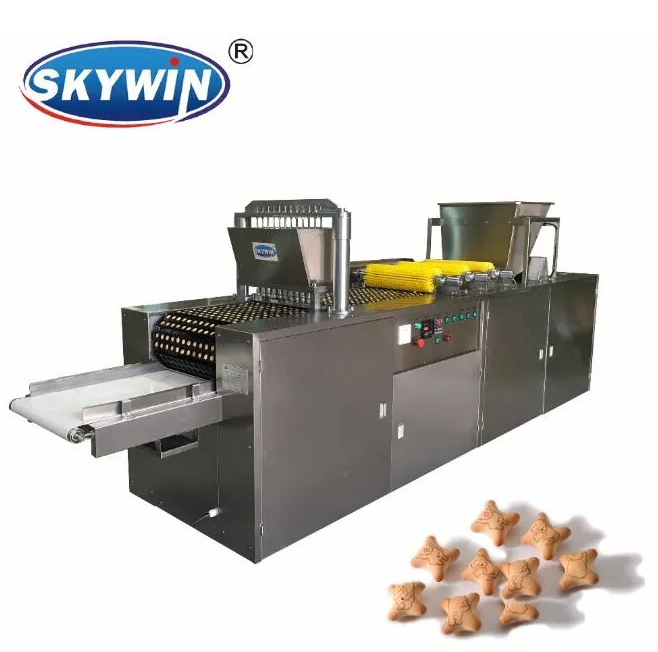

Rotary Molding

• Dough is pressed into a mold roll that carries the panda (or other) pattern

• A pressure roll ensures dough fills the cavity completely

• A scraper or rubber roll removes excess dough

• The formed biscuit is ejected onto the oven band

This method produces consistent shape and pattern depth. It may be preferred for high-volume runs of a single design.

Sheeting and Rotary Cutting

• Dough is sheeted to uniform thickness (typically 3–8mm)

• A rotary cutter stamps individual shapes, often with an embossing plate for the panda face

• Scrap dough is lifted and returned to the mixer

This method offers more flexibility for changing shapes but may generate more scrap.

The Skywin production line can be configured with either forming station, depending on the manufacturer’s product mix.

Stage Three: Cream Injection – Filling the Hollow Cavity

One characteristic of Hello Panda-style biscuits is a cream filling injected after baking, not before. The baked biscuit shell contains a hollow interior created during forming and baking.

Injection Process

• After cooling, biscuits align on a conveyor

• A nozzle pierces the biscuit (often from the bottom or side) and deposits a precise amount of cream

• The cream may be chocolate, milk, strawberry, or other flavors

• The small puncture hole typically closes or becomes inconspicuous after cooling

Key parameters for consistent injection include:

• Cream viscosity (temperature-controlled hopper and jacketed pump)

• Injection pressure and dwell time

• Biscuit shell integrity (cracks may lead to leakage)

• Alignment accuracy (misalignment may cause off-center filling)

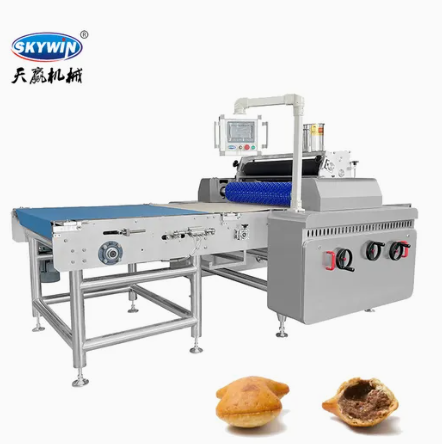

The Skywin cream injection module can be integrated downstream of the oven and cooler, with adjustable nozzles for different biscuit sizes.

Stage Four: Laminated Cracker Production on the Same Line

For manufacturers who wish to produce laminated crackers (e.g., cream crackers, soda crackers) on the same equipment, the Skywin line includes a separate lamination section that can be engaged when needed.

Fermentation (for Crackers)

• Yeast-based dough undergoes bulk fermentation (typically 4–12 hours depending on temperature)

• Enzymes modify gluten, reducing elasticity and improving sheeting properties

• Flavor develops through organic acids and esters

Lamination

• A dough sheet receives a thin layer of fat (shortening or margarine)

• The sheet is folded (usually three-fold) and reduced through multiple roller pairs

• The process repeats to create 16–64 layers

• Laminated dough is then sheeted to final thickness before cutting

Cutting and Docker Holes

• For crackers, a rotary cutter cuts square or rectangular shapes

• Docker pins perforate each piece to control expansion during baking

Baking (Common to Both Product Types)

• Multi-zone oven with temperature profiling (initial high heat, moderate middle zones, lower drying zones)

• Steam injection in the first zone may be used for crackers to prevent premature crust formation

• For shaped biscuits, the oven profile is adjusted to set the pattern without excessive spread

The Skywin line’s oven is designed with zone-independent temperature control, allowing operators to switch profiles based on the product being run.

Stage Five: Cooling and Packaging Integration

After baking, both product types require controlled cooling to stabilize texture and prevent moisture condensation.

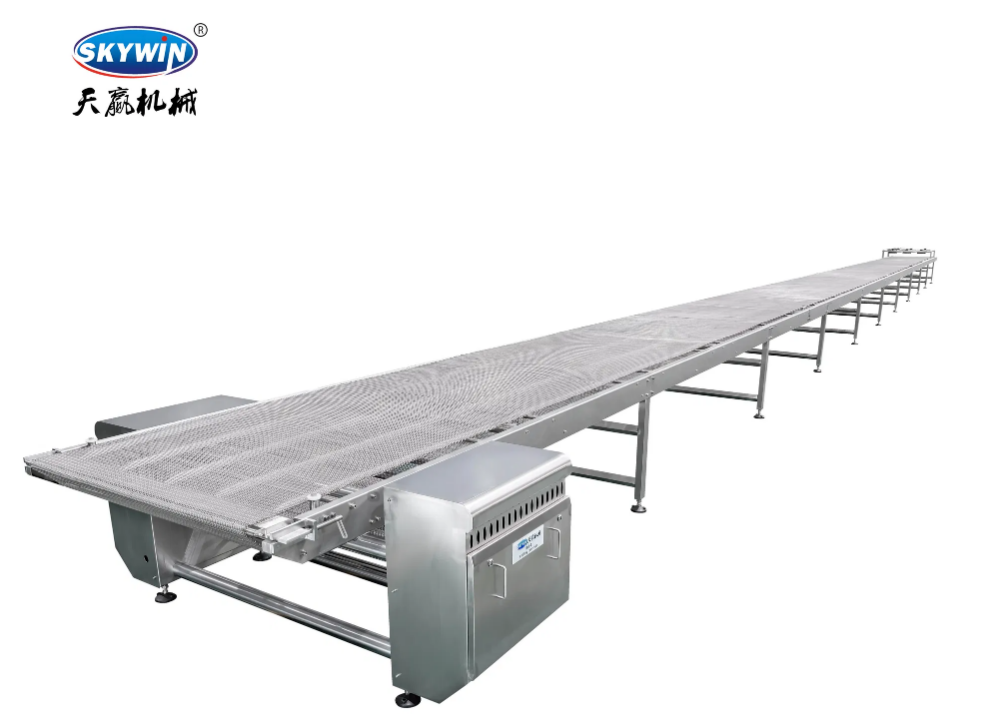

• Cooling conveyor: Ambient or forced-air cooling to bring biscuit temperature down to near room temperature before cream injection (for shaped biscuits) or packaging (for crackers)

• Metal detector/checkweigher: Optional but recommended for quality assurance

• Packaging station: Flow-wrapper or bagging machine suitable for the biscuit size and stack pattern

The Skywin line can be extended with modular packaging equipment, though packaging solutions are typically specified separately based on the manufacturer’s requirements.

Why Line Integration Matters for Diverse Biscuit Portfolios

Manufacturers who wish to produce both shaped cream biscuits (like Hello Panda) and laminated crackers face a choice: invest in two dedicated lines or one flexible line. A flexible line may reduce capital expenditure and floor space, but it requires careful design to handle two different dough behaviors, forming methods, and baking profiles.

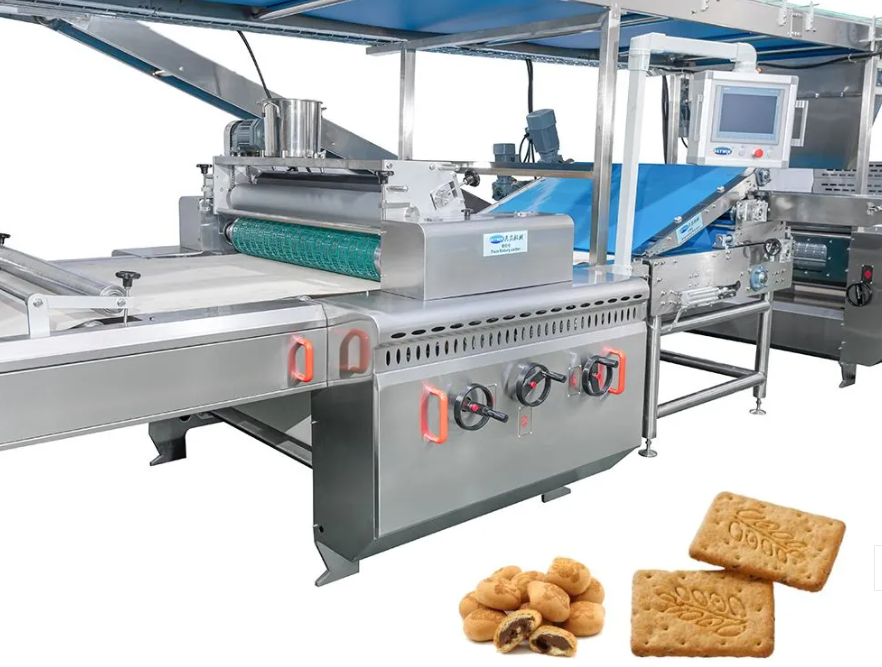

The Skywin Hello Panda Biscuit and Cracker Biscuit Production Line Machine adopts a modular architecture:

• Interchangeable forming stations (rotary molder for shaped biscuits; sheeting/laminator for crackers)

• Shared oven with programmable zone profiles

• Optional cream injection module that can be bypassed for cracker runs

• Centralized control system storing recipes for different products

This approach may help small to medium producers respond to market demand without over-investing in dedicated equipment.

Operational Considerations for Consistent Quality

To achieve repeatable results across both product types, operators may need to observe several practices:

• Dough temperature monitoring: Short dough should remain cool (below 25°C) to prevent fat smearing; laminated dough requires controlled fermentation temperature.

• Forming pressure adjustment: Excessive pressure in rotary molding may cause dough flash; insufficient pressure leads to incomplete pattern definition.

• Oven profile validation: Each product type benefits from a trial bake to establish zone temperatures and bake time.

• Cream viscosity checks: For filled biscuits, cream consistency should be verified at the start of each production run.

• Changeover cleaning: Residual short dough in the laminator, or cracker dough in the rotary molder, may affect product quality; a thorough cleaning between product types is generally recommended.

Preventive maintenance—including roller calibration, belt tracking, and nozzle cleaning—may help reduce unplanned downtime.

The Role of Equipment Design in Product Differentiation

In the competitive biscuit market, product differentiation often comes from shape, filling, and texture. A production line that supports both embossed, cream-filled biscuits and laminated crackers gives a manufacturer more options for portfolio expansion. However, no single line performs equally well for all products without trade-offs. The Skywin line’s design philosophy prioritizes adjustability and modularity, allowing manufacturers to configure the line for their primary product while retaining the capability for secondary runs.

For manufacturers considering entry into shaped cream biscuits or looking to consolidate two product families onto one line, the Skywin Hello Panda Biscuit and Cracker Biscuit Production Line Machine may offer a practical starting point.

Skywin’s engineering team specializes in biscuit manufacturing equipment and provides application support based on specific production requirements. Contact Skywin for a consultation to discuss line configuration, output expectations, and product specifications.
