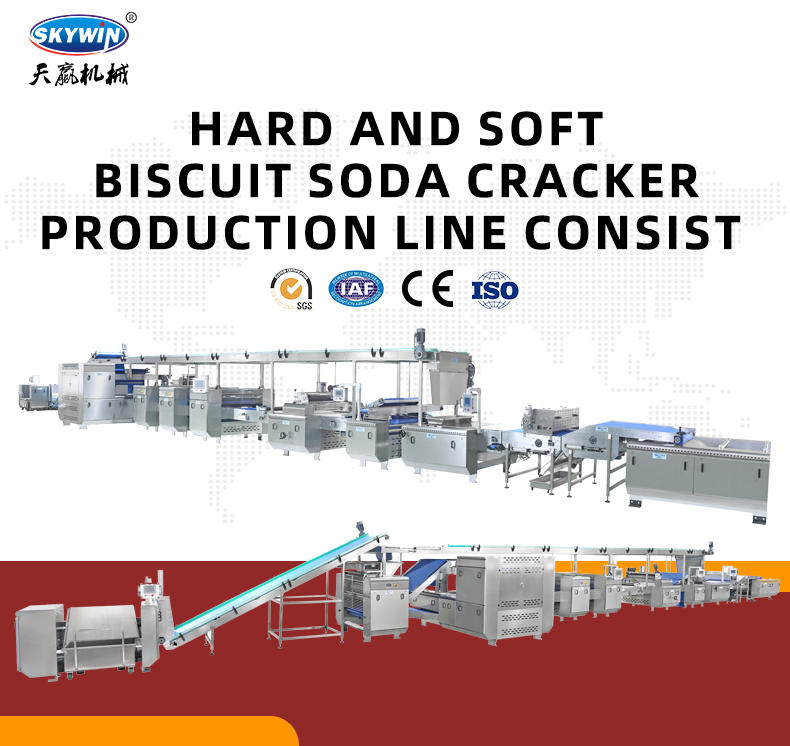

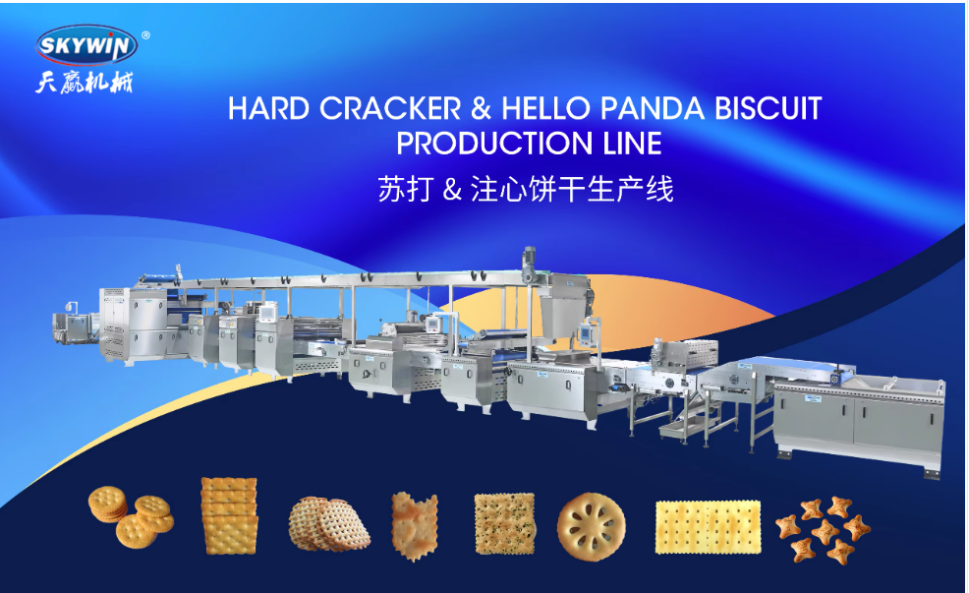

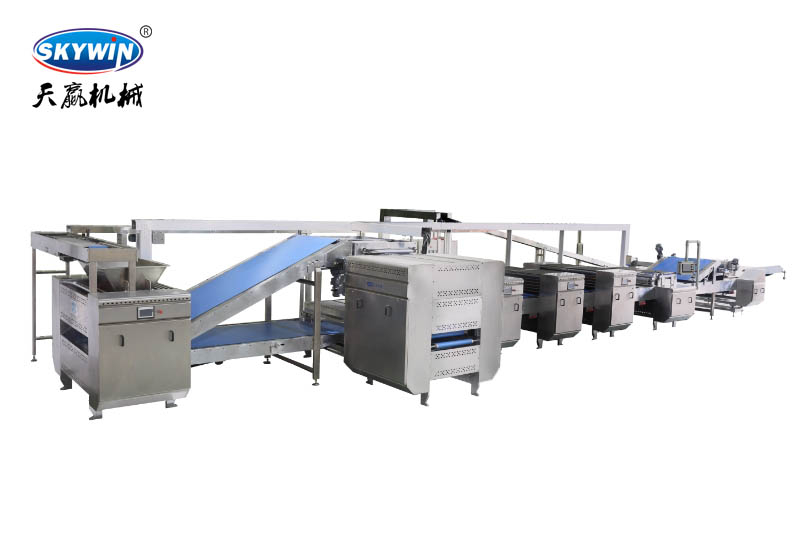

Mybake brand is our high-end series of automatic biscuit cookie lines
Product Information:
Application:
1. Reliable performance, stable operation, long service life.
2. All motor, electrical equipment, PLC, bearing adopts international and Chinese famous brand.
3. Reasonable layout, compact structure, small occuption, the body length of the baking oven is only 2/3 of the same type of product.
4. High automatic, stand-alone machine can be controlled separately, simple operation and easy maintenance.
5. High demoulding rate and finished product rate of no less than 98%.
6. Sepecial energy conservation design, low energy cost, can reduce pollution to an extreme.
7. Material is comply with food hygiene standard, all parts which is connected with food are adopt stainless steel.
The machine is used for dough mixing.After the kneading,rolling and folding process,Dough has a smooth surface with good elasticity,toughness and extensibility.It is suit for both hard and soft biscuits.
The mixing bearing is designed that seal is separated from the bearing to prevent the grease from contaminating the dough in case of broken seal.

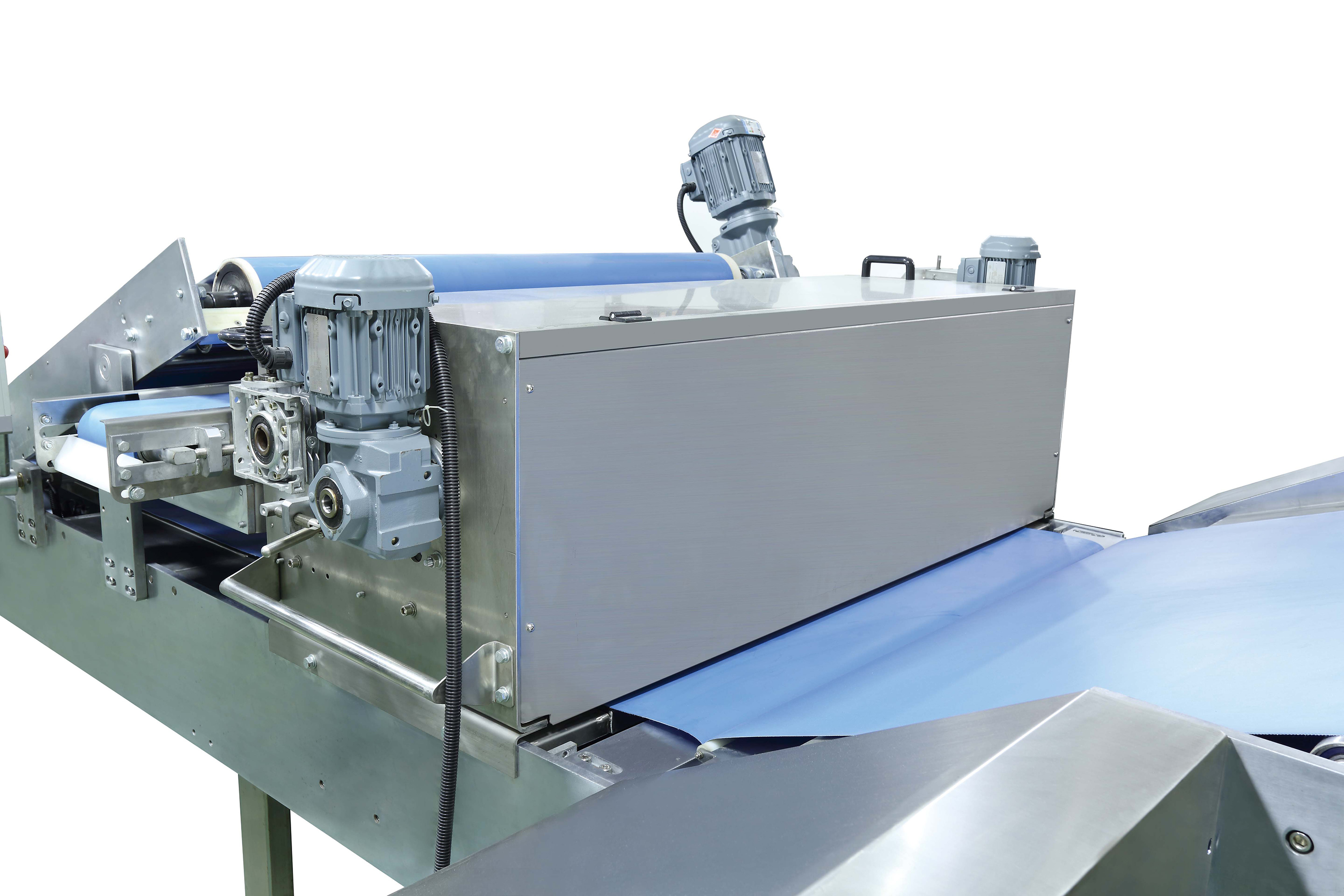

Three-roll combination Pre-sheeter
Function: Press the dough twice in one roller
1. With feeding Hopper
2.304 Stainless steel
3.Gauge roller 3pcs
4.Independent Motor drive Conveyor and Chain.
5.Conveyor belt has pneumatic tension and deviation, AirTAC cylinder
6.Dough sheeting thickness can be adjust.
7.Digital display sheet thickness

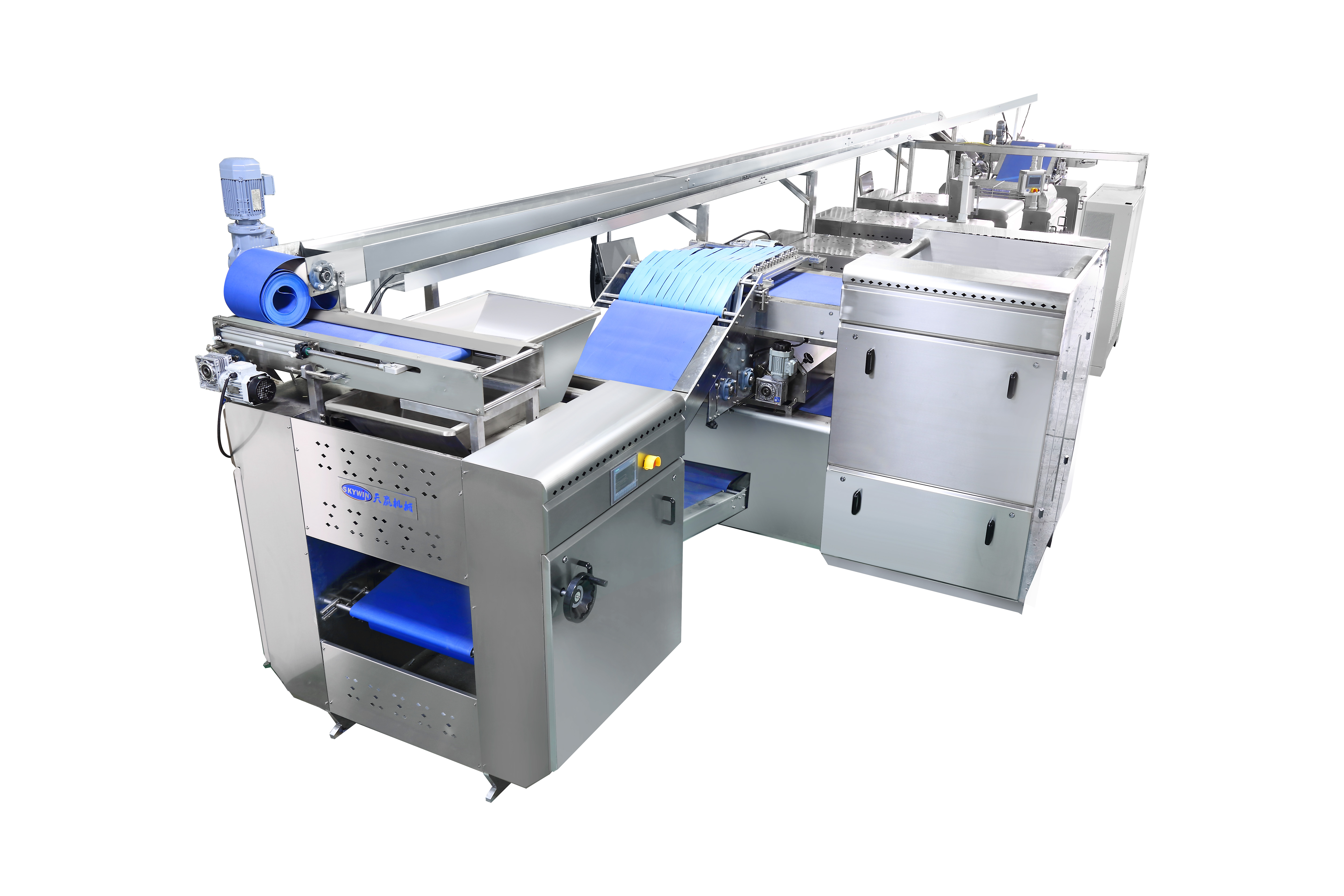

Laminator (included flour duster)
Function:Continuous pressing and laminating ; Step :Press dough--Spray--Reciprocate fold 1.Gauge rolls quantity 4pcs
1. Dough sheeting thickness can be adjusted in 1-25mm
2. Sheet cutting and laminating 4-12layers
3. Digital display the thickness of sheet
4. Cutting sheet device controlled by Pneumatic device
6.Sheet cutting position can be adjustable
7.Siemens inverter and PLC touch screen
8.Emergency stop switch
9.Machine cover 304 Stainless steel

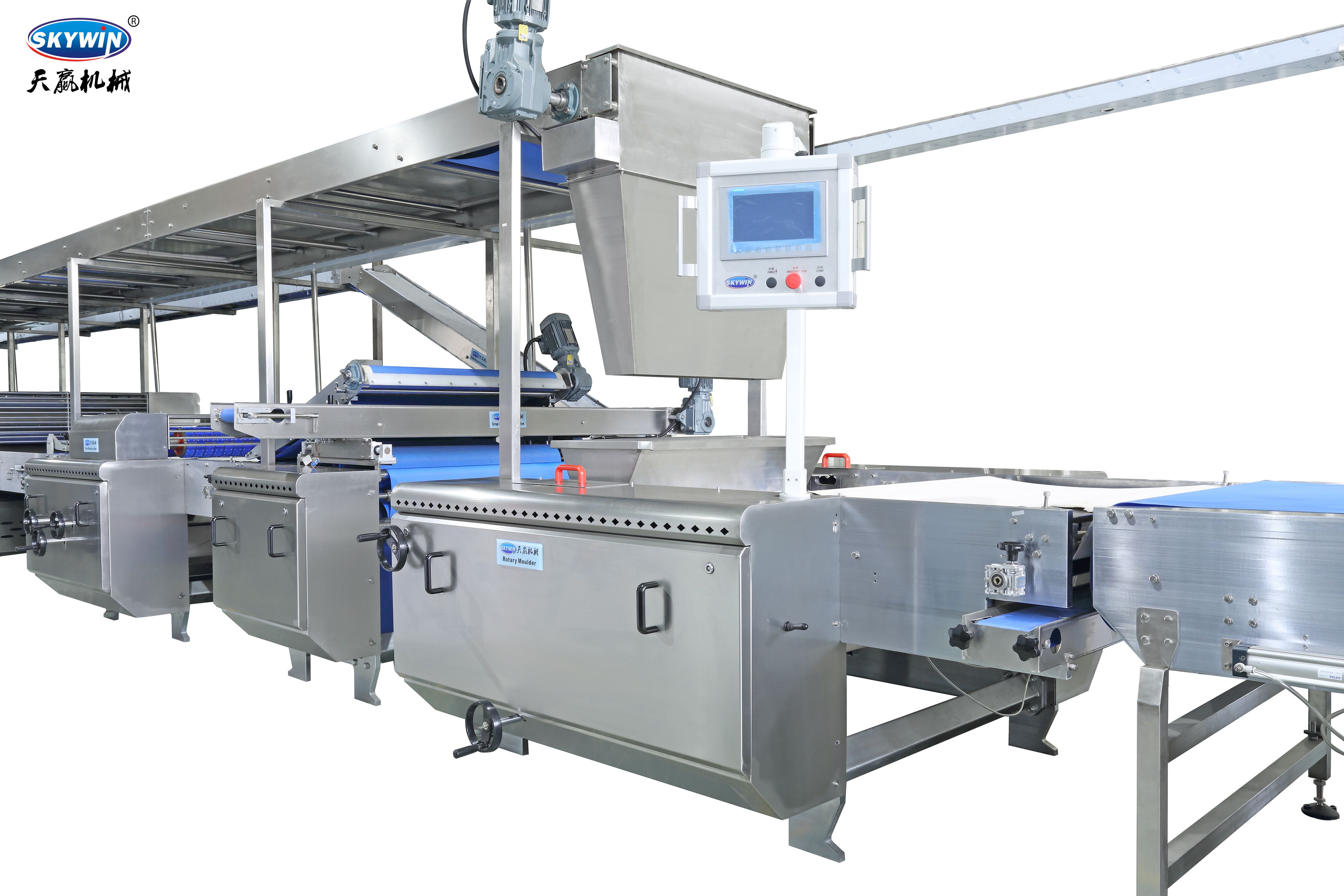

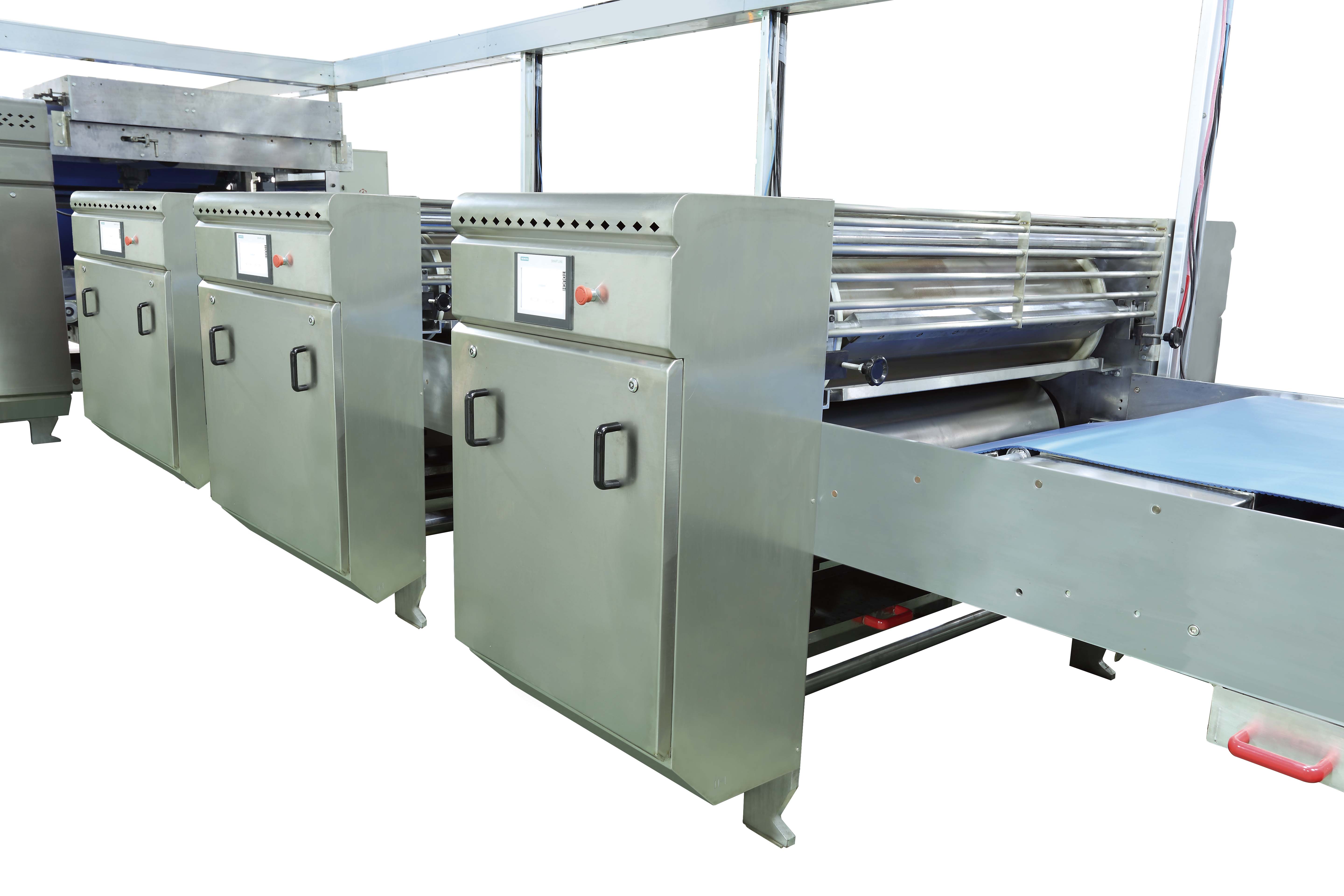

B/C/D Gauge Roll
Function:Press the dough three times
1. With independent driver and speed control
2. PU belt has guides groove
3. Smooth type Gauge roller
4. Roll material is Alloy, hardness 55-60
5. Siemens inverter and PLC touch screen
6. Machine cover 304 Stainless steel
7. Dough sheeting thickness can be adjust
8. Digital display sheet thickness
9. Safety cover on top of Gauge roll
Rotary Cutter
1.With independent driver and speed control
2.Forming mould can be installed printing mould and cutting mould separately
3.Rotary cutting mould diameter 200mm
4.Siemens inverter and PLC touch screen
5.Machine cover 304 Stainless steel
6.Safety cover.

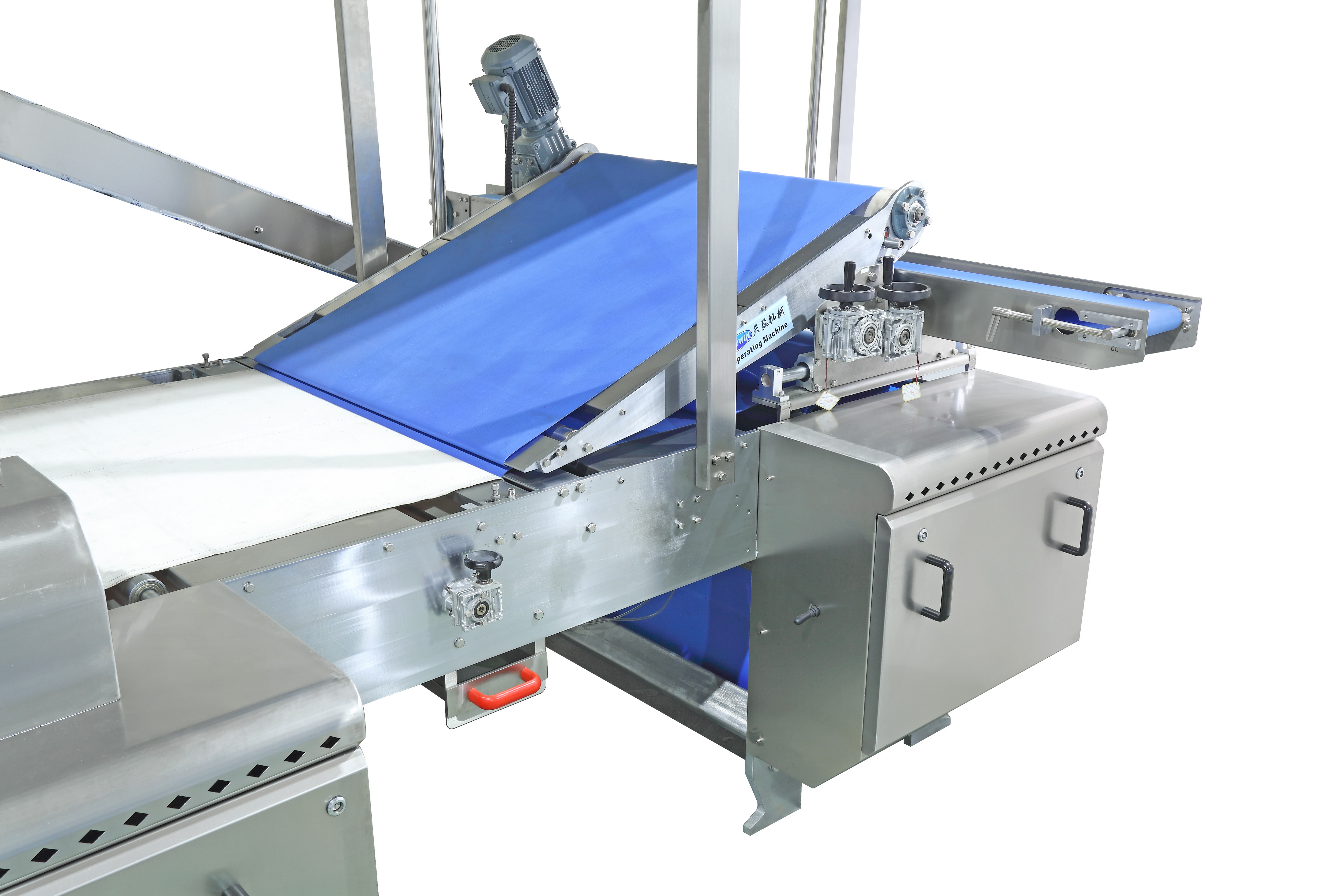

Separating and Scrap side return system
Function:Separate scraper and forming biscuit
1.Food grade PU conveyor belt with guides groove
2 .Driver rubber roller 5pcs
3.Full 304 stainless steel frame
4.Pneumatic device automatic tracking and tension
5.Siemens inverter and PLC touch screen
6.Chinese brand motor and gearbox
7.Main bearing Chinese brand,other small use NSK
*Adjusted by handwheels
*Speed control by frequency inverter
*Siemens PLC touch screen
*Main drive Shuangwei motor
*Large bearings adopt Harbin or Luoyang brand, other bearings SKF/NSK *304 Stainless steel cover
*Motors & GearBox: 2sets
Salt & Sugar sprinkler
Spread evenly a layer of salt, sugar, sesame, and nut chips on the surface of the biscuit
Tunnel Oven For Biscuits:
1.Designed with special fire pipes configuration, the products are baked evenly.
2.Applied with the protective devices for flame out alarm and protection, forced ignition and auto on-off of solenoid valve, the operation is ensured more safe.
3.The outer frame is made of stainless steel and the inner body made of food grade aluminum-coated plate. All materials are durable GB profiles, meeting the food hygienic requirement.
4.Quality thickened insulation material is used to save energy.
5.Imported electrical units are used to ensure stable performance, reliable quality and low failure.
6.Easy-to-use human-machine touch screen is for option.
7.Coordinated with production line, it can save manpower and resources, improving the production efficiency and capacity.
