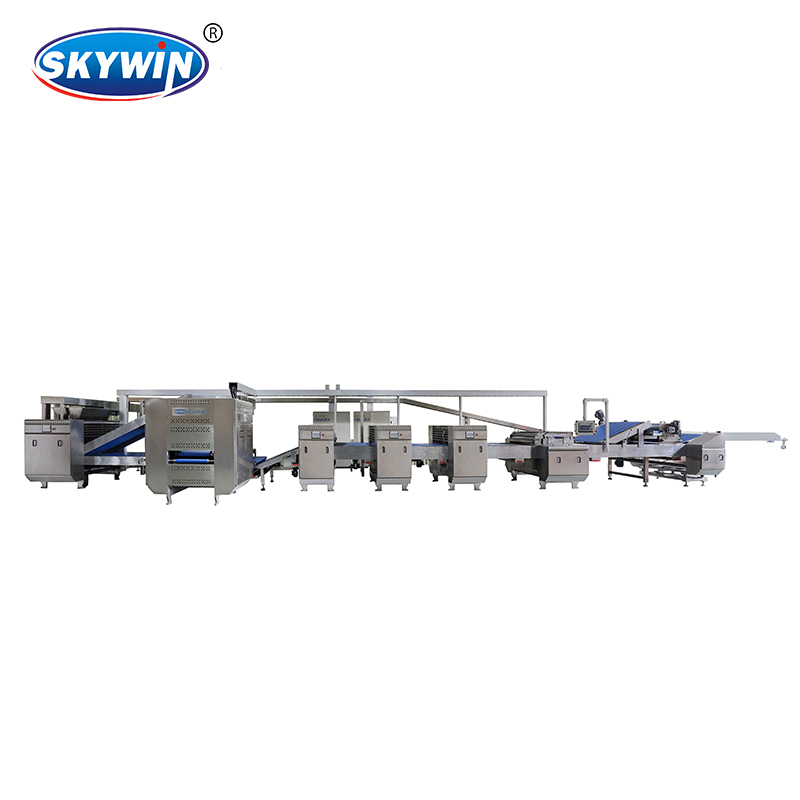

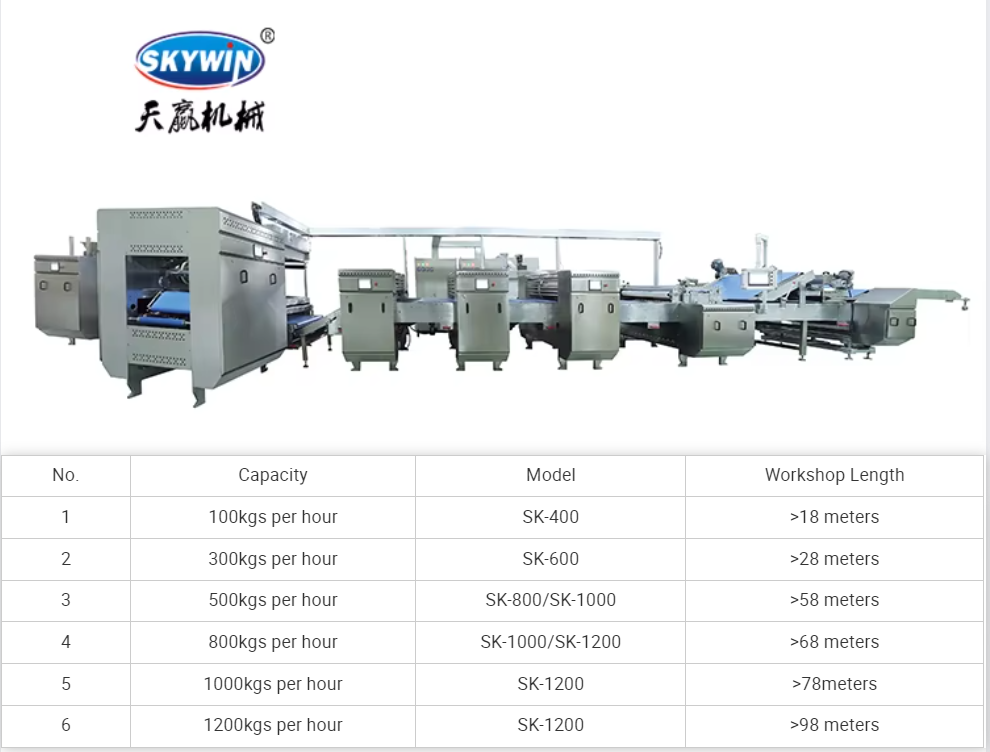

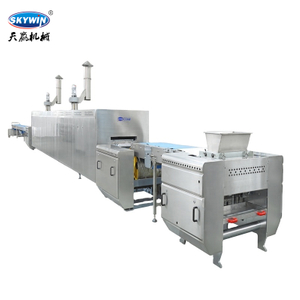

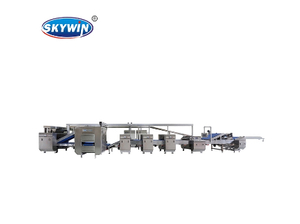

Hot Sale Hello Panda Biscuit Production Line Automatic Machine for Making Biscuit
A whole line consist of:
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Printing and Rotary cutter for Hello Panda biscuit forming
4.Salt and Sugar Sprinkle
5.Tunnel oven: electric, indirect gas fried or hybrid gas oven for option
6.Oil spraying machine
7.Turning machine 180° or 90° design as per the plant length
8.Cooling conveyor
9.Stacking machine (start wheel stacker or penny stacker)
10. Injection machine
Horizontal dough mixer
Function: Mix the dough Features: After mixing, dough’s surface would be smooth, flexible and extensible.
1. Suitable for soft and hard biscuit dough
2. Mixing blade is 304 Stainless steel
3. Bowl covered by 304 Stainless steel
4. Tipping by Hydraulic pressure
5. Capacity:150,250,300,500,750kg types.(Other type can be customized)

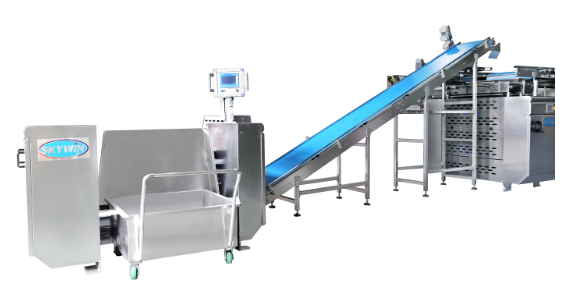

Dough tipper and feeding system
Function: Tip and cut the dough, pour the dough into the hopper
1. Model in 250,500
2.Hydraulic pressure tilting
3.Double safety travel switch

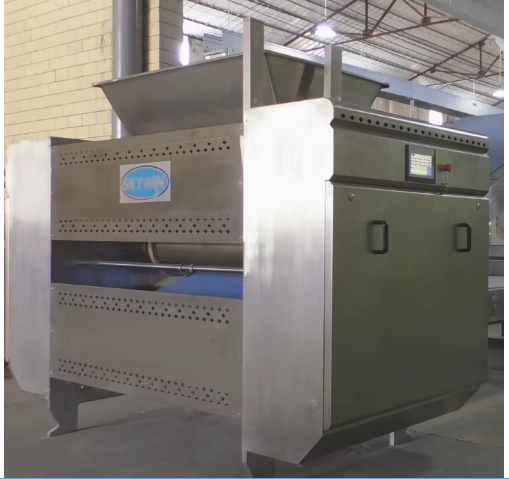

Three-roll combination Pre-sheeter
Function: Press the dough twice in one roller
1. With feeding Hopper
2.304 Stainless steel
3.Gauge roller 3pcs
4.Independent Motor drive Conveyor and Chain.
5.Conveyor belt has pneumatic tension and deviation, AirTAC cylinder
6.Dough sheeting thickness can be adjust.
7.Digital display sheet thickness

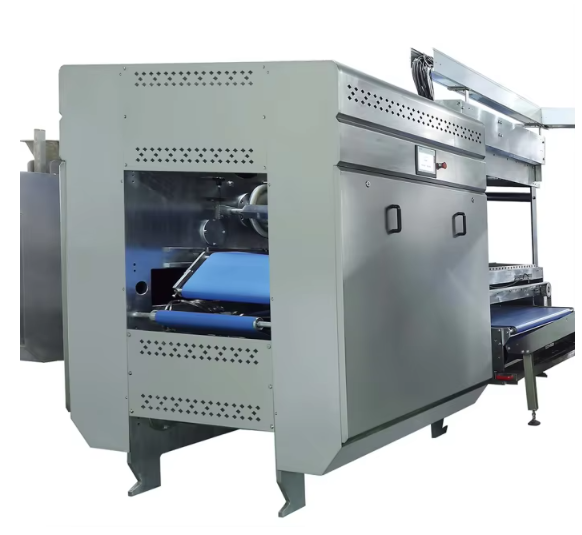

Laminator (included flour duster)
Function:Continuous pressing and laminating ; Step :Press dough--Spray--Reciprocate fold 1.Gauge rolls quantity 4pcs
2. Dough sheeting thickness can be adjusted in 1-25mm
3. Sheet cutting and laminating 4-12layers
4. Digital display the thickness of sheet
5. Cutting sheet device controlled by Pneumatic device
6.Sheet cutting position can be adjustable
7.Siemens inverter and PLC touch screen
8.Emergency stop switch
9.Machine cover 304 Stainless steel

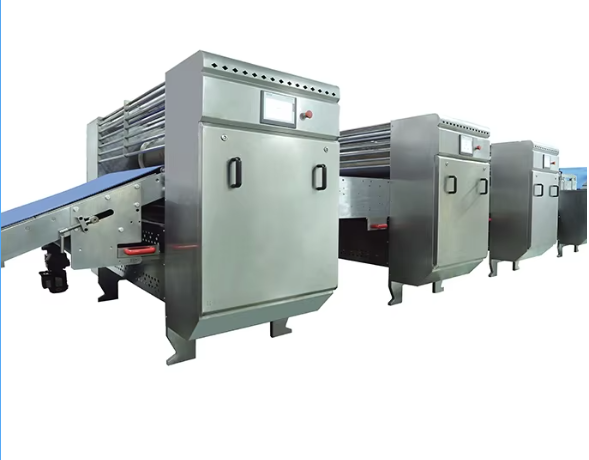

B/C/D Gauge Roll
Function:Press the dough three times
1. With independent driver and speed control
2. PU belt has guides groove
3. Smooth type Gauge roller
4. Roll material is Alloy, hardness 55-60
5. Siemens inverter and PLC touch screen
6. Machine cover 304 Stainless steel
7. Dough sheeting thickness can be adjust
8. Digital display sheet thickness
9. Safety cover on top of Gauge roll

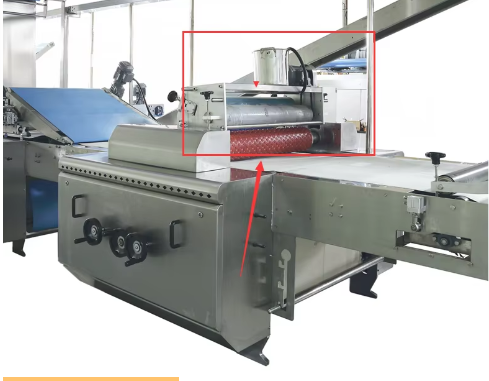

Function: Using food caramel as printing color on the surface of dough before biscuit forming,
1. Apply caramel on surface of biscuit dough sheeting and cutting.
2. Printing mould and cutting mould are Synchronization running, to make sure the printing dough forming shape match to the cutting shape, to get perfect biscuits like printed biscuits, hello panda biscuits, cocomo biscuits,etc.
3. Linear speed: 5-25m / min
4. Main materials: 1 0.25kw six pole speed regulating motor (manual

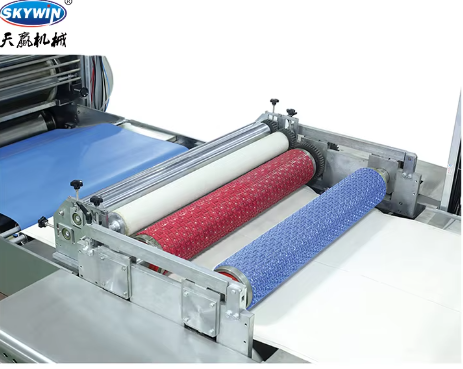

Rotary Cutter
1.With independent driver and speed control
2.Forming mould can be installed printing mould and cutting mould separately
3.Rotary cutting mould diameter 200mm
4.Siemens inverter and PLC touch screen
5.Machine cover 304 Stainless steel
6.Safety cover.

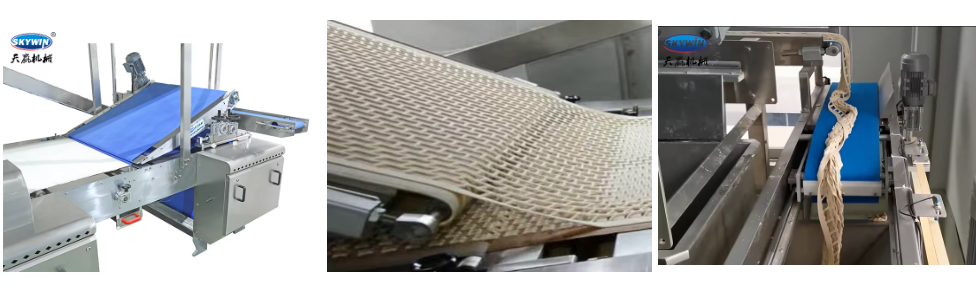

Separating and Scrap side return system
Function:Separate scraper and forming biscuit
1.Food grade PU conveyor belt with guides groove
2 .Driver rubber roller 5pcs
3.Full 304 stainless steel frame
4.Pneumatic device automatic tracking and tension
5.Siemens inverter and PLC touch screen
6.Chinese brand motor and gearbox
7.Main bearing Chinese brand,other small use NSK

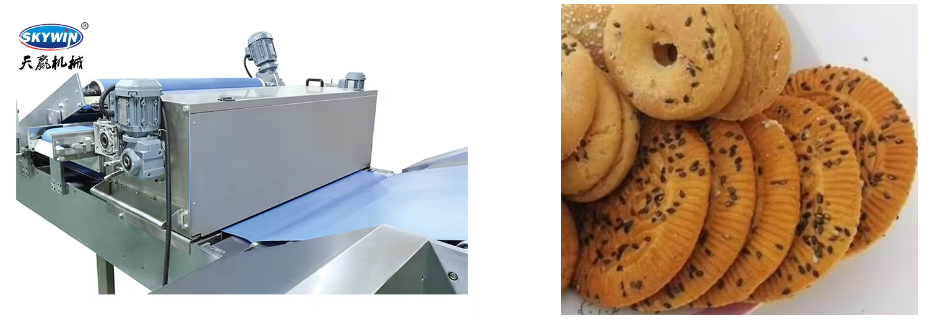

Salt & Sugar sprinkler
Spread evenly a layer of salt, sugar, sesame, and nut chips on the surface of the biscuit

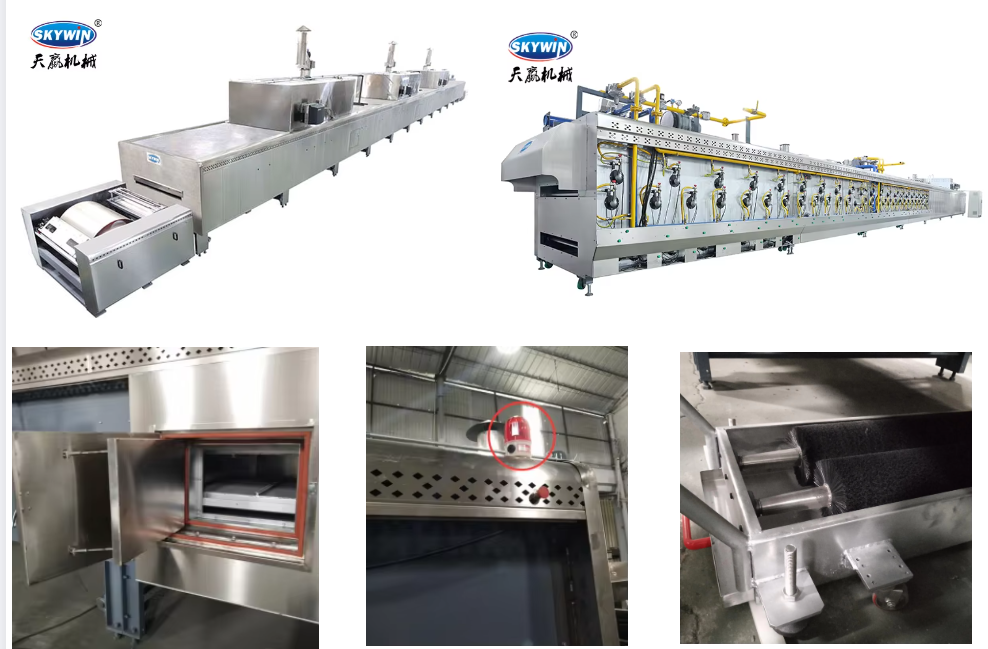

Gas Tunnel Oven
1. Pneumatic automatic tracking and adjust belt and tension China Taiwan AirTAC brand and Panasonic Sensors
2. Oven cover by 304 Stainless steel, 1.2mm thickness
3. Heat resistant material: Insulation is made of high quality rock wool and aluminium silicate fibre 4.With endless hand-wheel at the out-let of oven in case electricity power off, can be move out the biscuit in the oven chamber, to protect oven.
5.The oven is suitable for Cracker biscuits, common kind biscuits, each burners can be individual control and general control. PLC memory system for easier operation.
6.Each Temperature Zone has viewing window(as the third picture showed), can clearly see biscuit,and also have cleaning window,can open and clean the inside oven body.
7.Have alarm device,when the temperature too height,it will be auto alarming.
8.Belt Clean Machine to strips the scrap biscuits from the mesh belt for long life using

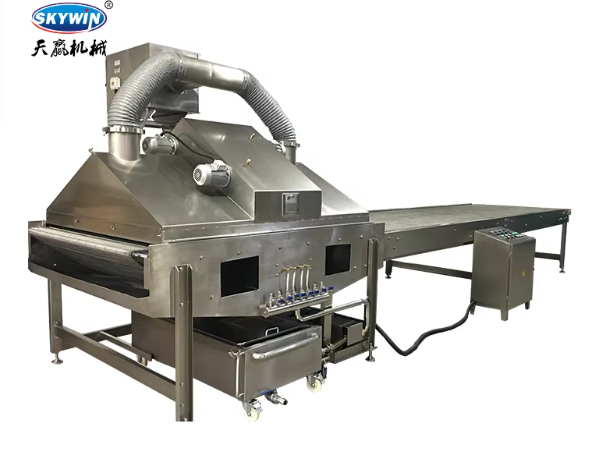

Oil sprayer
1. Disc type oil spray machine
2. Disc number 14pcs, top 8 + bottom 6
3. Independent frequency inverter control
4. Stainless steel mesh belt
5. Multi-layer oil filtering
6. Oil tank is made by 304 Stainless steel
7. Oil tank was heated by hot water, improving situation of oil go bad.
8. Full 304 stainless steel frame

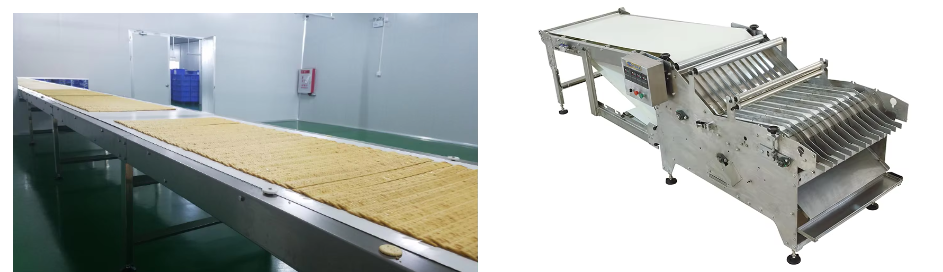

Cooling and stacking parts:

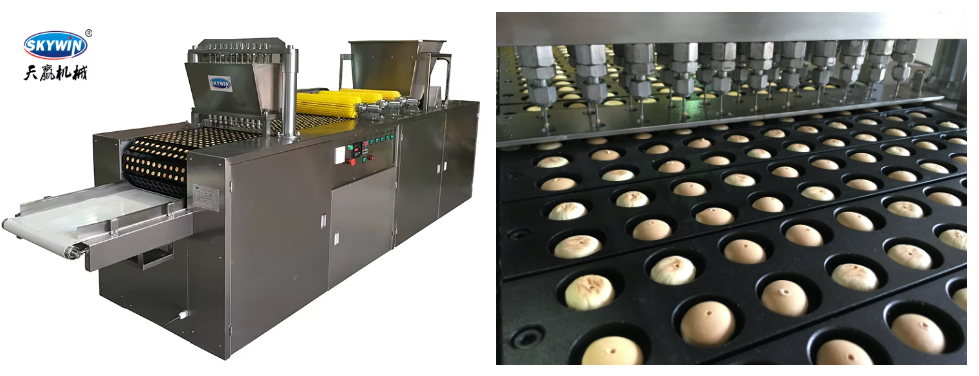

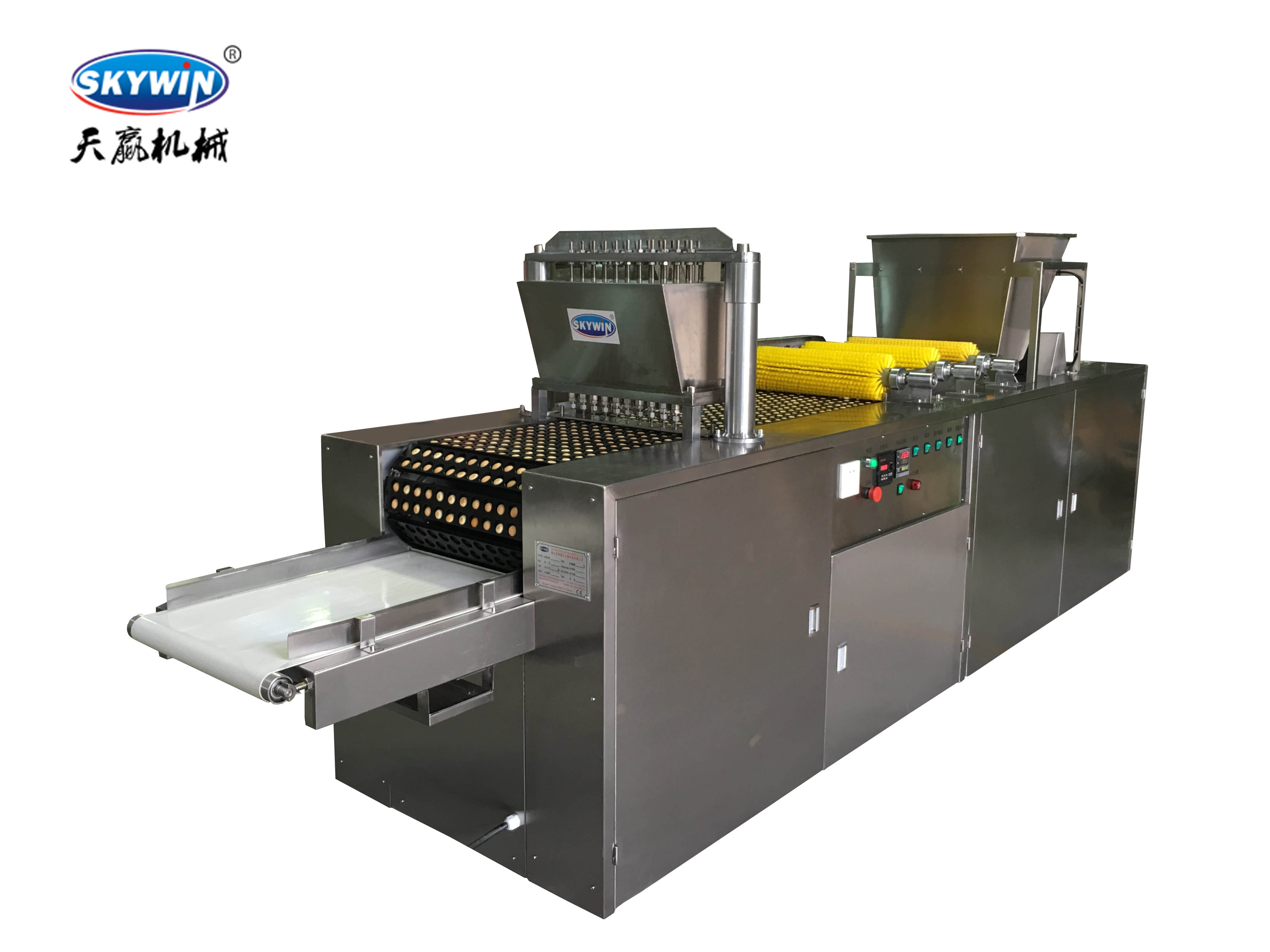

Injection machine:
The Chocolate injection machine is a kind of continuous feeding automation equipment. 1.Through vibrating hello panda biscuits, automatic feeding, injection chocolate/cream, unloading and continuous process, greatly improve the production efficiency.
2. Adopts frequency conversion motor, the user can conveniently and flexibly adjust production speed, the use of electrical components and Mechanical transmission parts quality, making equipment, stable performance, low failure rate.
3. Hello biscuits are gently released from Biscuit hopper onto the teflon coated moulds, which are attached onto a chain-conveyor with intermitted movements.
4. Plastic rolling brush rolls the biscuits into individual moulds.
