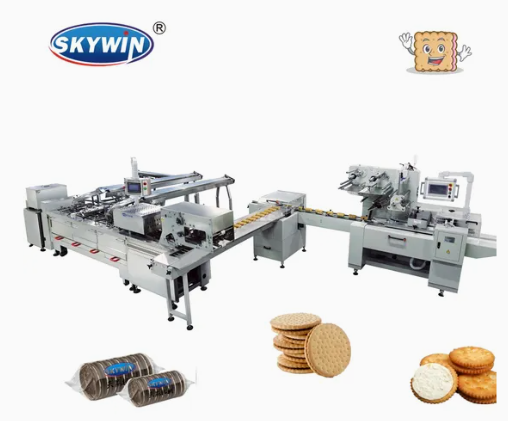

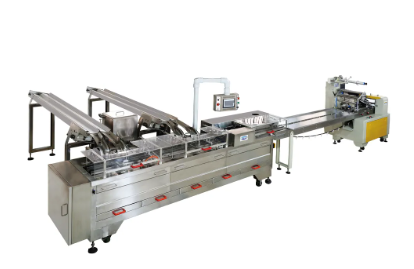

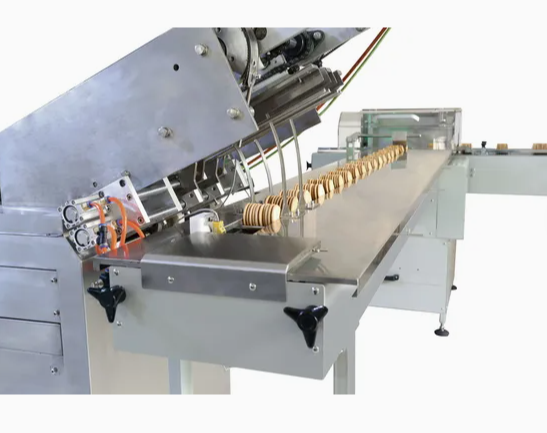

Skywin Two Lanes Sandwich Biscuit Machine with on-Edge Packing Machine

Skywin Two Lanes Sandwich Biscuit Machine with on-Edge Packing Machine

Name: Skywin Two Lanes Sandwich Biscuit Machine with on-Edge Packing Machine
Brand: skywin
Rating: 5.0 (75 reviews)

This fully automated two‑lane production line is engineered for high‑volume manufacturing of cream, jam, or chocolate sandwich biscuits. Seamlessly integrating a high‑speed sandwiching unit with an on‑edge flow wrapper via an automatic conveying system, it delivers up to 1,200 biscuits per minute while drastically reducing manual handling. Designed for operational efficiency and packaging flexibility, this line is the ideal choice for biscuit manufacturers aiming to scale up with consistent quality and lower unit costs.

Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

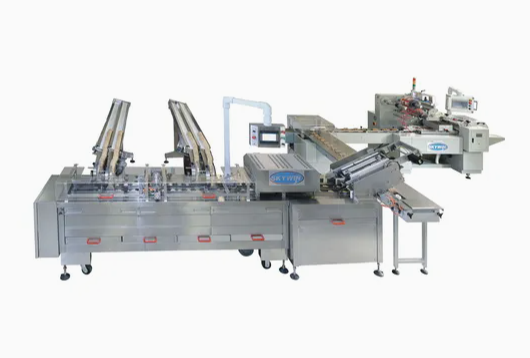

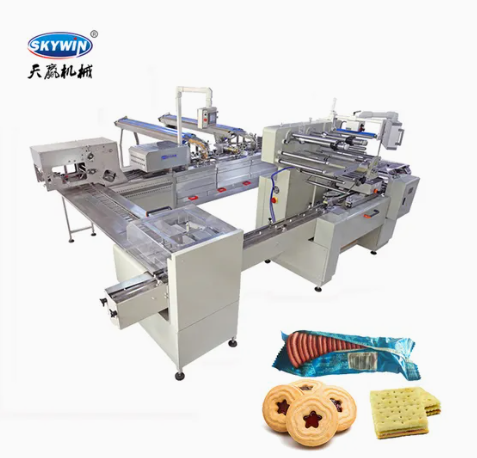

Two Lanes One Color Sandwiching Machine With On Edge Packing Machine
Complete Process Flow
Biscuit feeding → Precise cream/jam/chocolate depositing → Sandwich closing → Dual‑lane merging → Automatic on‑edge/ flow wrapping → Finished product collection.

e9d022f9ce28dd48892515a2b5a68799

Sandwich Biscuit Machine (Main Unit)
Lane / Color Configuration	Two lanes, single‑color filling
Production Speed	800 – 1,200 pcs/min
Biscuit Size Range	Round: Ø35–70 mm; Rectangular: L35–80 × W30–70 mm (Thickness: 4–7 mm)
Power Supply	4 kW, 220V / 50Hz
Machine Weight	1,450 kg

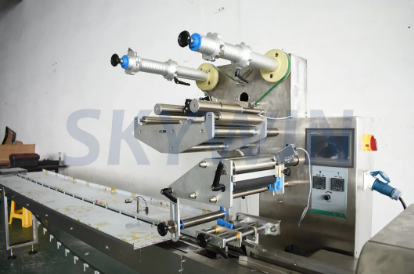

Packaging System – Configuration Options
Option A – Flow packing machine	Option B – On‑Edge Wrapper
Packing Speed: 50 – 200 packets/min	Packing Speed: 30 – 120 bags/min
Bag Size (L×W×H): 70–400 × 32–200 × 5–120 mm	Bag Size (L×W×H): 80–500 × 60–380 × 5–45 mm
Max Film Width: N/A (flexible)	Max Film Width: 370 mm
Power: 3.75 kW, 220V (single‑phase)	Power: 5 kW, 220V (single‑phase)
System Control: OMRON Japan (PLC + Servo)	System Control: OMRON Japan (PLC + Servo)
Film Materials: PVC, OPP, and standard shrink films	Film Materials: OPP, PE, PVC, CPP, PTFE, KOP, Aluminum film, etc.
Floor Space (L×W): 5,400 × 1,085 mm (incl. 5m input conveyor)	Dimensions vary per configuration
