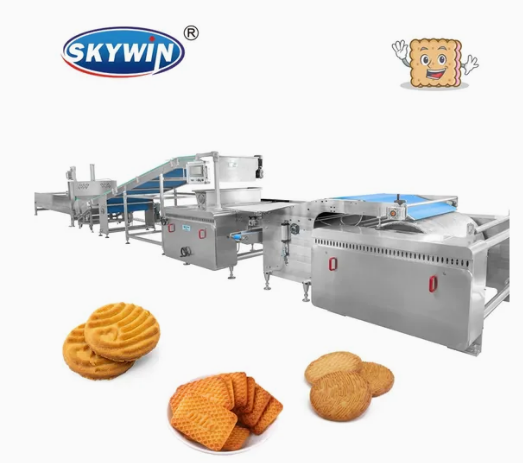

Skywin Automatic Soft Biscuit Production Line Machine for Commercial Manufacturing

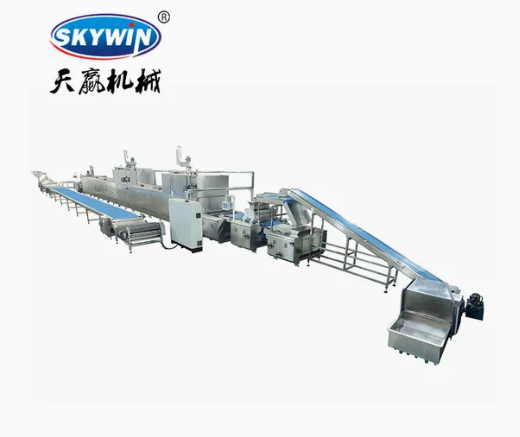

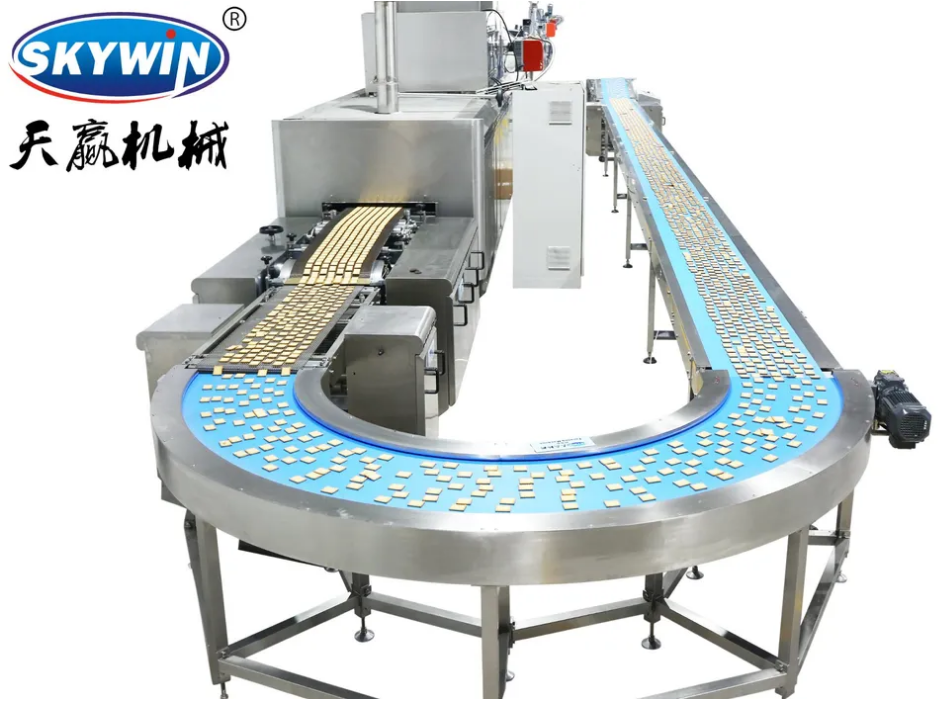

Skywin Automatic Soft Biscuit Making Machine Production Line

General Description

• Endless product variety – change shapes in minutes
  A simple mould swap is all it takes to produce an entirely new biscuit design. Our patented quick‑release mould holder enables tool‑free changeover in under five minutes, drastically reducing downtime between batches. We also manufacture custom moulds to your exact specifications, ensuring your brand identity is baked into every piece.

• Built for continuous, heavy‑duty operation
  Every component – from the mixer to the oven – is engineered for 24/7 commercial use. Robust construction, food‑grade 304 stainless steel, and wear‑resistant drive systems minimise maintenance and maximise your return on investment.

• Energy‑smart tunnel oven – adapts to your local fuel
  Choose electric, gas, or diesel‑oil firing based on the most cost‑effective energy source in your region. High‑density rock‑wool insulation (250 mm sides, 300 mm top, 250 mm bottom) significantly reduces heat loss, cutting energy bills while maintaining perfect baking profiles.

• Fully integrated PLC automation
  The Siemens/Omron touch‑screen control system synchronises all line stages, stores up to 100 recipe profiles, and provides real‑time production data. Operate standalone or link seamlessly with your existing packaging line – consistency is guaranteed shift after shift.

•

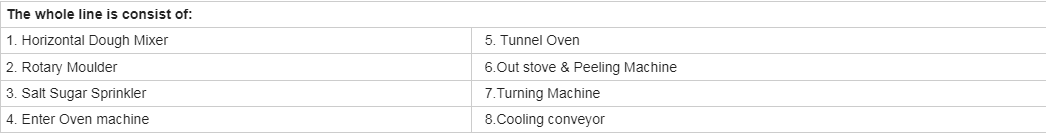

Technical Specifications

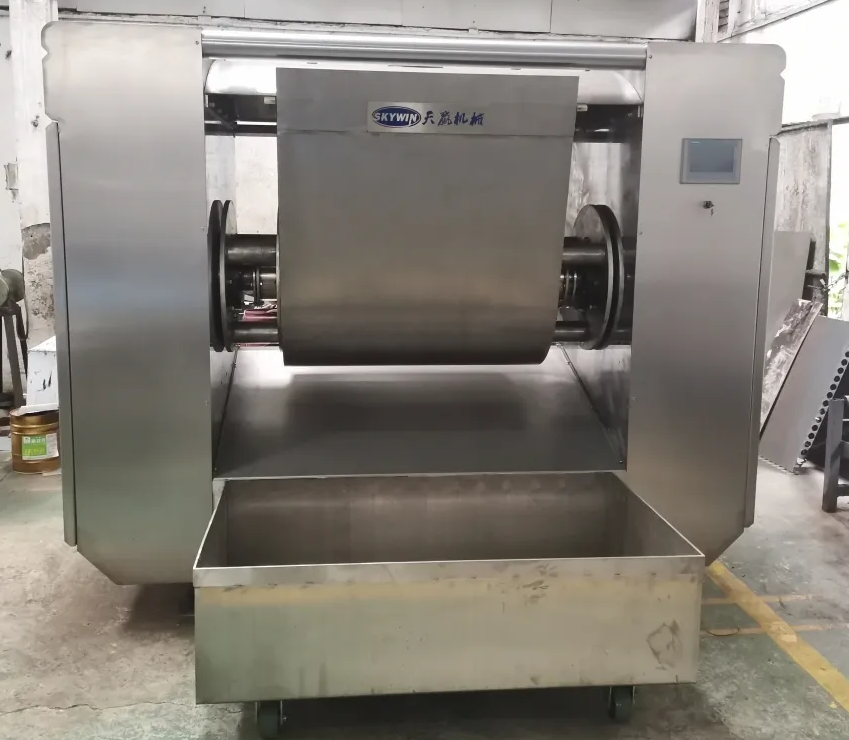

1. Horizontal Dough Mixer
We have different capacities of gauge mixers(150KGS-600KGS). You can choose it accroding to your needs.

2. Dough tipping machine and sending machine

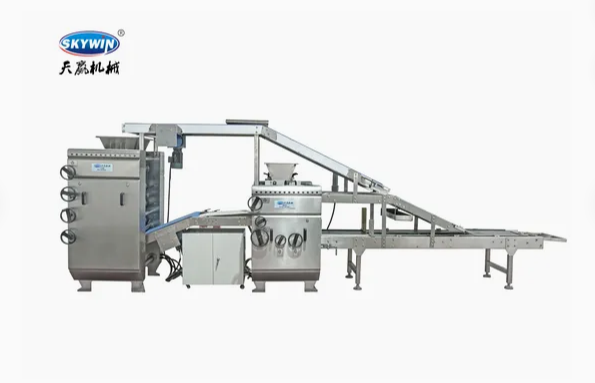

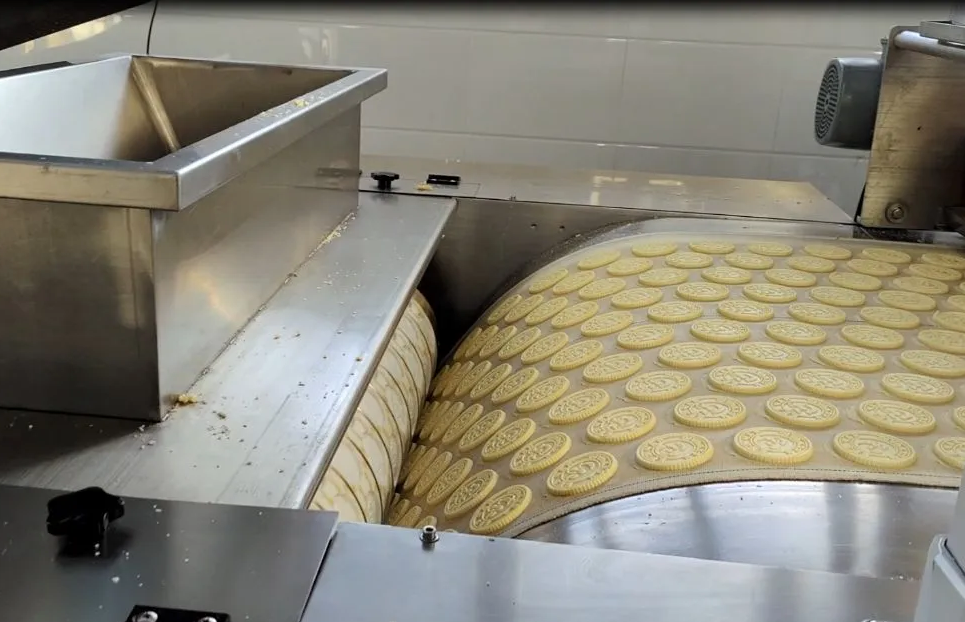

3. Rotary Moulder
The core forming unit – precision‑engraved mould rollers, adjustable gap between feed and mould rollers, and independent left/right rubber‑roller adjustment to correct cross‑line weight deviations. Synchronised conveyor and de‑moulding speeds ensure biscuits release cleanly without tearing or distortion, preserving sharp edges and detailed patterns.

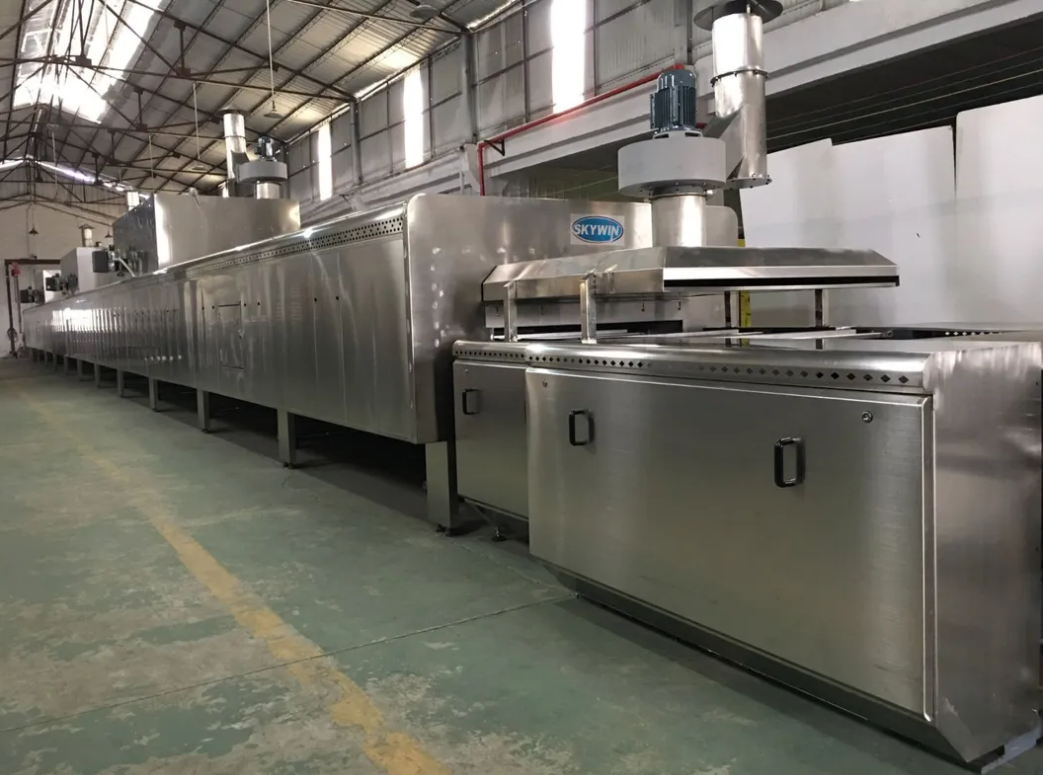

4.Tunnel Oven

1. There are three types of tunnel oven electric, gas and diesel oil. It depends on the natural resources of different countries.Some contries is abundant in gas.
2. Full 304 Stainless steel cover, Siemens PLC touch screen control, insolate wood cotton both side is 250mm, top 300mm and bottom is 250mm, hot air circulation system, have automatic alarm device.
3. Pneumatic automatic tracking and adjust belt and tension.
4. The size of the oven determines the biscuit capacity. 20-60m length for customize.

Soft biscuit sample
