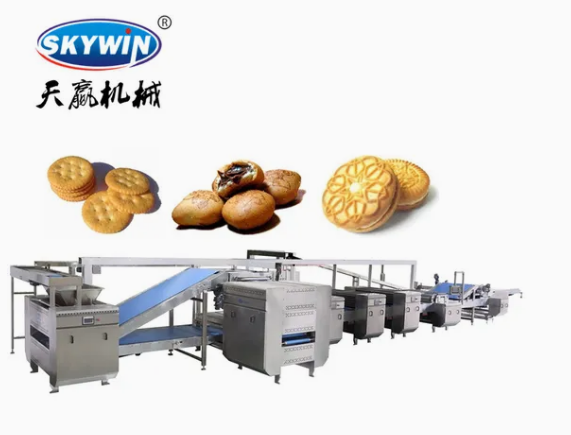

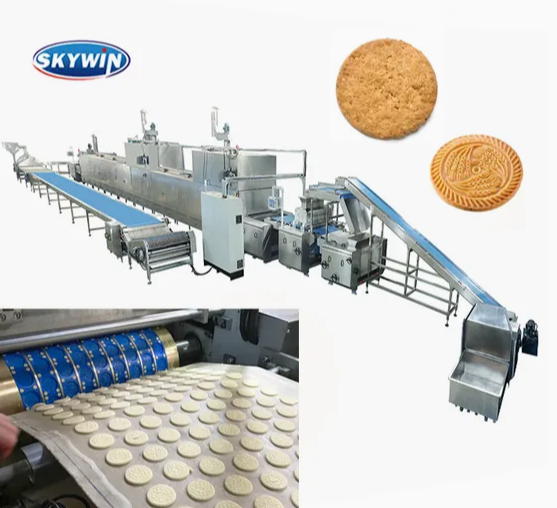

Skywin Automatic Soft and Hard Biscuit Production Line and Sweet Soft Cookie Making Machine

1. Skywin Model 400/600/800/1000/1200/1500 mm, capacity from 100-1500 kg/hr.
2. It is widely available for making all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Potato chips, hello panda biscuit, Print biscuit and Chocolate filling biscuit)
3. Guarantee for 1 year along with recommended spare parts for 1 year.
4. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.

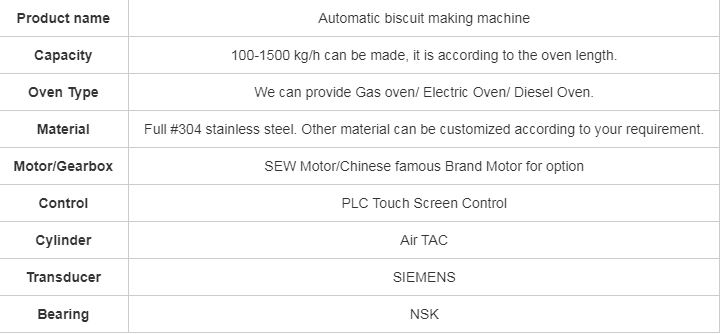

Product features:
1. Chinese famous brand motor & gearbox
2. SKF bearing
3. SMC Penumatic cylinder for belt tension and deflecting adjustment
4. PU and Cotton belt
5. 304 Stainless steel cover, thickness 1.5-2.0mm
6. SIEMENS transducer electric and PLC touch screen control.
7. Guarantee for 1 year along with recommended spare parts for 1 year.

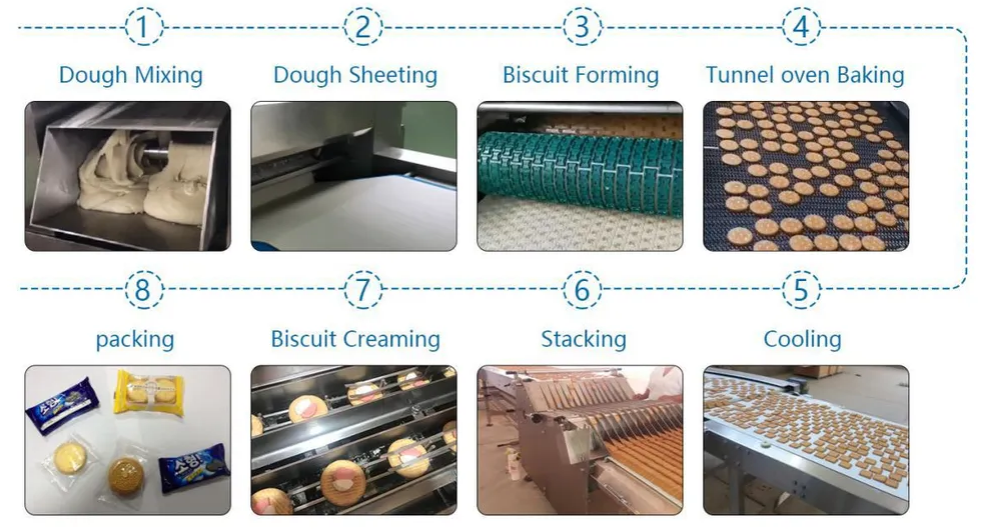

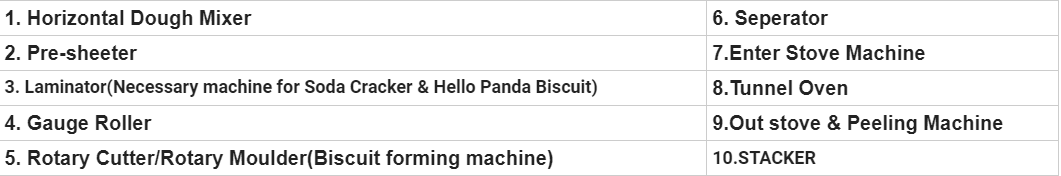

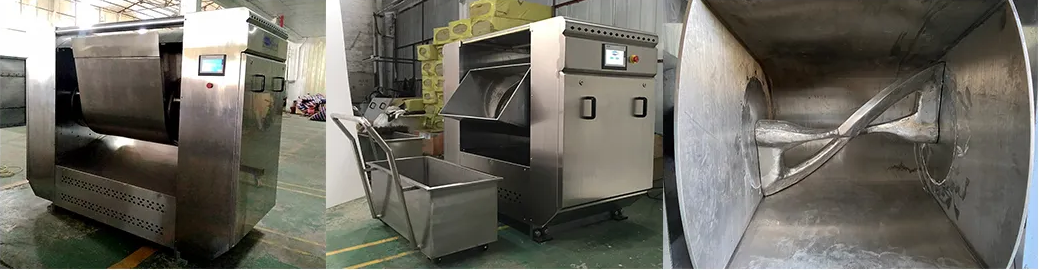

1.Dough Mixer (150KG/250KG/300KG/500KG/750KG for option)
The equipment is used for dough mixing.after the kneading,rolling and folding process,Dough has a smooth surface with good elasticity,toughness and extensibility.Special for hard and soft biscuit dough, Twin direction spiral mixing Steel blade
√ #304 stainless mixing blade
√ Blade are polished and can rotate 360 degrees
√ Blade can rotate clockwise and counterclockwise, make the mixing more uniform
√ Electric/Hydraulic pressure tipping,Frequency speed control 0-60 round per minute

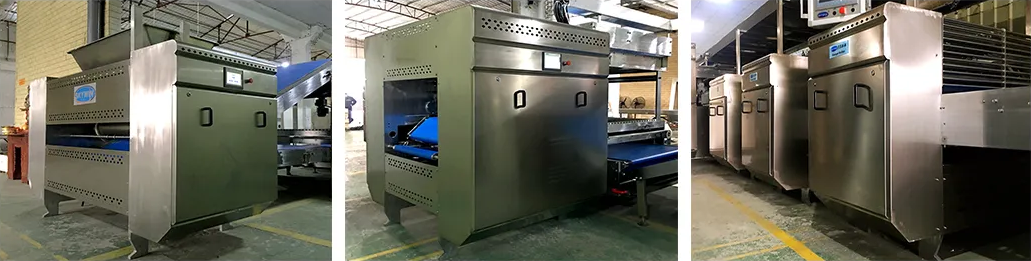

2.Dough Sheeting Machine
Three rolls Pre Sheeter:
Three-roll sheeter will press the dough twice and make the dough sheet go through the other equipment.
√ Dough thickness can be adjusted, digital display sheet thickness
√ Dough thickness: 5~20mm
√ Wallboard thickness 30mm

Laminator:
This machine is special for Hello Panda & Soda Cracker and need laminating dough
√ Increase the layers to the biscuits and make the biscuits flavorful.
√ Laminator layer:8-16 layers
Gauge Roller:
It is necessary for Hard Biscuit
√ Press dough sheet until require, eliminate the stress of dough sheet.

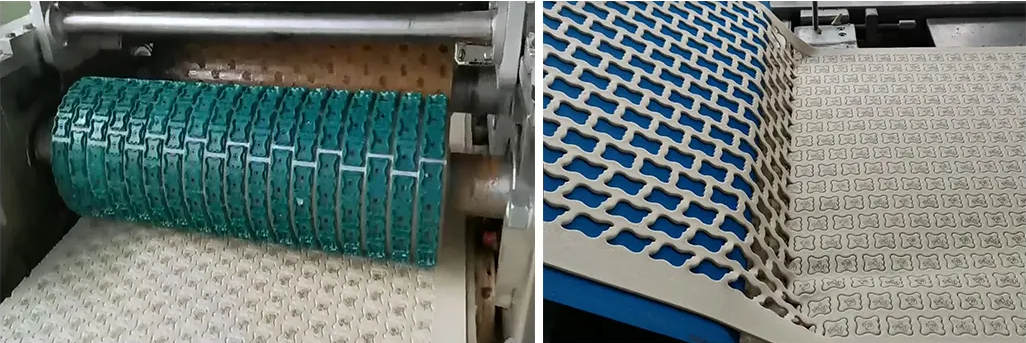

3.Rotary Cutter
Rotary Cutter for Hard Biscuit and Cracker Biscuit.
√ Food grade endless canvas belt, canvas belt:add water pneumatically
√ Quick mould changing device,10-15 mins change mould

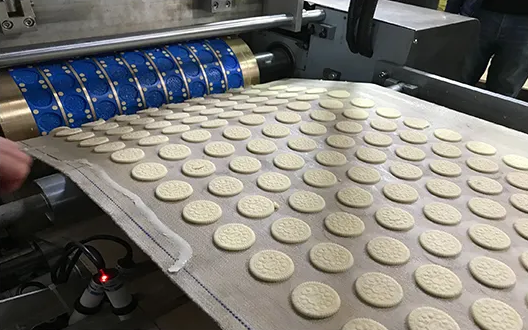

4.Rotary Moulder
Rotary Moulder For soft biscuit
√ The position of the scraper can be adjusted according to the size and thickness of the biscuit
√ Our scraper has patent protect from government
√ High accuracy, saving raw materials
√ With memory function, recipes can be stored

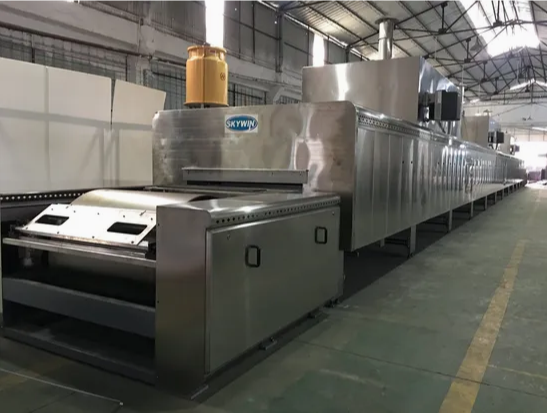

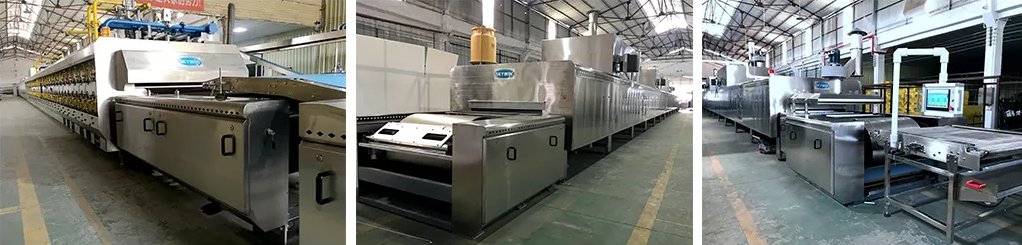

5.Tunnel Baking Oven
This machine is to bake the biscuit and cookie with good shape and nice taste
√ Gas and electric and diesel oil for option

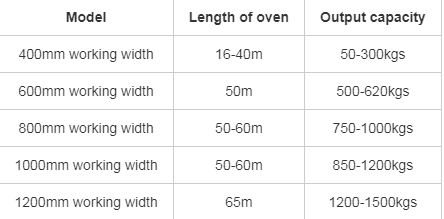

√ 100kg-2tons per hour,oven length form 10m-90m for different capacity
√ High efficiency, Rapid heating,Save energy, Clean and Simple operation
√ Hot wind circulation for color biscuit and good taste
√ It has Auto alarm and safety device

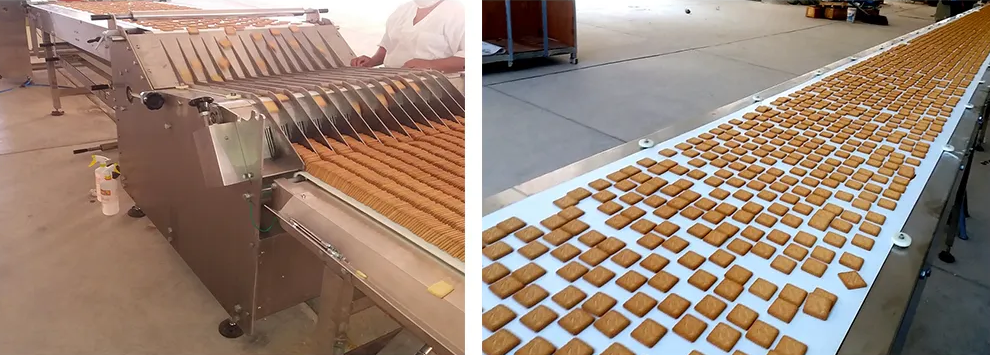

6.Cooling Conveyor and Stacker Machine
Cooling Conveyor:
Cooling conveyor is used for biscuit cooling naturally after bake,with Pneumatic tension device and belt automatic aligning system.
Stacker Machine:
Stacker is used for stacking biscuit,use star wheel and discrepancy device enable the biscuit coming into rows and transport to packaging table for pack.

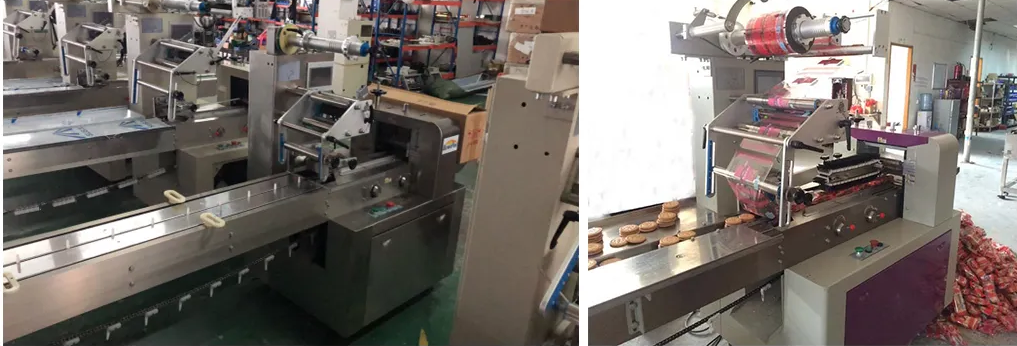

7.Packing Machine
Mainly used for packing biscuits, cookies, egg yolk pie, bread, moon cakes, candies, daily necessities etc.
√ Packing Speed:250-300bags/min
√ Double frequency conversion control, bag length can be set and cut in one step, save time and film.
√ Packaging film material: OPP/PE/PVC/CPP/PTPE/KOP/Aluminum film, ect.
