Ultra‑High Output – Dual‑lane design enables a production speed of 800–1,200 pieces/min, significantly boosting your daily capacity without compromising quality.
Fully Integrated Automation – The sandwich machine feeds directly into the packing line via an automatic conveyor, reducing labor costs and eliminating intermediate handling errors.
Versatile Product Range – Accommodates both round (Ø35–70mm) and rectangular (L35–80mm × W30–70mm) biscuits with thickness from 4 to 7mm. Molds can be customized for different sizes and shapes.

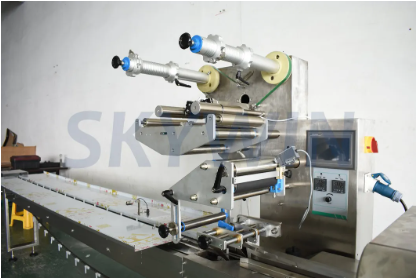

Precision Servo Packing – The on‑edge flow wrapper employs OMRON Japan control system, delivering stable, high‑speed packaging at 50–200 packets/min, suitable for single‑serve or multi‑pack bundles (e.g., instant noodles, biscuits, pharmaceuticals).
Flexible Packaging Materials – Compatible with all heat‑shrink films, including PVC and OPP, giving you freedom in choice of packaging aesthetics.
Robust Construction & Reliability – Core components sourced from trusted brands, with a focus on durability and easy maintenance.
| Sandwich Biscuit Machine | |
|---|---|
| Lane Configuration | Two lanes, one‑color cream filling |
| Production Speed | 800 – 1,200 pcs/min |
| Biscuit Size Range | Round: Ø35–70 mm; Rectangular: L35–80 × W30–70 mm (thickness 4–7 mm) |
| Power Supply | 4 kW, 220V / 50Hz |
| Machine Weight | 1,450 kg |
| Automatic On‑Edge Flow Packing Machine | |
|---|---|
| Packaging Speed | 50 – 200 packets/min |
| Bag Size Range | Length: 70–400 mm; Width: 32–200 mm; Height: 5–120 mm |
| Floor Space (L×W) | 5,400 × 1,085 mm (includes 5‑m input conveyor) |
| Power Consumption | 3.75 kW, single‑phase 220V |
| Machine Weight | 1,200 kg |
| Control System | OMRON Japan (PLC and servo drives) |
| Packing Material | Heat‑shrink films such as PVC, OPP, and other thermoplastics |
