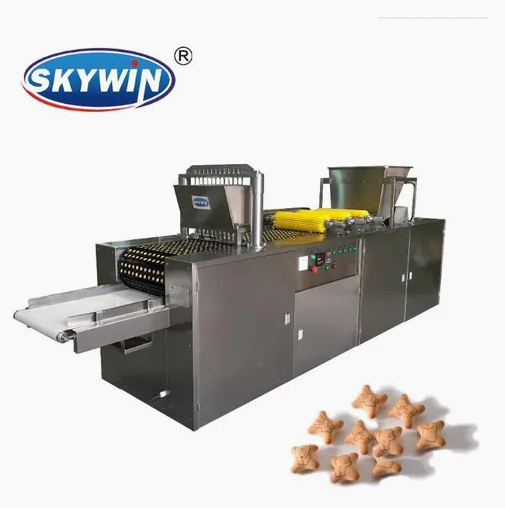

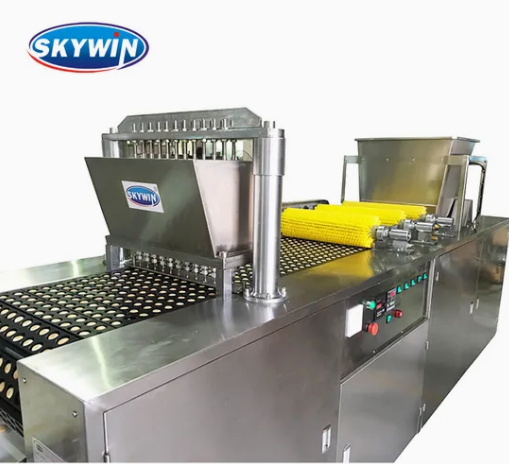

Skywin Hello Panda Bear Biscuit Cream Filling Machine

Name: Skywin Hello Panda Bear Biscuit Cream Filling Machine
Brand: skywin
Rating: 5.0 (43 reviews)

This unit is used injecting cream,chocolate or jam or others into hollow type biscuit.
This line is specialize for hello panda filled biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details. You can filled with chocolate or different flour jam.

Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

022290df7993a7d3579e7043ea3c7503

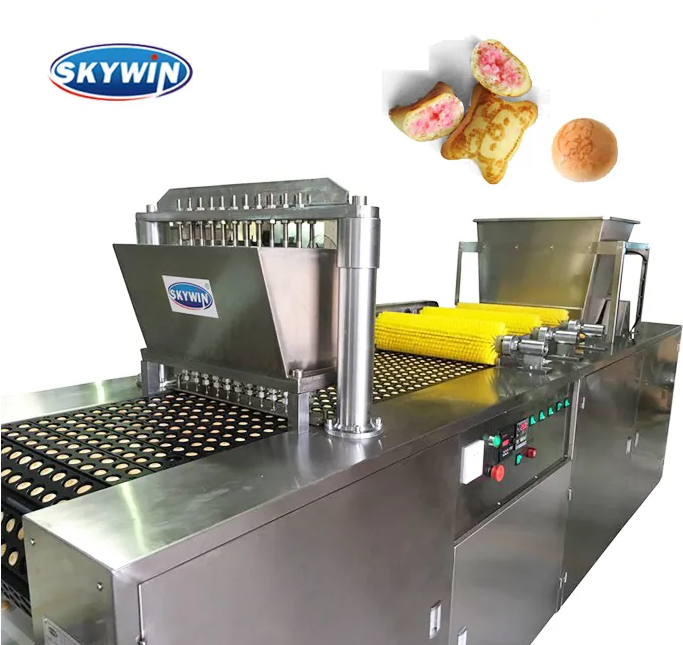

Skywin Hello Panda Biscuit Injection Machine

It is Injection Machine for Hello Panda biscuit.

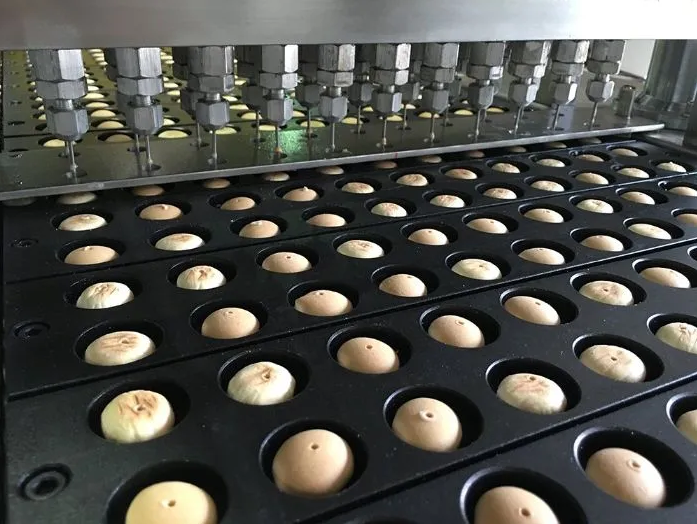

22 Needles and 30 Needles for your choices

22 needles output capacity is 726pcs/min,33 needles output capacity is 915pcs/min.

acff974df79b5627b470498213489949

876926d91a5955e7fb40b0f98077b8ae

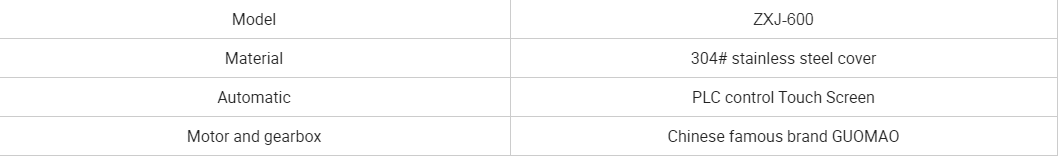

Product Information:

1.Model ZXJ-600 new injection machine
2.Dimension: 3900mm x 950mm x 1500mm (LxWxH)
3.Voltage: 380V/3phases
4.Output: 726pcs/min (2 rows x 11needles)
5.Injected Speed: 33times/min
6.Conveyor belt: Aluminium alloy, hole size diameter 26mm-32mm(biscuit size diameter max 30mm)
7.Frequency control speed, Chinese brand
8.Chocolate hopper: double jacket heating water protect temperature

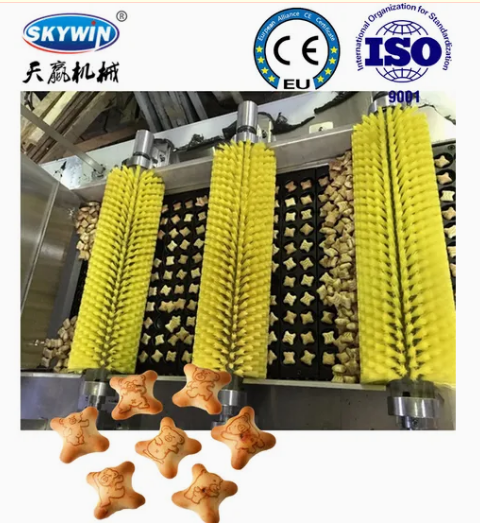

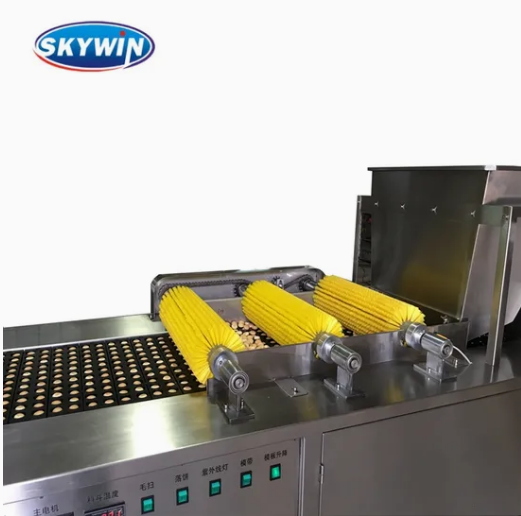

9.Auto feeding biscuit 80-100%
10.Moulds: Aluminium alloy, 86pcs 2 rows each mould, 11 needles hole, Feeding brush 3pcs.
11.Chocolate hopper and feeding hopper: 304 stainless steel, machine cover 201SS.
12.Mould size: 450x73x13mm

13.Power: 10kw, Weight: 1100kg

fe62b4ca2802666cf750ad7f5b0fea35
