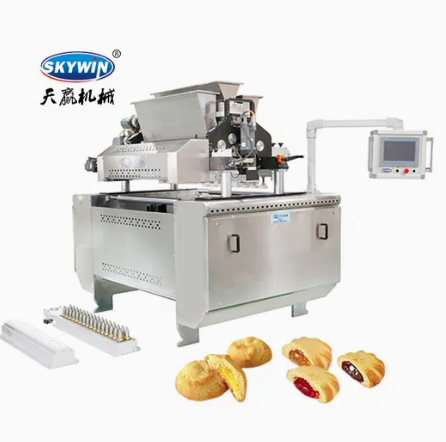

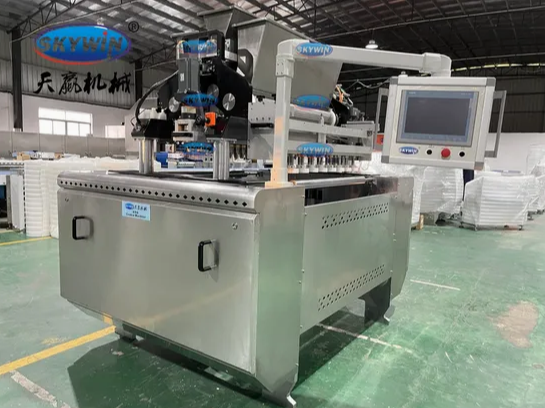

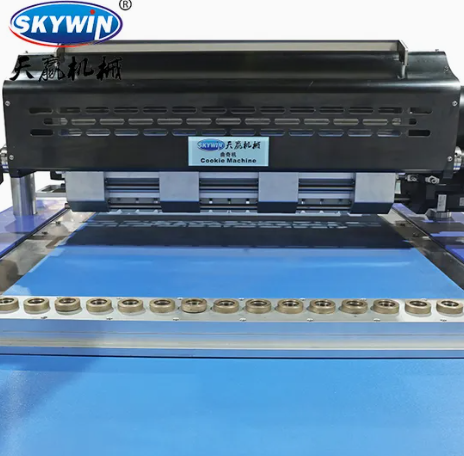

Skywin Model-800 Three-Color Automatic cookie Production Machine

Skywin 800mm Three‑Color Cookies Machine

1. Models & Capacity
Skywin offers widths of 400/600/800/1000/1200/1500 mm, with capacity ranging from 100 to 1500 kg/hr.

2. Wide Application
The machine is widely used for making various types of cookies, including:

• Wire cut cookies

• Deposited cookies

• Two‑color cookies

• Three‑color cookies

• Center‑filled cookies

• Sandwich cream cookies

3. Easy Shape Change
Different biscuit shapes can be produced simply by changing the mold. Custom molds can also be designed according to your requirements.

4. Key Features
Made of stainless steel. PLC controlled, fully automatic, labor‑saving, easy to operate. High quality and reasonable price have won customer recognition and a solid reputation. We export worldwide.

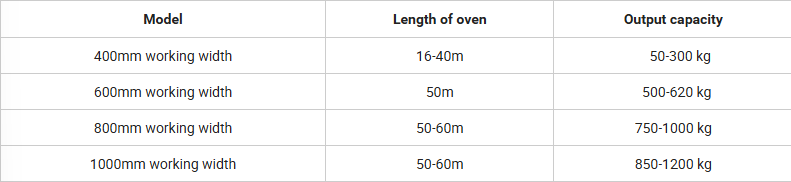

5. Width & Oven Matching
The 400 mm model is the smallest, designed for tray baking (must be used with a rotary oven). All other models (≥600 mm) are compatible with a tunnel oven.

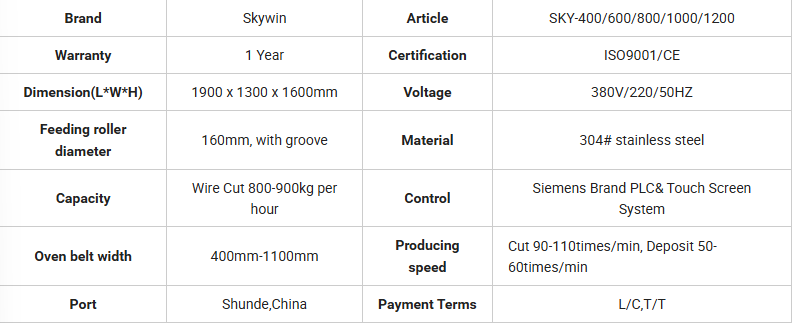

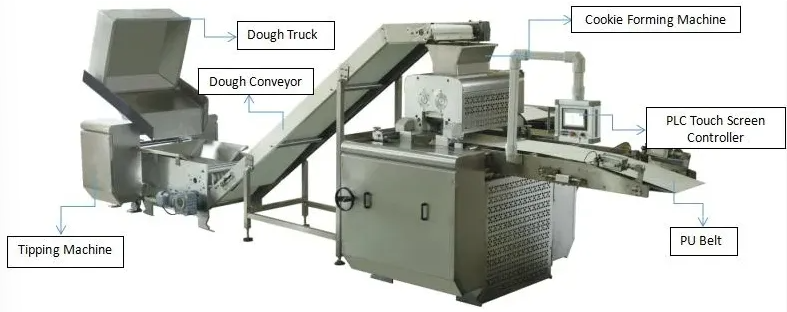

Machine Components

• Control System: Siemens brand PLC & touch screen

• Electrical Components: Siemens or Schneider brand

• Motor & Gearbox: Chinese high‑quality brand – GUOTAI

• Pneumatic Cylinder: AirTAC brand, used for belt tension and deflection adjustment

• Conveyor Belts: Cotton & PU belt (1.5‑1.8 mm thickness)

• Wire Mesh Belt: V‑type

• Plates: Hard chrome plated, 18 mm thickness

• Stainless Steel: 1.5‑2 mm thickness

Main Features

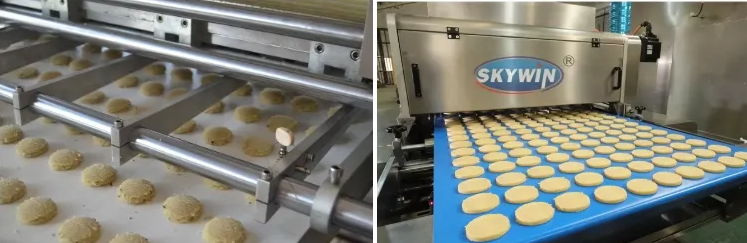

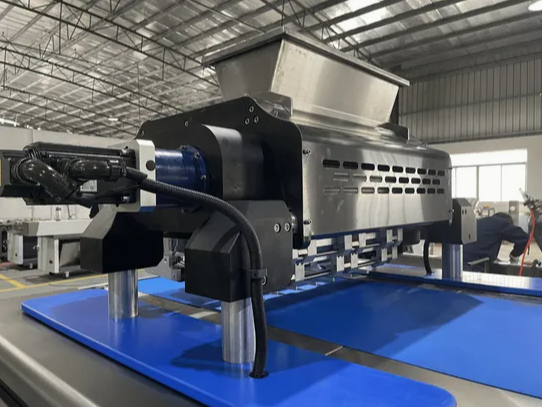

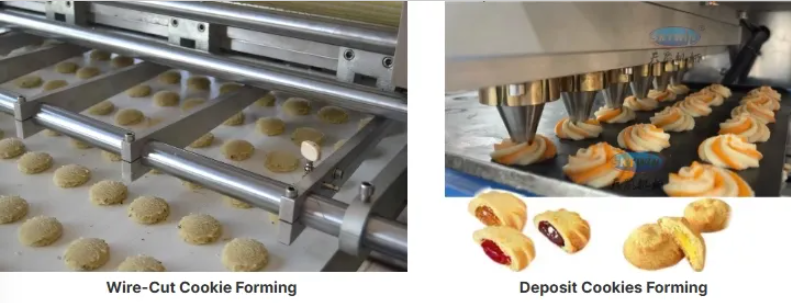

1. Forming system – Wire‑cut and dropping forming with a rotating PU conveyor belt (thickness: 0.8 mm). Belt deflection and tension are adjusted by air cylinders.

2. Key components – Air cylinders from a famous brand; gearbox from Chinese famous brand GUOTAI; feeding and forming driven by Delta servo motors.

3. Output speed (for 400 mm model) – 7 nozzles; depositor approx. 30 times/min; cutter approx. 40 times/min.

4. Hot air circulation – Ensures uniform color and good taste of biscuits.

5. Energy & efficiency – Low energy consumption (saves 5% energy) with high output (99.99% yield).

6. User interface – Optional screen display in English or other languages for easy and simple operation.

7. Material & standards – All parts in contact with dough are stainless steel. Machine body material is optional. All exported machines have passed CE standards.

8. Two product lines – Standard line and high‑end line available. The high‑end line is fully automated with higher output and uses the best raw materials.

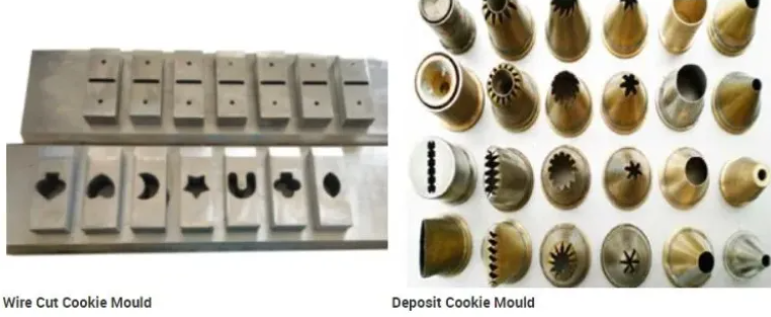

Any mould can be customized and you just only need to change the mold to change the biscuit shape or some type .
