Mixing → Forming → Baking → Cooling
Horizontal dough mixer available in capacities: 150kg / 300kg / 400kg / 600kg / 750kg.
Robust construction for consistent dough quality, even with high‑fat or sticky recipes.
Supports wire‑cut and deposit forming on the same machine.
Working widths: 400mm / 600mm / 800mm
Wire‑cut section: Driven by 2 servo motors for precise cutting and clean release.

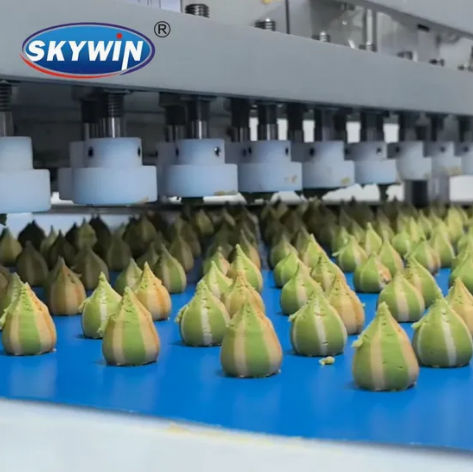

Deposit section: Controlled by 5 independent servo motors – provides accurate volumetric control for deposit cookies and center‑filled products.
Quick switch between forming modes, reducing downtime.
Rotary oven with optional heating: gas or electricity.
Even heat distribution ensures uniform color and texture.

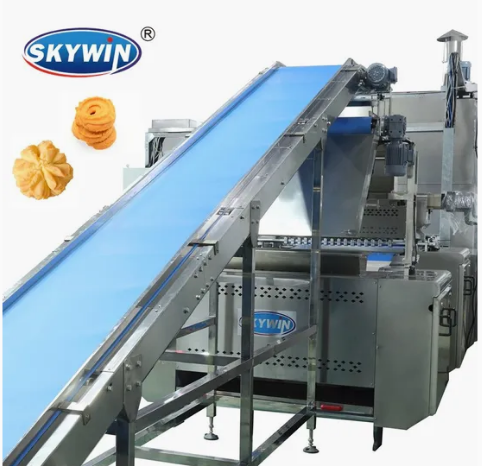

Natural or forced‑air cooling conveyor. Prevents cracking and preserves the cookie structure before packaging.
| Parameter | Skywin Semi‑Automatic Hot‑Filled Line |
|---|---|
| Working width (forming) | 400 / 600 / 800 mm |
| Oven belt width | 1000‑1100 mm |
| Cover material | 304 stainless steel, thickness 1.5‑2.0 mm |
| Feeding roller | Ø160 mm with grooves for better dough grip |
| Control system | Siemens electrical components + PLC touch screen |
| Servo motor & gearbox | Delta |
| Overall dimensions (L×W×H) | 1700×1300×1600 mm |
Deposit cookies
Wire-cut cookies
PLC & electrical parts – Siemens (reliable, easy to troubleshoot)
Servo motor & gearbox – Delta (high precision, low maintenance)
Main motor power – Feeding roller: 2 kW; Wire‑cut forming: 2 kW
Deposit forming – 5 servo motors for accurate volumetric filling
Dynamic wire‑cut structure – 2 servo motors for clean, consistent cutting
1.Easy to operate
The semi‑automatic design with Siemens PLC touch screen reduces training time and operator errors. Recipes can be stored and recalled quickly.
2.Ultimate forming flexibility
Switch between wire‑cut, deposit, two‑color, three‑color, and center‑filled cookies on the same production line. Change shapes in minutes by swapping molds.
3.High‑quality construction
304 stainless steel covers (1.5‑2.0 mm thickness) – hygienic and rust‑proof
Hard chrome plated plates (18 mm thickness) – wear‑resistant for long production runs
4.Reliable components
Using Siemens, Delta, and heavy‑duty bearings ensures stable operation, lower downtime, and easier global spare parts sourcing.
5.Molds included & custom options
Two sets of cookie molds are supplied as shown in the pictures. Need a special shape or size? We manufacture custom molds to your exact design.
6.Precision forming for filled cookies
The 5‑servo deposit system guarantees consistent filling weight and clean cut‑off – perfect for jam‑filled or chocolate‑center cookies.
