| Quantity: | |
|---|---|
| 1 | One color, two colors, three colors cream for option. | |||
| 2 | 2+1, 3+2 sandwich biscuit making for option | |||
| 3 | Sandwich biscuit with cream, jam, chocolate and so on. | |||
| 4 | Single row, two rows, four rows, six rows for option. | |||
| 5 | 530s flow pack machine 30-350bags/min | |||

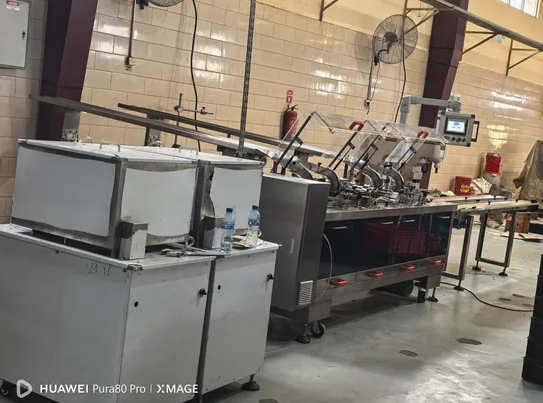

This Machine is special for hotsale Oreo Biscuits, Marie Biscuits, Cream Crackers and the other regular shape Biscuitscream sandwiching and cheese biscuit making.
| Funtion | Double-lane single flavor cream / jam sandwiching machine | |
| Round | Square | |
| Biscuit size | 30-70mm H3-8mm | L35-70mm W30-60mm H3-8mm |
| Capacity | 800-1200sandwiches/min | |
| Operating voltage | Single-phase AC 220V 50Hz | |
| Machine size | 4500*1900*1470mm | |
| Total power | 4Kw | |
| Weight | 850kgs | |
| Special specification is acceptable | ||

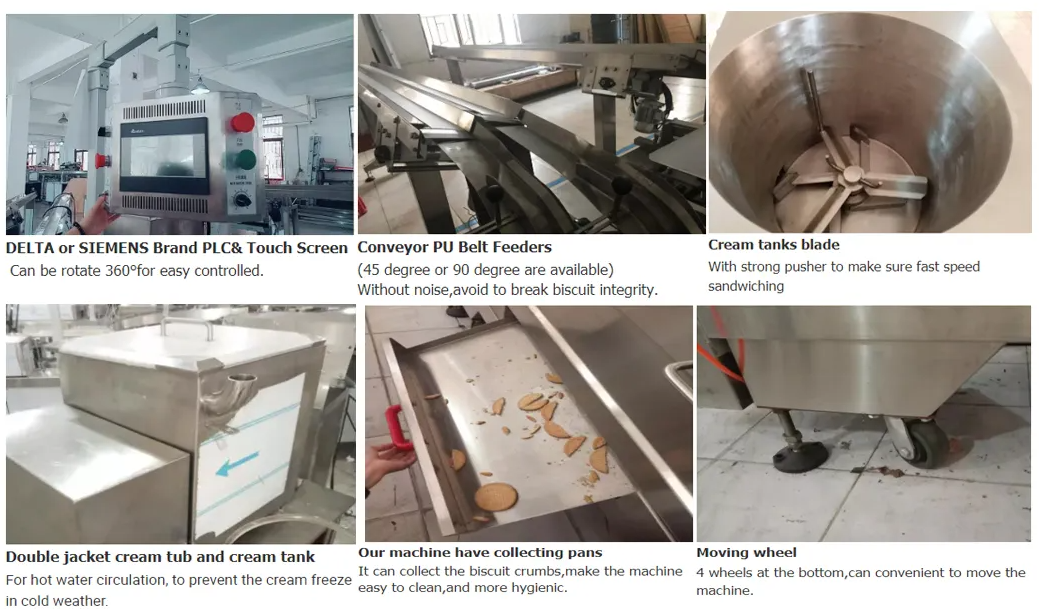

Production Features:
√ PLC for simple operation including machine set-up, hopper controls, speed adjustments
√ Removable scrap trays are provided for simple scrap collection and machine cleaning
√ Easy to operate: Simple adjustments for machine speeds, cream volume
√ Sanitary design with stainless steel for food contact parts,including cream stencil & interchange faster
√ Separating cream holding tank and feeding system
√ The pusher with double chain assure machine running stable and cleaning and maintenance
√ Every cream hopper with independent motor and reducer
√ Mobile cream hopper can cleaning while finish working separately
√ SUS304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.

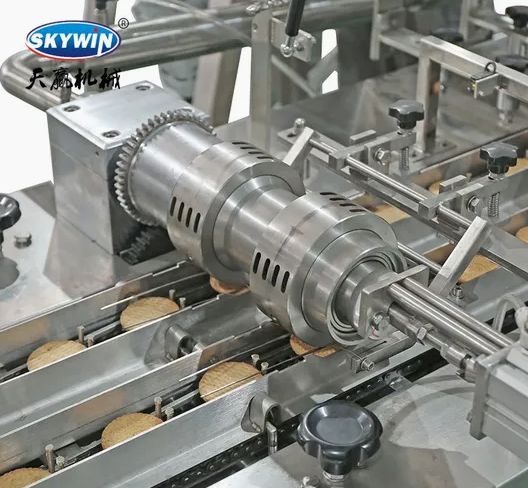

√ Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes

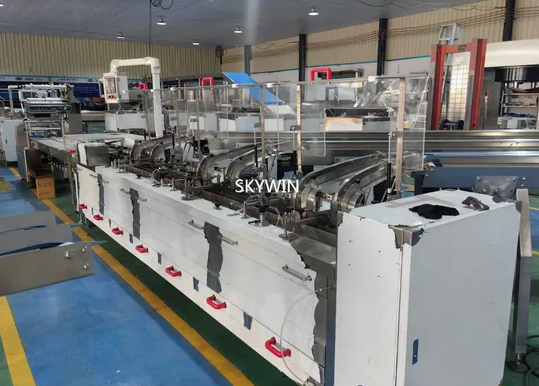

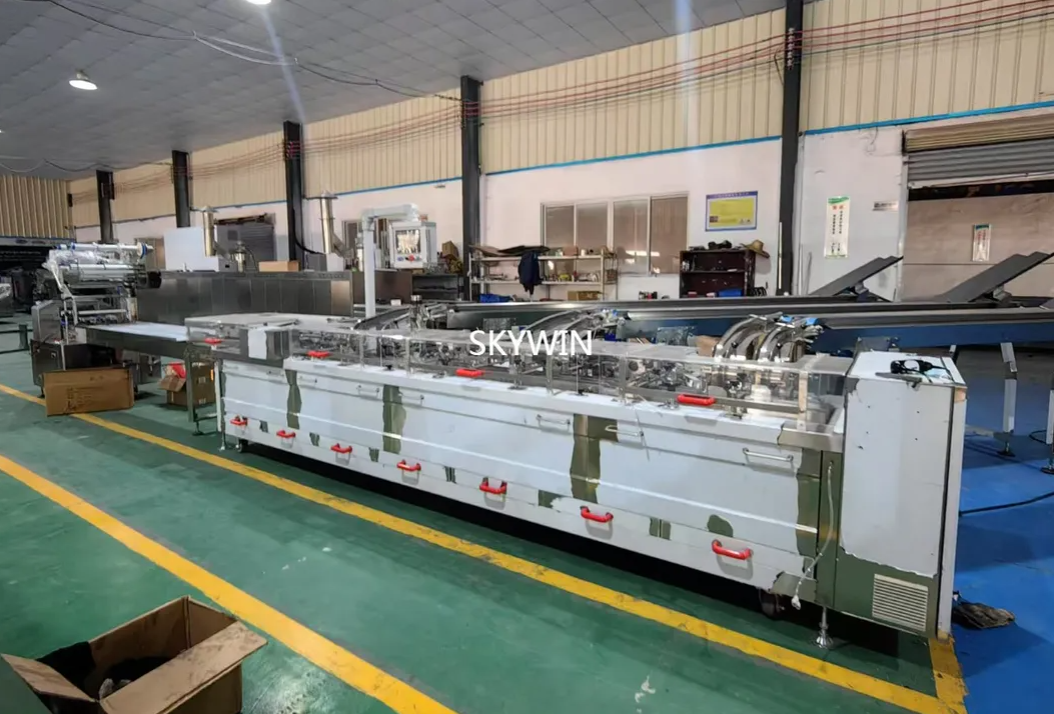

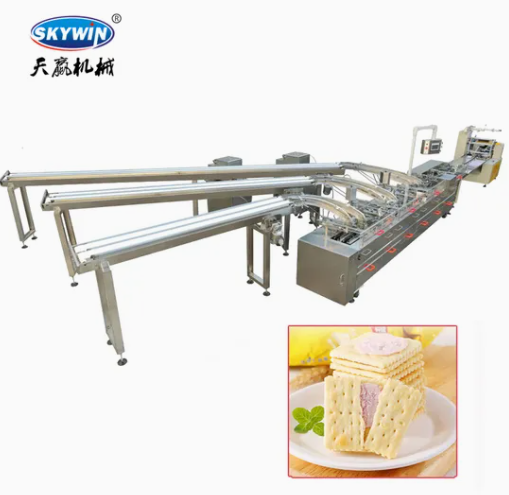

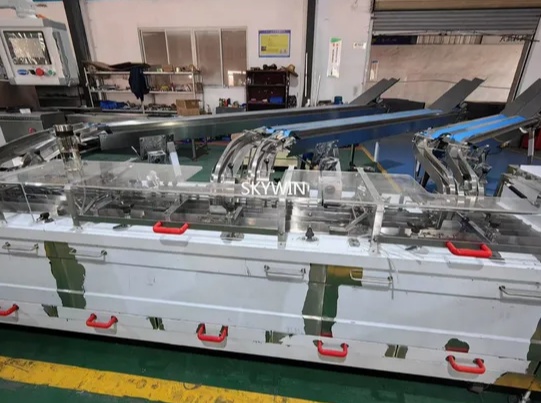

Skywin High speed sandwich biscuit machine by advance structure & design.

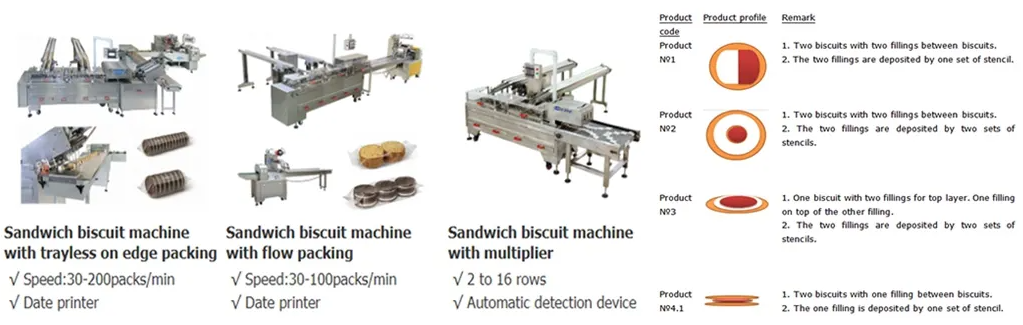

Single Lane Sandwiching Machine | Two Lane Sandwiching Machine | Mini-type Sandwiching Machine | |
biscuit size | Square | Rectangle | Square |
L(35-70)x W(30-60)x H(3-8)mm | L (35-80) x W(40-65)mm | L (20-35) xW(20-35)xH( 3-7)mm | |
Round | Round | Round | |
Φ35-70mm thickness:3-8mm | Φ35-Φ65mm thickness:4-8mm | Φ20-35 mm, thickness:4-7mm | |
Capacity | 100-600 sandwiches/min | 600-1200 sandwiches/min | 100-400 sandwiches/min |
operating voltage | single-phase AC 220V 50Hz | single-phase AC 220V 50Hz | single-phase AC 220V 50Hz |
machine size | 7000x1900x1470mm | 7430x3300x1500mm | 4980x1340x1120mm |
Weight(Cream tanks capacity ) | 1120kgs (40L) | 1350kgs (50L) | 1000kgs (36L) |
total power | 4Kw | 4Kw | 3.8Kw |

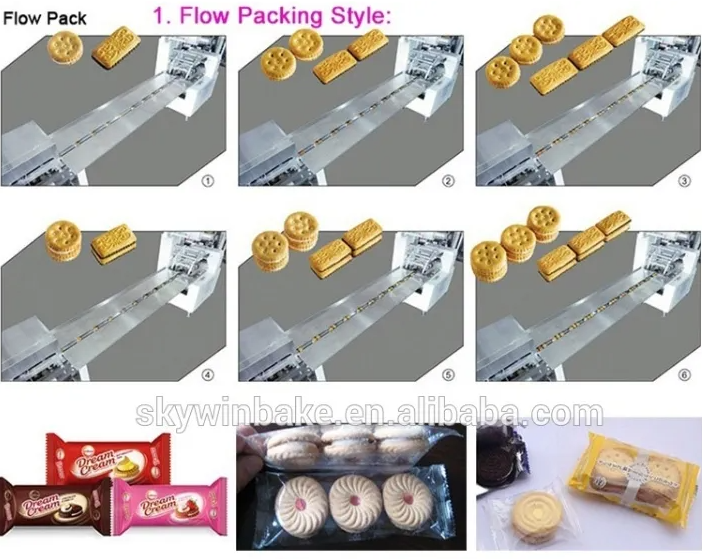

Different types of packing machine for your option
Pillow type, on edge packing type, x-fold packing type
Pr-Sales Service
*Inquiry and response immediately
*Sample testing service
*Factory visit.
*Special design plan
After-Sales Service
*Machine installation training
*Engineers always online to solve your problem.
