High-Speed Output
726 pcs/min with 22 needles; up to 915 pcs/min with the 30-needle high-capacity configuration.
Precise Injection
33 injections per minute with frequency-controlled speed for consistent filling.
Stable Filling Temperature
Double-jacketed chocolate hopper with hot-water heating maintains the correct filling temperature.
Automatic & Intelligent Operation
PLC control with touch screen and 80–100% automatic biscuit feeding.
Reliable Drive System
GUOMAO motor and gearbox, a well-known Chinese brand.
Hygienic Construction
Chocolate hopper and feeding hopper are made of 304 stainless steel.
Flexible Mould Options
Aluminium alloy moulds. Different biscuit shapes can be produced by changing the mould. Custom mould design is available.
International Compatibility
380 V / 3-phase standard. Other voltages available upon request.
| Item | Specification |
|---|---|
| Model | ZXJ-600 new injection machine |
| Dimensions | 3,900 × 950 × 1,500 mm (L × W × H) |
| Voltage | 380 V / 3-phase |
| Output | 726 pcs/min (2 rows × 11 needles) |
| Injection Speed | 33 times/min |
| Conveyor Belt | Aluminium alloy; hole diameter: 26–32 mm (max. biscuit diameter: 30 mm) |
| Speed Control | Frequency inverter (well-known Chinese brand) |
| Chocolate Hopper | Double-jacketed, hot-water heated for stable temperature |
| Automatic Biscuit Feeding | 80–100% |

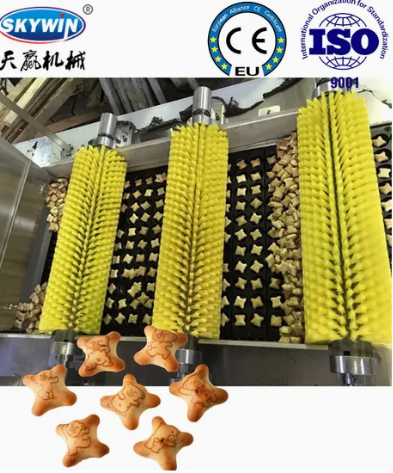

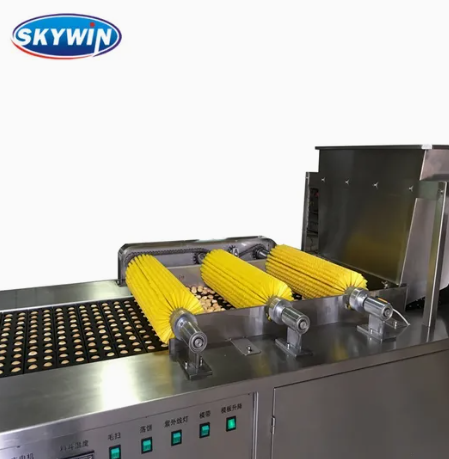

| Moulds | Aluminium alloy; 86 pcs; 2 rows per mould; 11 needle holes per row; 3 feeding brushes |
| Material | Chocolate hopper & feeding hopper: 304 stainless steel; machine cover: 201 stainless steel |
| Mould Size | 450 × 73 × 13 mm |
| Power | 10 kW |
| Weight | 1,100 kg |
| Automation | PLC control with touch screen |
| Motor & Gearbox | GUOMAO (well-known Chinese brand) |
| Configuration | Output | Best For |
|---|---|---|
| 22 needles | 726 pcs/min (2 rows × 11 needles) | Standard high-speed production |
| 30 needles | Up to 915 pcs/min | Maximum output and large-scale production |
Needle count and output can be customized. Contact Skywin for the best configuration based on your biscuit size and filling requirements.
Fillings: cream, chocolate, jam, fruit jam, and other pumpable fillings.
Biscuit Shapes: different shapes can be produced by changing the mould.
Custom Moulds: Skywin can design moulds according to your drawings, samples, or detailed specifications.
Needle Options: 22-needle or 30-needle configurations.
