High-Speed Output
726 pcs/min with 22 needles; up to 915 pcs/min with the high-capacity needle option.

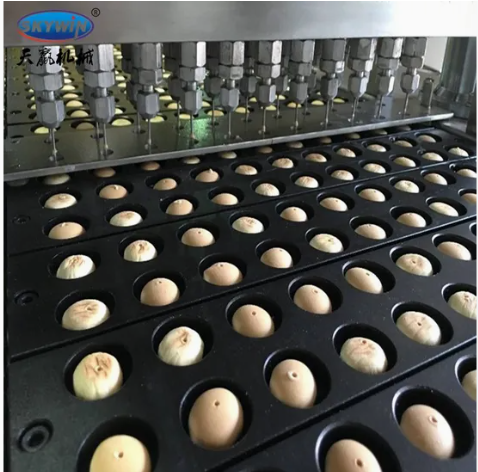

Precise Injection
33 injections per minute with frequency-controlled speed for consistent filling.
Stable Chocolate Temperature
Double-jacketed, hot-water-heated chocolate hopper keeps filling at the right temperature.
Flexible Biscuit Sizes
Aluminium alloy conveyor with 26–32 mm holes; suitable for biscuits up to 30 mm in diameter.

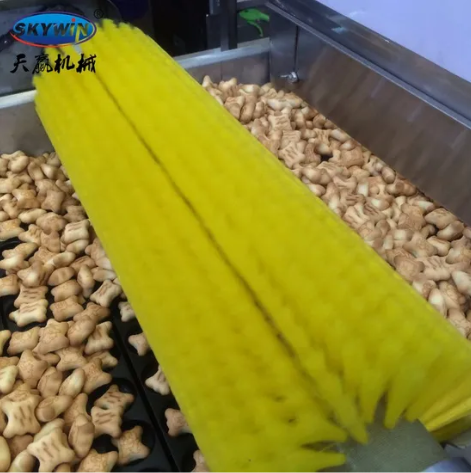

Automatic Feeding
80–100% automatic biscuit feeding improves efficiency and reduces labor costs.
Durable & Hygienic
304 stainless steel hoppers, 201 stainless steel cover, and aluminium alloy moulds and conveyor.

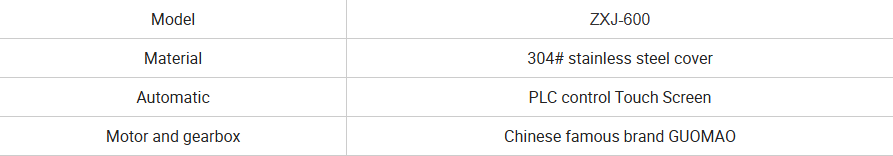

| Item | Specification |
|---|---|
| Model | ZXJ-600 new injection machine |
| Dimensions | 3,900 × 950 × 1,500 mm (L × W × H) |
| Voltage | 380 V / 3-phase |
| Output | 726 pcs/min (2 rows × 11 needles) |
| Injection Speed | 33 times/min |
| Conveyor Belt | Aluminium alloy; hole diameter: 26–32 mm (max. biscuit diameter: 30 mm) |
| Speed Control | Frequency inverter (Chinese brand) |
| Chocolate Hopper | Double-jacketed, hot-water heated for stable temperature |
| Automatic Biscuit Feeding | 80–100% |
| Moulds | Aluminium alloy; 86 pcs; 2 rows per mould; 11 needle holes per row; 3 feeding brushes |
| Material | Chocolate hopper and feeding hopper: 304 stainless steel; machine cover: 201 stainless steel |
| Mould Size | 450 × 73 × 13 mm |
| Power | 10 kW |
| Weight | 1,100 kg |
| Configuration | Output |
|---|---|
| 22 needles | 726 pcs/min (2 rows × 11 needles) |
| 30 needles | Up to 915 pcs/min (high-capacity option) |
Output may vary depending on biscuit size, filling material, and operating conditions.
