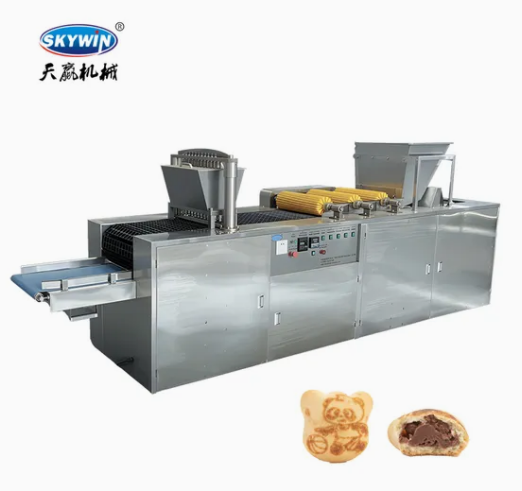

Skywin Chocolate Injection Filled Hard Hello Panda Making Machine

Skywin Chocolate Injection Filled Hard Hello Panda Making Machine

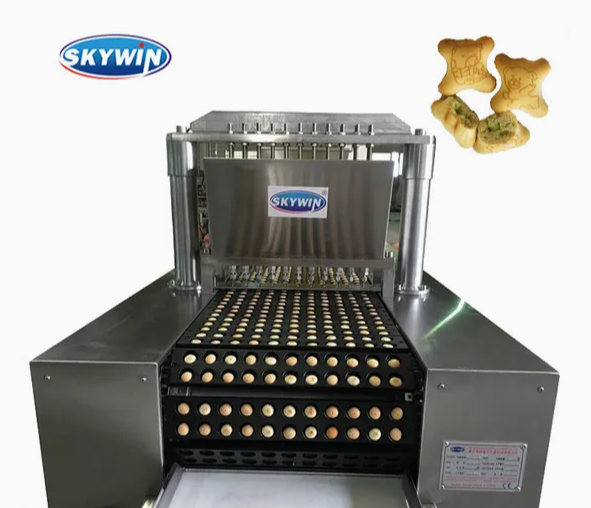

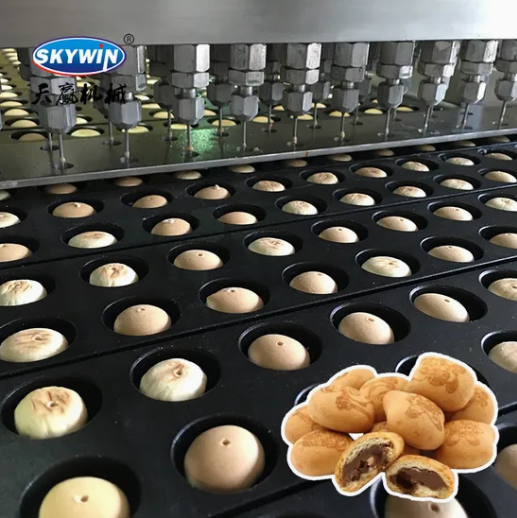

This unit is used for injecting cream, chocolate or jam or others into hollow type biscuit.
We Have 22 and 30 needles, capacity 700-1000pcs per minute

Hello Panda Biscuit Injection machine is very popular and widely used in biscuit production process. It is one of the machine of hello panda biscuit line. Whole biscuit line with printing machine, can make different kind of pattern on the surface of biscuit.
Main Technical parameters:
1.Voltage: 380 V / 3phases
2.Output: 726pcs/min (2 rows x 11needles), Output: 1000pcs/min(2 rows x 15needles)
3.Injected speed: 33 times/min

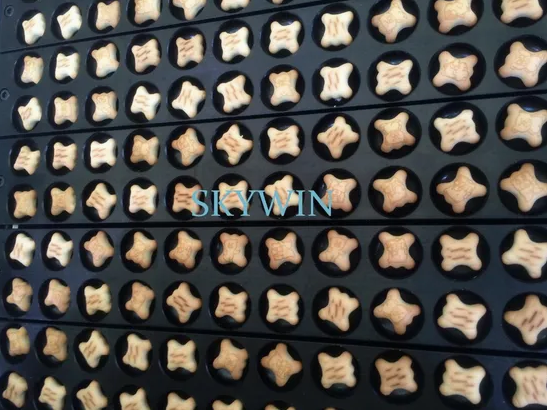

4.Conveyor belt: Aluminium alloy, hole sized diameter 26mm- 32mm
5.Frequency control speed.
6.Chocolate hopper: double jacket heating water protect temperature

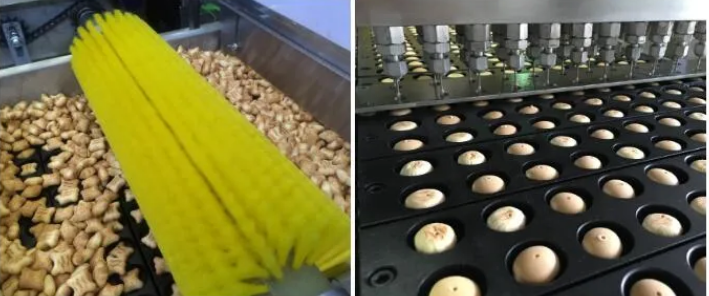

7.Auto feeding biscuit 80-100%

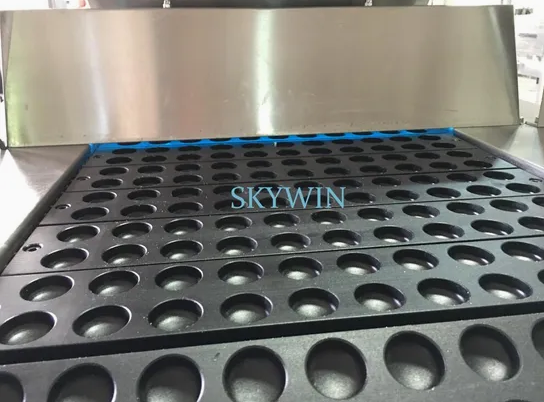

8.Moulds: Aluminium alloy, 86pccs 2 rows each mould, 11 needles hole
9.Chocolate hopper and feeding hopper: 304 stainless steel
10.Power: 10kw
11.Weight:1100kg
12.Dimension: 3900mm*950mm*1500mm

Performance and Structure features:

1.Compact structure, stable performance, easy operation.

2.Suitable for production of diverse varieties.

3.Heat preservation, low noise.

4.Stepless motor adjustable.

5.Auto biscuit feediing and injecting (adjusted chocolate quantify).

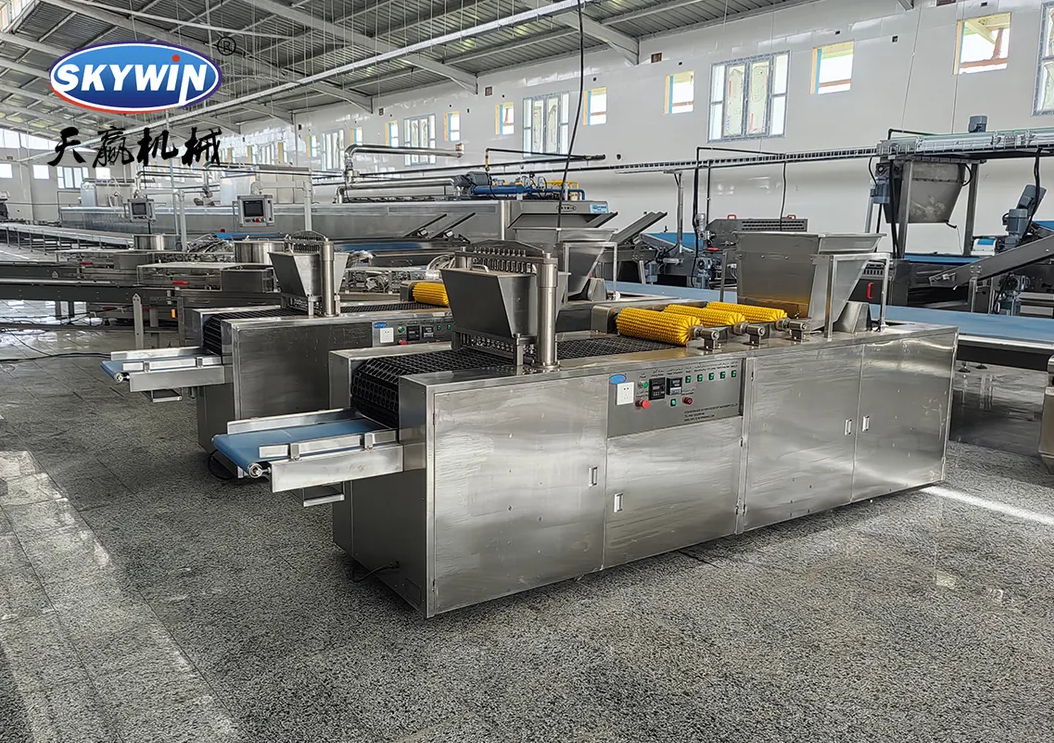

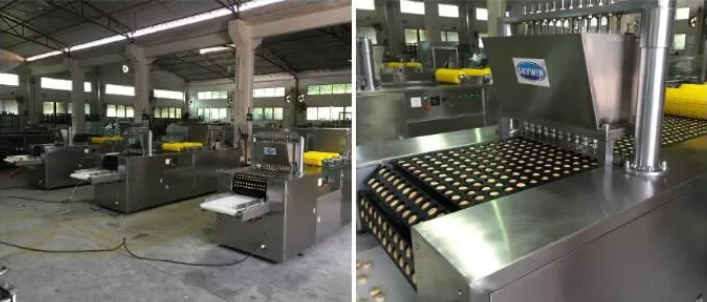

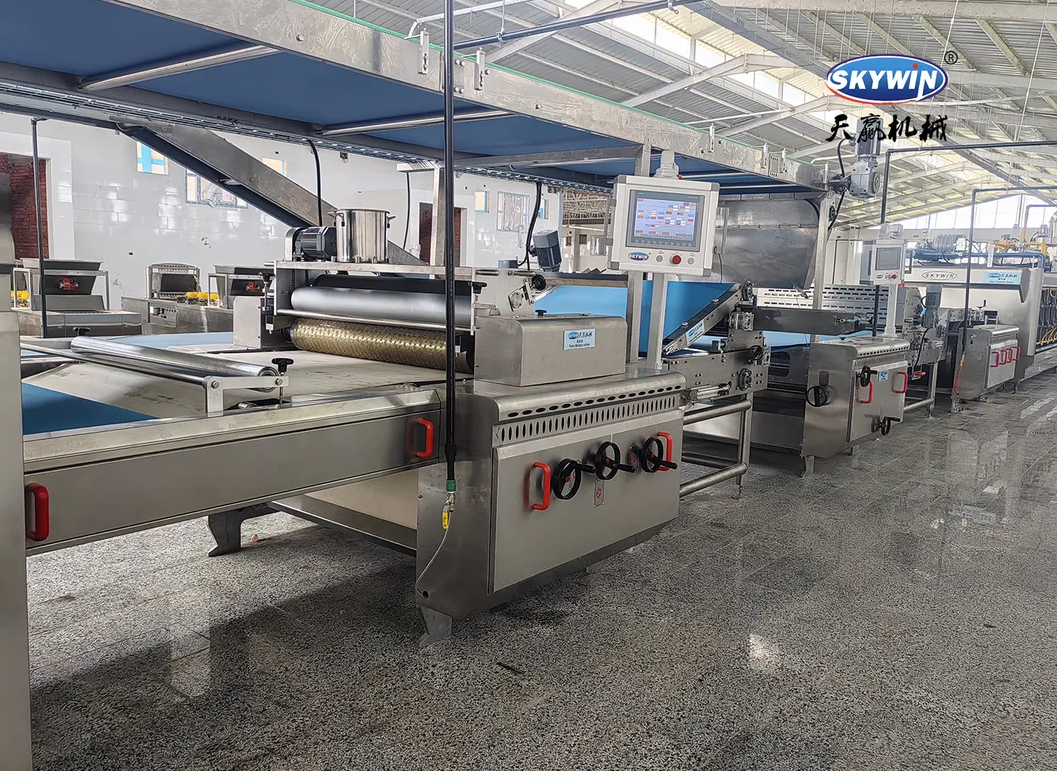

We have whole hard and soft hello panda biscuit line from dough mixer, oven baking and packing table.
