Automatic Customized Skywin China Production Line Sandwich Biscuit Making Machine with High Quality

Automatic Customized Skywin China Production Line Sandwich Biscuit Making Machine with High Quality

Name: Automatic Customized Skywin China Production Line Sandwich Biscuit Making Machine with High Quality
Brand: skywin
Rating: 5.0 (87 reviews)

Automatic Customized Skywin China Production Line Sandwich Biscuit Making Machine with High Quality offered by China manufacturer Skywin. Buy Automatic Customized Skywin China Production Line Sandwich Biscuit Making Machine with High Quality directly with low price and high quality.

Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

0ef807e4849142424b606d7e707b9511

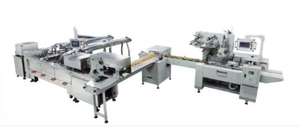

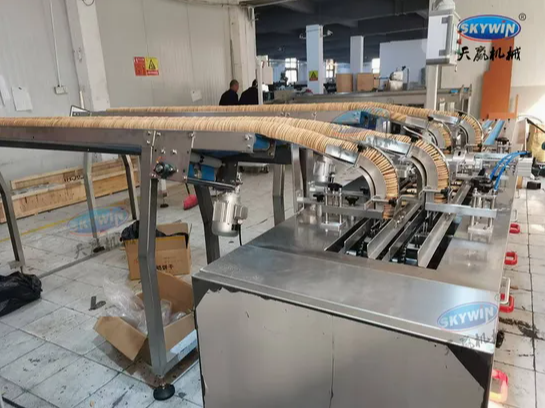

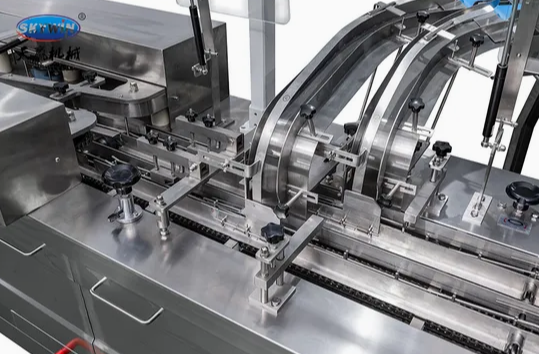

TWO LANES ONE COLOR SANDWICHING MACHINE with 380 Packing Machine

This machine can produce jam or chocolate or cream sandwich biscuits and the production speed of 800-1200 pieces per minute. Automated conveying reduces labor use.

Automatic feeding lane connects sandwich machine with 380 flow packing machine.

1).Two lane output creaming,capacity about 800-1200 pcs/min

2).One color cream filling

3).Size of biscuit:Rectangle L(35-80)*W(30-70)mm

4).Round diameter 35-70 mm

5).Power 4 kw/220 V/50 Hz

6).Weight:1450 kg

3 Servo Motors, Painted steel cover, PLC control system, High Speed Flow Packing Machine, conveyor length 2.4m
1). Included packing conveyor
2).double frequency conversion machine, film width 320mm
3). included date printer
4).Speed:MAX 250 packs/minute
5).Bag size: Length 80-300mm, Width 35-145mm, Height 5-55mm
6).Max outer diameter < 300 mm,
7).Max width of the packing film: 380mm,
8).Packing film thickness: 0.04-0.07mm
9).Machine dimension: (L x W x H): 5200 x 950mm x 1650
10).Power consumption: 3.6KW/Single phase: 220V/50Hz
11).G. weight: 750kg

b6c7031465accb0d719ae5343da10122

17f5889a6a3f1c09314f07e6d8006bea

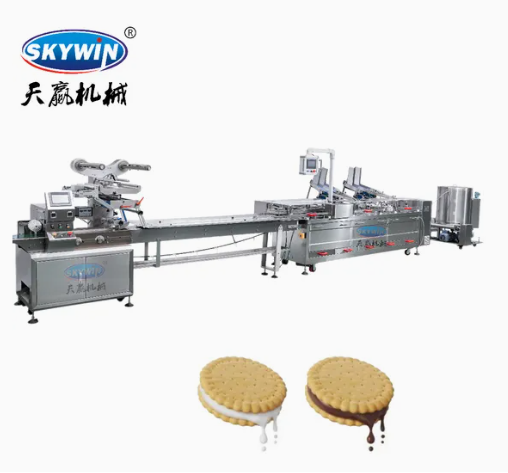

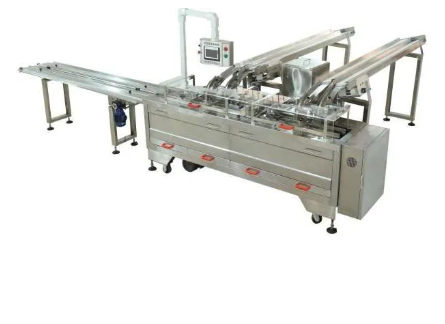

Two-lane One-color Sandwich Biscuit with Flow Packing Machine
Size of biscuit:
Round: diameter: 35-65mm, thickness: 4-7mm
Rectangle: L: (35-70)mm x W: (35-55)mm, thickness: 4-7mm
Power: 7.5kw
Voltage: 220v/50hz
Weight: 1100kg
Dimension: 7000x1500x1500mm

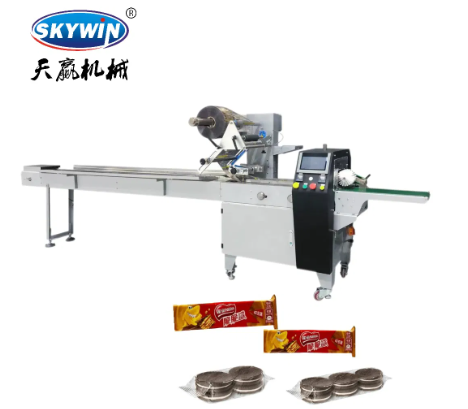

Flow packing machine

Packing speed: 30-300bag/min
Bag size: L (80-500) x W (60-380) x H (5-45) mm
Max width of the packing film: 370mm
Total power/voltage: 5KW/Single 220VAC/50Hz
Machine weight: 650 kg
Power type: 220V/50HZ
