Quick mold change – Our unique rapid disassembly device allows you to change molds in a very short time, reducing labor waste and production downtime.

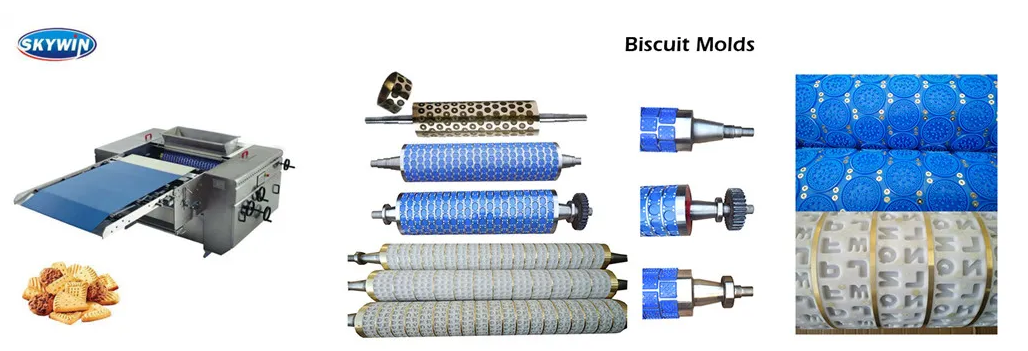

Flexible shapes – Different biscuit shapes require only a mold change. We also design custom molds according to your specifications.

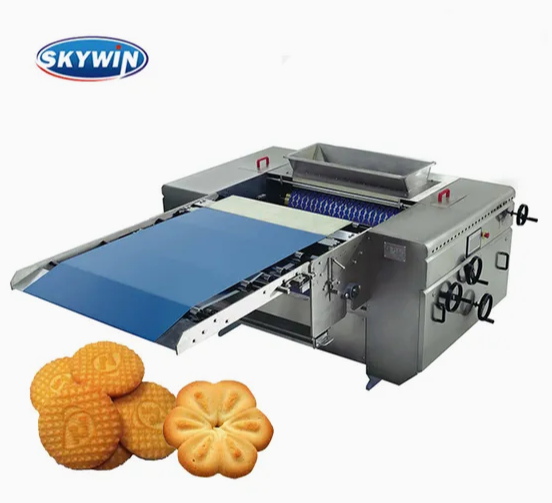

Single or integrated operation – The rotary moulder can run as a stand-alone unit or be fully synchronized with the entire production line via PLC control.

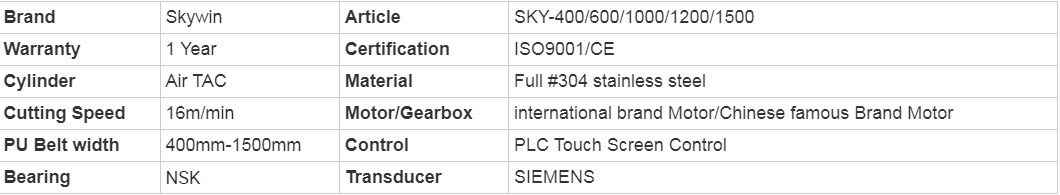

| Parameter | Details |
|---|---|
| Brand | Skywin |
| Model | SKY-400 / 600 / 800 / 1000 / 1200 / 1500 |
| Working width (PU belt) | 400mm – 1500mm |
| Cutting speed | Up to 16 m/min |
| Material | Full #304 stainless steel |
| Control | PLC touch screen control |
| Transducer | SIEMENS |
| Motor / Gearbox | International brand / Chinese famous brand |
| Bearing | NSK |
| Cylinder | AirTAC |
| Certification | ISO9001 / CE |
| Warranty | 1 year |

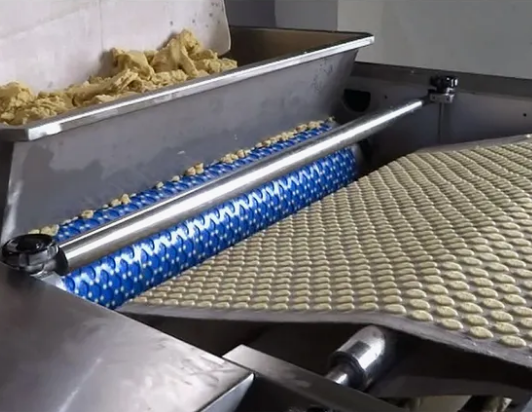

Feeding system
Feeding roller and crosswise milling roller are grooved to ensure sufficient and even dough feeding.
Adjustable gaps
The distance between the feeding roller and the biscuit molds is adjustable, giving you precise control over dough filling.
Rubber roller adjustment
The rubber roller can be adjusted from one side or both sides to minimize biscuit weight variation across the line.

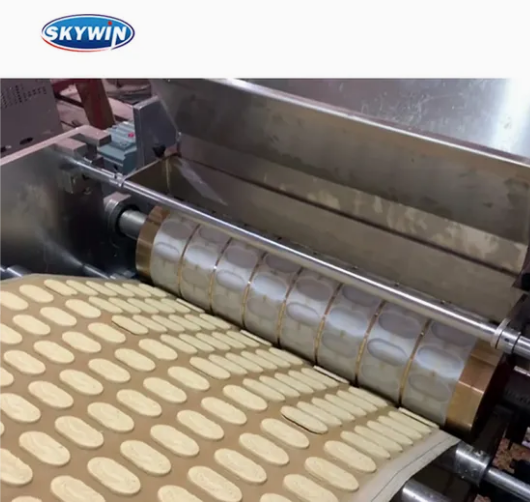

Synchronized de-moulding
The linear speed of the biscuit mold conveyor is identical to that of the de-moulding roller, effectively reducing biscuit deformation during release.
Operation logic
Single operation system; can also be integrated and controlled together with the whole biscuit production line.
Full #304 stainless steel body – hygienic, corrosion-resistant, easy to clean.
NSK bearings + AirTAC pneumatic cylinder – reliable performance and smooth adjustment.
SIEMENS transducer & PLC touch screen – user-friendly interface, precise speed control, and real-time monitoring.
