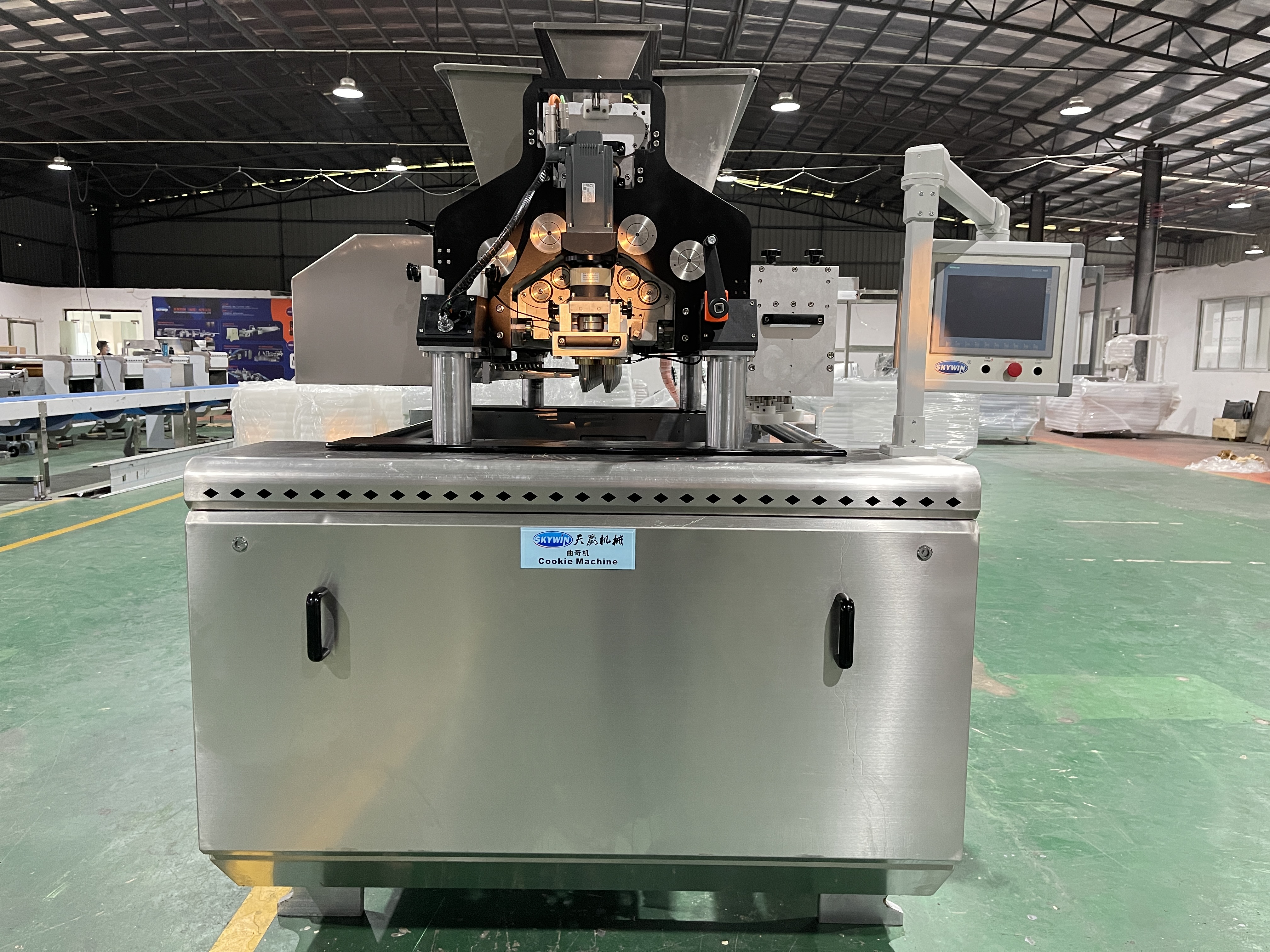

Skywin Automatic Three Colour Cookie Making Machine Production Line

Skywin Automatic Three Colour Cookie Making Machine Production Line

Name: Skywin Automatic Three Colour Cookie Making Machine Production Line
Brand: Skywin
Rating: 5.0 (14 reviews)

Automatic Three Colour Cookie Production Line

Three-color Cookie Biscuit Making Machine

Skywin three color cookie machine widely available for making all kinds of Cookie (Wire cut Cookie, Deposit cookie, Two color Cookie, There colors Cookie, Center Filling Cookie, Sandwich cream Cookie and more production）

A whole line consist of:
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Cookie forming machine
4.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length depend on capacity.
5.Oil spraying machine
6.Turning machine 180degree or 90degree design as per the plant length
7.Cooling conveyor
8.Biscuit stacking machine (start wheel stacker or penny stacker)

Brand:
Skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

T-color Cookie Making Machine Production Line

three color cookie making machine 2

The Three Color Cookie Machine is suitable for the production of three color cookie two color cookies and one color cookies and filled cookies.

Advantage：

Skywin Three-color Cookie Making Machine features innovative technology and a stable production process guarantee. The 3-hopper design is suitable for the production of three-color cookies, two-color cookies, one color cookies, and filled cookies, etc. Compared with the semi-automatic tray cookie machine, it can increase production capacity by 3 to 6 times and save more labor.

Parameter

Capacity: 50-300kg/h
Material: 304# Stainless steel cover, thickness 1.5mm
Weight: 450kg
Voltage: 380V/220V/50Hz
Conveyor belt: PVC belt, thickness 2mm
Automatic: PLC control Weinview Brand, Speed about 60 times/min
Motor: Servo Delta brand (4 sets)
Electric part: Schneider or Chnt brand

To fixed tray size 400mm width x 600mm length
Rubber roll diameter 122mm (endless cotton belt driver)
Feeding roll diameter 106mm, with groove, Aluminum casting roller

Dough Mixer

Horizontal dough mixer

Function: Mix the dough Features: After mixing, dough’s surface would be smooth, flexible and extensible.

1. Suitable for soft and hard biscuit dough

2. Mixing blade is 304 Stainless steel

3. Bowl covered by 304 Stainless steel

4. Tipping by Hydraulic pressure

5. Capacity:150,250,300,500,750kg types.(Other type can be customized)

three color cookie making machine 3

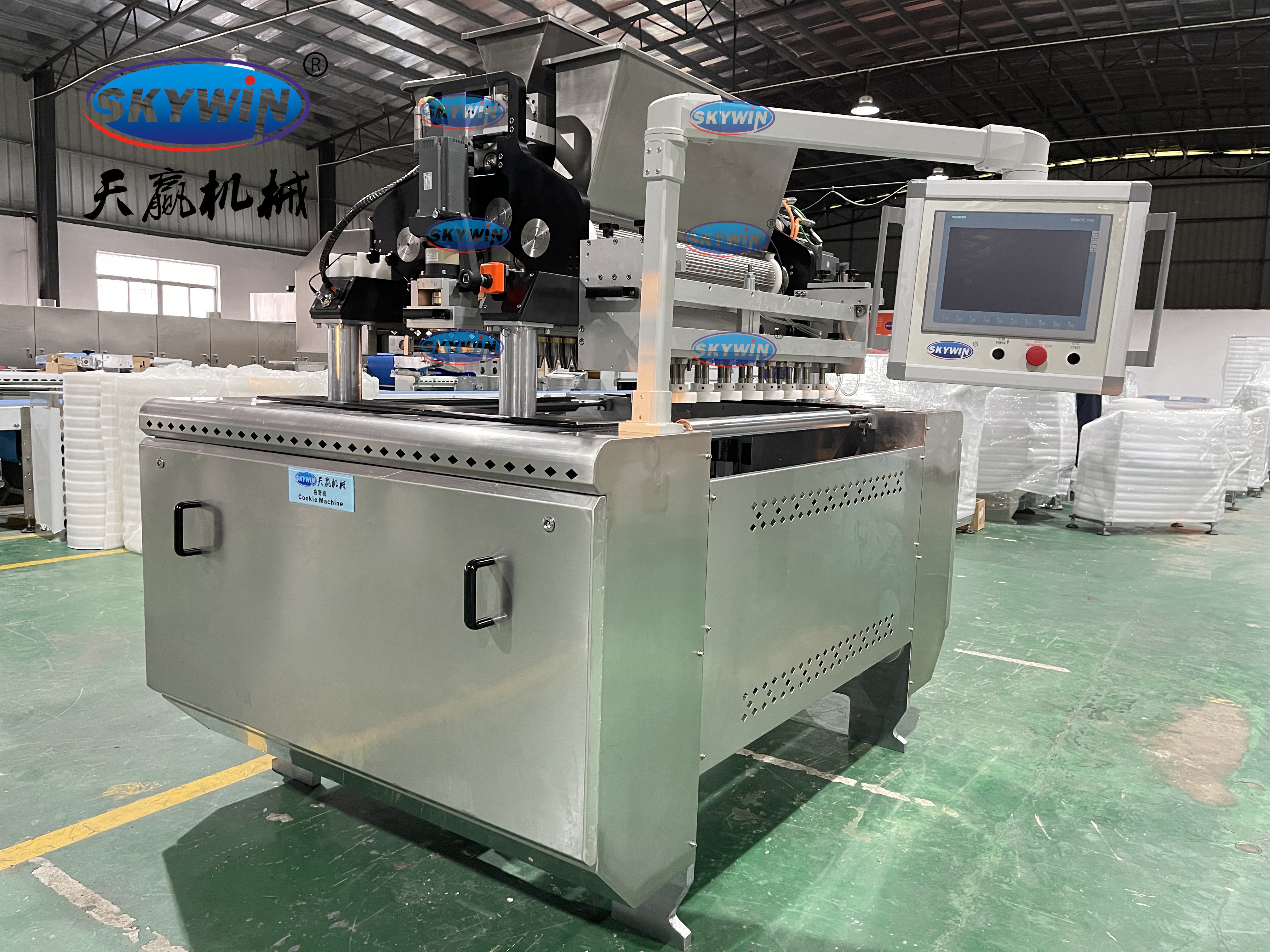

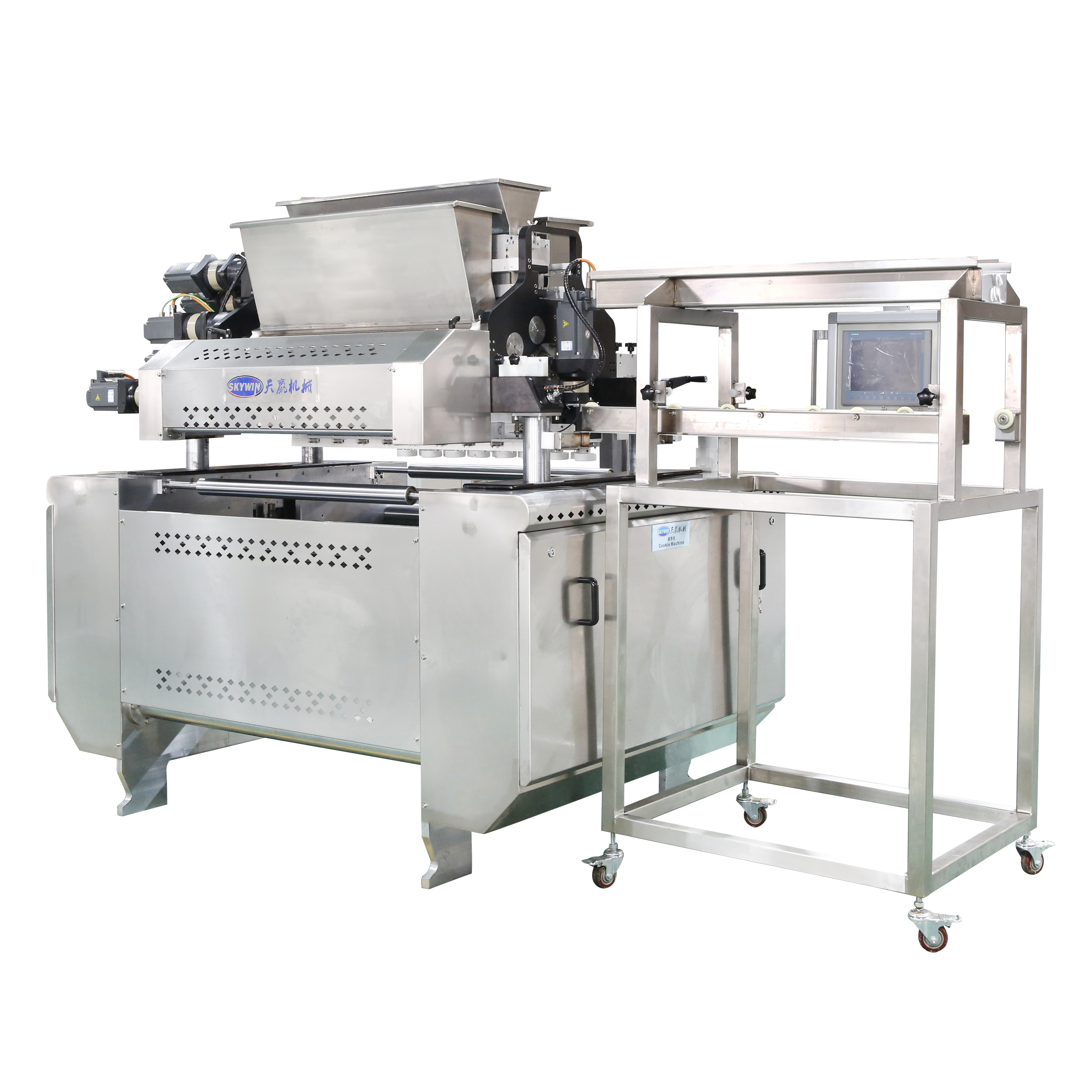

Three Color Cookie forming machine

1. Three hoppers design. The middle hopper is mainly used for filling, while the hopper on both sides is used for making the surface of the filled cookies.

2. Skywin Model 400/600/800/1000/1200/1500 mm, capacity from 100-1500 kg/hr.
3. It is widely available for making all kinds of Cookie(Wire cut Cookie, Deposit cookie, Two color Cookie, There colors Cookie,
Center Filling Cookie, Sandwich cream Cookie)
4. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.

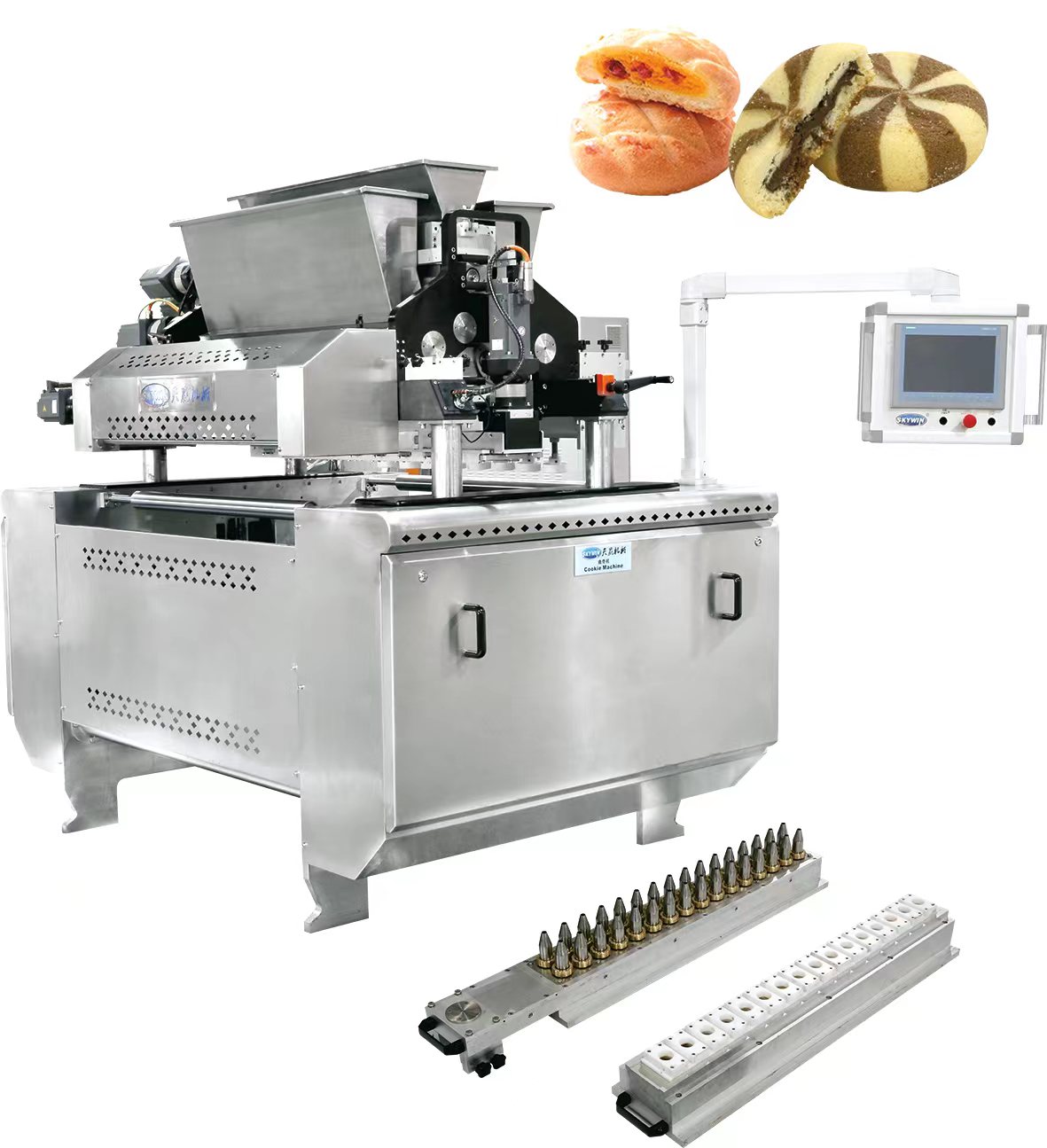

wire cut&deposit mould

The mould of wire cut and deposit cookie

Here are the corresponding molds for deposit cookie and wire-cut cookies; just switch to the appropriate mold according to the cookie type you're making.

oven Gas Tunnel Oven

1. Pneumatic automatic tracking and adjust belt and tension China Taiwan AirTAC brand and Panasonic Sensors

2. Oven cover by 304 Stainless steel, 1.2mm thickness

3. Heat resistant material: Insulation is made of high quality rock wool and aluminium silicate fibre 4.With endless hand-wheel at the out-let of oven in case electricity power off, can be move out the biscuit in the oven chamber, to protect oven.

5.The oven is suitable for Cracker biscuits, common kind biscuits, each burners can be individual control and general control. PLC memory system for easier operation.

6.Each Temperature Zone has viewing window(as the third picture showed), can clearly see biscuit,and also have cleaning window,can open and clean the inside oven body.

7.Have alarm device,when the temperature too height,it will be auto alarming.

8.Belt Clean Machine to strips the scrap biscuits from the mesh belt for long life using
