Skywin Automatic Wire Cut And Deposit Cookie Making Machine Production Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

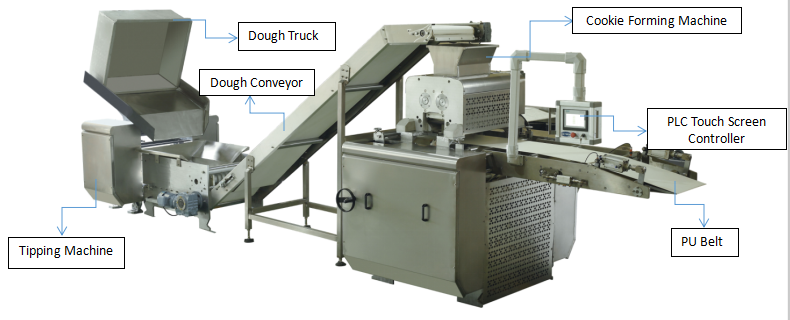

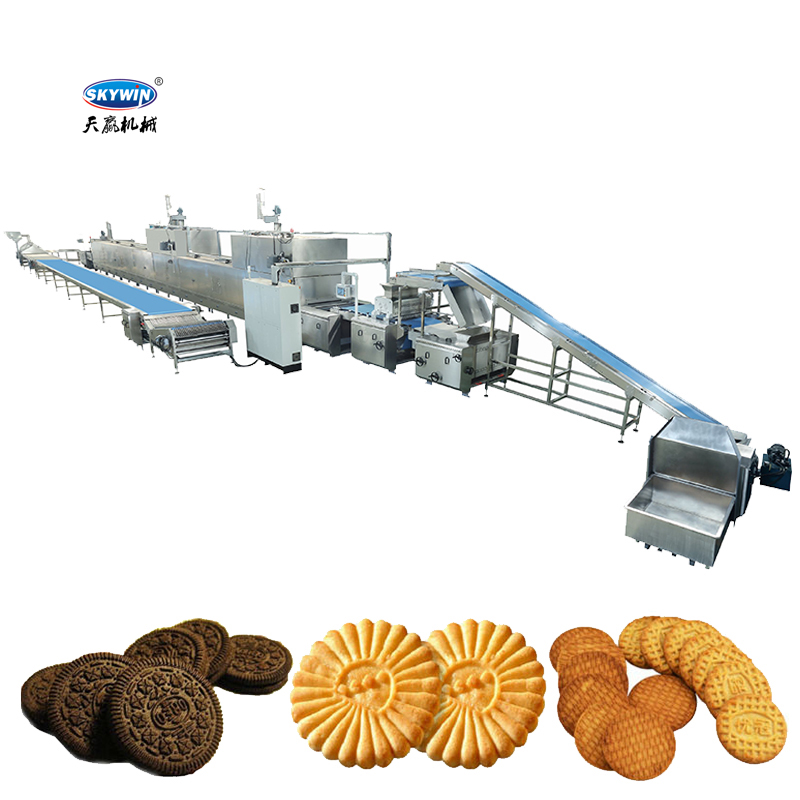

Automatic Cookie Production Line
The cookie machine can form a fully automatic production line by connecting the dough mixer, dough tipping machine, oven and other machines.This Cookie machine have 2 function: Deposit/ Drop cookies and Wire cut press cookie.

A whole line consist of:
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Cookie forming machine
4.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length depend on capacity.
5.Oil spraying machine
6.Turning machine 180degree or 90degree design as per the plant length
7.Cooling conveyor
8.Biscuit stacking machine (start wheel stacker or penny stacker)
  • Skywin

Availability:
Quantity:

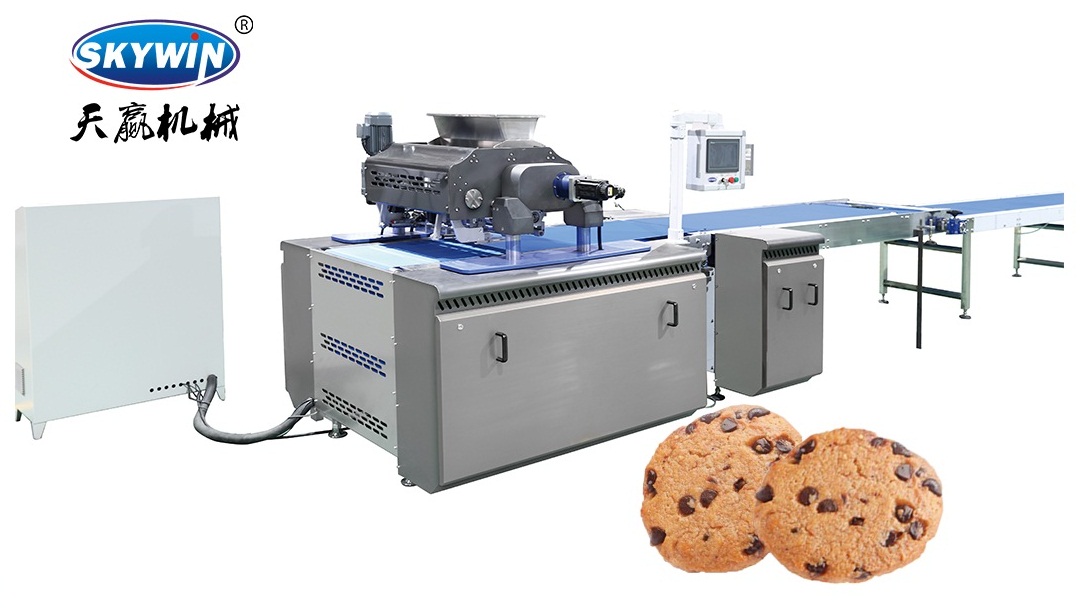

Automatic Cookie Production Line


 cookie making machine

1. Skywin Model 400/600/800/1000/1200/1500 mm, capacity from 100-1500 kg/hr.
2. It is widely available for making all kinds of Cookie(Wire cut Cookie, Deposit cookie,Center Filling Cookie, Sandwich cream Cookie)
3. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.



Feature:

♦Servo motor control Delta Brand, with low noise, high efficiency, long life and other advantages;
♦Reducer selection of RV reducer Bailuo Brand, with high transmission efficiency, low noise, smooth operation, etc.;
♦Servo motor selection famous brand, Conveyor drive roller adopt Nylon rubber material, Pu with a non-toxic oil-resistant material;





150KGS Dough Mixer

Dough Mixer

Horizontal dough mixer

Function: Mix the dough Features: After mixing, dough’s surface would be smooth, flexible and extensible.

1. Suitable for soft and hard biscuit dough

2. Mixing blade is 304 Stainless steel

3. Bowl covered by 304 Stainless steel

4. Tipping by Hydraulic pressure

5. Capacity:150,250,300,500,750kg types.(Other type can be customized)






cookie machine 1

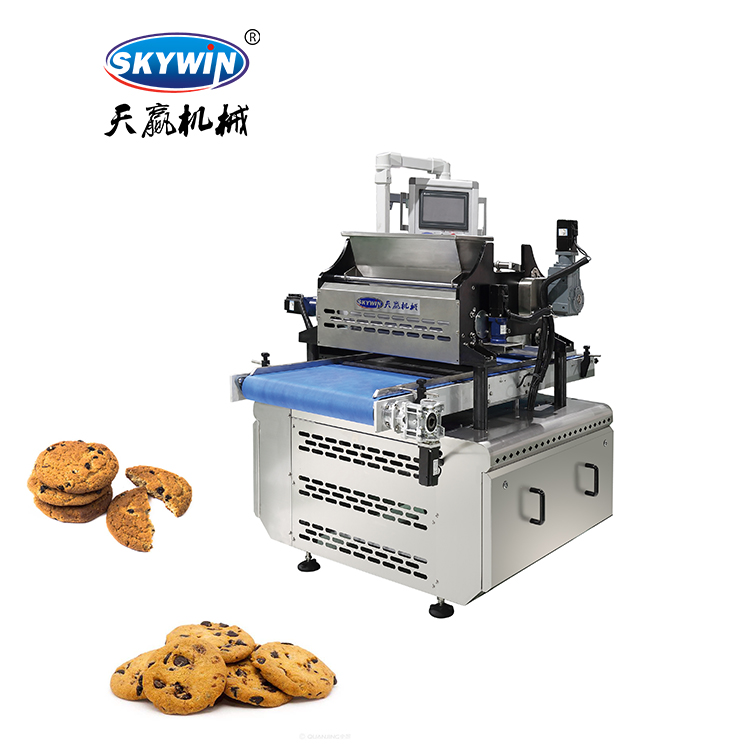

Cookie forming machine
1. 304 Stainless steel Cover, thickness 1.5mm
2. Rubber roll diameter 165mm(endless cotton belt driver), feeding roll diameter 130mm, with groove
3. Equipped enter stove connection extension arm, endless cotton belt thickness 2mm, pneumatic tension
4. Dynamic structure, main motor power 3kw, cotton belt motor power 1.1kw, enter stove conveyor belt power 0.75kw, wire cut power
1.5kw
5. Provided two sets of cookies moulds.
6. Dimension: 3500 x 1450 x 1500mm (L x W x H)
7. Capacity: wire cut 500-600kg per hour, deposit 300-400kg per hour
8. Speed: wire cut 60/min, deposit 30/min
9. DELTA/SCHNEIDER electric parts
10. DELTA servo motor & gearbox
11. DELTA/ SIEMENS PLC touch screen control



wire cut&deposit mould

The mould of wire cut and deposit cookie

Here are the corresponding molds for deposit cookie and wire-cut cookies; just switch to the appropriate mold according to the cookie type you're making.







ovenGas Tunnel Oven

1. Pneumatic automatic tracking and adjust belt and tension China Taiwan AirTAC brand and Panasonic Sensors

2. Oven cover by 304 Stainless steel, 1.2mm thickness

3. Heat resistant material: Insulation is made of high quality rock wool and aluminium silicate fibre 4.With endless hand-wheel at the out-let of oven in case electricity power off, can be move out the biscuit in the oven chamber, to protect oven.

5.The oven is suitable for Cracker biscuits, common kind biscuits, each burners can be individual control and general control. PLC memory system for easier operation.

6.Each Temperature Zone has viewing window(as the third picture showed), can clearly see biscuit,and also have cleaning window,can open and clean the inside oven body.

7.Have alarm device,when the temperature too height,it will be auto alarming.

                                                                                                8.Belt Clean Machine to strips the scrap biscuits from                                                                                                     the mesh belt for long life using
