Automatic Stacking & Feeding Line Connected Packing Machine System Solution
Feature
● Auto Biscuit Stacking Device
● Auto Biscuit Feeding Line
● Auto Biscuit Counting Device
● Connect On Edge Packing Machine/Flow Packing Machine
● Delta servo motor
● Siemens electric parts
● Date printer included
● Packing speed: 30-120bag/min
● Total power/voltage: 5KW/Single 220VAC/50Hz
● One set Spare parts.
● 3cm/6cm/9cm Pusher hand
● One extra PU belt
  • Skywin

Availability:
Quantity:

stacking line

SKYWIN AUTOMATIC FEEDING AND PACKING SYSTEM SOLUTION

The conventional material sorting and packaging line consists of a series of conveyor belts, distribution conveyor belts, side baffles, a conventional material sorting unit and a packaging machine, forming a combined controllable system.

It can sort and automatically distribute the materials, send the materials orderly into the conventional material sorting unit for positioning, and then to the packaging machine for packaging.

Application scope: mainly for biscuit material sorting and packaging.

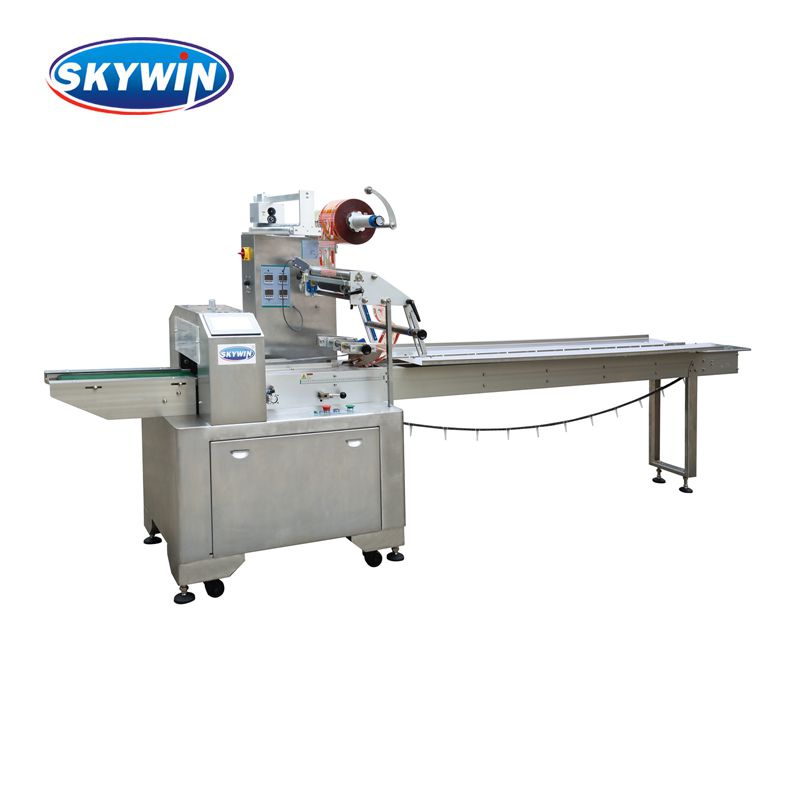

FLOW PACKING MACHINE


flow packaging machine

Skywin Flow packing machine suitable for packing various regular and solid products such as biscuit, cookie, cake, bread, candy, chocolate, daily necessities and so on.


Three Servo Motors, Painted steel cover, Schneider Switches, PLC control system, Upper and Down Knife Jaw Temperature separate control, Heating rollers diameter 100 mm, Feeding roller without temperature control, Heating plate with temperature control, sealing rollers single temperature control.


Feature

1). Included packing conveyor;
2). Double frequency conversion machine, film width 320 mm;
3). Included date printer;
4).Three Servo Motors
5). Painted steel cover
6). Schneider Switches
7). PLC control system
8). Upper and Down Knife Jaw

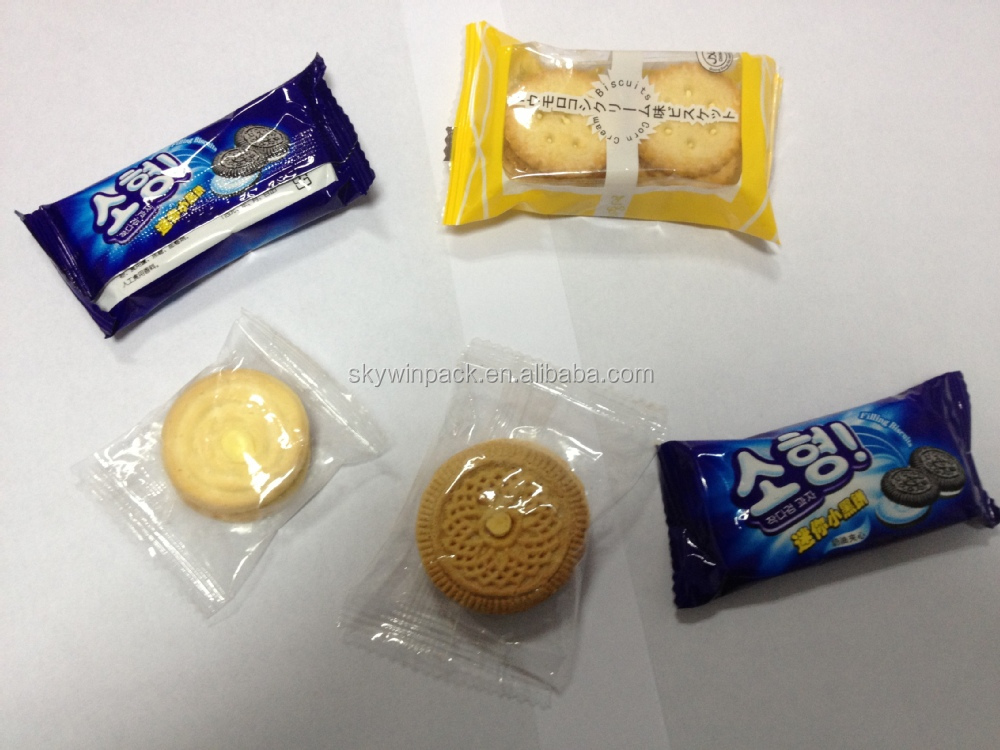

SAMPLE

flow packing sample

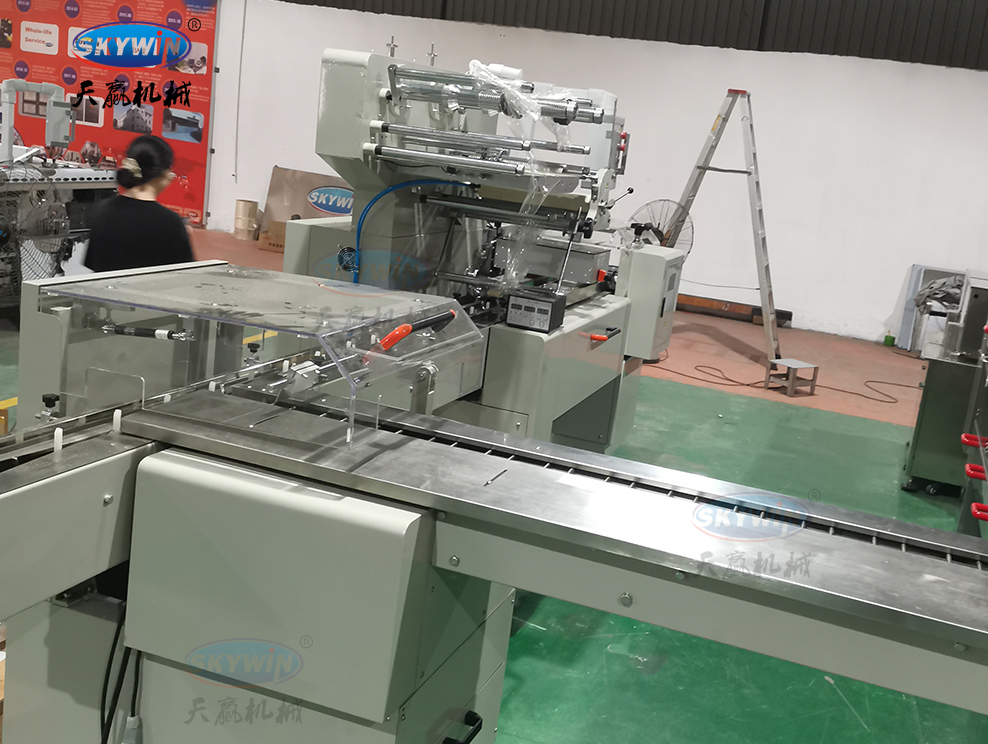

ON EDGE PACKAGING MACHINE

夹心连无托包装机

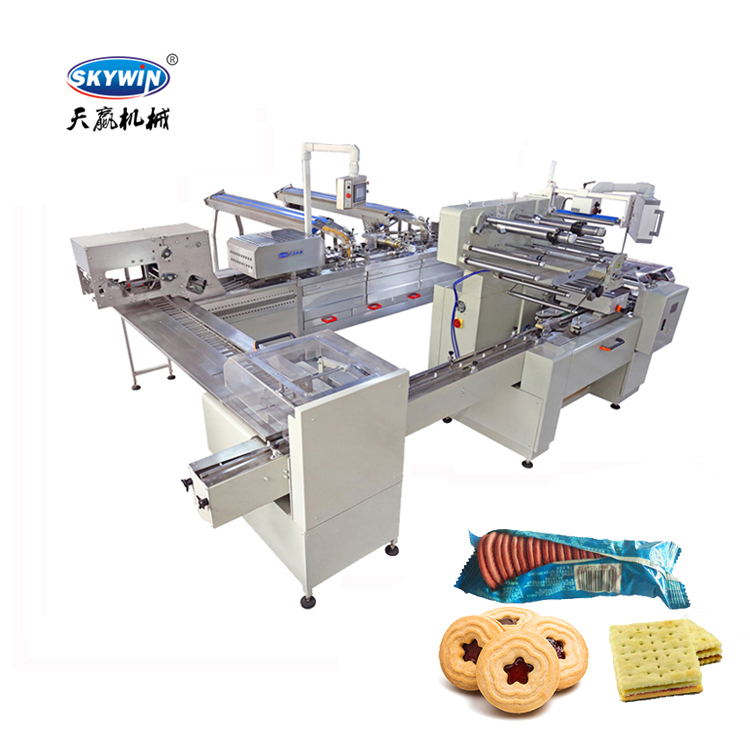

Tray Free Biscuit Cookie On Edge Flow Packing Machine

Product details

1. A date printer included,
2. Photo cell
3. With Middle plastic brush and belt.
4. Packing speed: 30-120bags/min
5. Bag size: Length (80-500) x Width (60-380) x H (5-45) mm
6. Max width of the packing film: 370mm
7. Packing film material: opp/pe/pvc/cpp/ptpe/kop/aluminum film
8. Total power/voltage: 5KW/Single 220VAC/50Hz
9. Machine weight: 650 kg
10. Power type: 220V/50HZ



无托


无托1

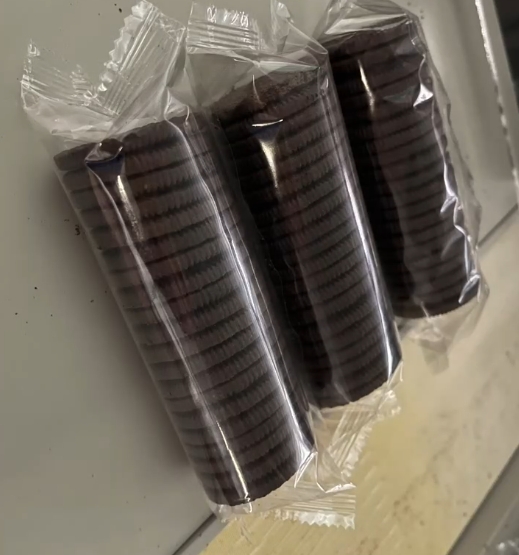

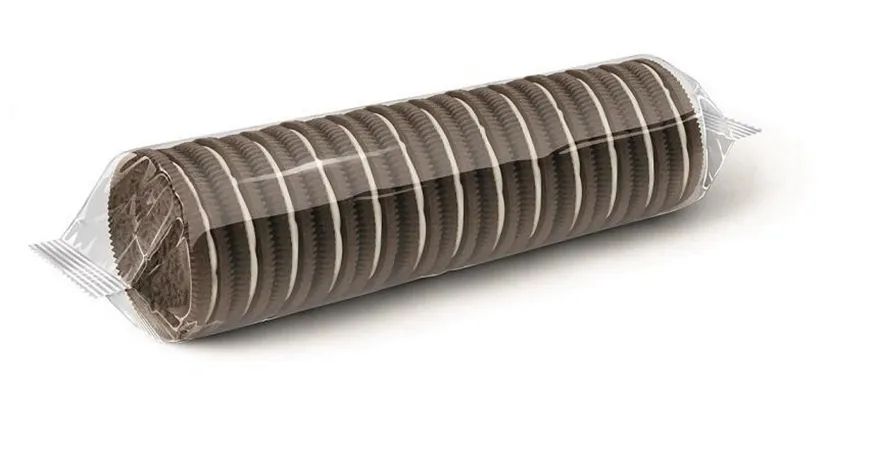

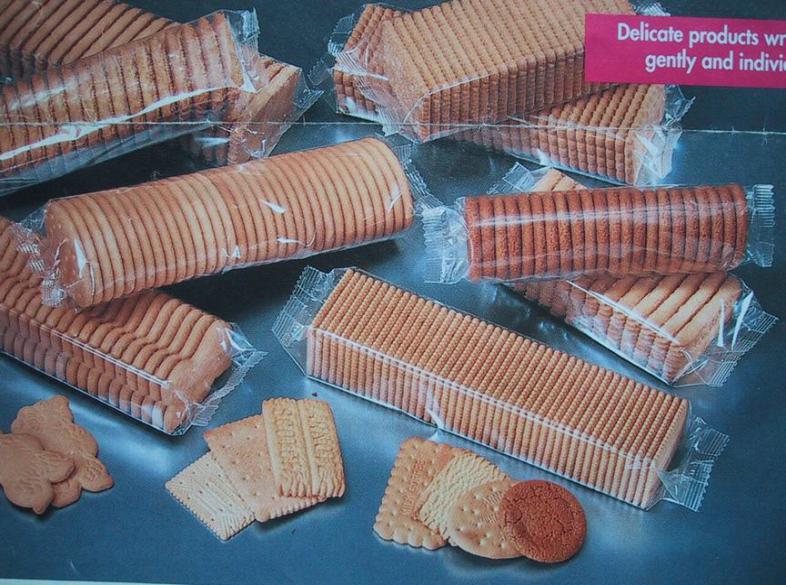

Sample:

无托包装
无托包装样品
无托3

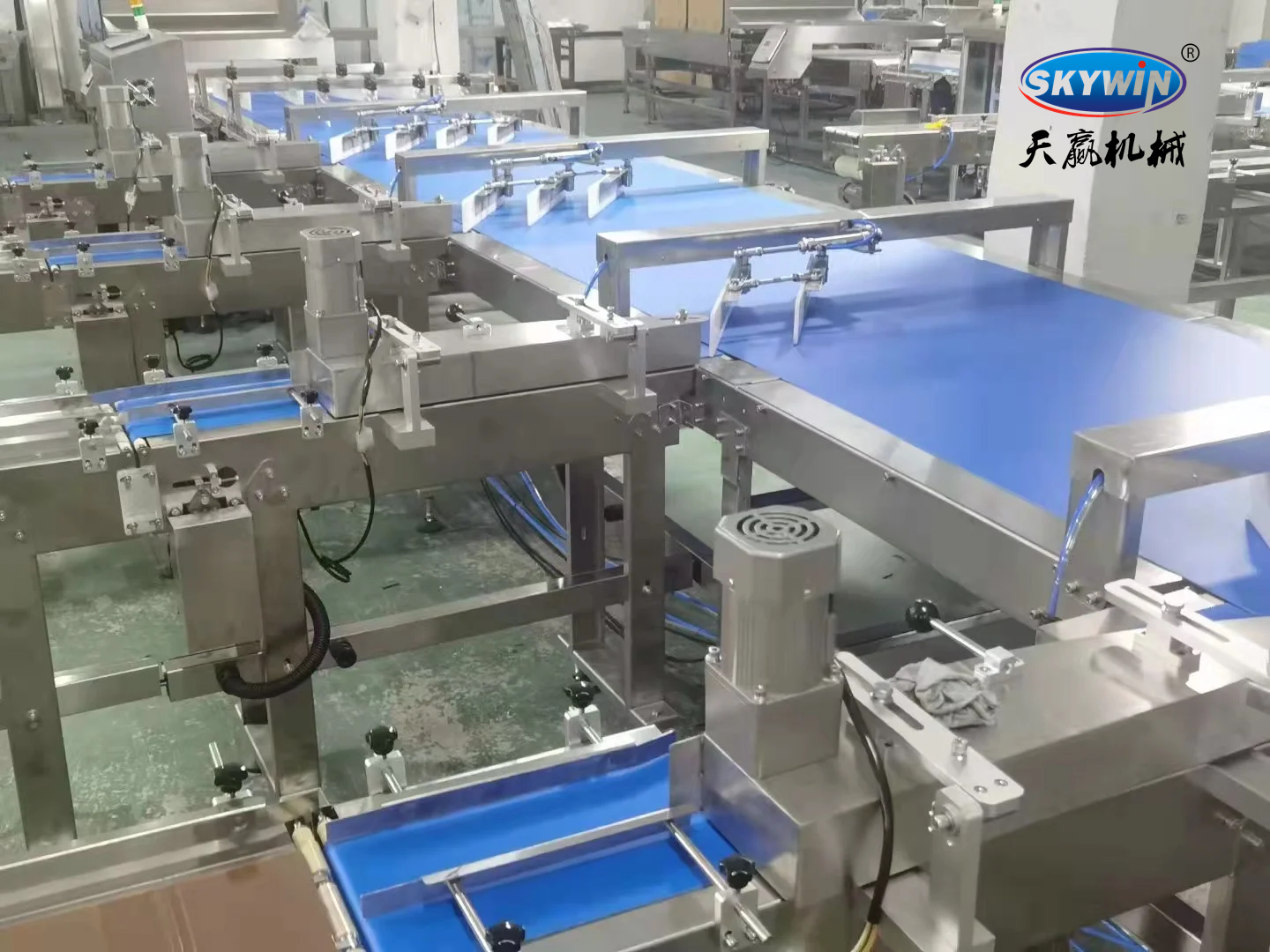

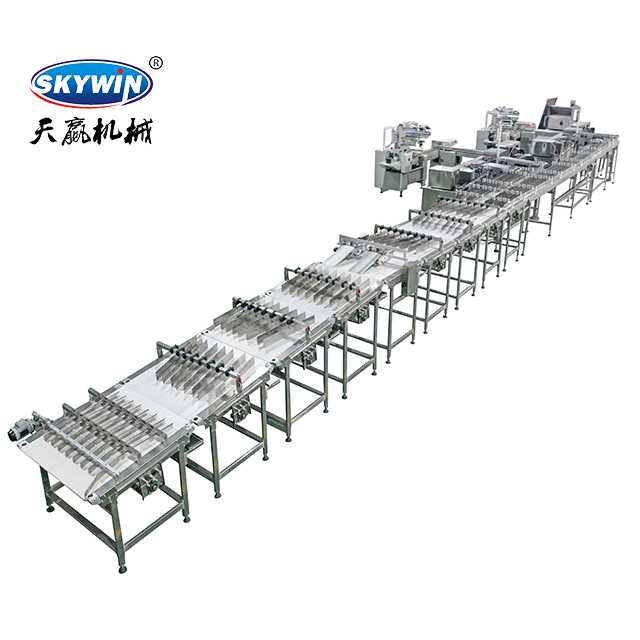

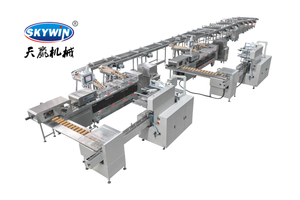

Automatic Biscuit Stacking and Feeding Line

stacking line

Auto feeding and packing line suitable for packing different kind of regular shape products such as cakes, cereal bar, bread, chocolate bar, wafer biscuit, cookie, finger biscuit, etc.

It can be connected to your food production line, save labor, full automatic. The packing line can be customized according to your package type, capacity and workshop size.

Feature

● Auto Biscuit Stacking Device
● Auto Biscuit Feeding Line

● Auto Biscuit Counting Device

● Auto Biscuit Creaming Machine

● Connect Edge Packing Machine
● Delta servo motor
● Siemens electric parts
● Date printer included
● Packing speed: 30-120bag/min

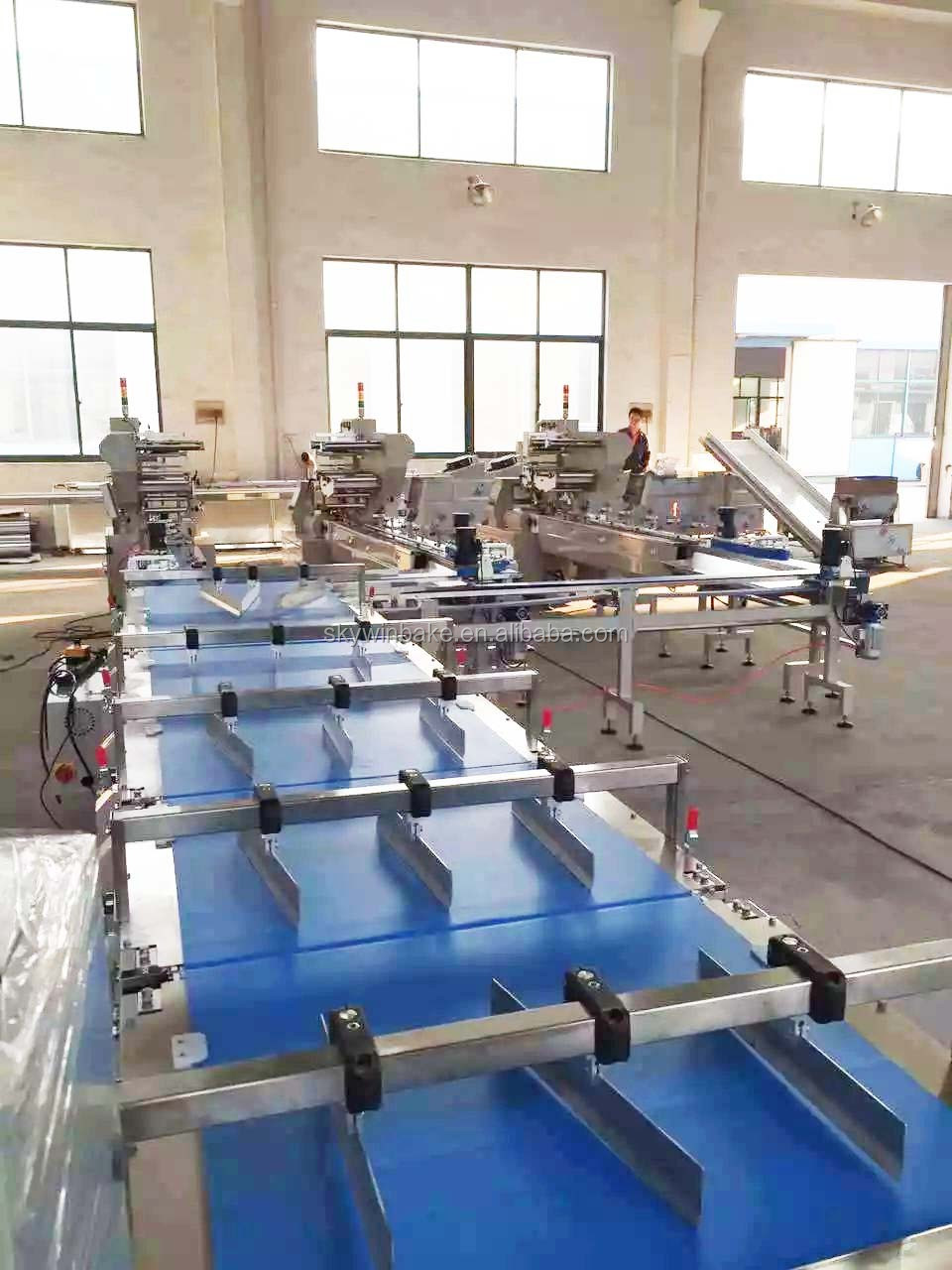

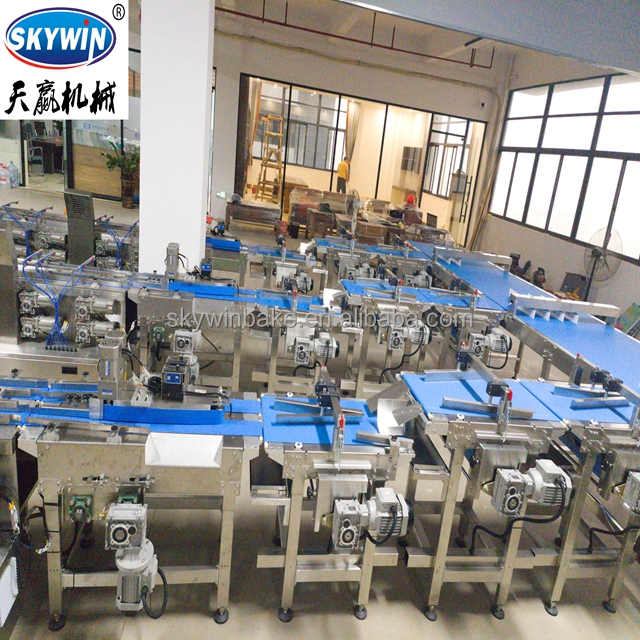

Feed Packing Line


packing line





详情2_10
