3+2 Two-Lane Biscuit Sandwiching & On-Edge Packaging Line | Cream & Jam Filled Cookies | High-Speed Automatic | CE Certified

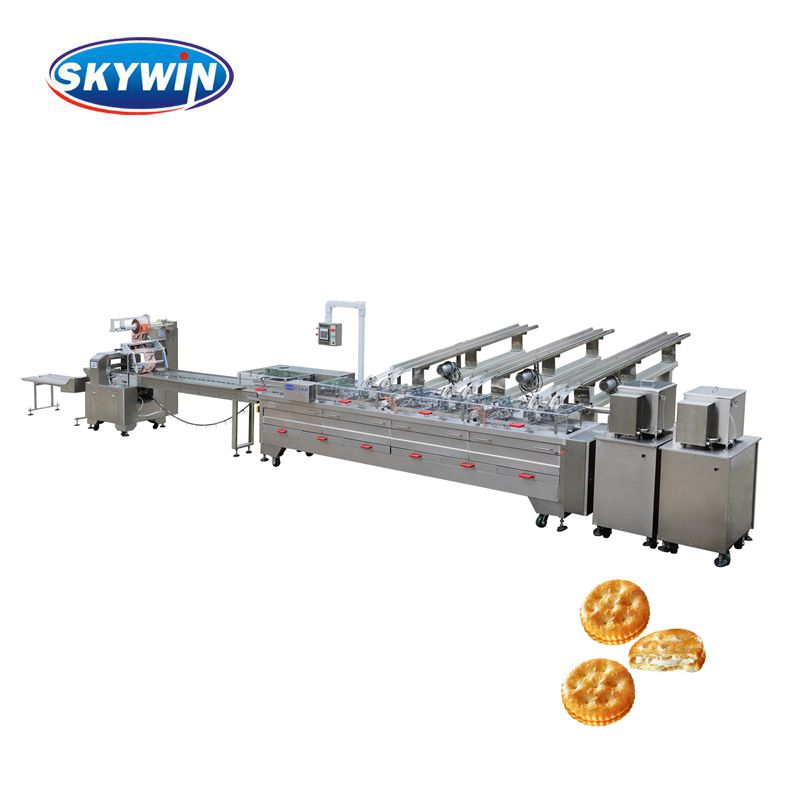

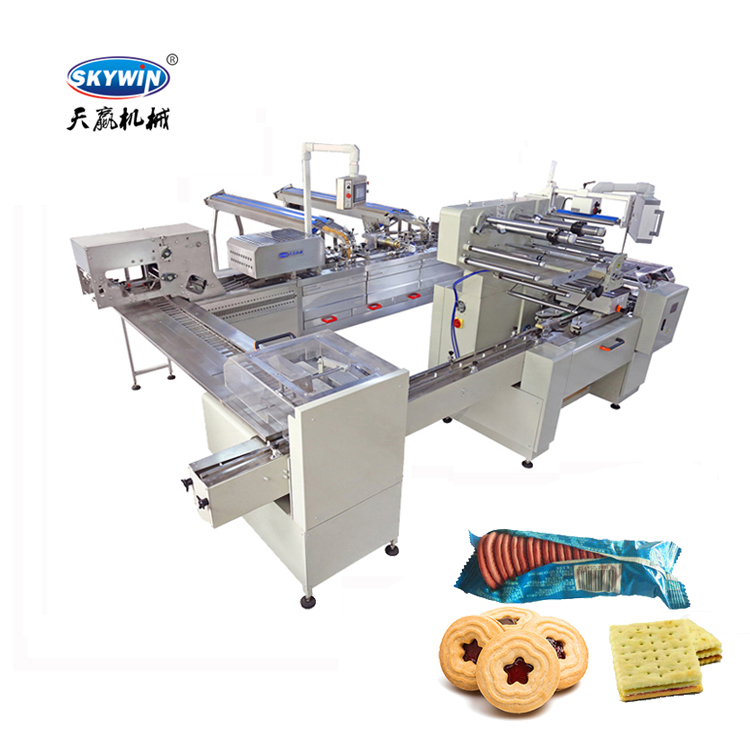

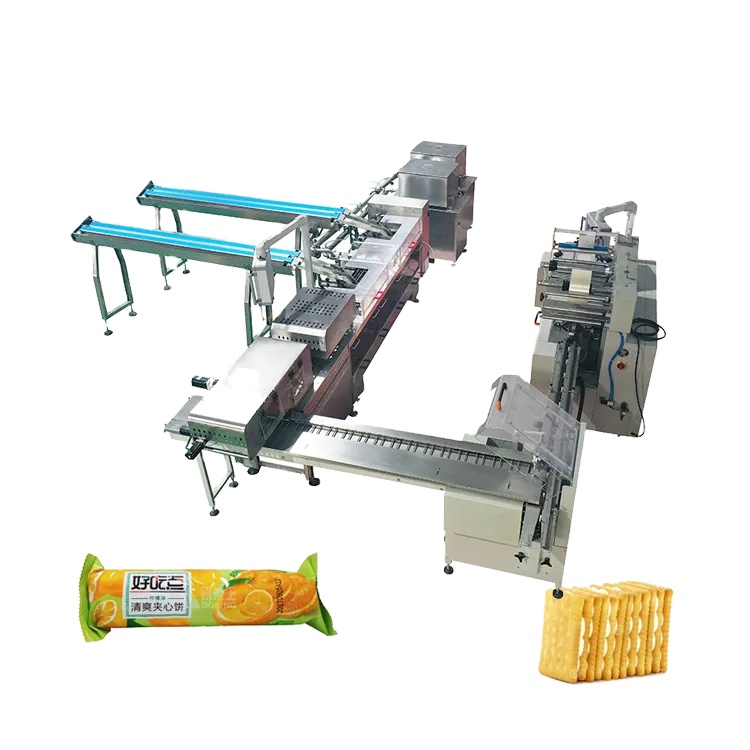

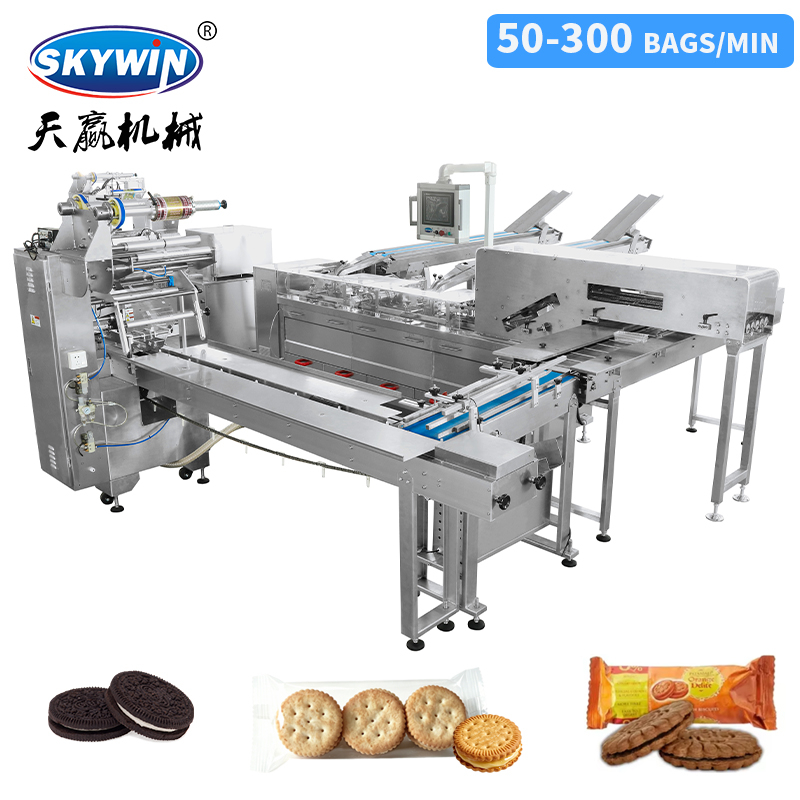

The Skywin 3+2 Two Lane Biscuit Sandwiching Machine with On Edge Packaging Machine is a complete integrated production line engineered for high-speed sandwich biscuit manufacturing and on-edge packaging. The "3+2" configuration refers to a three-lane biscuit feeding and sandwiching system combined with a two-lane on-edge packaging system — allowing high-speed sandwiching output to be efficiently synchronized with downstream flow wrapping.
This integrated line deposits cream, jam, or chocolate filling onto biscuit bases, sandwiches them with top biscuits, arranges the finished cookies on edge, and automatically flow-wraps them — eliminating manual handling between sandwiching and packaging. Designed for medium-to-large biscuit factories, it delivers precise filling weight, consistent sandwich alignment, and reliable uptime exceeding 99.9%.
| Feature | Specification |
|---|---|
| Configuration | 3+2 (3-lane sandwiching + 2-lane on-edge packing) |
| Production Capacity | High-speed, up to 1,500 kg/h (varies by model & product) |
| Filling Types | Cream, jam, chocolate, vanilla, fruit paste, caramel |
| Packing Method | On-edge flow packing (flow wrap) |
| Product Types | Cream sandwich biscuits, jam filled cookies, chocolate cream cookies |
| Control System | Siemens PLC + touch screen HMI |
| Servo Motors | Delta brand (feeding, filling & packing) |
| Pneumatic System | AirTAC cylinders for belt tension & deflection |
| Conveyor Belt | Cotton + PU, 1.5 mm thickness |
| Machine Cover | Stainless steel, 1.2 mm (food-contact areas) |
| Certification | CE standard compliant |
| Uptime Reliability | >99.9% |
This 3+2 sandwiching and on-edge packaging line is widely used for producing:
Cream Sandwich Biscuits — vanilla cream, milk cream, fruit cream sandwich cookies
Jam Filled Cookies — strawberry, apricot, raspberry jam sandwich biscuits
Chocolate Cream Cookies — chocolate cream filled sandwich cookies
On-Edge Packed Cookies — biscuits arranged on edge for flow wrap packaging
Custom Filled Biscuits — any shape and filling combination; custom mold design available
Ideal for: biscuit manufacturers, sandwich cookie producers, cream biscuit factories, snack food companies, and turnkey production projects requiring integrated sandwiching and packaging.
This integrated sandwiching and packaging line includes:
Biscuit Feeding System — aligns biscuit bases and tops for sandwiching across 3 lanes
Three-Lane Filling Depositor — precise cream, jam, or chocolate deposition
Sandwiching Unit — aligns and presses top biscuits onto filled bases

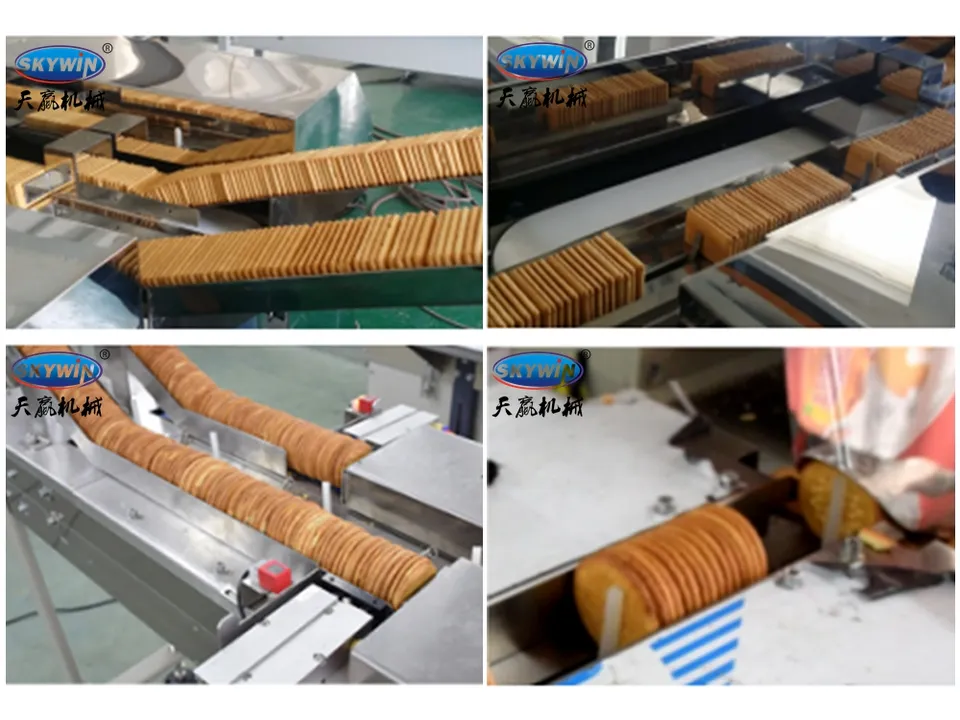

On-Edge Arranging Conveyor — rotates and aligns cookies on edge across 2 lanes
Two-Lane Flow Packing Machine — flow wrap packaging for on-edge cookies
Discharge Conveyor — transfers finished packs for cartoning or case packing
