Skywin Automatic Two Colour Cookie Making Machine Production Line

Skywin Automatic Two Colour Cookie Making Machine Production Line

Name: Skywin Automatic Two Colour Cookie Making Machine Production Line
Brand: Skywin
Rating: 5.0 (22 reviews)

Automatic Two Colour Cookie Production Line

Two-color Cookie Biscuit Making Machine Biscuit Making Machine
1. This PLC cookies making machine is wire cut cookie and deposit,and the biscuit shapes can be customized.

2. After cookies forming, the cookies will be baked by rotary oven. Compact structure / Multi-function / Easy operation / Popular with the majority of users.

Model-400mm, conveyor belt width 400mm,tray size is 400*600mm

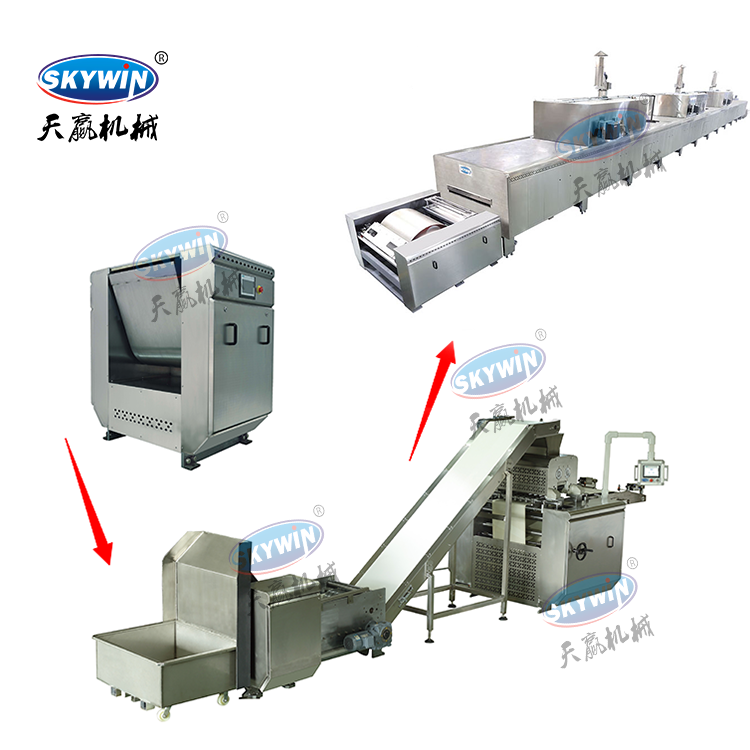

A whole line consist of:
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Cookie forming machine
4.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length depend on capacity.
5.Oil spraying machine
6.Turning machine 180degree or 90degree design as per the plant length
7.Cooling conveyor
8.Biscuit stacking machine (start wheel stacker or penny stacker)

Brand:
Skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

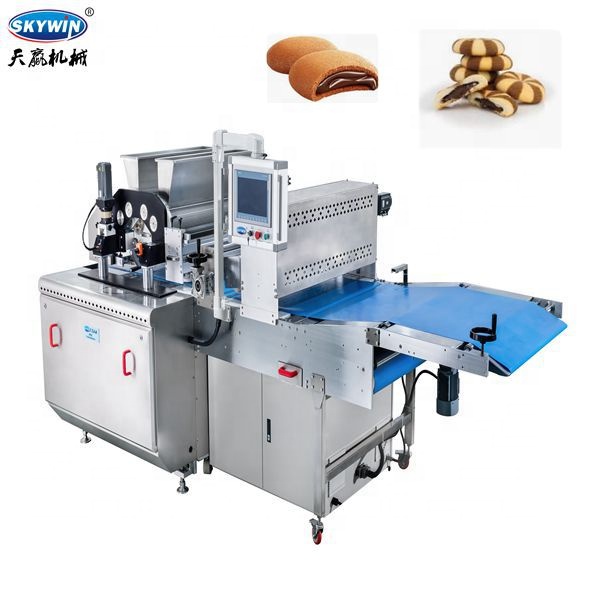

Two-color Cookie Biscuit Making Machine Biscuit Making Machine

two colour cookie machine 1

The Two Color Cookie Machine is suitable for the production of two color cookies and one color cookies and filled cookies.

Parameter

Capacity: 50-150kg/h
Material: 304# Stainless steel cover, thickness 1.5mm
Weight: 450kg
Voltage: 380V/220V/50Hz
Conveyor belt: PVC belt, thickness 2mm
Automatic: PLC control Weinview Brand, Speed about 60 times/min
Motor: Servo Delta brand (4 sets)
Electric part: Schneider or Chnt brand

To fixed tray size 400mm width x 600mm length
Rubber roll diameter 122mm (endless cotton belt driver)
Feeding roll diameter 106mm, with groove, Aluminum casting roller

Feature:

♦Servo motor control Delta Brand, with low noise, high efficiency, long life and other advantages;
♦Reducer selection of RV reducer Bailuo Brand, with high transmission efficiency, low noise, smooth operation, etc.;
♦Servo motor selection famous brand, Conveyor drive roller adopt Nylon rubber material, Pu with a non-toxic oil-resistant material;

Dough Mixer

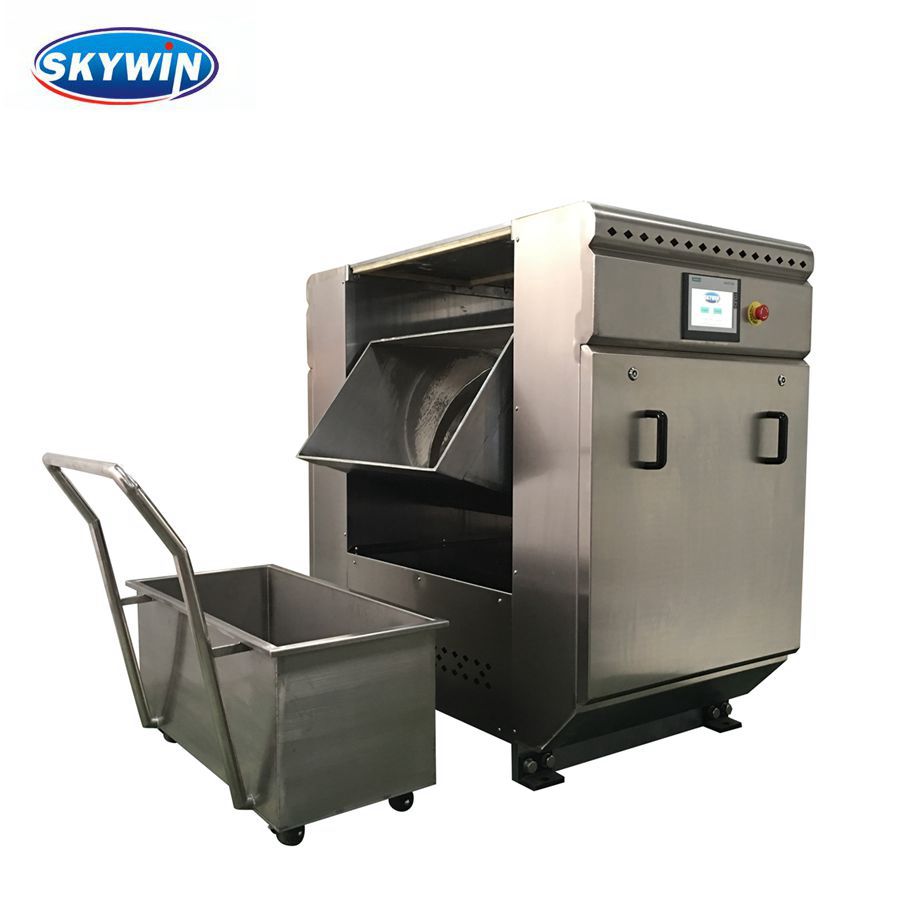

Horizontal dough mixer

Function: Mix the dough Features: After mixing, dough’s surface would be smooth, flexible and extensible.

1. Suitable for soft and hard biscuit dough

2. Mixing blade is 304 Stainless steel

3. Bowl covered by 304 Stainless steel

4. Tipping by Hydraulic pressure

5. Capacity:150,250,300,500,750kg types.(Other type can be customized)

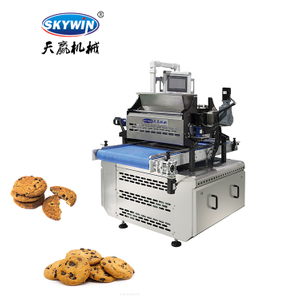

two colour cookie machine

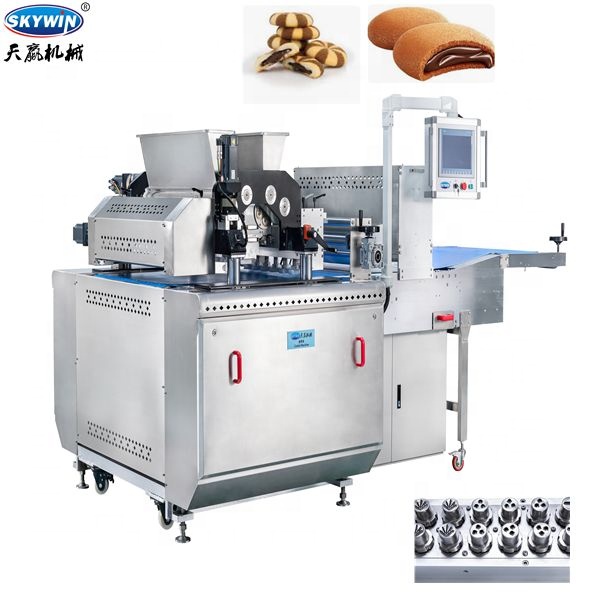

Two Color Cookie forming machine

1. 304 Stainless steel Cover, thickness 1.5mm
2. Rubber roll diameter 165mm(endless cotton belt driver), feeding roll diameter 130mm, with groove
3. Equipped enter stove connection extension arm, endless cotton belt thickness 2mm, pneumatic tension
4. Dynamic structure, main motor power 3kw, cotton belt motor power 1.1kw, enter stove conveyor belt power 0.75kw, wire cut power
1.5kw
5. Provided two sets of cookies moulds.
6. Dimension: 3500 x 1450 x 1500mm (L x W x H)
7. Capacity: wire cut 500-600kg per hour, deposit 300-400kg per hour
8. Speed: wire cut 60/min, deposit 30/min
9. DELTA/SCHNEIDER electric parts
10. DELTA servo motor & gearbox

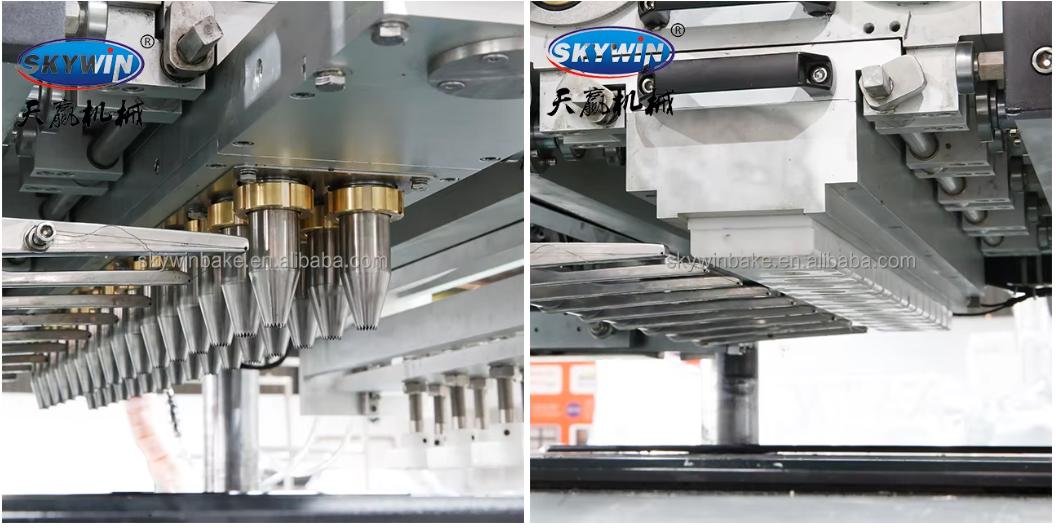

wire cut&deposit mould

The mould of wire cut and deposit cookie

Here are the corresponding molds for deposit cookie and wire-cut cookies; just switch to the appropriate mold according to the cookie type you're making.

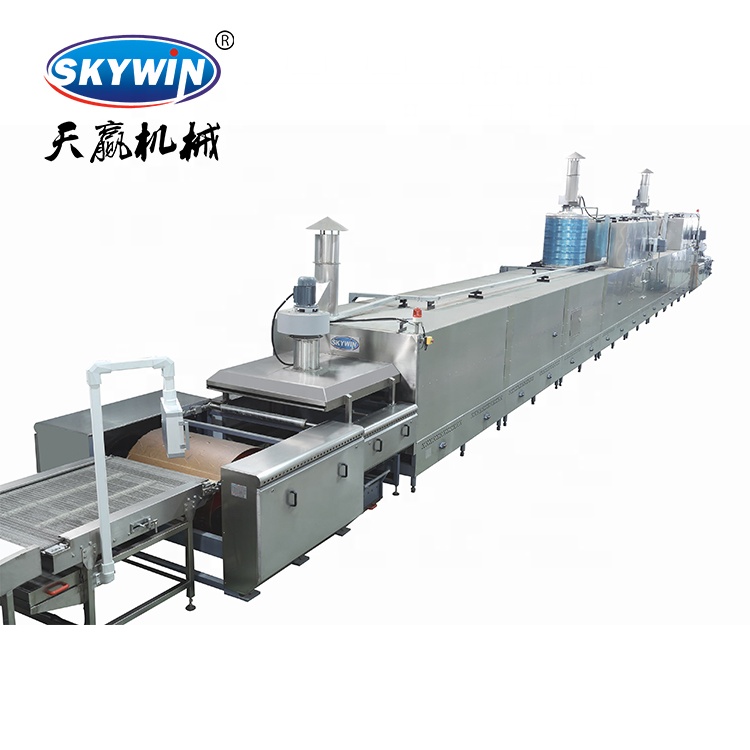

oven Gas Tunnel Oven

1. Pneumatic automatic tracking and adjust belt and tension China Taiwan AirTAC brand and Panasonic Sensors

2. Oven cover by 304 Stainless steel, 1.2mm thickness

3. Heat resistant material: Insulation is made of high quality rock wool and aluminium silicate fibre 4.With endless hand-wheel at the out-let of oven in case electricity power off, can be move out the biscuit in the oven chamber, to protect oven.

5.The oven is suitable for Cracker biscuits, common kind biscuits, each burners can be individual control and general control. PLC memory system for easier operation.

6.Each Temperature Zone has viewing window(as the third picture showed), can clearly see biscuit,and also have cleaning window,can open and clean the inside oven body.

7.Have alarm device,when the temperature too height,it will be auto alarming.

8.Belt Clean Machine to strips the scrap biscuits from the mesh belt for long life using
