Feeding tracks: can make single row ,two rows ,four rows ,six rows
Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle.
Sandwich colour: can make one color ,two color .
Sandwich fillings: cream , jam , chocolate and many more .
Packing machine type : trayless packing ,pillow packing ,depend on customer demand.
Packet biscuit types: 1x1, 1x2, 1x3, 2x1, 2x2, 2x3

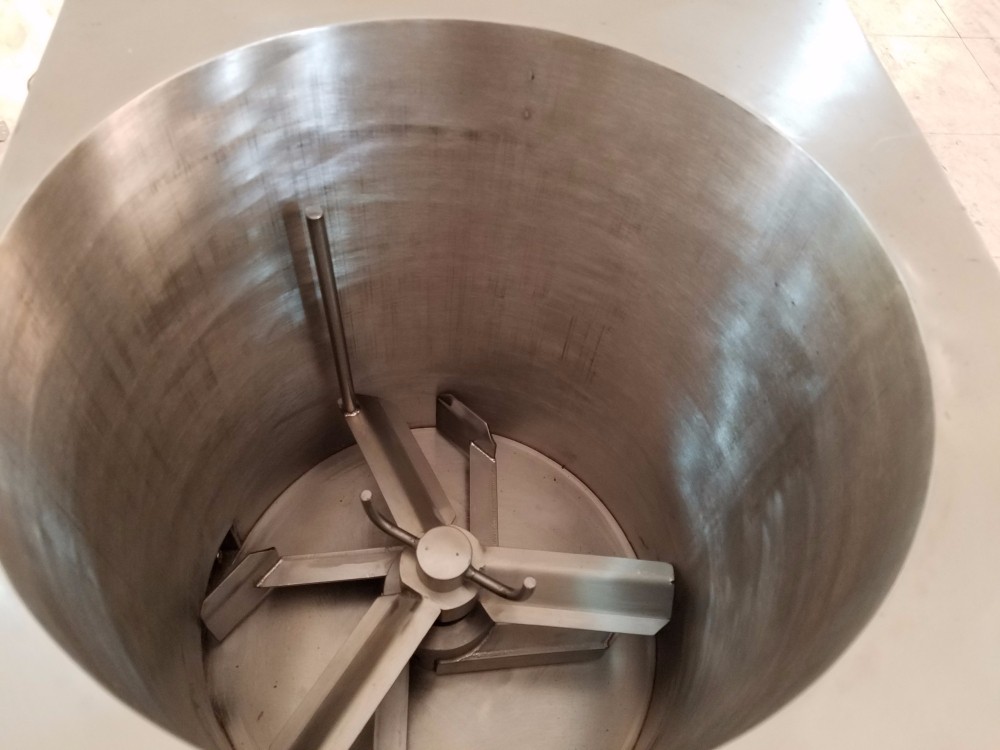

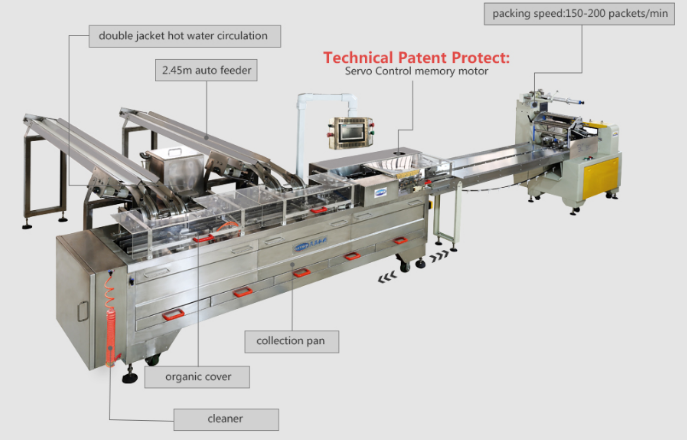

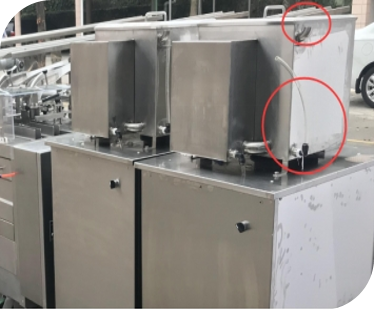

1) New Design Double jacket Cream Tanks for cream .
Double jacket Cream Tanks with hot Water circulation system Cream tank with mix blade and pusher
Innovative double-jacket insulation design for a 70L large-capacity cream container

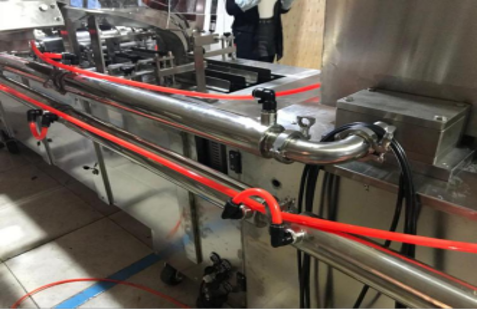

The hot water circulation system keeps the cream from solidifying not easily at low temperatures.

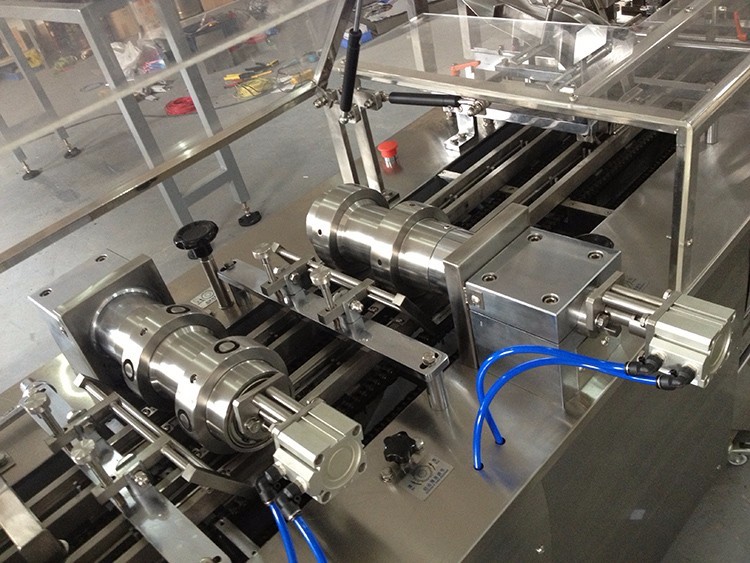

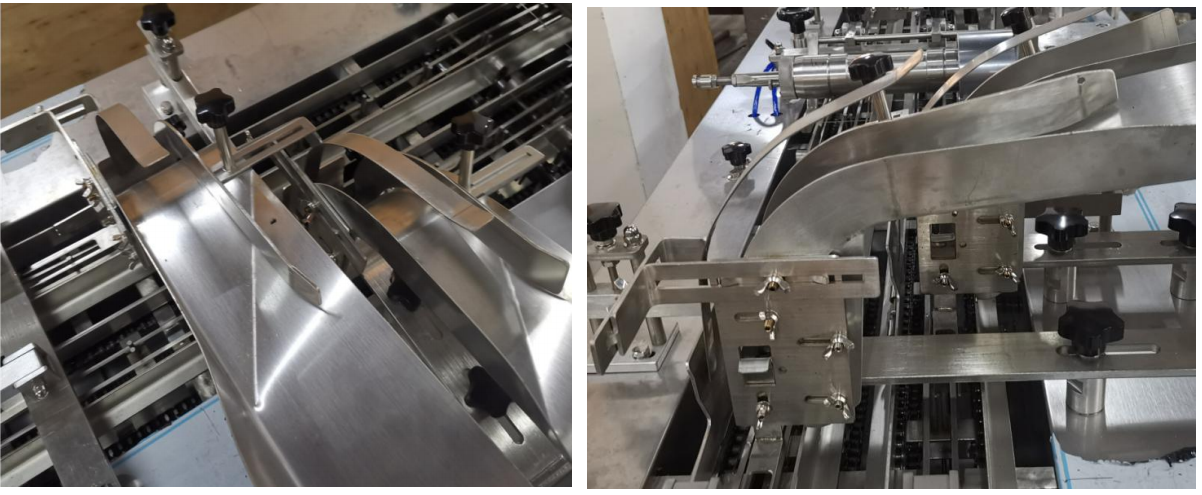

2) Adjustable Biscuits feeder for different size biscuits
Two biscuit feeding lane
-vibration feeding type
-convoyor belt type
-Conveyor PU Belt Feeders(45°or 90°are available)
Adjustable biscuit conveyor suitable for different biscuit size sensor for biscuits checking，all you have to do is make the biscuit up-right on the biscuit feeding conveyor.

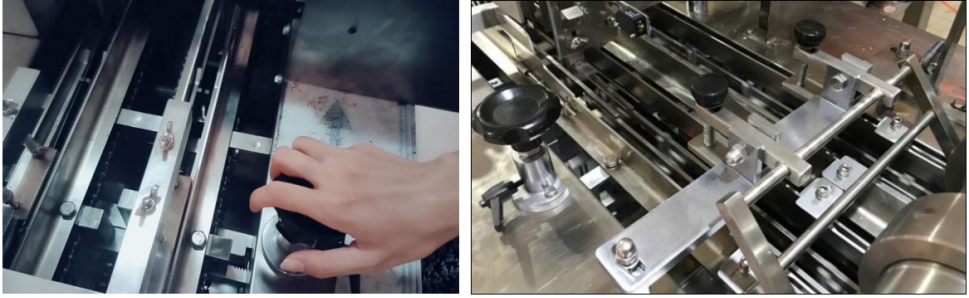

Adjustable hand wheels for sandwiching row ,adjusting size according different biscuit size

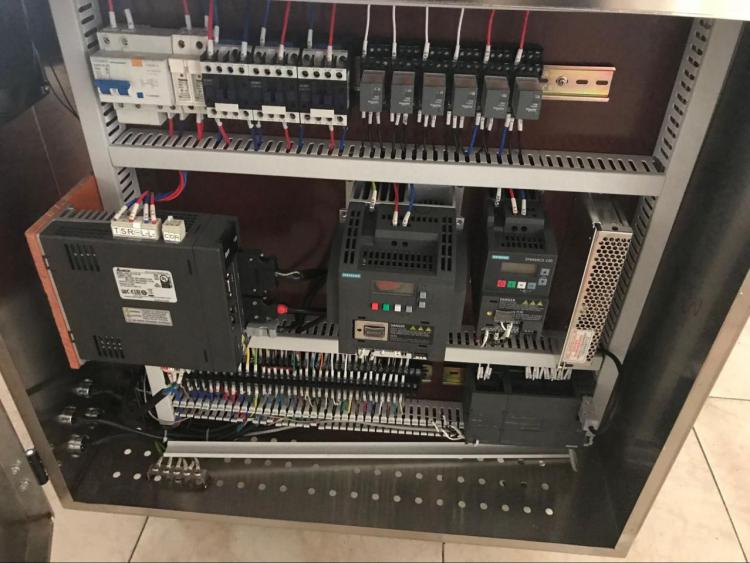

Famous Brand Inverter for sandwiching machine

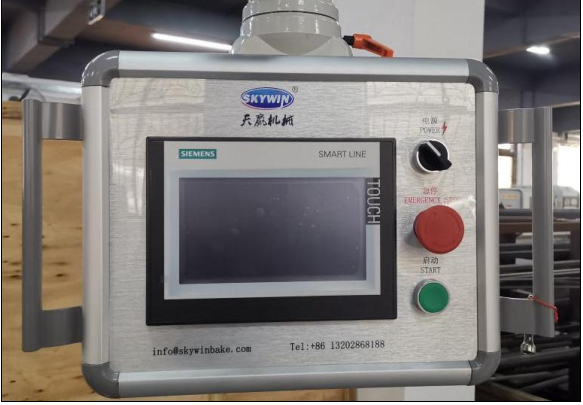

Famous Brand PLC&Touch Screen, can be rotate 360°for easy controlled

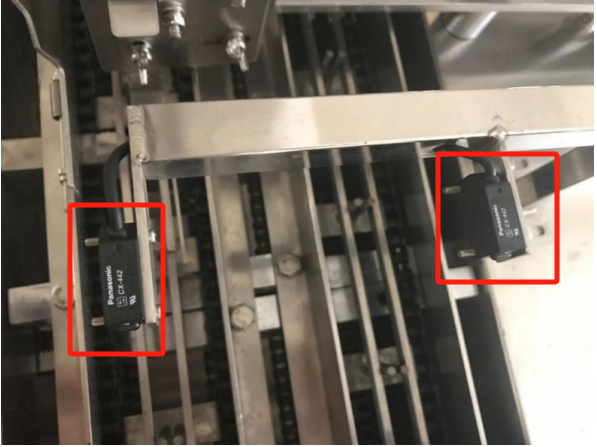

sensor for biscuits checking
No biscuits no cream output. Biscuits gaps amount can be setting on the PLC
Cream&Jam One/Two Color Cream Stencil

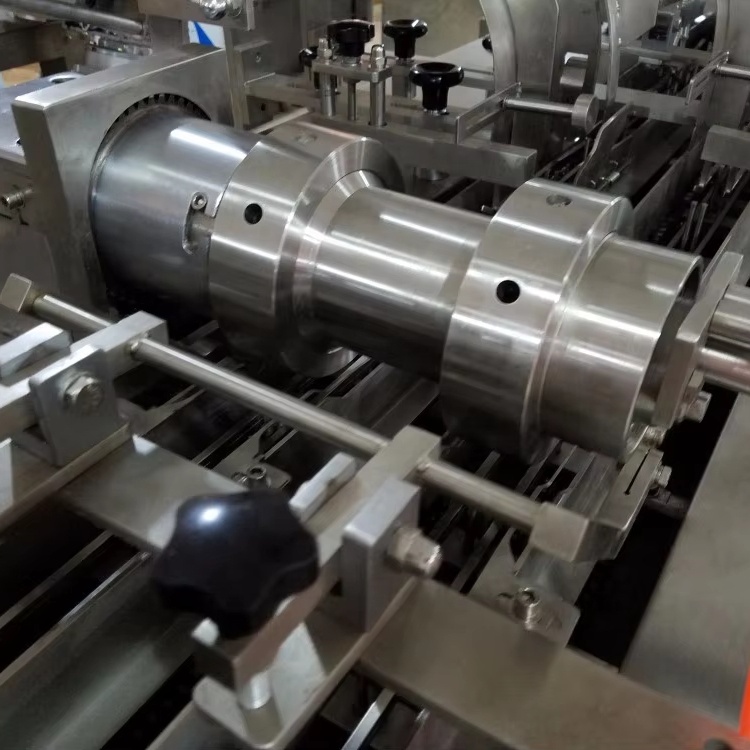

Creaming mould
The Creaming speed is 500-600 per minute. By changing the molds and increasing the cream tanks, it is possible to switch between one color and two color biscuit sandwiching.
Cream tanks blade with strong pusher to make sure fast speed sandwiching

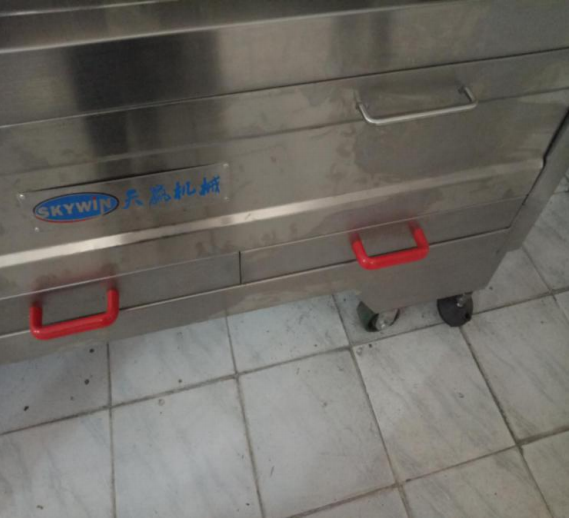

4 wheels at the bottom,convenient to move the machine

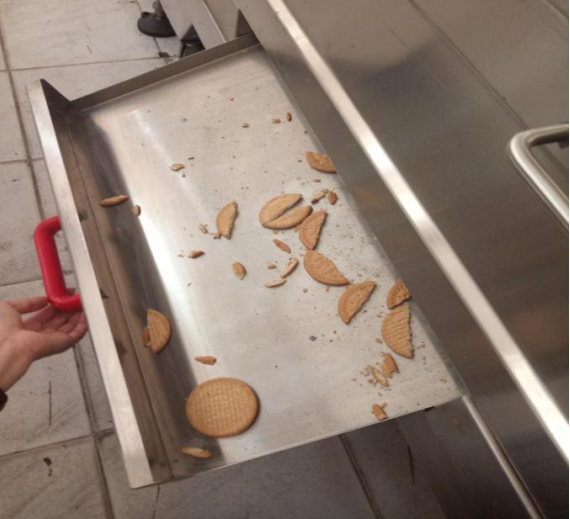

Collecting pans to collect the broken biscuit

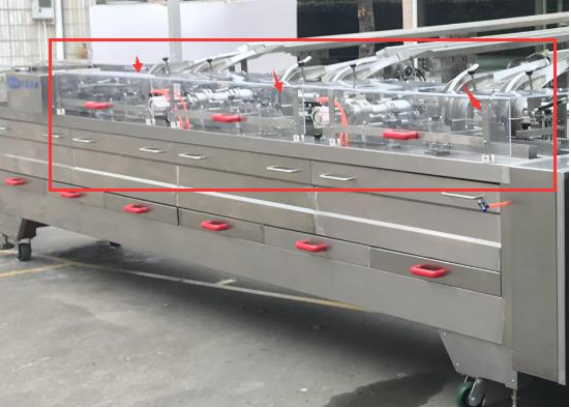

Safety protection acrylic cover
The acrylic protective cover can make the working environment of workers safer. Compared with other products in the market, the acrylic protective cover we designed places greater emphasis on safety.

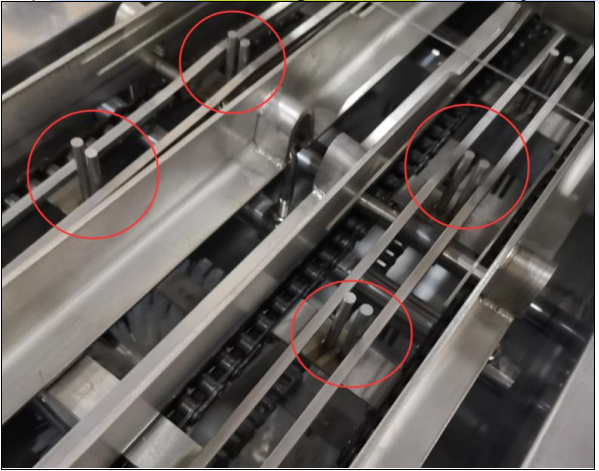

Pushers on creaming machine made by stainless steel

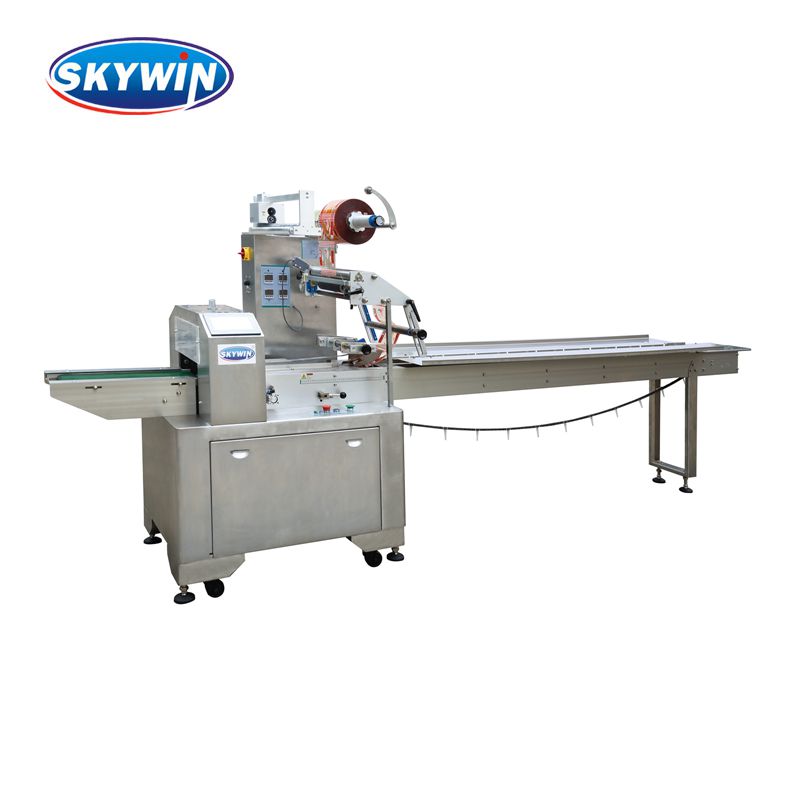

Flow packaging machine
Flow packing machine
Packing Type：1x1, 1x2, 1x3...1*6, 2x1, 2x2, 2x3...2x6
Packing Speed bags/min：250-300
3 SERVOS---1.FILM&END SEALER/2.CENTER SEALER/3.CONVEYOR One ink type date printer
Standard conveyor belt length 2540mm, side plate support.
Photo sensor
With Middle plastic brush or stainless steel belt.
Packing speed: 250-300bag/min (Subject to material and thickness of film and packaging type)
Bag size:Length 80-500mm, Width 60-150mm, Height 5-45mm ， Max outer diameter < 300 mm ， Max width of the packing film: 380mm ， Max width of the packing film: 380mm ， Packing film thickness: 0.03-0.07mm ， Total power consumption: 5.6KW / Single 220VAC/50Hz ， Machine Size: 4200 x 950 x 1650mm (L x W x H) ， Food contact part 30，4 Stainless Steel Machine weight: 650 kg
Sample：
Flow packing machine
