A broken wafer sheet is more than a rejected product; it is a symptom of a hidden inefficiency in your line.
A wafer, with its delicate, porous structure, is a superb stress detector. It reveals engineering flaws that sturdier products might mask. This article serves as a forensic guide, breaking down the primary culprits behind handling-induced breakage.
1. The Contact Surface: Where the Journey Begins (and Can End)

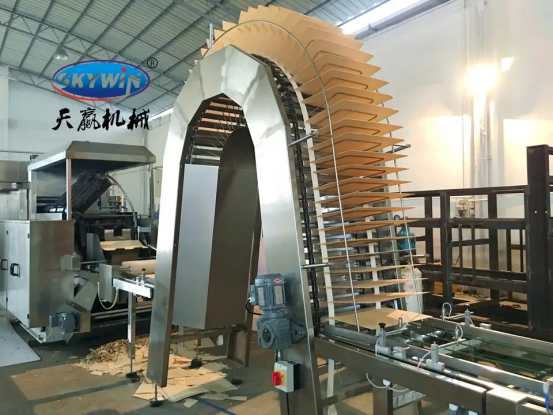

The conveyor belt itself is the first point of contact. Its properties are critical.
Material & Texture: A standard rough-top PVC belt, while economical, creates high friction. Wafers can stick, then snap during release or when transitioning to another surface. Solution: Food-grade, low-friction materials like polished stainless steel or specific low-adhesion polymer belts reduce static and dynamic friction.
Cleat Design (for incline/decline): Cleats are necessary for elevation changes, but improperly designed ones are guillotines.
Problem: Tall, rigid, vertical cleats impact the wafer edge abruptly.
Solution: Flexible, food-grade rubber cleats or cleats with a slight forward lean. The cleat height should be minimally sufficient to prevent slippage—often just a few millimeters for thin wafers.

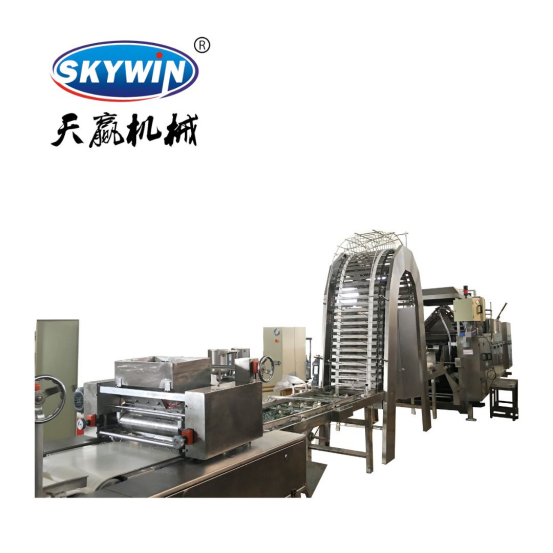

2. The Transfer Point: The Most Critical Zone of Failure
The moment a wafer moves from one conveyor to another is the highest-risk event. Breakage here points to a fundamental design flaw.
Height Differential & 'The Drop': Even a 3mm uncontrolled drop can cause micro-cracks. The impact stress concentrates at the wafer's center.
Speed Mismatch: If the receiving belt is slower, the wafer's leading edge collides with the belt, causing buckling. If it's faster, the wafer is pulled apart.
The 'Nip' Point Danger: Close-transfer systems where belts nearly touch can pinch and crack wafers if not perfectly aligned and synchronized.
Engineering Fix: The gold standard is a zero-speed-transfer or tangential transfer system. This involves precisely matched belt speeds, minimized gap, and sometimes the use of a thin, continuous transfer web or a vacuum-assisted transfer system to gently guide the sheet.
3. The Unseen Destroyer: Vibration & Resonance
Not all movement is visible. Harmonic vibration from motors, gearboxes, or unbalanced rollers transmits through the frame and into the belt.
Source: Unbalanced rollers are a prime culprit. A slightly bent axle or accumulated debris creates a 'bump' with every rotation.
Effect: This creates a regular, wave-like impulse through the belt. A wafer, acting like a rigid sheet, can fracture when its natural frequency aligns with this vibration (resonance).
Diagnosis: Place a light, rigid object (like a coin) on a stopped belt. Start the conveyor. If the object 'walks' or vibrates noticeably, you have a problem.
Mitigation: Regular roller inspection and balancing, use of high-precision bearings, and installing vibration-dampening mounts for drives and motors. In severe cases, a structural analysis of the conveyor frame is needed.
4. The Support Structure: Sag, Misalignment, and Tracking
A belt must be a perfectly supported, flat highway.
Bedplate Sag: Over long spans, the sheet metal support (bedplate) can deflect under the weight of the belt and product. This creates a slight valley, allowing the wafer to bend unsupported.
Misaligned Rollers: Rollers that are not perfectly perpendicular to the belt direction cause lateral stress, forcing the wafer against guide rails.
Poor Belt Tracking: A wandering belt forces wafers into fixed side guards, scraping and breaking edges.
Solution: Adequate bedplate support (e.g., mid-span supports), laser alignment of all rollers during installation and maintenance, and reliable, automatic belt tracking devices.

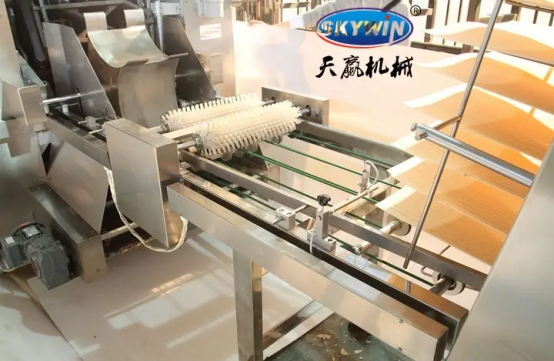

5. The Cleaning Effect: How Hygienic Design Impacts Integrity
Paradoxically, the cleaning process can induce weakness.
High-Pressure Spray Impact: Direct, high-pressure water jets on belts supported only by rollers can create sudden point impacts, similar to dropping a tool on the line.
Residual Moisture & Stickiness: Improper drying leaves moisture between belt and wafer, increasing adhesion and tear risk.
Abrasive Cleaning Tools: Scouring pads or metal scrapers can gouge belt surfaces, creating future crack-initiation points.
Best Practice: Use low-pressure, fan-spray nozzles, ensure belts run over solid bedplates during CIP, and specify chemically resistant, smooth belt materials that release residue easily.
Conclusion: A Systems Approach to Fragility
Solving wafer breakage is not about finding a single 'silver bullet.' It requires a forensic, systems-level approach. It demands looking at your line not as a series of machines, but as a continuous, dynamic material handling process where physics—friction, impact, resonance, and stress—reigns supreme.
The investment in precision handling is not merely for yield recovery; it is for product excellence, operational sanity, and brand reputation. Every intact wafer sheet that reaches the creamer or packer is a testament to hidden engineering quality.

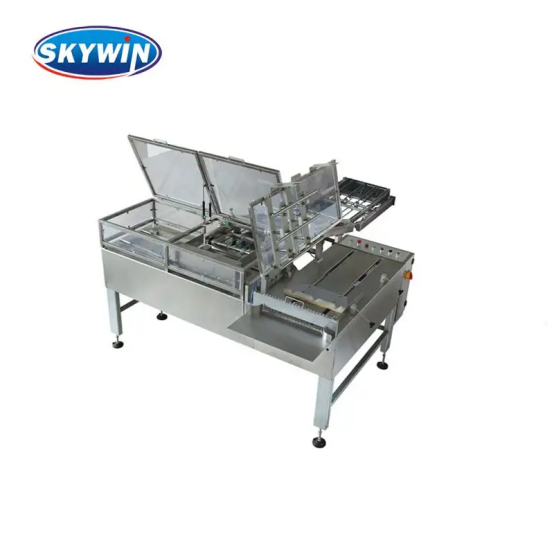

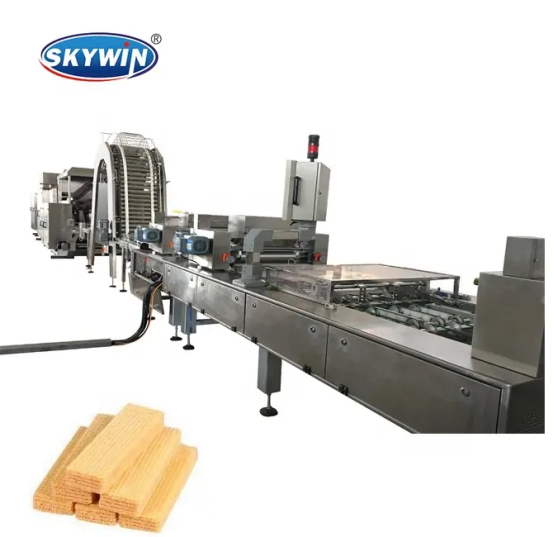

Skywin's engineering team specializes in biscuit manufacturing equipment and boasts a highly experienced team of engineers. Contact us today, and we will provide you with design and advice for your wafer biscuit production line based on your specific needs.
