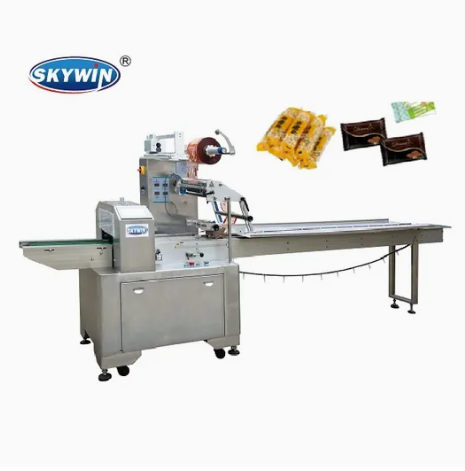

Skywin Automatic Packing Machine Multi-Function Pillow Packing Machine

Name: Skywin Automatic Packing Machine Multi-Function Pillow Packing Machine
Brand: skywin
Rating: 5.0 (14 reviews)

Skywin Biscuit Three Servo Pillow Packing Machine

1.included one Date printer
2.Double frequency conversion control, bag length can be set and cut in one step, save time and film.
Interface features easy and quick setting and operation
3.Applications: Suitable for packing moon cake, biscuit, bread, candy, plasticine, medicine/ leechdom, daily necessities,
hardware, carton, tray and etc.
4.Bag size: Double knife: Length(60-145) x(30-100) x (3-55)mm,Single knife: Length(120-290) x(30-100) x (3-55) mm
5.Speed: Single knife: 20-100bgas/min, Double knife: 50-200bags/min
6.Width of packing film: ≤200mm, Packing film thickness: 0.03-0.07mm
7.Dimension of film roll: Out Dia.≤300mm, Inner Dia.≤75mm
8.Machine dimension: (L x W x H): 3900 x 850mm x 1500
9.Power consumption: 2.75KW/Single phase: 220V/50Hz, Net weight: 550kg
10.Packing materials: Any heat-melt-cut sealing materials such as PP, PE, OPP and AL/PE and etc…

Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

Skywin Biscuit Three Servo Pillow Packing Machine

Features:

1.Double motor,double Siemens transducer and PLC controller,flexible bag length setting and cutting,save time and film.
2.Large touch screen, easy parameter setting and operation.
3.Fault self-detection function, fault display on touch screen clearly.
4.High-sensitive photocell tracking,and numeric input of cutting length,ensure more accurate sealing position.
5.Temperature controlled by PID independently, apply for various of film material.
6.Stop position can be set. Non-stick sealing knife, no waste to film.
7.Opening design of main machine, product scrap drop down to keep cleaning of machine.
8.Machine controlled by computerized software, convenient for function adjusting and will never be behind development.

1317d0978906406fda13a31ddfea96c4

Features:

1.Double motor,double Siemens transducer and PLC controller,flexible bag length setting and cutting,save time and film.
2.Large touch screen, easy parameter setting and operation.
3.Fault self-detection function, fault display on touch screen clearly.
4.High-sensitive photocell tracking,and numeric input of cutting length,ensure more accurate sealing position.
5.Temperature controlled by PID independently, apply for various of film material.
6.Stop position can be set. Non-stick sealing knife, no waste to film.
7.Opening design of main machine, product scrap drop down to keep cleaning of machine.
8.Machine controlled by computerized software, convenient for function adjusting and will never be behind development.

flow packing sample

FAQ
Q1: Which kind of biscuit you can produce for your biscuit line?
A. Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
Q2. What kind of oven you supply?
A. We can supply gas oven or electrical oven according to your requirement.
Q3. How long is your biscuit line?
A. we can design the biscuit line according to the layout of your workshop.
Q4. Which brand of motor you use for the line?
A. we can supply European motor reducer(SEW) or Chinese famous motor for your options.
Q5. Are you manufacturer?
A. Yes, we are a biscuit machine manufacturer in China.
Q6. How is the payment?
A. We accept 40% T/T deposit before production and 60% T/T balance before shipment,and Western Union or L/C.
