Electric baking oven is used electricity as energy. It’s high efficiency, long usage, easy maintenance.Gas baking oven is used natural gas as energy. It’s more scientific and safe, high efficiency rapid heating, save energy, clean and simple operation.
  • Skywin

energy option:
Availability:
Quantity:

Skywin is a manufacturer of Biscuit/Cookie/Wafer Production Lines,and we could offer you different kinds of tunnel ovens,such as Gas oven,Eletrical oven Diesel oil oven for different length as your requiry.


1. There are three types of tunnel oven (electric, gas and diesel oil).
2. Main body made by 304# stainless steel. It has 2 to 4 temperature areas which are high efficiency and energy saving to ensure the biscuit's technology.
3. The length of the oven determine the biscuit capacity. (Capacity from 50-2000kg/hr)
4. The oven can bake different kind of biscuit including stick biscuit, cookies, hello panda biscuit, wafer biscuit, cracker biscuit, cookies and so on.
It depends on the natural resources of different countries. Some contries is abundant in gas.

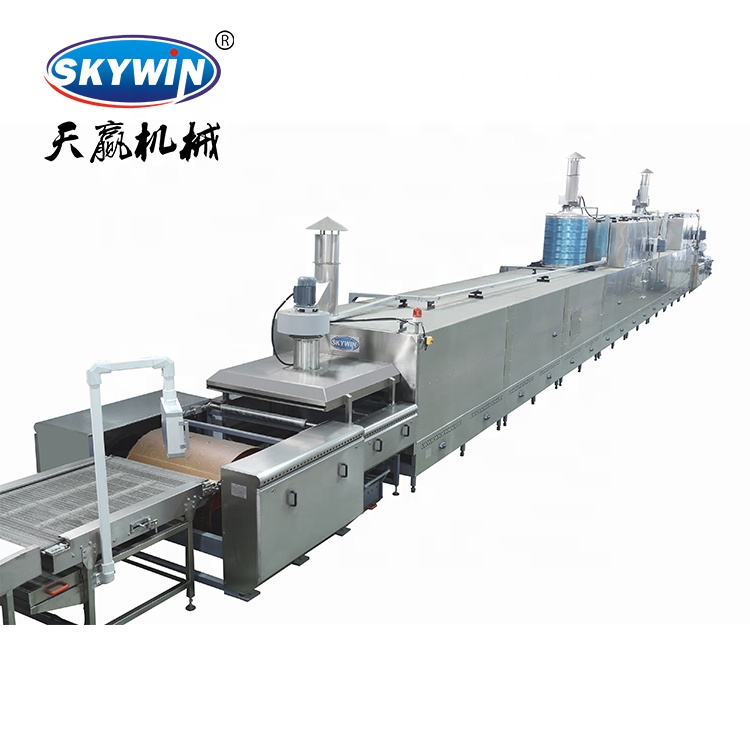

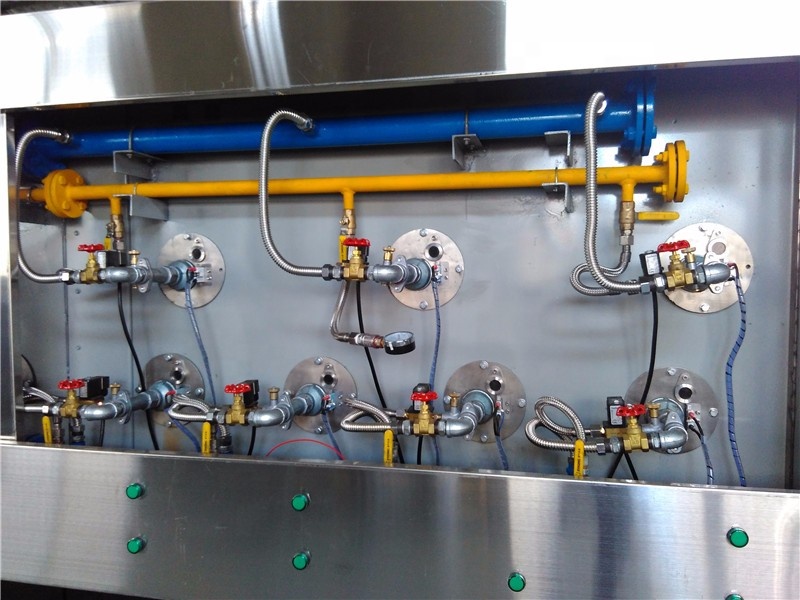

photobank (1)

A whole Tunnel Oven consist of:

1. Enter Oven Machine

2. Gas/Electric/Diesel Oil Tunnel Oven

3. Out Stove & Peeling Machine

4. Oven Driver & Sweep Net Machine


Sepecification :

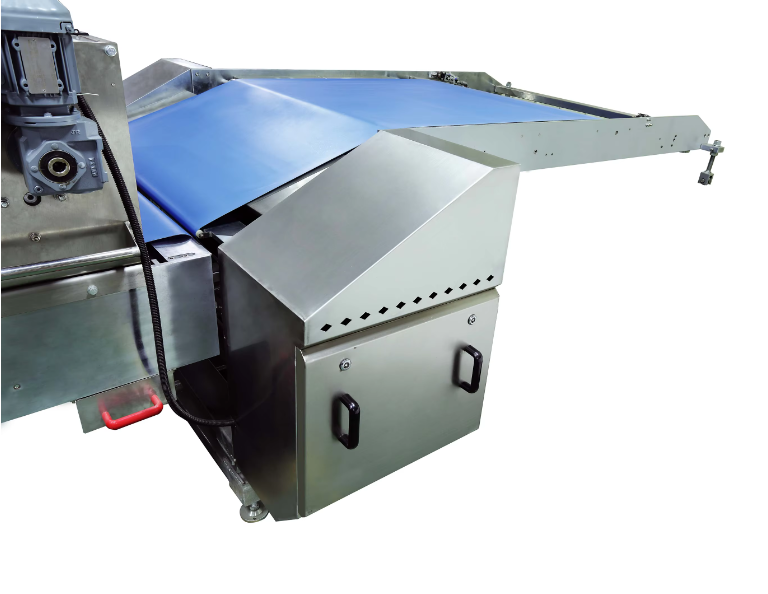

1. Enter Oven Machine

Enter Oven Machine


2. Gas/Electric/Diesel Oil Tunnel Oven (Temperature will be 200℃ ~300℃, max 350℃)

We have different kinds of biscuit baking ovens for baking cookies soft and hard biscuit

  • Electric Oven

  • Gas Oven (Indirect gas oven and direct gas oven)

  • Diesel Oil Oven

  • Hybrid Gas Fired Oven



Details :

1. Have security system.
2. Automatic alarm device.
3. Save energy (have hot air circulation system).
4. Insulation cotton inside the oven, Heat resistant material: rock wool.

5. Siemens inverter and PLC touch screen

6. Gas burner from Germany Weishaupt brand

7. Main motor and gearbox Chinese Quality brand

8. Pneumatic automatic tracking and adjust belt and tension
9. 304# stainless steel cover.
10. Oven Belt Driving system.
11. Pneumatic tracking system 3 sets installed on enter oven, exit oven and oven bottom.
12. Speed control by frequency inverter.
13. Main bearing NSK.
14. With belt clean Machine.
15. Cleaning windows in each 3meters.
16. Have chimney to discharge the air and steam.

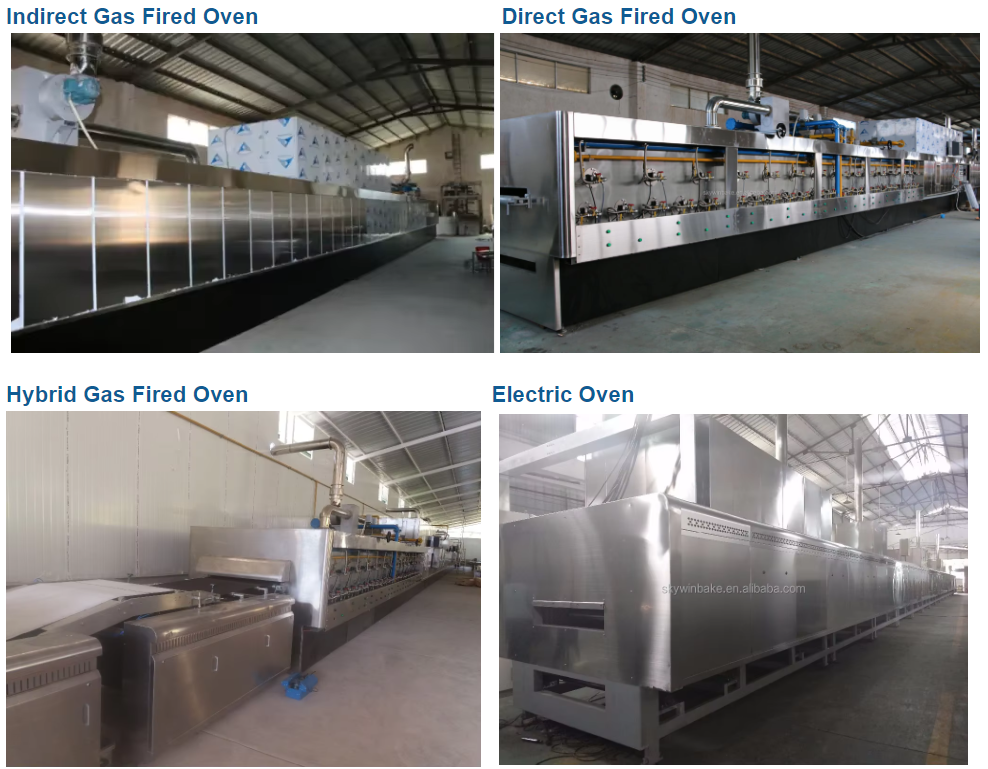

29a75d30bd95e99c1c6f41b29529c0e

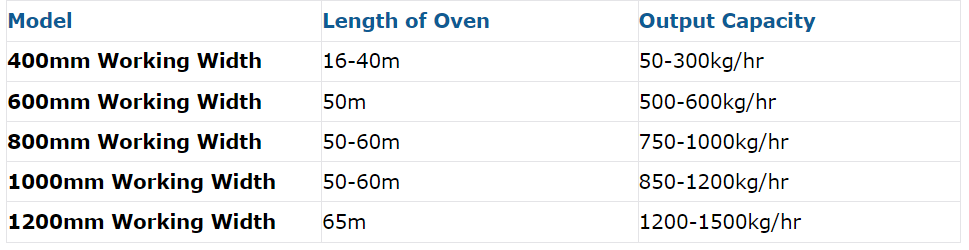

bfe9f5573ca303c58a7dad9fe4775c6

Every temperature zone has separately Hot-Air Circulation system. High efficiency,rapid heating ,Save energy.

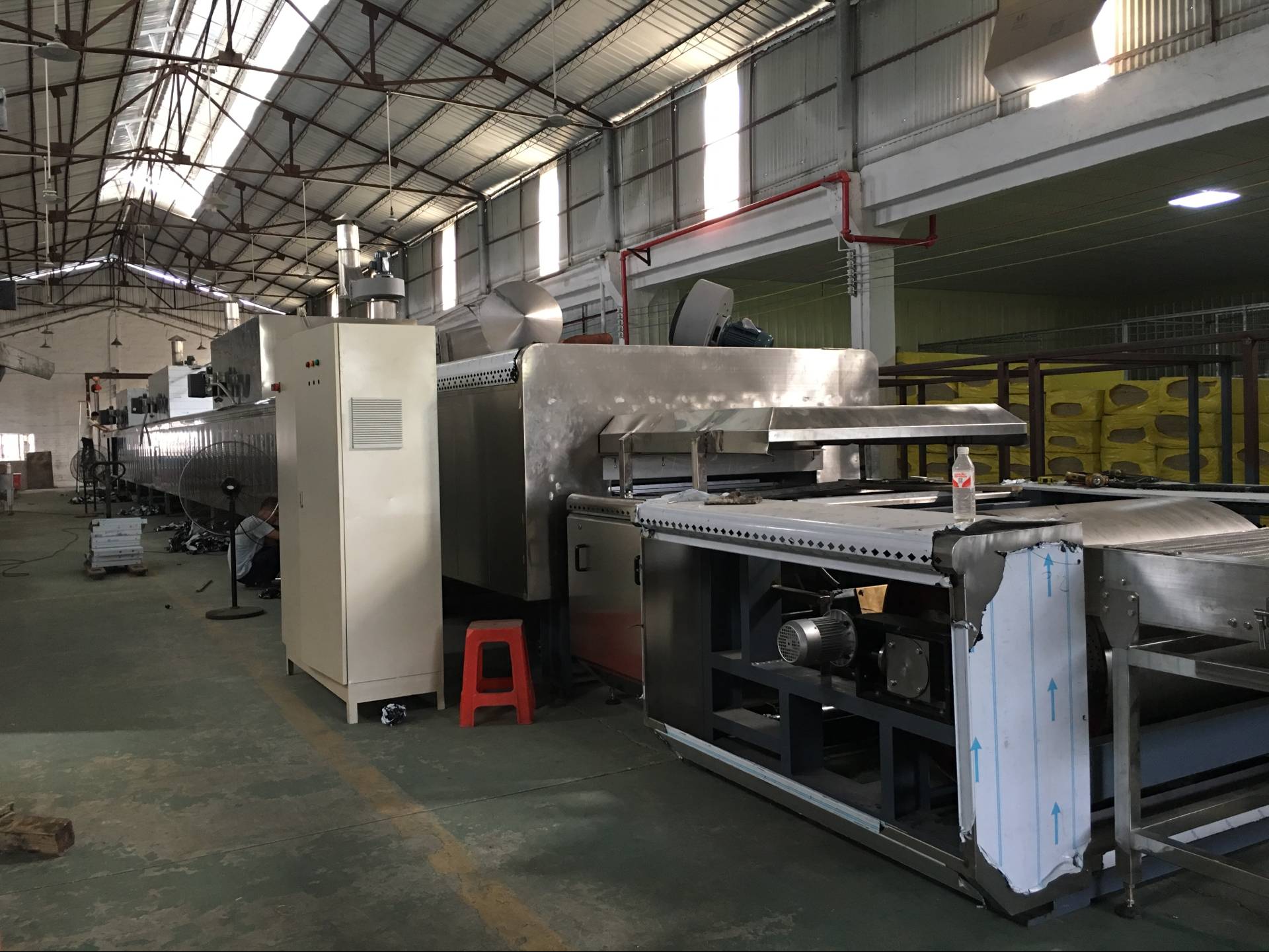

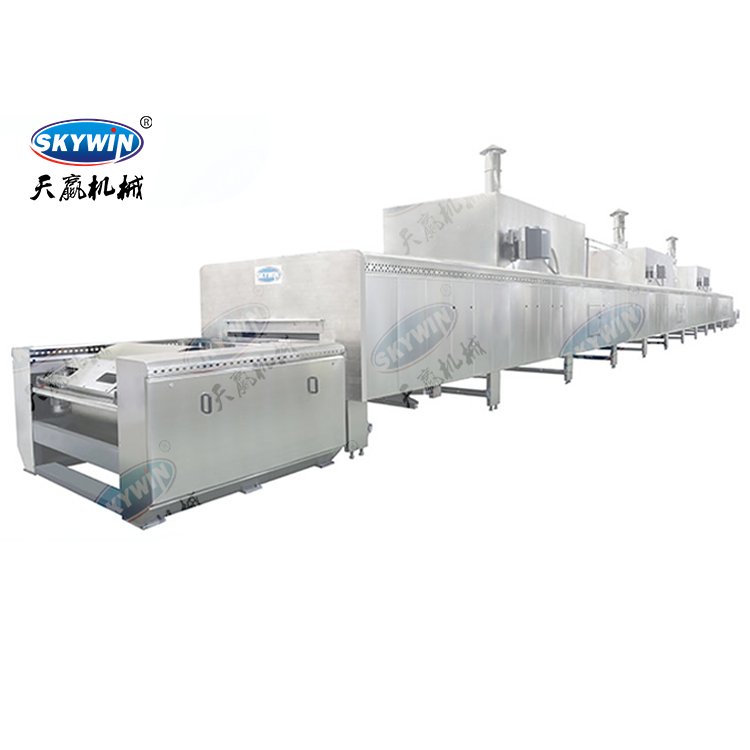

photobank (2)


Biscuits ,Cookies taste nicely and bright-Colored.

279d402ea7fd346a10f828e43148e8e

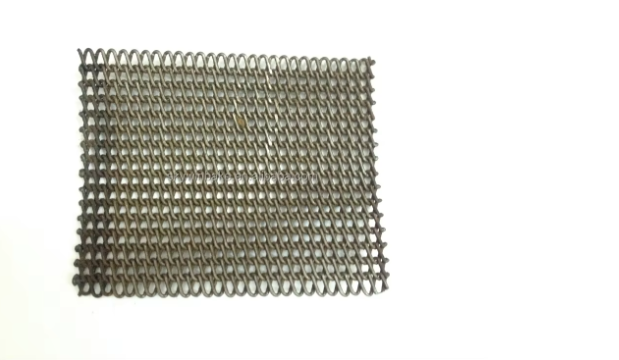

Oven Mesh Belt

c439b4b5d7395fcfd584c7d6f624bd1

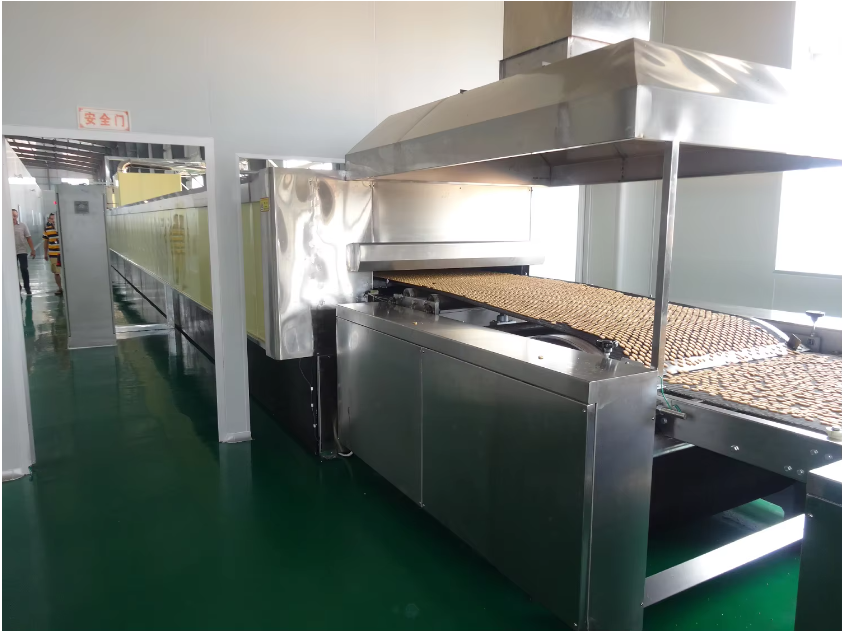

3.  Out Stove & Peeling Machine

1. As transition device from oven

2. Stainless steel mesh belt

3. Motor&Gearbox: 1sets


3d416fe29f963335c4d53eb04606207
