For hard biscuit production lines producing character-shaped products such as panda biscuits (Hello Panda type), the rotary cutter is the heart of the forming section. Among all parameters that affect pattern quality, engraving depth of the die cavity on the cutting roller is often underestimated. A difference as small as 0.05 mm in cavity depth can fundamentally change whether the panda face remains sharp, recognizable, and commercially acceptable.
The Mechanical Relationship Between Cavity Depth and Dough Sheeting

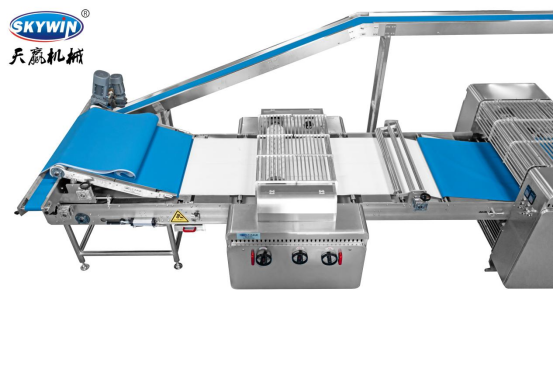

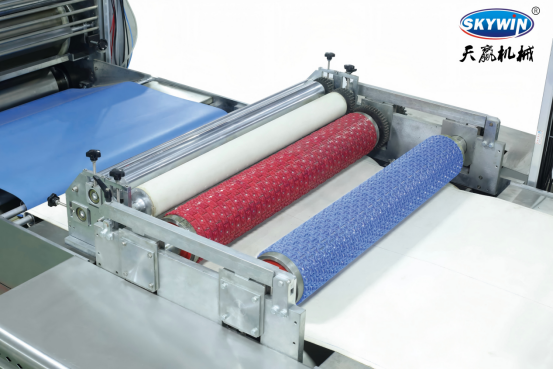

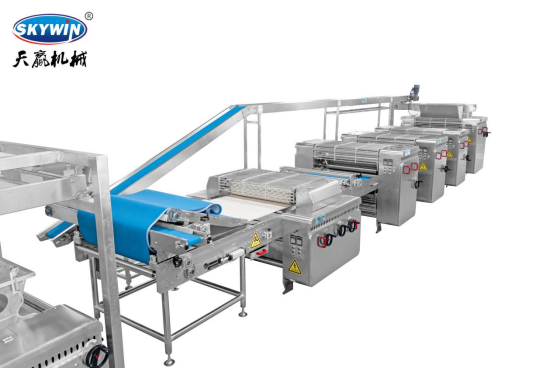

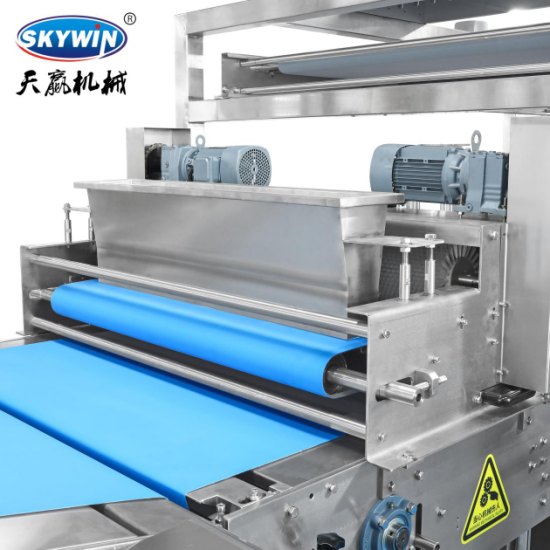

A rotary cutter works with a dough sheet that has been reduced to a uniform thickness by a sheeting stack. The engraved roller presses against a resilient bedroll (typically made of polyurethane or rubber), and the raised edges of the cavities cut through the dough sheet, while the recessed cavity area forms the pattern. The depth of each cavity directly determines the relief height of the panda’s facial features on the cut dough piece.
When cavity depth is designed at, for example, 1.20 mm (measured from the cutting edge down to the deepest point of the pattern), the dough sheet is pressed partially into the cavity, creating a raised pattern. However, a difference of just 0.05 mm has significant consequences for hard dough behavior.
If the cavity is machined 0.05 mm shallower (1.15 mm), the pattern relief is reduced. The panda’s eyes, nose, and mouth no longer stand out from the biscuit surface. During baking, hard dough undergoes minimal spread, so the shallow pattern remains shallow — resulting in a “flattened” panda face. Fine details, such as the pupil of the eye or the curve of the smile, become nearly invisible.
Conversely, if the cavity is 0.05 mm deeper (1.25 mm), the dough sheet is pushed further into the cavity. For hard dough with low extensibility, this extra depth prevents the dough from fully contacting the cavity bottom, leaving air pockets. After baking, these air pockets expand and create localized surface blisters, which distort the panda’s eye outline or cause the nose bridge to bulge unevenly. In severe cases, the dough piece sticks inside the deep cavity, leading to incomplete release and torn edges.
Pattern Integrity Defined: From Dough to Baked Biscuit
Pattern integrity refers to the faithful reproduction of the engraved design after baking. For a panda biscuit, this includes circular eye outlines, centered pupils, a distinct nose bridge, and a mouth curve. A 0.05 mm depth deviation affects integrity in three measurable ways:
1. Edge definition loss. In a correctly engraved cavity (depth within ±0.02 mm of design), the transition between the biscuit base and the raised pattern is sharp. A 0.05 mm shallower cavity produces a pattern with rounded edges. Because hard dough does not flow like soft dough, the rounded edges survive baking and make the panda’s eyes look “closed” or washed out.
2. Asymmetric cutting and release. When cavity depth varies across the roller width due to tool wear or inconsistent engraving, some sections cut cleanly while others either tear the dough (too shallow) or stick to the cavity (too deep). Operators often observe that every fifth panda biscuit has a missing left eye — a clear sign of depth variation exceeding 0.05 mm within the same roller.
3. Post-baking warpage near fine lines. Deep cavities (over-depth by 0.05 mm) create localized thickness differences. The dough sheet is typically 2–3 mm thick before cutting. A cavity that is 0.05 mm deeper forces more dough into the pattern area, creating a 0.1–0.15 mm thickness increase in the panda’s nose or eyebrows. Hard dough shrinks anisotropically during baking, and this uneven thickness generates internal stress, often resulting in hairline cracks at the junction between the nose and the forehead.
Sources of 0.05 mm Depth Variation
In a production environment, how does a rotary cutter cavity differ by just 0.05 mm? Common sources include:
CNC engraving tool wear: After machining hundreds of cavities, the ball-end or V-shaped cutter loses 0.02–0.03 mm in diameter. If tool replacement intervals are not strictly followed, cumulative depth variation reaches 0.05 mm.
Roller surface re-grinding or polishing: Each time the rotary cutter is re-ground to remove nicks or corrosion, the entire cutting edge height is reduced. The cavity depth relative to the cutting edge also changes. After two or three regrinds, the effective cavity depth loss exceeds 0.05 mm.
Nickel shell thickness variation in electroformed sleeves: For detachable cutter sleeves, localized plating thickness differences of 0.05 mm directly translate to cavity depth differences.
Bedroll hardness drift: While not a cavity depth change, a softer bedroll (e.g., Shore A 65 instead of 80) allows deeper penetration of the dough sheet into the cavity, mimicking a 0.05 mm deeper cavity. This can cause sticking even with correct engraving depth.

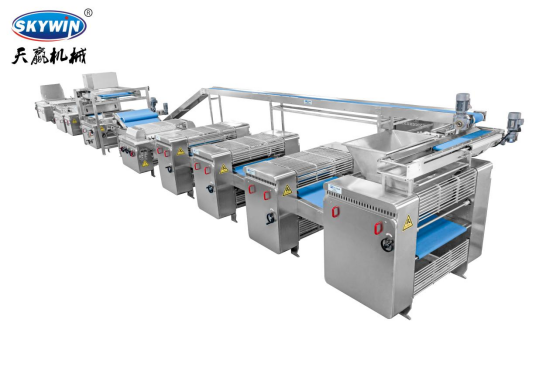

Practical Control Measures for Export-Grade Production Lines
To maintain panda face pattern integrity under 0.05 mm tolerance, biscuit machinery suppliers and production managers should implement the following:
Pre-engraving qualification using 3D optical profiling of each cavity. For a cutter roller with 500–1000 cavities, sampling every 50 cavities ensures that no depth deviation exceeds ±0.02 mm.
Matching cavity depth to dough sheet thickness. For hard dough, the cavity depth should equal 35–45% of the dough sheet thickness. If the sheet thickness is 2.4 mm, the ideal cavity depth is 0.84–1.08 mm. A 0.05 mm deviation represents 5–6% of that range — significant enough to shift the product from premium to reject.
Bedroll hardness specification. Specify polyurethane bedroll with Shore A hardness of 80 ± 3. A harder bedroll reduces over-penetration, making the line more tolerant to minor (+0.05 mm) depth variations. Include a bedroll replacement schedule every 2000 operating hours.
Regular cavity audit. Every 500 operating hours, measure five representative cavities using a depth micrometer with a pointed tip. If the average depth has changed by more than 0.03 mm from the original drawing, the roller should be marked for either replacement or re-engraving.
Trial cut with tolerance samples. Before shipping a new rotary cutter to a client, run a batch of hard dough at three cavity depth conditions: nominal, -0.05 mm, and +0.05 mm. Send the baked samples with the machine so the buyer’s quality team can visually confirm the allowed depth window.
Conclusion
Rotary cutter engraving depth is not a “nice-to-have” precision; it is a fundamental determinant of hard biscuit pattern integrity. The 0.05 mm difference—less than the thickness of a human hair—distinguishes a crisp, smiling panda face from a deformed, unrecognizable one after baking.
