When Your Cream Sandwich Slips Off-Center: A Forensic Look at Spreader Nozzle Timing & Belt Drift

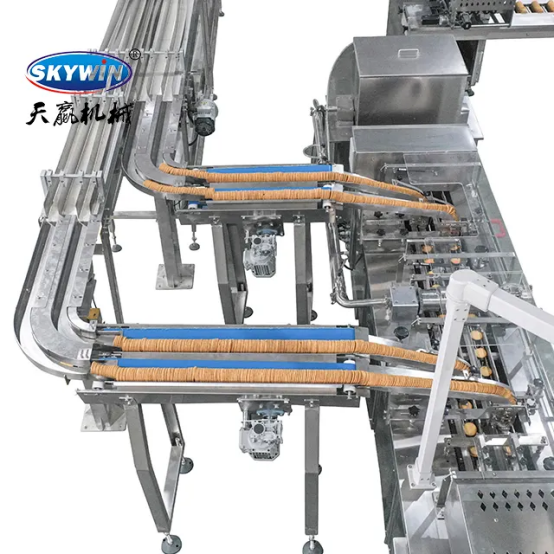

    In a high-speed cream sandwich production line, each biscuit base must meet its cream dollop at the exact center. A misaligned sandwich—where the cream protrudes from one side while leaving the opposite edge dry—is not merely a cosmetic flaw. It leads to higher breakage during wrapping, inconsistent weight control, and frequent rejections from automated checkweighers.

    When off-center sandwiches appear consistently, most production teams immediately suspect the alignment of the top biscuit placer. However, forensic evidence from hundreds of line audits points to two far more common—and often overlooked—root causes: spreader nozzle timing and conveyor belt drift.

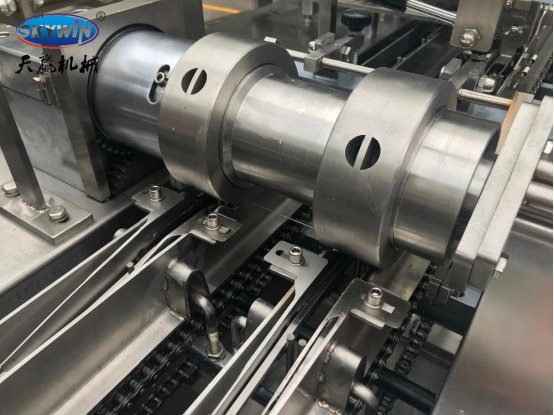

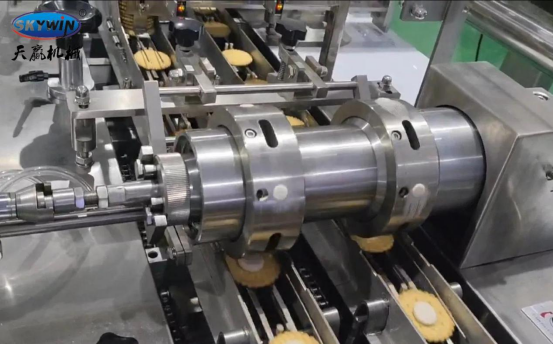

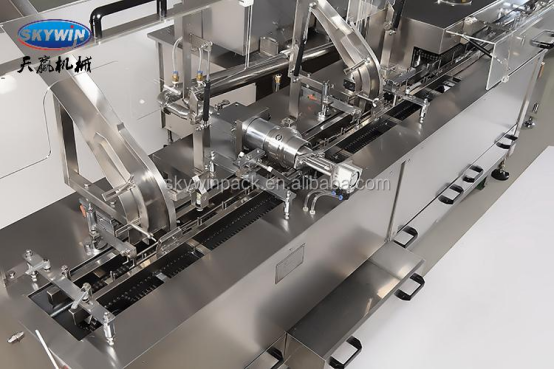

1. Spreader Nozzle Timing: The Hidden Pulse Error

    Each cream nozzle operates on a precise on/off cycle synchronized with the base biscuit position. When timing drifts by as little as 15 milliseconds, the cream deposit shifts forward or backward relative to the biscuit center. The result is a sandwich with cream visibly offset along the direction of travel.

    Common timing faults include:

    Delayed nozzle opening: Cream lands too far forward, causing overflow at the leading edge of the sandwich.

    Premature nozzle closing: Cream cuts off early, leaving the trailing biscuit half without adequate filling.

    Asymmetric timing across multiple nozzles: One lane produces centered sandwiches while an adjacent lane consistently shows offset cream.

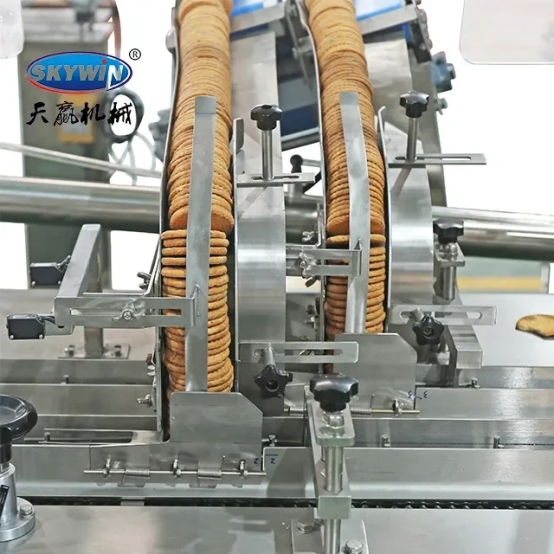

    Forensic check: Run the line with top biscuit placers temporarily disengaged. Observe cream deposits on bare base biscuits passing under the nozzles. Measure the distance from the deposit center to the biscuit center using a digital caliper. Any deviation above ±1.5 mm across 20 consecutive deposits indicates a timing correction is required.

2. Conveyor Belt Drift: The Lateral Displacement Trap

    Off-center sandwiches are not always longitudinal. When cream shifts to the left or right relative to the biscuit, the culprit is almost always belt drift on the bottom base conveyor or the cream application conveyor.

    Belt drift occurs when the tensioning mechanism wears unevenly, or when guide rollers develop asymmetric friction. A drift of only 3 mm over 10 meters of conveyor length will push the cream nozzle array sideways relative to the biscuit stream. Because the cream heads are rigidly mounted, the belt—not the nozzle—moves off its intended path.

    Typical symptoms of belt drift:

    Cream appears consistently closer to one edge of the sandwich across all lanes.

    The pattern repeats every full belt revolution (visible as a cyclic shift).

    Scuff marks appear on one side of the belt guide rails.

    Forensic check: Stop the line and mark a reference point on the belt edge relative to a fixed frame point. Run the belt empty for five minutes at production speed. Re-check the reference. Any lateral movement above 2 mm confirms drift. Next, inspect the belt tracking mechanism: one side of the tension roller will show polished wear, while the opposite side accumulates debris.

3. Secondary Forensic Clues: Synchronization Between Nozzles and Belt Speed

    Even with correct nozzle timing and straight belt tracking, a mismatch between belt speed and the nozzle controller’s encoder signal can produce intermittent off-center issues. This is especially common after belt replacement or motor servicing.

    When the encoder pulse per belt travel distance is incorrectly calibrated, the PLC opens the nozzle slightly too early or too late relative to the actual biscuit position. Unlike pure timing drift, this error changes with line speed. At low speed, sandwiches appear centered. At high speed, the cream shifts progressively forward.

    Forensic test: Run the line at 50%, 80%, and 100% of rated speed. Measure cream offset at each speed. If offset increases linearly with speed, recalibrate the encoder-to-belt travel ratio immediately.

4. Corrective Actions Without Rebuilding the Line

    Most off-center sandwich problems can be corrected through adjustment, not component replacement.

5. When to Escalate Beyond Adjustment

    If all timing and belt parameters fall within specification yet off-center sandwiches persist, the next layer of forensic investigation should examine:

    Worn nozzle orifice plates: Uneven cream flow can shift the deposit’s center of gravity.

    Biscuit base warpage: A concave or convex base will tilt as it receives cream, causing apparent offset.

    Vacuum belt hole blockage: Uneven hold-down allows base biscuits to slide during cream application.

    In such cases, a full dimensional inspection of the biscuit base—not just the cream applicator—is required.

Conclusion

    Off-center cream sandwiches are rarely a mystery. They are a forensic trail left by either timing misalignment or belt drift—or both. By systematically isolating the direction of offset (longitudinal vs. lateral) and its consistency across speed and time, line technicians can pinpoint the root cause in under 30 minutes. No replacement parts needed. No line teardown. Just precise observation and targeted adjustment.
