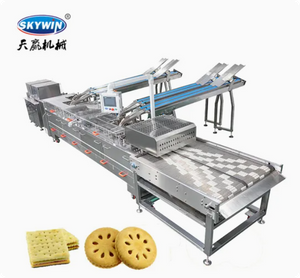

Skywin 2+1 Four Lane Biscuit Sandwiching Machine with Row Multiplier（2 To 8）

Skywin 3+2 Two Lane Biscuit Sandwiching Machine with Flow Packing Machine

Skywin 2+1 Four Lane Biscuit Sandwiching Machine with Row Multiplier（2 To 8）

Name: Skywin 2+1 Four Lane Biscuit Sandwiching Machine with Row Multiplier（2 To 8）
Brand: Skywin
Rating: 5.0 (57 reviews)

2+1 FOUR LANE SANDWICHING MACHINE WITH ROW MULTIPLIER

2+1 four lane biscuit sandwiching machine is innovative technology production for creaming sandwich biscuits and four lane design make it achieve higher production capacity.

And the more details are:
Four lane output creaming,capacity about 1200-2400pcs/min
One or Two color cream filling
Size of biscuit:Rectangle L(35-80)*W(30-70)mm
Round diameter 35-70 mm
Power 4 kw/220 V/50 Hz
Weight:1250

Row Multiplier

Multiplier
This unit can separate biscuits originally arranged two per row into a configuration of eight per row, facilitating the processes of chocolate - coating or packaging of the biscuits.

Brand:
Skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

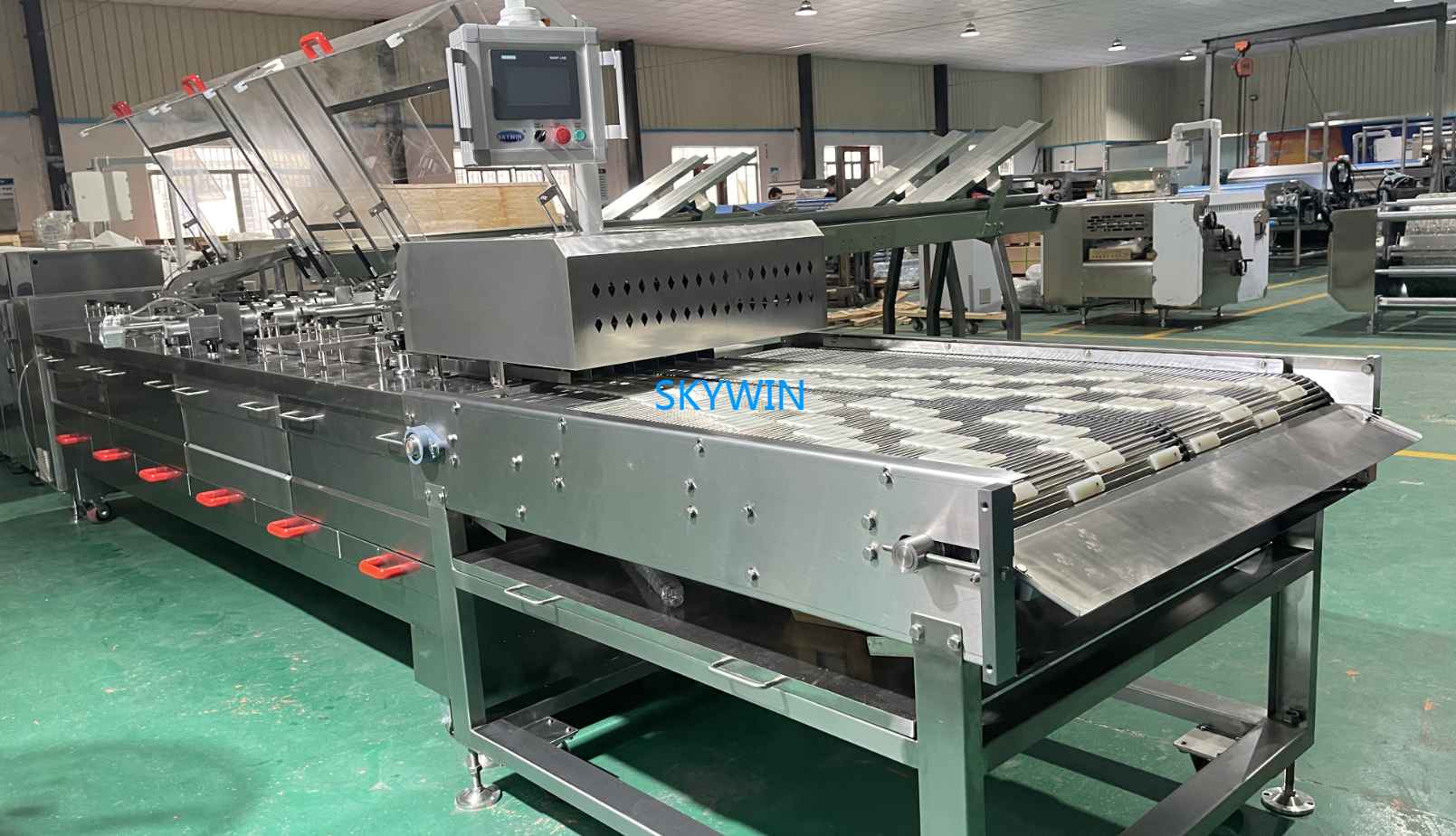

2+1 four lane

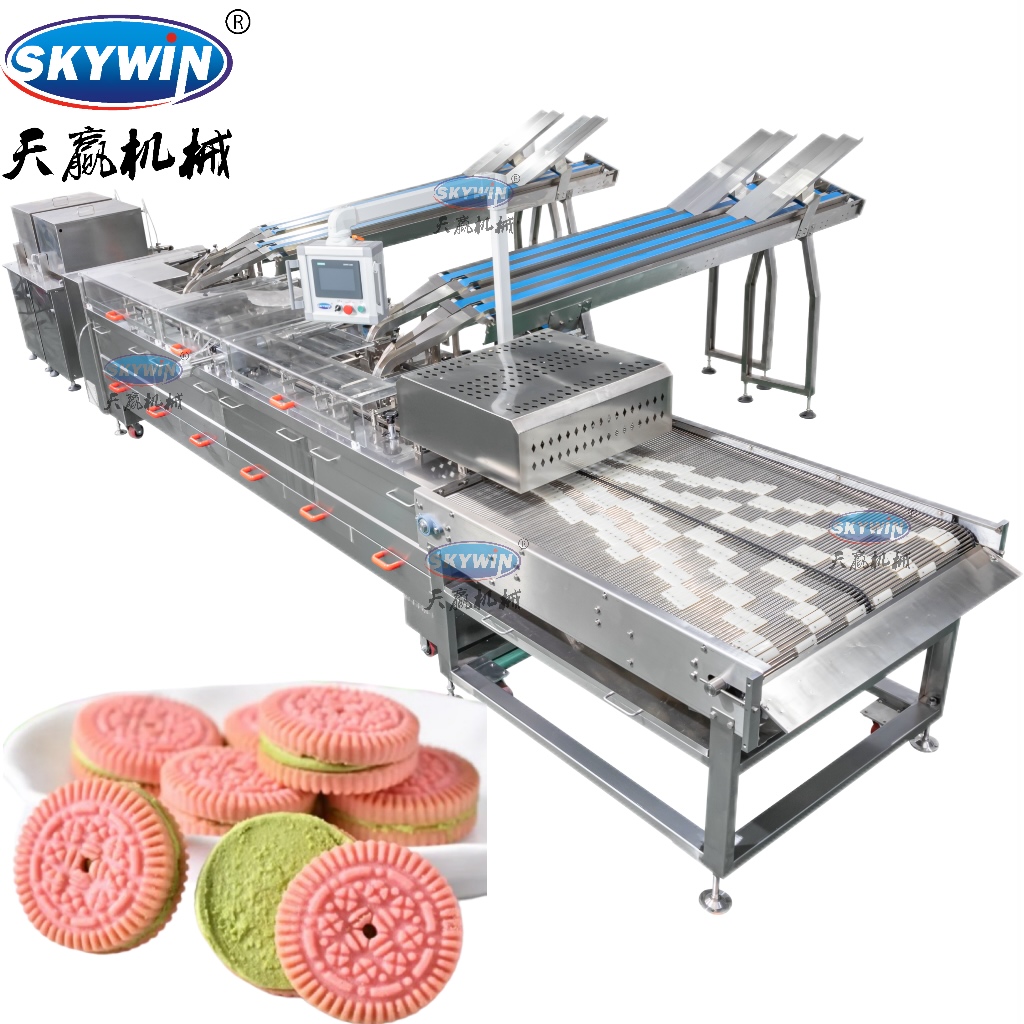

2+1 FOUR LANE BISCUIT SANDWICHING MACHINE CONNECTED ROW MULTIPLIER

This item is High Capacity Type Four Lane Cream Filled Biscuit Sandwich machine
●Including biscuit collection pan.

●Easy operation and cleaning.

●Touch screen with memory system

●Four Lane design

● System Connect with ROW MULTIPLIER

●Creaming Speed：1200-2400pcs/min

● Capacity：1200-2400pcs/min

● Weight：1350kgs

Features:
(1). PLC for simple operation including machine set-up, hopper controls, speed adjustments
(2). Removable scrap trays are provided for simple scrap collection and machine cleaning
(3). Easy to operate: Simple adjustments for machine speeds, cream volume
(4). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster
(5). Separating cream holding tank and feeding system
(6). No biscuit no cream system
(7). The pusher with double chain assure machine running stable and cleaning and maintenance
(8).Every cream hopper with independent motor and reducer
(9).Mobile cream hopper can cleaning while finish working separately
(10)SUS304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.
(11) Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes

3+2 one lane 2

Product Feature

Sandwich Machine Detail Advantages

1) New Design Double jacket Cream Tanks for cream .

Double jacket Cream Tanks with hot Water circulation system Cream tank with mix blade and pusher

Innovative double-jacket insulation design for a 70L large-capacity cream container

The hot water circulation system keeps the cream from solidifying not easily at low temperatures.

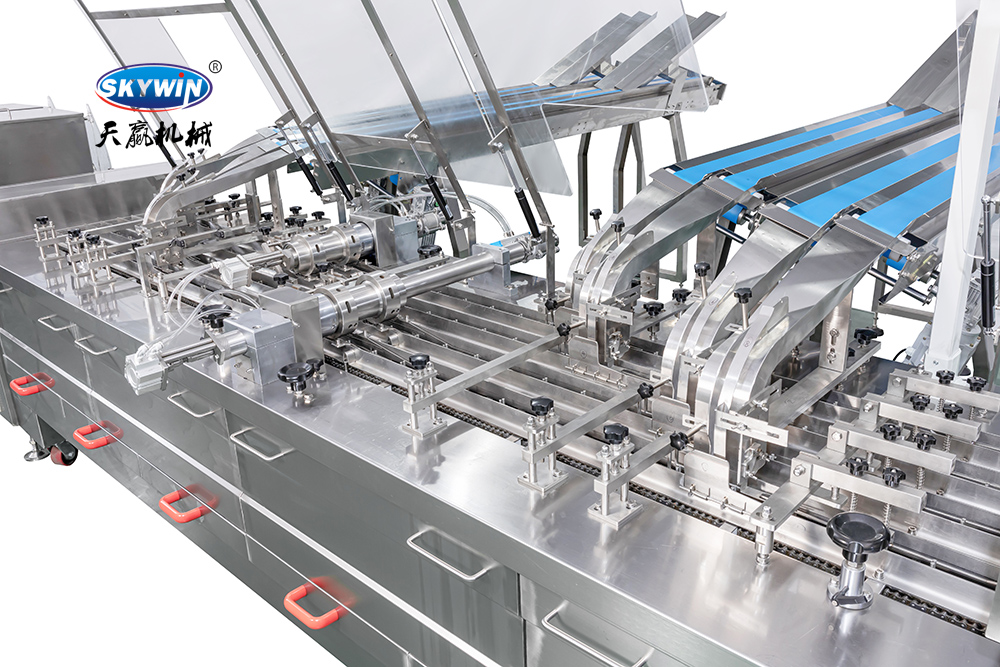

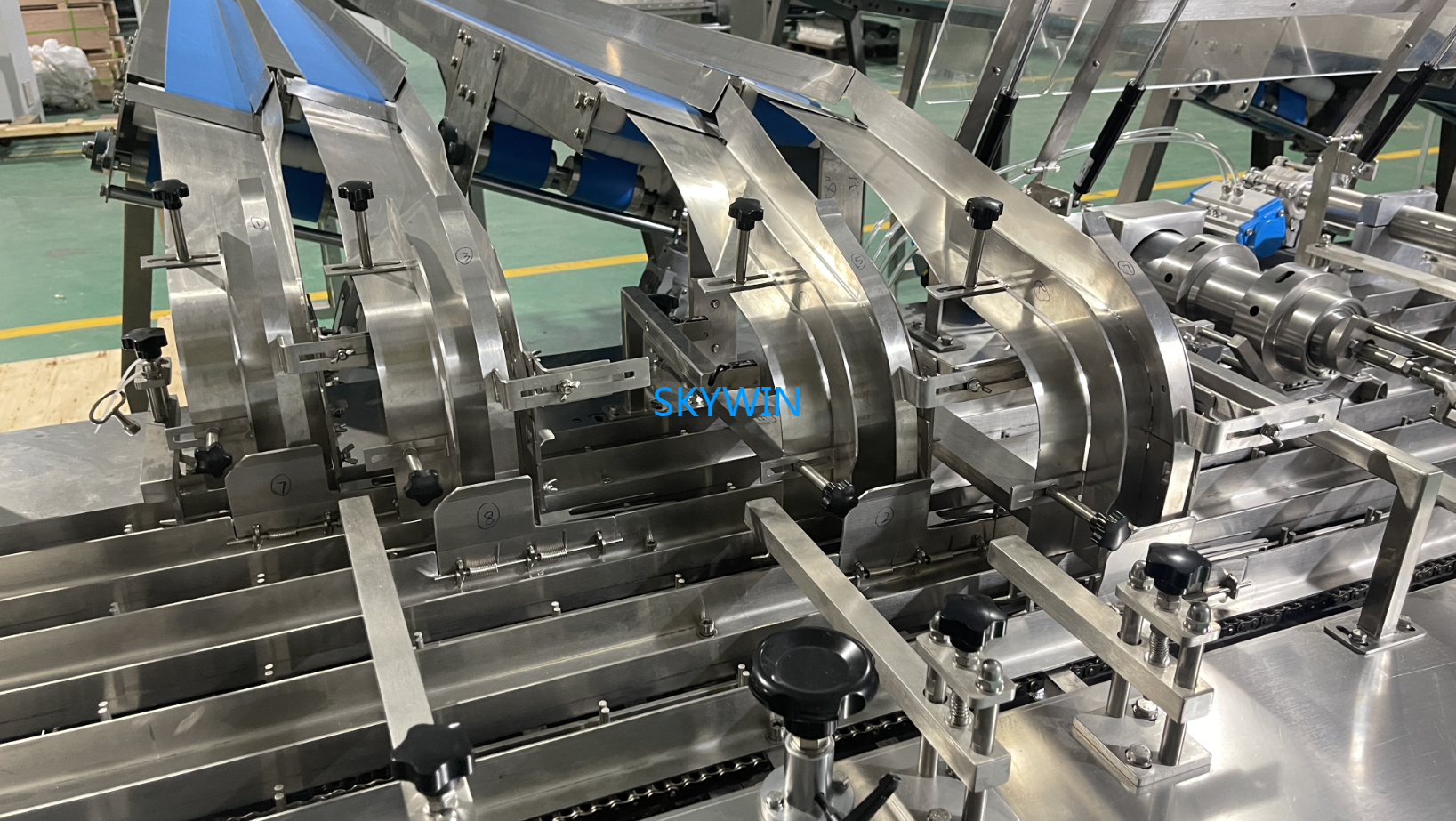

2) 4 Lane Adjustable Biscuits feeder for different size biscuits

-vibration feeding type

-convoyor belt type

-Conveyor PU Belt Feeders(45°or 90°are available)

There are 4 lane adjustable biscuit conveyor suitable for different biscuit size sensor for biscuits checking，all you have to do is make the biscuit up-right on the biscuit feeding conveyor.

biscuit feeding convenyor

Adjustable hand wheels for sandwiching row ,adjusting size according different biscuit size

Four Lane Sandwiching Row

Four lane could be adjusted by hand wheels for sandwiching row

Famous Brand Inverter for sandwiching machine

Inverter 转换器

Famous Brand PLC&Touch Screen, can be rotate 360°for easy controlled

西门子360度可旋转PLC

sensor for biscuits checking

No biscuits no cream output. Biscuits gaps amount can be setting on the PLC

sensor

Cream&Jam One/Two Color Cream Stencil

Creaming mould

The Creaming speed is 500-600 per minute. By changing the molds and increasing the cream tanks, it is possible to switch between one color and two color biscuit sandwiching.

Cream tanks blade with strong pusher to make sure fast speed sandwiching

夹心奶油桶

4 wheels at the bottom,convenient to move the machine

Collecting pans to collect the broken biscuit

Safety protection acrylic cover

The acrylic protective cover can make the working environment of workers safer. Compared with other products in the market, the acrylic protective cover we designed places greater emphasis on safety.

acrylic cover

Pushers on creaming machine made by stainless steel

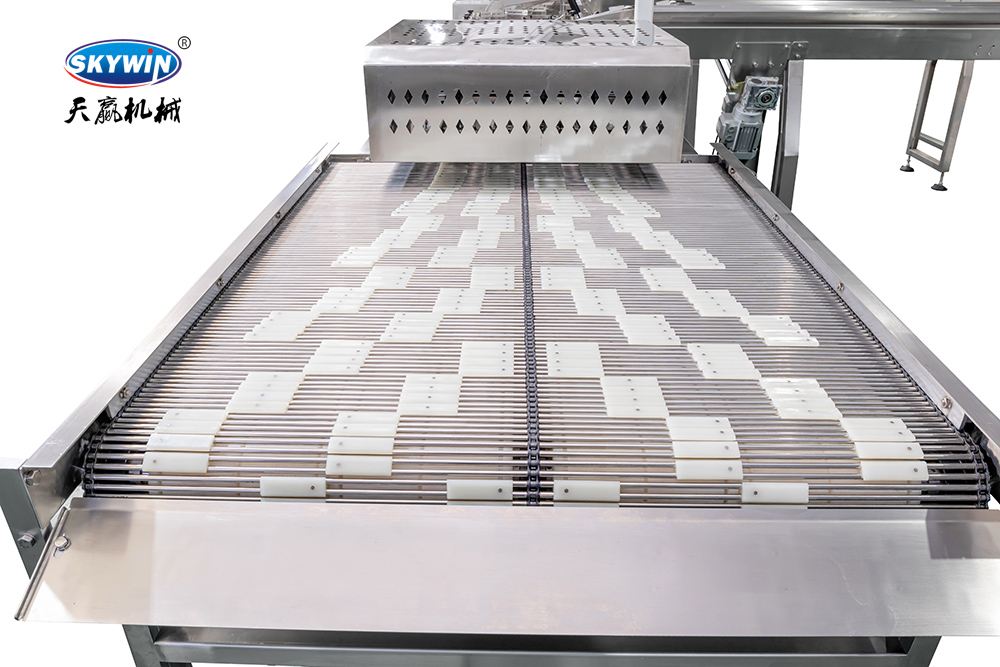

ROW MULTIPLIER MACHINE

分排机

Row Multiplier（2-8）

This unit can separate biscuits originally arranged two per row into a configuration of eight per row, facilitating the processes of chocolate - coating or packaging of the biscuits.

Sample：

夹心饼种类

详情2_10
