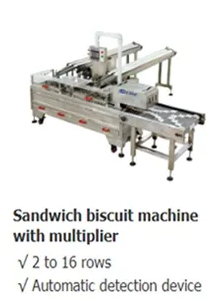

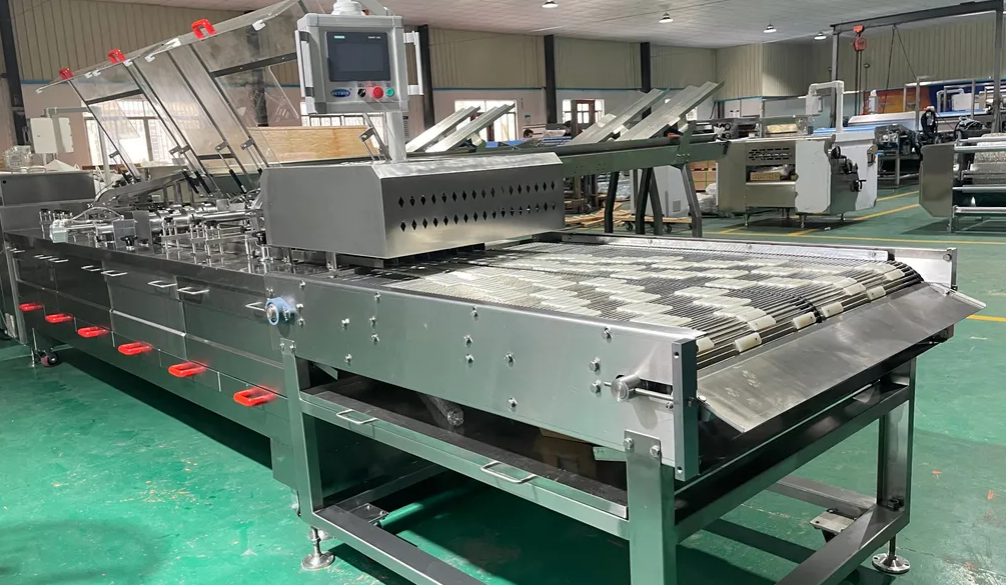

Skywin Four Lane Biscuit Sandwiching Machine

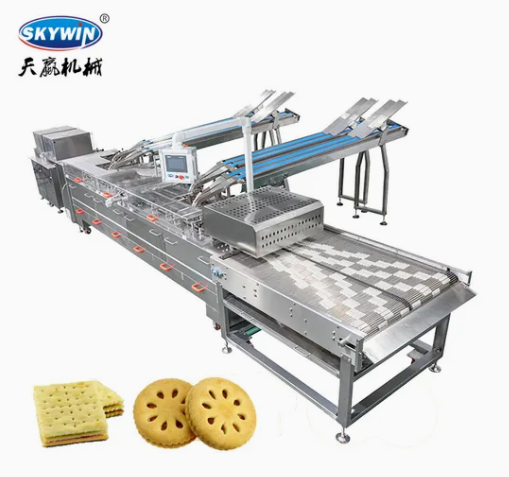

2+1 FOUR LANE BISCUIT SANDWICHING MACHINE – CONNECTED WITH ROW MULTIPLIER

This high-capacity four-lane cream-filled biscuit sandwiching machine is engineered for productivity and reliability.

• Includes biscuit collection pan

• Easy operation and cleaning

• Touch screen with memory system

• Four-lane design

• System connectable with row multiplier

• Creaming speed: 1,200 – 2,400 pcs/min

• Capacity: 1,200 – 2,400 pcs/min

• Weight: 1,350 kg

Features:

1. PLC control for simple operation, including machine setup, hopper control, and speed adjustment.

2. Removable scrap trays for easy waste collection and machine cleaning.

3. User-friendly: simple adjustments for machine speed and cream volume.

4. Sanitary design with stainless steel food-contact parts, including quick-change cream stencils.

5. Separate cream holding tank and feeding system.

6. “No biscuit, no cream” system.

7. Double-chain pusher ensures stable operation, easy cleaning, and low maintenance.

8. Each cream hopper has an independent motor and reducer.

9. Mobile cream hopper allows separate cleaning after finishing work.

10. SUS304 stainless steel gear pump; jacketed connection tubes between cream hopper and stencil.

11. Temperature metering device installed on cream stencil; convenient stencil changeover for different cream shapes.

Product Feature

Key Advantages of the Sandwiching Machine

1) New Design: Double-Jacket Cream Tanks
Double-jacket cream tanks with hot water circulation system. Each tank includes a mixing blade and pusher for optimal cream consistency and flow.

Innovative double-jacket insulation design for a 70L large-capacity cream container

The hot water circulation system keeps the cream from solidifying not easily at low temperatures.

2) 4-Lane Adjustable Biscuit Feeder for Different Biscuit Sizes

• Vibration feeding type

• Conveyor belt type

• Conveyor PU belt feeders (45° or 90° available)

The 4-lane adjustable biscuit conveyor accommodates various biscuit sizes, with sensors for biscuit detection. Simply place biscuits upright on the feeding conveyor.

Adjustable Handwheels for Sandwiching Row
Easily adjust the row spacing to match different biscuit sizes.

Four-Lane Sandwiching Row

Four-Lane Adjustment via Handwheels
Quick and precise width adjustment for the four sandwiching lanes.

Famous Brand Inverter for Sandwiching Machine
Ensures stable speed control and energy efficiency.

Famous Brand PLC & Touch Screen – 360° Rotatable
Intuitive control interface, rotatable for easy operation from any angle.

Biscuit Detection Sensor
“No biscuit, no cream” function. Biscuit gap parameters can be programmed via the PLC.

Cream&Jam One/Two Color Cream Stencil

Creaming mould. The creaming speed is 500–600 pcs/min. By changing moulds and adding cream tanks, the machine can switch between one-color and two-color biscuit sandwiching.

Cream Tank Blade with Strong Pusher
Ensures high-speed, consistent cream application.

4 Wheels at the Bottom
Convenient for moving the machine within the production line.

Collecting Pans for Broken Biscuits
Keeps the working area clean and reduces waste.

Safety Protection Acrylic Cover
The acrylic protective cover enhances operator safety. Compared to other products on the market, our design prioritizes both visibility and protection.

Pushers on Creaming Machine – Made of Stainless Steel
Durable, hygienic, and easy to clean.

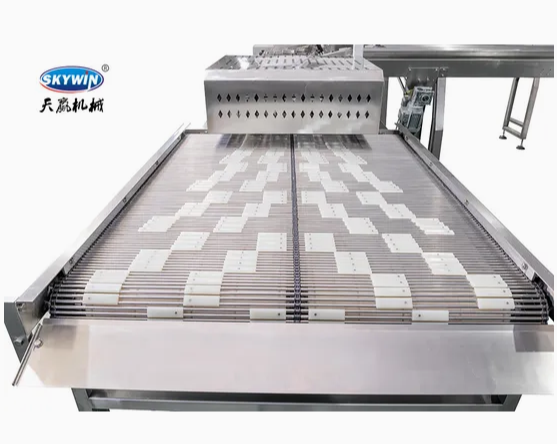

ROW MULTIPLIER MACHINE

Row Multiplier (2–8 lanes)
This unit separates biscuits originally arranged two per row into a configuration of up to eight per row, facilitating downstream processes such as chocolate coating or packaging.

Sample：
