Sweaty packaging destroys product quality and damages brand reputation. When condensation forms inside sealed wrappers, moisture migrates directly into the baked goods. This moisture transfer eliminates the intended crunch, drastically shortens shelf life, and creates an ideal environment for mold formation and microbial growth. The core problem originates in the thermal dynamics of freshly baked products. Biscuits exiting an industrial oven carry significant latent heat and internal water vapor. Transferring these products directly to the packaging line before their core temperatures and moisture levels stabilize traps this heat inside the wrapper.
Managing this thermal transfer requires precise equipment. A properly configured biscuit cooling conveyor acts as a critical thermal management and moisture-equilibration asset. It bridges the gap between the baking and packaging phases. Controlling the cooling rate ensures product structural integrity, prevents moisture accumulation, and eliminates downstream bottlenecks on high-speed lines.
Achieving an optimal core-to-surface temperature delta (within 2°C to 5°C of ambient room temperature) is mandatory before flow wrapping to eliminate condensation risks.
Selecting the right biscuit cooling conveyor requires balancing facility footprint constraints with necessary dwell times (typically 1.5 to 2 times the baking time, depending on biscuit density).
Effective cooling systems must integrate seamlessly with downstream automation, including stacking and auto-feeding equipment, to maintain continuous, high-speed line synchronization.
Sanitation features, belt material selection, and clean-in-place (CIP) capabilities directly impact both food safety compliance (FSMA/GFSI) and long-term maintenance costs.
Proper stabilization relies on strict temperature targets. The baseline requirement involves reducing the internal core temperature of the product to within 2°C to 5°C of the ambient packaging room temperature before sealing. Reaching this target prevents latent heat from escaping after the wrapper is sealed. Moisture equilibrium also plays a fundamental role. During the cooling process, moisture moves outward from the wet core of the biscuit to the dry exterior. The goal is to achieve a uniform, stable moisture distribution across the entire product. Most commercial biscuits require a final total moisture content between 1% and 3% to maintain their texture and prevent microbial growth.
Operators must monitor the moisture gradient closely. If the surface dries too quickly while the core remains wet, the product will eventually equalize inside the package, leading to a soft, stale texture. We use inline moisture sensors to track this migration. Adjusting the ambient airflow over the cooling belts helps control the evaporation rate. You want a steady, controlled release of water vapor. Rushing this phase always leads to quality defects down the line.
Condensation in packaging stems from vapor pressure differentials. Sealing warm, moisture-releasing biscuits inside cold, impermeable plastic films traps latent heat. This trapped heat creates a microclimate inside the wrapper. When the warm, moist air contacts the colder inner surface of the packaging film, it condenses into water droplets. This sweat effect causes water to drip back onto the biscuit surface. The result includes localized soggy spots, rapid starch retrogradation, and accelerated mold growth, rendering the product unsellable.
The physics are straightforward but often ignored on the factory floor. Warm air holds more moisture than cold air. As the sealed package moves into a cooler warehouse or transport truck, the air inside the wrapper cools rapidly. It loses its capacity to hold water vapor. The excess moisture has nowhere to go but onto the film and back into the biscuit. Proper cooling before wrapping is the only way to prevent this cycle.
Cooling products too rapidly introduces severe thermal shock dynamics. Using blast chillers or excessive high-velocity cold air causes the outer surface of the biscuit to contract quickly while the core remains expanded and warm. This differential in contraction rates creates intense structural stress within the dough matrix. These internal stresses lead to micro-cracking, known in the industry as checking. Biscuits suffering from checking often break during transport, shatter inside packaging machinery, or crumble on supermarket shelves.
Checking might not appear immediately. Sometimes, the micro-cracks take hours to propagate through the biscuit structure. You might pack a visually perfect product, only to have it disintegrate during shipping. To prevent this, we step down the temperature gradually. The initial cooling phase should allow natural heat dissipation before applying any forced air. This gradual approach keeps the contraction rates between the core and surface relatively uniform.
Ambient packaging room humidity directly impacts cooling efficacy. High relative humidity (RH) in the facility slows down the moisture evaporation rate from the biscuit surface. Facility managers must calculate the dew point accurately. The biscuit surface temperature must remain strictly above the dew point of the packaging room at all times. If the product temperature drops below the dew point, moisture from the ambient air will condense directly onto the product surface prior to sealing, introducing excess water into the package.
Controlling the packaging room environment is just as important as controlling the cooling conveyor. We install heavy-duty dehumidifiers in the packaging halls to keep the RH below 45%. This dry environment encourages the final bits of surface moisture to flash off before the biscuits enter the wrapper. It also provides a wider safety margin for the dew point, ensuring the products remain dry even if the room temperature fluctuates slightly during a shift.

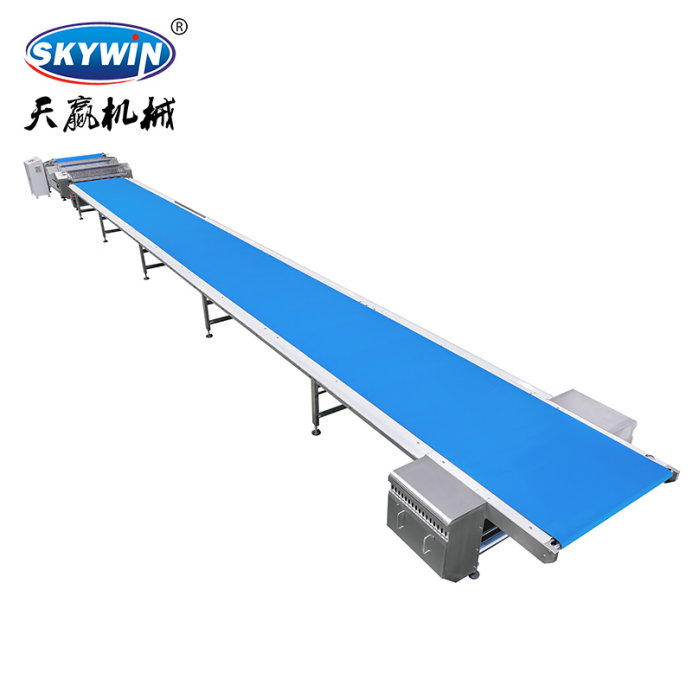

Ambient cooling conveyors utilize extended belt lengths to allow natural, passive heat dissipation. This standard approach works best for facilities with ample floor space and stable, air-conditioned ambient temperatures. Passive cooling prevents thermal shock and allows for natural moisture migration. However, high-throughput lines or space-constrained facilities often require forced air or chilled cooling tunnels. These closed-loop systems utilize overhead fans, cooling plenums, or dehumidified chilled air circulation to accelerate heat removal. When implementing forced air, facilities must specify HEPA-filtered air intakes. Filtration prevents airborne pathogens, dust, or yeast and mold spores from contaminating the exposed biscuits during the cooling phase.
Choosing between ambient and forced air depends entirely on your production volume and available square footage. Ambient systems are simple and reliable. They have fewer moving parts and require less maintenance. Forced air systems pack more cooling capacity into a smaller footprint, but they introduce complexity. You have to clean the ductwork, replace filters, and monitor fan motors. We often use a hybrid approach: ambient cooling for the first two-thirds of the line, followed by a short forced-air section to hit the final temperature target.
Extended linear layouts offer operational simplicity and ease of maintenance. Straight-line cooling provides clear visibility and straightforward sanitation, though it demands a high floor-space footprint. Facilities lacking linear space often utilize multi-tier configurations. Z-type, S-type, or stacked structures maximize dwell time within a compact vertical footprint. These vertical systems require critical engineering at transfer points. Gravity-assisted or active transfer slides between tiers must prevent product flipping, overlapping, or breakage. Curved and spiral conveyors offer another alternative. Spiral cooling towers and 180-degree turn configurations provide excellent space efficiency, though they introduce more mechanical wear and require specialized cleaning access compared to straight belts.
When installing multi-tier systems, the transfer points are always the biggest headache. If the drop is too steep, the biscuits overlap and jam. If it is too shallow, they stall and back up the line. We spend hours dialing in the exact angle and drop height for each specific product. Spiral conveyors save a massive amount of space, but you have to watch the belt tension closely. The inner edge of the belt travels a shorter distance than the outer edge, which can cause the biscuits to rotate or shift out of alignment.
Stainless steel wire mesh belts provide superior airflow and heat dissipation. Their high open-area percentage makes them ideal for the initial cooling phases immediately exiting the oven, allowing heat to escape from the bottom of the product. As the product cools and stabilizes, facilities often transition to flat polyurethane (PU) belts. PU belts offer excellent hygiene, ease of sanitization, and smooth surfaces suitable for final-stage cooling and downstream transfer. Modular plastic open-grid belts provide high tensile strength and resistance to wear. They allow for easy individual link replacement, reducing downtime compared to solid belts. Regardless of the belt material, ultra-small radius knife-edge rollers are necessary at transfer points. These knife-edge transfers handle fragile, hot biscuits smoothly without tipping, structural damage, or row misalignment.
Belt Material | Best Application Phase | Key Advantages | Maintenance Considerations |
|---|---|---|---|
Stainless Steel Wire Mesh | Initial cooling (post-oven) | Maximum airflow, high heat tolerance | Requires regular tensioning, prone to wire fatigue |
Polyurethane (PU) Flat Belt | Final cooling & transfer | Smooth surface, easy to sanitize | Can stretch over time, requires precise tracking |
Modular Plastic Open-Grid | Mid-stage cooling | Durable, easy link replacement | Hinges can trap crumbs, requires thorough washdowns |
Determining the correct equipment size requires calculating the necessary dwell time based on production speed. The standard industry sizing formula is: Total Cooling Conveyor Length (m) = Line Speed (m/min) × Required Cooling Time (min). Product-specific variables heavily influence this calculation. Recipe dynamics alter the required cooling-to-baking time ratio. High-fat shortbread, high-sugar wire-cut cookies, and high-moisture crackers all release heat at different rates. Product thickness also dictates cooling speed. Typically, the cooling time ranges from 1.5 to 2.5 times the total baking time. A robust biscuit cooling system must accommodate the longest required dwell time for the facility's product portfolio.
You cannot cheat the physics of cooling time. If you speed up the belt to increase throughput without extending the conveyor length, you will pack hot biscuits. We always design the cooling line based on the thickest, highest-moisture product the bakery plans to run. It is much easier to slow down a long belt for a thin cracker than it is to magically cool a thick shortbread on a belt that is too short. Build in at least a 20% safety margin on your calculated length to handle future product variations.
Food safety compliance requires strict adherence to hygienic design principles. Equipment must utilize USDA/FDA-compliant food-grade materials, focusing heavily on 304 or 316 stainless steel frames. Drive motors and electrical enclosures must carry appropriate washdown ratings, typically IP66 or IP69K, to withstand high-pressure chemical cleaning. Bearings should be sealed and lubricated-for-life to prevent grease contamination. The hygienic framework design must include tool-less belt removal systems for rapid sanitation. Sloped horizontal surfaces prevent water pooling after washdowns. Self-draining frames and easily removable crumb collection trays minimize debris accumulation and reduce cross-contamination risks.
Specify 304 or 316 stainless steel for all structural components.
Ensure all horizontal surfaces have a minimum 5-degree slope to shed water.
Demand tool-less belt lifters to allow sanitation crews access to the inner frame.
Install IP69K-rated motors and sensors to survive daily high-pressure washdowns.
Use solid, continuous welds instead of spot welds to eliminate bacterial harborage points.
Modern cooling lines rely on advanced control systems to maintain synchronization. Variable Frequency Drives (VFDs) and synchronized servo motors adjust the cooling conveyor speed in real-time. This dynamic speed control matches fluctuations in oven output or packaging line capacity, preventing pile-ups. Sensor integration enhances quality control. Infrared pyrometers mounted along the conveyor path monitor real-time biscuit surface temperatures without contacting the product. This data feeds back to the central control panel, allowing operators to verify that products reach the target temperature before entering the packaging zone.
We tie the cooling conveyor VFDs directly into the main line PLC. If the packaging wrapper faults and stops, the PLC automatically slows the cooling belts to create a buffer. This prevents the biscuits from dumping onto the floor. The infrared pyrometers act as a final quality gate. If the sensors detect that the biscuits are running too hot, the system triggers an alarm and diverts the out-of-spec product before it reaches the wrapper, saving the packaging film and preventing sweaty packages.
Different baked goods require specific thermal pipelines. Standard biscuits and crackers typically follow a direct pipeline from the oven, through the cooling system, and straight to the stacking unit. Sandwich biscuits, such as creme-filled cookies, demand a dual-stage cooling requirement. Primary cooling occurs before the cream-depositing manifold to prevent the cream from melting upon contact with hot dough. Secondary cooling takes place post-assembly to solidify the filling before wrapping. Chocolate-coated or enrobed biscuits require specialized cooling tunnels with precise temperature zoning. These zones temper and set the chocolate glaze gradually, preventing scuffing, fat bloom, or sugar bloom on the finished surface.
Getting the temperature right for sandwich biscuits is notoriously difficult. If the base cake is too warm, the cream turns to liquid and squirts out the sides during the capping process. If it is too cold, the cream won't adhere, and the sandwich falls apart. We use a dedicated cooling loop just for the base cakes, bringing them down to exactly 28°C before they hit the depositor. The secondary cooling tunnel then drops the assembled sandwich to 20°C to set the fat in the cream before wrapping.
The transition from cooling to stacking represents a critical mechanical handoff. Proper cooling solidifies the fat and sugar structures within the dough. This structural solidification prevents crumbling, deformation, or smearing when the products enter the biscuit stacking machine. Whether the line utilizes penny stackers, star-wheel stackers, or vibratory channel feeders, the biscuits must possess enough structural integrity to withstand mechanical sorting and grouping without generating excessive crumbs.
Warm biscuits are soft biscuits. If you feed soft product into a star-wheel stacker, the machine will crush the edges and generate massive amounts of crumb dust. This dust fouls the sensors and jams the moving parts. We always verify the internal crumb structure is fully set before the stacking phase. You should be able to snap the biscuit cleanly in half. If it bends or crumbles, it needs more cooling time before it hits the stacker.

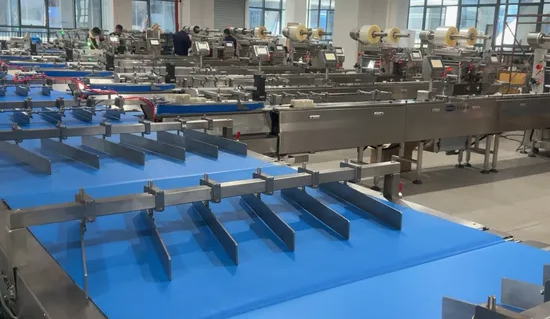

Maintaining row alignment and precise spacing is necessary as products transition from wide cooling belts to consolidated rows. The auto feeding and packing system relies on consistent product presentation to function at high speeds. Dynamic buffer and accumulation zones play a critical role in this synchronization. Multi-tier accumulation tables or buffer conveyors temporarily store cooled biscuits during micro-stoppages at the packaging end. This buffering capacity prevents the need to stop the baking oven, which would result in burned product and massive waste.
Row alignment starts at the oven band and must be maintained all the way through the cooling process. If the biscuits drift laterally on the cooling belts, they will miss the infeed guides on the packing system. We use active lane guides and vibrating transfer plates to keep the rows perfectly straight. The accumulation buffer is your insurance policy. A five-minute buffer gives the packaging operators enough time to change a film roll or clear a minor jam without disrupting the continuous flow from the oven.
Dimensional integrity directly impacts packaging efficiency. Uniform thermal stabilization prevents dimensional warping, such as curling or cupping of the biscuit edges. Warped products fail to stack correctly and frequently cause high-speed sorting jams. Furthermore, irregular product shapes lead to seal failures and misaligned wrappers at the biscuit flow packing machine. Ensuring that every biscuit reaches the wrapper fully cooled, structurally sound, and dimensionally flat maximizes packaging line uptime and reduces film waste.
A flow wrapper running at 300 packs per minute has zero tolerance for warped biscuits. If a cupped biscuit catches on the folding box, it tears the film and shuts down the entire line. We monitor the flatness of the biscuits as they exit the cooling conveyor. Uneven cooling, usually caused by poor airflow under the belt, is the primary cause of cupping. Fixing the airflow distribution immediately resolves the warping issue and keeps the flow wrapper running smoothly.
Facility layout dictates equipment selection. Plant managers must compare the high initial CapEx of compact forced-air or chilled vertical cooling systems against the massive physical footprint of passive linear ambient conveyors. Vertical systems save valuable floor space but require more complex engineering, maintenance, and sanitation procedures. Linear systems cost less to install and maintain but consume significant real estate, which may not be feasible in older or tightly packed facilities.
You have to measure your available floor space accurately. We often see bakeries try to squeeze a linear system into a space that is too short, resulting in inadequate cooling times. If you don't have the linear footage, you must spend the capital on a vertical or spiral system. Trying to compromise by running the belts faster or blowing unconditioned factory air onto the biscuits will only lead to rejected product and wasted packaging materials.
Long conveyor runs introduce specific mechanical risks. Belt mistracking and edge wear represent common implementation failures on extended cooling lines. When belts drift out of alignment, they fray against the conveyor frame, generating particulate contamination and requiring premature replacement. Mitigation requires automated pneumatic or mechanical belt-tracking systems. Dynamic counterweight tensioners must also be installed to compensate for belt stretch and thermal expansion, ensuring consistent tension and smooth operation across the entire length of the cooling line.
A mistracking belt will destroy itself in a matter of hours. We install active pneumatic trackers on any belt longer than 15 meters. These systems use edge sensors to detect drift and automatically adjust the steering roller to keep the belt centered. Counterweight tensioners are equally important. As the belt heats up and cools down during production and sanitation cycles, it expands and contracts. The counterweight maintains constant tension, preventing the belt from slipping on the drive rollers.
Audit your current product core temperatures immediately before the flow wrapper to ensure they are within 5°C of ambient room temperature.
Install infrared pyrometers on the final section of your cooling belts to monitor surface temperatures in real-time.
Inspect all transfer points and knife-edges for proper alignment to prevent product damage before stacking.
Implement a strict daily sanitation schedule for crumb trays and belt hinges to maintain food safety compliance.
A: The length depends on line speed and required cooling time. Typically, cooling time should be 1.5 to 2.5 times the baking time. Multiply your line speed by this required time to determine the total conveyor length needed.
A: Condensation forms when biscuits are packaged before their core temperature drops near ambient levels. Trapped latent heat creates water vapor, which condenses on the cold inner surface of the packaging film.
A: Checking refers to micro-cracking caused by thermal shock when biscuits cool too rapidly. A properly calibrated cooling conveyor lowers the temperature gradually, preventing the severe internal stress that causes these cracks.
A: Ambient air works well for standard biscuits if you have sufficient conveyor length and floor space. However, high-throughput lines, tropical climates, or enrobed products often require forced-air or chilled systems.
A: Stainless steel wire mesh belts are ideal for the initial stage immediately after the oven. They provide a high open-area percentage, allowing maximum airflow and rapid heat dissipation from the bottom of the product.
A: Ensure the biscuits are fully cooled and structurally solid before they reach the stacker. Soft, warm biscuits will crumble and deform under mechanical sorting, causing severe jams and dust buildup.
