Cream-filled wafer biscuits require several production stages to work together. Thin wafer sheets must be baked evenly, cooled without excessive breakage, coated with the right amount of cream, assembled into layers, and cut into finished pieces. If one stage cannot keep up with the others, the overall production process becomes less efficient.
For biscuit manufacturers planning a new facility or expanding an existing product range, selecting a wafer biscuit production line involves more than choosing an automatic baking oven. The cooling, cream spreading, laminating, and cutting equipment must also match the intended product and production requirements.

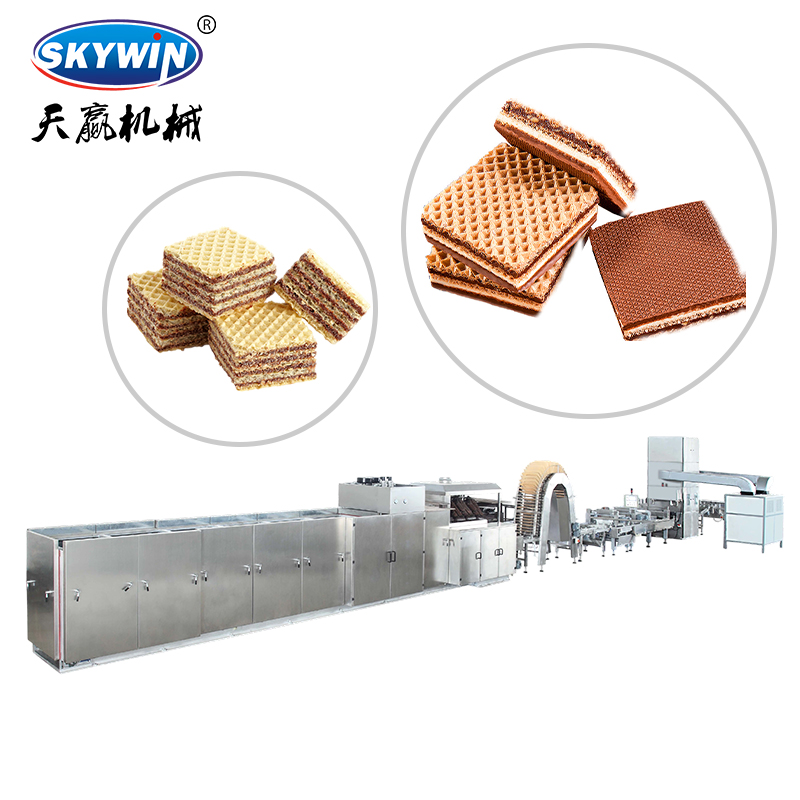

At Skywin, our high-capacity wafer biscuit production line covers the main stages from batter preparation and wafer baking to cream application and cutting. With different baking oven models, a two-color cream spreading system, and supporting equipment for wafer handling, we can discuss configurations for manufacturers developing cream-filled wafer products.
Before choosing machines, define the wafer product you want to manufacture. A simple cream-filled wafer with a few layers requires a different coating and laminating arrangement from a thicker product containing several wafer sheets and cream layers.
The finished biscuit's dimensions are another important factor. Long wafer bars, small rectangular pieces, and other cut formats need suitable cutting settings, while the desired cream thickness influences the coating stage. The filling itself also matters, particularly when working with chocolate or different cream formulations.
For manufacturers producing several varieties, it is useful to identify which products will share the same wafer sheet format and which will require changes to cream application or cutting dimensions. This makes equipment planning more practical than selecting individual machines without considering how they will operate together.
A typical cream-filled wafer production line follows this sequence:
Batter Mixing → Wafer Baking → Sheet Cooling → Cream Spreading → Laminating → Block Cooling → Wafer Cutting → Packaging
Each stage affects the next. Poorly cooled wafer sheets may break during handling, uneven cream application can affect the layered product, and insufficient cooling after laminating may make cutting more difficult. Packaging is arranged downstream according to the finished wafer format and the requirements of the selected packing equipment.
The baking oven is one of the central machines in an automatic wafer line. Batter is deposited onto baking plates, where it forms thin wafer sheets that must be sufficiently consistent for later coating and stacking.
Our wafer production equipment includes automatic baking ovens with different plate configurations. The available range includes 27-, 39-, 45-, 51-, 65-, and 75-plate options, allowing manufacturers to select an oven arrangement according to their production requirements.
The oven uses automatic temperature control to manage baking conditions and maintain consistent wafer sheet appearance. Gas and diesel heating arrangements are available within the equipment range, while batter preparation and conveying systems form part of the wider production configuration.
A larger baking oven can increase the number of wafer sheets available for downstream processing, but the coating and cutting equipment must be capable of handling that supply.
For example, choosing a higher-capacity oven without considering how quickly the sheets can be cooled and laminated may create a bottleneck after baking. A balanced production line allows the machines to operate at compatible rates, reducing unnecessary interruptions between stages.
The number of baking plates is therefore an equipment selection factor rather than a complete description of finished wafer output. Product dimensions, baking time, cream layers, and subsequent processing also determine the overall production arrangement.
Our automatic wafer biscuit production line range includes different configurations for manufacturers with varying production needs.
Freshly baked wafer sheets are thin and delicate. They also retain heat from the oven, so their condition must be managed before cream is applied or the sheets are transferred through subsequent equipment.
The wafer cooling machine helps reduce thermal stress after baking. This is important because wafer sheets may crack during handling if they experience abrupt changes or are transferred while still carrying excessive thermal stress.
Our production line includes wafer sheet receiving equipment, a picking machine, and a cooling system to manage the transfer from the oven toward the cream spreading stage. The cooling equipment gently handles the sheets during this transition, helping prepare them for subsequent processing.
The picking equipment also provides a way to collect qualified wafer sheets when certain downstream operations are temporarily interrupted. If the coating machine or cooling section encounters a temporary problem, the picking machine can collect wafer sheets discharged from the oven according to the control system's instructions.
For manufacturers seeking consistent cream-filled wafers, careful sheet transfer and cooling are particularly important because cracked or distorted sheets can affect the appearance of the final laminated block.
Once the wafer sheets have cooled appropriately, the next major task is applying cream to the surface. This stage has a direct influence on the finished biscuit's flavor distribution, appearance, and thickness.
Our wafer cream spreading machine applies filling across the wafer sheet using a roller-based arrangement. The equipment includes a cream hopper with heating features, and the production line supports a two-color cream spreading configuration.
The aim is to create a suitable and consistent cream layer before the next wafer sheet is added. The coating thickness and selected product structure need to work together, especially when the manufacturer wants several cream layers within one wafer block.
A standard cream-filled wafer may use one filling color throughout the product. A two-color arrangement gives manufacturers additional possibilities for visually distinctive layers or different flavor combinations.
The selected cream formulation must be compatible with the spreading equipment, while temperature and coating settings should suit the filling's handling properties. A chocolate-based filling, for example, may require a different process arrangement from another cream formulation.
Our automatic chocolate wafer production line provides another example of how cream coating, wafer layering, cooling, and cutting are connected in the manufacturing process. Its coating system includes adjustable cream layer thickness and a temperature-controlled roller arrangement, supporting different cream-filled wafer products.
For bakeries developing multiple wafer varieties, the ability to select different cream arrangements is valuable, but the final configuration should be based on the actual recipes and intended product appearance.
After cream spreading, the wafer sheets are assembled into a layered block. The laminating process determines how many wafer sheets and cream layers make up the finished product.
A wafer laminating machine places the sheets in the intended sequence while keeping the layered structure aligned. Our wafer equipment supports different layering arrangements, and the chocolate wafer production line describes configurations with varying numbers of wafer sheets and cream layers.
The process can be adjusted according to the required product structure, including arrangements with three, four, or five wafer sheets. Changing the number of layers affects the thickness of the wafer block and the amount of cream required.
This makes product development closely connected to equipment selection. A manufacturer planning relatively thin wafer biscuits may prioritize one arrangement, while a thicker multi-layer product will place different demands on stacking, cooling, and cutting.
For a factory developing several products, it is sensible to identify the intended layer combinations before finalizing the cream spreading and laminating system. The equipment arrangement should support the required wafer structure without creating unnecessary complexity in the production process.
Cooling occurs at two different points in a cream-filled wafer production process, and each serves a different purpose. The first stage prepares baked wafer sheets for handling and filling, while the second helps stabilize the cream-filled laminated blocks before cutting.
Our wafer production line includes a horizontal cooling cabinet designed for laminated wafers. The equipment uses temperature-controlled cooling, with an adjustable internal temperature range of 0–8°C.
This stage is particularly important when the product contains multiple cream layers. The filling needs to reach a suitable condition for the wafer block to retain its shape during cutting and subsequent handling.
Without appropriate cooling, the cream may be too soft for the cutting process, affecting the appearance of the finished pieces. The required cooling arrangement depends on the formulation, block thickness, and production conditions.
Manufacturers should therefore consider the cooling cabinet together with the cream spreading and laminating equipment, rather than treating it as a separate accessory.
After cooling, the layered wafer blocks move to the cutting stage. This is where larger blocks are divided into the smaller bars or rectangular pieces intended for packaging.
Our wafer cutting machine uses an adjustable cutting arrangement, allowing the finished dimensions to be selected for different products. The equipment incorporates pneumatic operation and controlled transfer to support the cutting process.
The cutting stage needs to match the wafer block dimensions and the product size required by the customer. A factory producing small individual wafer pieces may use a different cutting setup from one manufacturing larger wafer bars.
Consistent cutting also depends on the condition of the laminated block. This is another reason the earlier cooling stage is important: the structure needs to be suitable for cutting without excessive movement or filling deformation.
Once the wafers have been cut, they can be transferred to an appropriate packaging system. Packing equipment should be selected according to the finished product size, required pack count, and packaging format.
A complete cream-filled wafer project requires the machines to be selected as a connected process. Our high-capacity line includes batter mixing equipment, automatic wafer baking, sheet receiving and cooling, cream spreading, laminating, block cooling, cutting, and electrical control equipment.
The main configuration can be summarized as follows:
Production Stage | Skywin Equipment | Main Function |
|---|---|---|
Batter Preparation | Automatic Wafer Batter Mixer | Prepare and supply batter |
Wafer Baking | Automatic Wafer Baking Oven | Form and bake wafer sheets |
Sheet Handling | Wafer Receiver, Picking and Cooling Machines | Transfer and cool baked sheets |
Cream Application | Two-Color Wafer Cream Spreading Machine | Apply filling to wafer sheets |
Layer Assembly | Wafer Laminating Machine | Build multi-layer wafer blocks |
Block Cooling | Wafer Horizontal Cooling Cabinet | Cool cream-filled laminated blocks |
Final Sizing | Wafer Cutting Machine | Cut blocks into finished pieces |
Packaging | Suitable Downstream Packing Equipment | Pack finished wafer products |
The correct arrangement depends on production scale, wafer dimensions, cream formulation, and the finished product. A factory expanding from basic wafers into cream-filled products may have different requirements from a new manufacturing facility installing the full process.
When planning an automatic wafer production line, manufacturers should compare the requirements of each processing stage rather than focusing only on the baking oven.
The oven determines how wafer sheets are produced, but the cooling section must handle the baked sheets at a compatible rate. Cream spreading and laminating must then accommodate the required number of layers, while the cooling cabinet and cutting equipment need to process the completed wafer blocks without unnecessary accumulation.
Product changes can also affect how the line operates. A thicker wafer block with additional cream layers may need a different laminating and cooling arrangement from a thinner product, even when both are made using the same type of baked wafer sheet.
Our production line solutions cover different biscuit and wafer manufacturing applications. For a wafer project, we can review the intended product and select suitable equipment combinations rather than relying on a single standard layout for every customer.
Before finalizing a wafer line configuration, it is useful to prepare information about the products you intend to manufacture. The most important details include wafer sheet dimensions, desired number of cream layers, filling type, finished cutting size, and expected production output.
The available factory space and energy requirements also influence equipment selection. Baking ovens, conveyors, cooling cabinets, and cutting systems need to be arranged in a practical production sequence, with sufficient access for operation and routine maintenance.
For buyers planning an expansion, reviewing existing equipment can help determine whether the project requires a complete line or a more limited equipment upgrade. A factory with a suitable wafer baking system may have different priorities from one establishing a new facility.
At Skywin, we provide equipment solutions for different wafer biscuit manufacturing requirements, including multiple baking oven configurations and supporting machines for cream-filled products. Customers can also access our technical services and spare parts information when planning installation, operation, and future equipment support.
Configuring a wafer biscuit production line for cream-filled products requires careful coordination between baking, cooling, cream spreading, laminating, and cutting. Each stage influences the next, so selecting compatible equipment is more important than simply choosing the largest available baking oven.
Skywin offers different automatic wafer line configurations, including multiple baking plate options, two-color cream spreading, adjustable layering, horizontal cooling, and wafer cutting equipment. These modules allow manufacturers to plan the production process around the wafer biscuits they intend to produce.
If you are developing a cream-filled wafer product or expanding an existing production line, contact Skywin with your desired wafer dimensions, cream layers, production requirements, and available factory space to discuss a suitable line configuration.
A typical line includes batter mixing equipment, a wafer baking oven, sheet handling and cooling equipment, a cream spreading machine, laminating equipment, a cooling cabinet, and a wafer cutting machine. Packaging equipment can be added according to the finished product.
Yes. Our wafer equipment supports different layering arrangements. The chocolate wafer production line describes configurations with varying wafer sheet counts, including three, four, and five-sheet arrangements.
Our high-capacity wafer production line includes a two-color cream spreading machine. The final filling arrangement depends on the selected configuration and the cream formulation.
Start with the target finished product and production requirement. Our baking ovens offer different plate configurations, and the oven should be matched with the cooling, coating, laminating, and cutting equipment in the same line.
