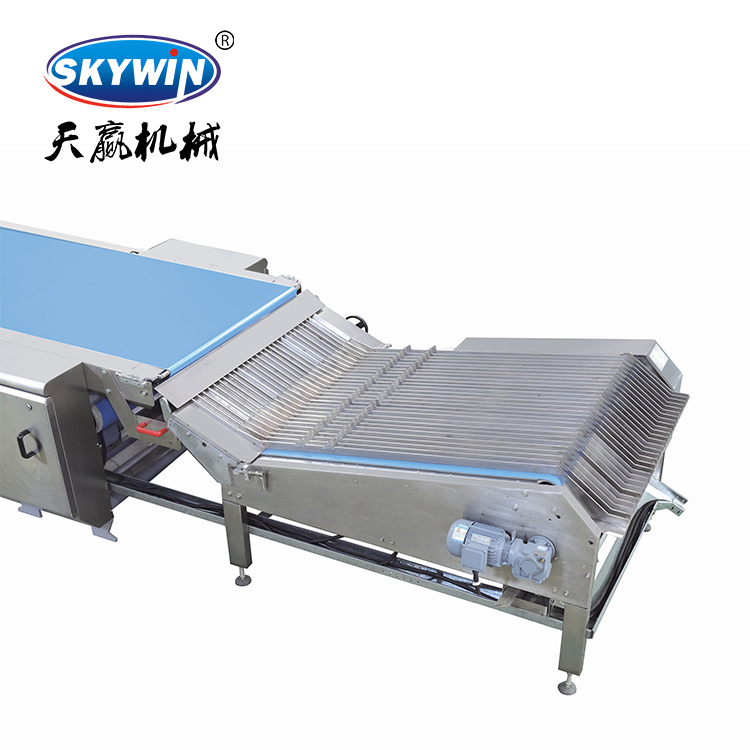

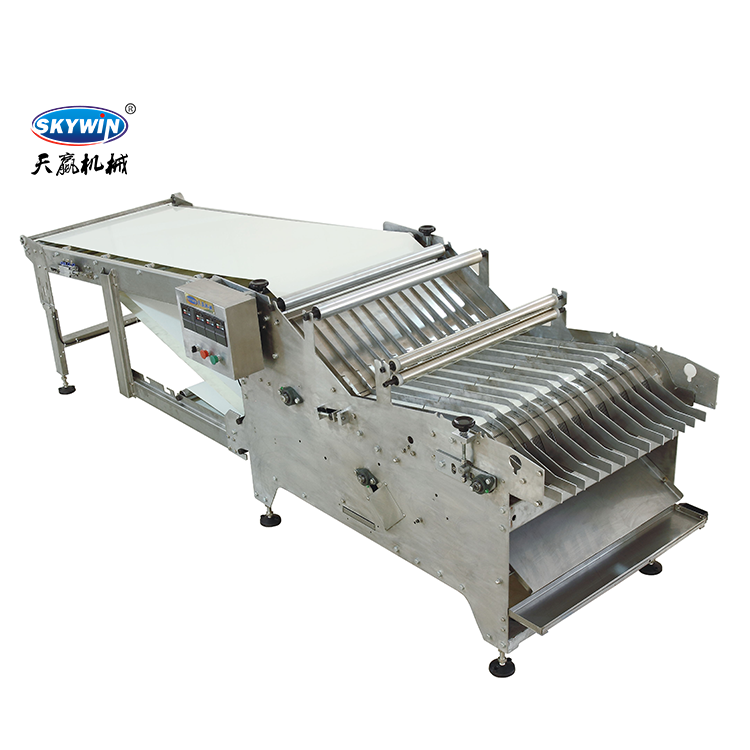

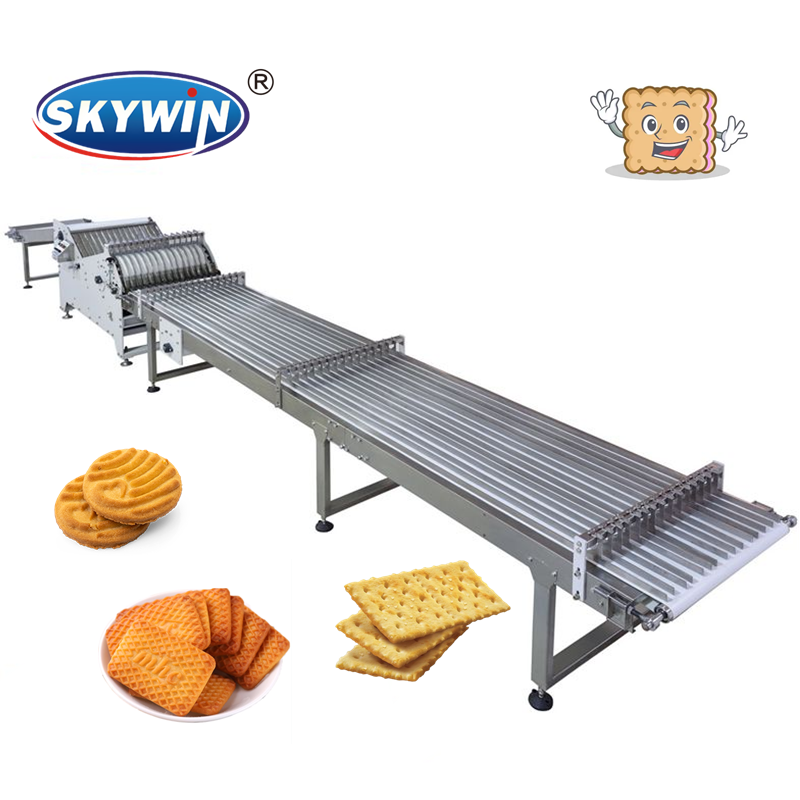

Biscuit Stacking Machine
1. Type : Star wheel & Speed Stacking Combined Machine
2. Model : 400 / 600 / 800 / 1000 / 1200 / 1500
3. Capacity : 100-1500 kgs/h
4.Star wheels stacking structure, composed by transition conveyor, divided biscuits in order rows and stacking, total two conveyor belts.
5. PU conveyor belt 1mm thickness, Gearbox use Chinese famous brand GUOTAI, bevel wheel with high drive efficiency, low noise and work stability and so on.

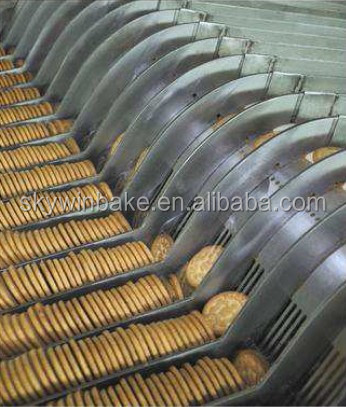

6. Stacking by star wheels, stacking star whels and conveyor belt controlled by separately motor, easy to adjusted, rubber covered main drive roll.
7. Full stainless steel one 165mm diameter steel roller for PU conveyor belt, Support rollers and transition scraper covered hard chrome Cover make by 1.2mm thickness 304 stainless steel Main driver by chain drive, NSK bearing from Japan Electric control: All driving speed controlled by frequency conversion Transducer and 5.Electronic element use SIEMENS brand Working width 1300mm,Speed: 0-20mm/min Power: 2.75KW.

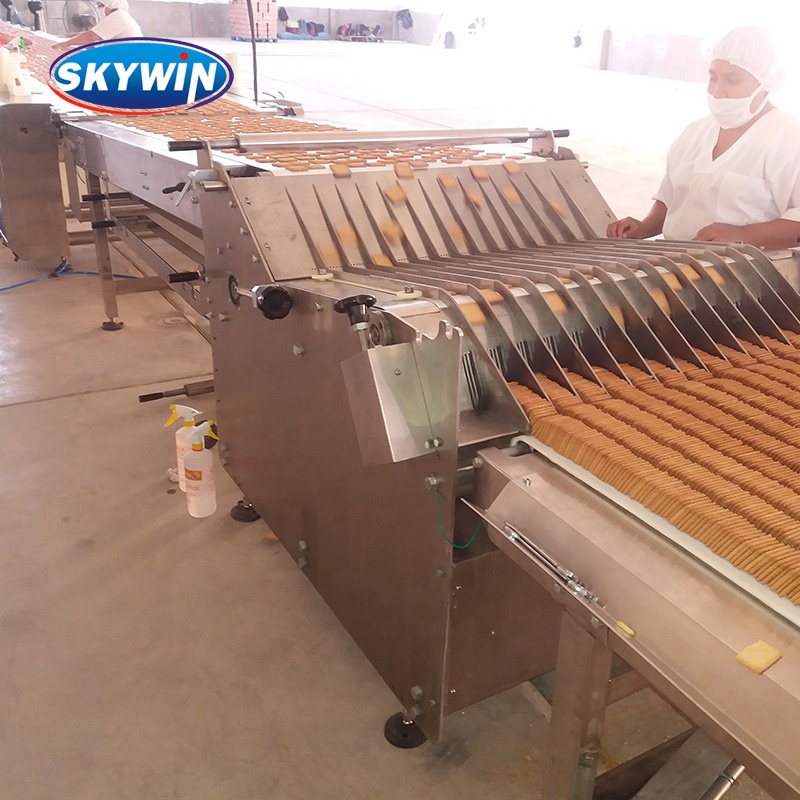

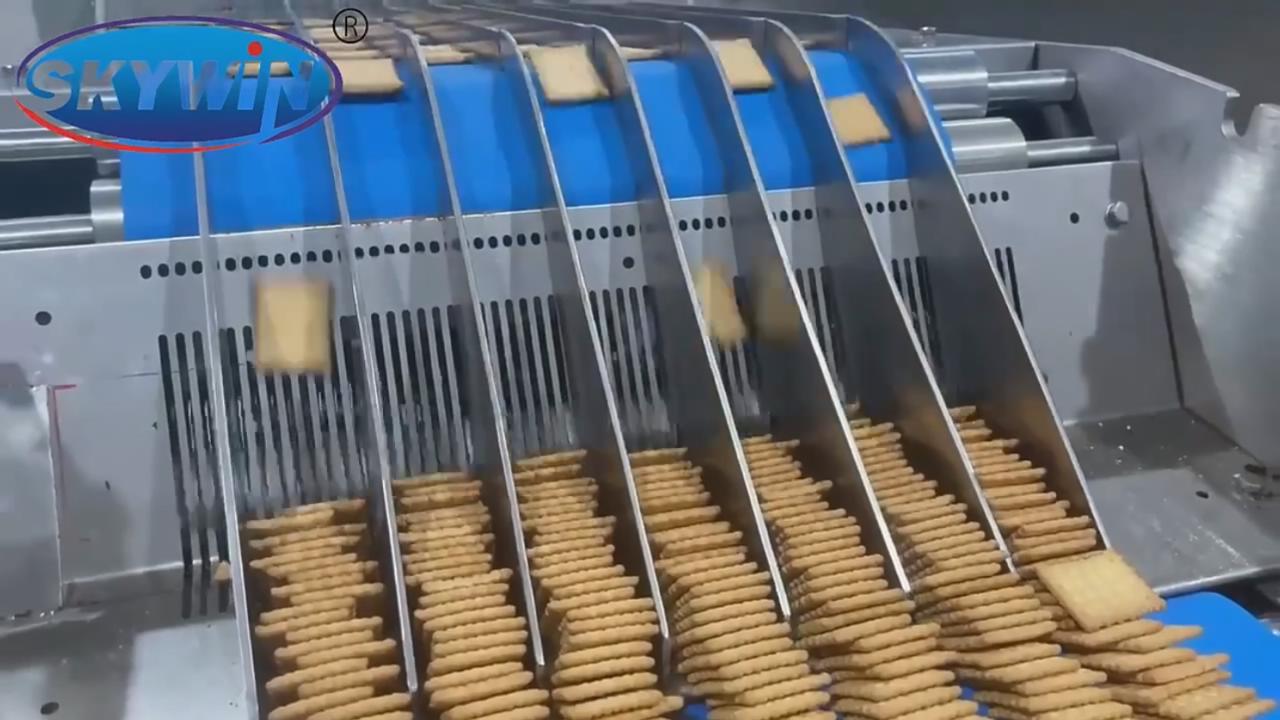

The biscuit stacking machine receives the cookies conveyed by the cooling conveyor. By utilizing star wheels and differential devices, it automatically sorts the cookies into separate lanes within the channel and stacks them vertically. Then, it transports the cookies to the packaging station for packaging and sorting.
The biscuit stacking machine is a crucial supporting equipment for the biscuit production line. After the cookies are cooled, they pass through this machine, where they can be automatically arranged into multiple neat and orderly rows for packaging. This machine features high efficiency, rapid operation, labor savings, wide applicability, and an outstanding biscuit - shaping effect.
Biscuit stacking machine can be connected the auto feeding and packing system enabling the sorting line to perform automated sorting and packaging.
