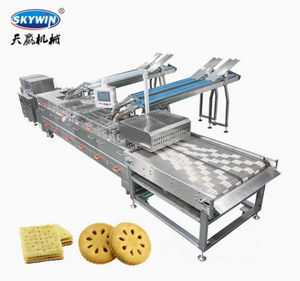

Feeding tracks: can make single row ,two rows ,four rows ,six rows
Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle.
Sandwich colour: can make one color ,two color .
Sandwich fillings: cream , jam , chocolate and many more .
1) New Design Double jacket Cream Tanks for cream .
Double jacket Cream Tanks with hot Water circulation system Cream tank with mix blade and pusher
Innovative double-jacket insulation design for a 70L large-capacity cream container
The hot water circulation system keeps the cream from solidifying not easily at low temperatures.
2) Adjustable Biscuits feeder for different size biscuits
Two biscuit feeding lane
-vibration feeding type
-convoyor belt type
-Conveyor PU Belt Feeders(45°or 90°are available)
Adjustable biscuit conveyor suitable for different biscuit size sensor for biscuits checking，all you have to do is make the biscuit up-right on the biscuit feeding conveyor.
Adjustable hand wheels for sandwiching row ,adjusting size according different biscuit size
Famous Brand Inverter for sandwiching machine
Famous Brand PLC&Touch Screen, can be rotate 360°for easy controlled
sensor for biscuits checking
No biscuits no cream output. Biscuits gaps amount can be setting on the PLC
Cream&Jam One/Two Color Cream Stencil
Creaming mould
The Creaming speed is 500-600 per minute. By changing the molds and increasing the cream tanks, it is possible to switch between one color and two color biscuit sandwiching.
Cream tanks blade with strong pusher to make sure fast speed sandwiching
4 wheels at the bottom,convenient to move the machine
Collecting pans to collect the broken biscuit
Safety protection acrylic cover
The acrylic protective cover can make the working environment of workers safer. Compared with other products in the market, the acrylic protective cover we designed places greater emphasis on safety.
Pushers on creaming machine made by stainless steel

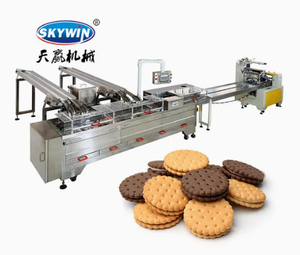

Sandwich biscuit machine have three connection options, welcome to customize:
1.Connected packing machine (with pillow packing or trayless on edge packing)
2.Connected with star wheel stacker
3.Connected with multiplier(and chocolate coating machine+packing machine)
FLOW PACKING MACHINE
Skywin Flow packing machine suitable for packing various regular and solid products such as biscuit, cookie, cake, bread, candy, chocolate, daily necessities and so on.
Three Servo Motors, Painted steel cover, Schneider Switches, PLC control system, Upper and Down Knife Jaw Temperature separate control, Heating rollers diameter 100 mm, Feeding roller without temperature control, Heating plate with temperature control, sealing rollers single temperature control.
Feature
1). Included packing conveyor;
2). Double frequency conversion machine, film width 320 mm;
3). Included date printer;
4).Three Servo Motors
5). Painted steel cover
6). Schneider Switches
7). PLC control system
8). Upper and Down Knife Jaw
SAMPLE
ON EDGE PACKAGING MACHINE
Tray Free Biscuit Cookie On Edge Flow Packing Machine
Product details
1. A date printer included,
2. Photo cell
3. With Middle plastic brush and belt.
4. Packing speed: 30-120bags/min
5. Bag size: Length (80-500) x Width (60-380) x H (5-45) mm
6. Max width of the packing film: 370mm
7. Packing film material: opp/pe/pvc/cpp/ptpe/kop/aluminum film
8. Total power/voltage: 5KW/Single 220VAC/50Hz
9. Machine weight: 650 kg
10. Power type: 220V/50HZ
Sample：

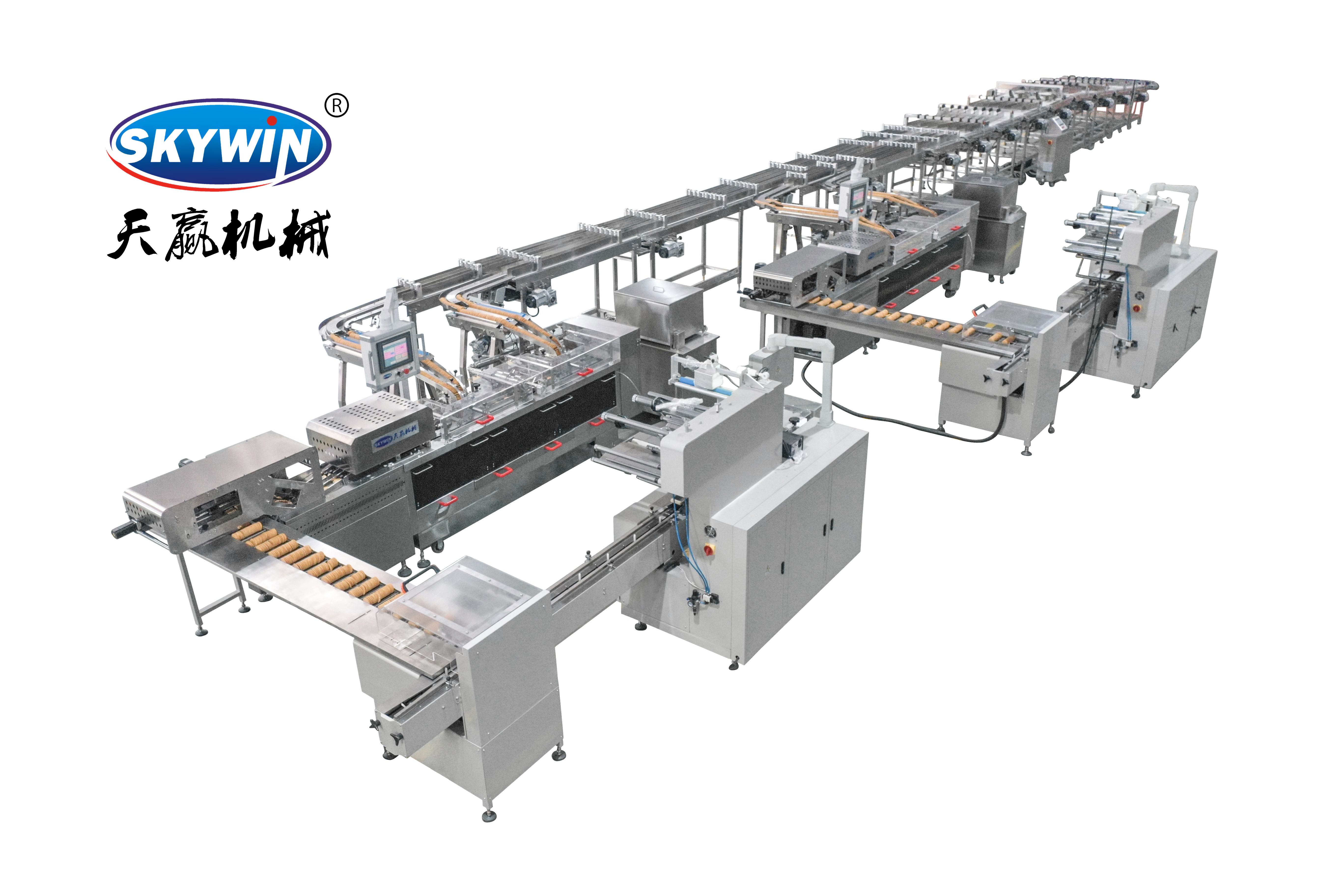

Automatic Biscuit Stacking and Feeding Line
Auto feeding and packing line suitable for packing different kind of regular shape products such as cakes, cereal bar, bread, chocolate bar, wafer biscuit, cookie, finger biscuit, etc.
It can be connected to your food production line, save labor, full automatic. The packing line can be customized according to your package type, capacity and workshop size.
Feature
● Auto Biscuit Stacking Device
● Auto Biscuit Feeding Line
● Auto Biscuit Counting Device
● Auto Biscuit Creaming Machine
● Connect Edge Packing Machine
● Delta servo motor
● Siemens electric parts
● Date printer included
● Packing speed: 30-120bag/min
