The cooling phase in industrial baking and food processing represents one of the highest-risk zones for microbial contamination and foreign body introduction. This risk stems primarily from temperature differentials, condensation, and prolonged product exposure to the open factory environment. When hot baked goods leave the oven, they must cool rapidly. This sudden temperature drop creates moisture, and moisture breeds bacteria. Managing this environment requires precision and the right mechanical equipment.
Legacy belting materials fail under continuous exposure to heat, fats, mechanical scraping, and aggressive sanitation chemicals. Modular plastic belts with physical hinges, PVC belts, and fabric-reinforced belts degrade over time. This degradation leads to micro-fissures, delamination, and joint wear. These damaged areas harbor pathogens, increase sanitation downtime, risk audit failures, and cause premature belt replacement. Upgrading to a modern, monolithic PU (polyurethane) system addresses these root vulnerabilities directly. A solid polyurethane surface eliminates the crevices where bacteria hide. This guide evaluates the material science, compliance advantages, and implementation realities of transitioning to polyurethane belting for high-volume cooling applications.
Material Superiority: Monolithic PU conveyor belt technology offers a non-porous, homogeneous surface that resists fat and oil absorption, eliminating the risk of delamination and microbial harboring.
Sanitation Efficiency: Modern PU belts support aggressive Clean-in-Place (CIP) processes and dry-cleaning methods, reducing daily sanitation labor hours, water usage, and chemical consumption while increasing Overall Equipment Effectiveness (OEE).
Downstream Integration: Precise tracking and ultra-smooth, small-radius nosebar transfers on a PU belt ensure structural integrity for fragile baked goods before they reach downstream packaging or a high-speed biscuit stacking machine.
Long-Term ROI: While initial procurement costs are higher than PVC, the extended lifecycle, minimized risk of product recalls, and reduced maintenance overhead deliver a lower Total Cost of Ownership (TCO).
The transition from oven to ambient or forced cooling tunnels creates severe condensation risks. Dew point management becomes a daily operational challenge on the factory floor. As hot products hit cooler air, moisture forms on surfaces. This makes the conveyor surface a prime breeding ground for bacteria like Listeria and Salmonella. If you do not manage this moisture, contamination spreads rapidly across the entire production batch. Plant managers often see swab test failures spike during seasonal humidity shifts. The cooling tunnel acts as a vacuum, pulling in airborne particulates. When these particulates settle on a damp belt, microbial colonies establish themselves within hours.
Airflow dynamics inside the cooling tunnel further complicate the issue. Forced air systems push ambient air across the product. If the belt material retains heat or moisture, the cooling curve flattens. This extends the time the product remains in the danger zone for bacterial growth. Operators frequently attempt to compensate by lowering tunnel temperatures, which only exacerbates condensation on the belt underside. You need a belt material that dissipates heat instantly and refuses to hold moisture.
PVC belts suffer from chemical breakdown. When exposed to hot oils and fats, PVC plasticizers extract and migrate. This chemical reaction leads to belt embrittlement and cracking. These cracks create severe food safety risks. Fabric-backed belts experience a wicking effect. Moisture, oils, and bacteria penetrate the raw fabric core. Once the core is contaminated, thorough sanitation becomes impossible. You can soak a fabric-backed belt in caustic chemicals, but the embedded fats remain.
Modular plastic belts present mechanical wear issues. The hinges, pin wear, and interlocking pockets act as allergen reservoirs. Broken module links also introduce physical contamination hazards into the food stream. Consider the mechanical action of a modular belt wrapping around a drive sprocket. The hinges open, exposing the pin. Debris falls into the hinge. As the belt flattens out, the hinge closes, trapping the debris. Over a single shift, thousands of hinges trap pounds of organic matter. Cleaning this requires high-pressure washing that atomizes the debris, spreading it to adjacent equipment.
A viable cooling upgrade must meet strict baseline requirements. The belt must have zero porosity. It needs high thermal tolerance to handle hot products directly from the oven. Ease of sanitation is non-negotiable. The system must comply with stringent food safety audits, including GFSI, BRCGS, SQF, and IFS. Meeting these criteria ensures safe, continuous operation.
We evaluate cooling belts based on specific performance metrics. The surface must resist scoring from metal scrapers. The material must not stretch under continuous tension. The edges must remain sealed even if the belt tracks off-center and rubs against the frame. These are not theoretical requirements. They are the exact failure points we see on bakery floors every week. A successful PU belt cooling conveyor addresses every single one of these mechanical and chemical vulnerabilities.
Thermoplastic Polyurethane (TPU) outperforms Thermoset PU and legacy materials. TPU features a molecular structure that provides superior elasticity and wear resistance. It resists animal fats, vegetable oils, and harsh industrial cleaning agents. Advanced PU formulations also resist humidity and hot-water hydrolysis. This prevents premature degradation during high-temperature washdowns. When subjected to continuous cleaning from tungsten carbide or polyurethane scrapers, a PU conveyor belt shows exceptional abrasion resistance compared to PVC and modular plastics.
Let us look at the chemical interaction between bakery fats and belt polymers. Butter, palm oil, and shortening contain free fatty acids. These acids aggressively attack PVC, leaching out the plasticizers that make the belt flexible. Within six months, a PVC belt becomes hard and brittle. TPU does not use plasticizers. Its flexibility is inherent to its polymer chain. Therefore, it remains supple even after years of exposure to hot oils. This chemical stability directly translates to fewer belt replacements and zero risk of plasticizer migration into the food product.
Modern PU belts utilize advanced mechanical edge sealing. Engineers use encapsulated, RF-welded, or sealed edges to protect the belt core. This sealing process completely eliminates the risk of fabric fraying. Without exposed fabric, you eliminate the risk of filament contamination entering the product stream. The sealed edges also prevent oil and water from penetrating the belt structure.
In a typical bakery, belts occasionally mistrack. When a raw-edge belt rubs against a stainless steel guide, the friction frays the fabric tension member. These microscopic threads break off and end up in the dough or baked product. Metal detectors cannot catch fabric threads. X-ray machines cannot see them. The only defense is prevention. RF-welded edges encapsulate the tension member entirely in polyurethane. Even if the belt rubs the frame, only solid PU contacts the metal, generating no fraying and no foreign body risks.
PU performs exceptionally well under the specific temperature gradients of a cooling tunnel or ambient spiral cooler. It maintains dimensional stability during rapid temperature shifts. This prevents stretching, shrinkage, and tracking distortion. Surface finish optimization also plays a key role. Matte finishes often provide better product release than glossy finishes. This minimizes crumb adhesion and reduces heat-retention zones on the belt surface.
We measure thermal conductivity to determine how fast a belt pulls heat away from the product base. PU has a highly favorable thermal transfer rate. When a 90°C biscuit lands on the belt, the PU absorbs and dissipates the base heat rapidly. This prevents the "soggy bottom" effect caused by trapped steam. Furthermore, the dimensional stability of PU means you do not have to constantly adjust the take-up tensioners as the tunnel temperature fluctuates between production and sanitation cycles.
Material Comparison for Cooling Conveyors | ||||
Material Type | Porosity | Fat Resistance | Fray Risk | Sanitation Speed |
|---|---|---|---|---|
Monolithic PU | Zero | Excellent | None | Fast |
PVC | Low | Poor | High | Medium |
Modular Plastic | High (Hinges) | Good | None | Slow |
Fabric-Backed | High | Poor | High | Slow |
Dry cleaning protocols work exceptionally well on flat PU surfaces. Scrapers and air-knives easily remove crumbs and fats without requiring water. For wet washdowns, PU offers significant Clean-in-Place (CIP) and Clean-out-of-Place (COP) savings. The smooth, non-stick surface reduces water, energy, and chemical consumption. Flat, non-porous PU surfaces also allow for highly accurate ATP bioluminescence swabbing. This ensures precise microbial validation compared to textured or modular belts.
Consider the mechanics of cleaning a modular belt versus a monolithic PU belt. With modular plastic, operators must foam the belt, let it dwell, scrub it with mechanical brushes, rinse it with high pressure, and then sanitize. The process takes hours. With a monolithic PU belt, operators engage the scraper, run the belt to remove bulk debris, apply a light foam, wipe or low-pressure rinse, and sanitize. You cut sanitation time by up to 60%. This time savings goes directly back into production uptime.
PU belts map directly to global certifications. They meet FDA Food Contact Notification requirements, EU EC 1935/2004, EU 10/2011, USDA, and 3-A Sanitary Standards. Hygienic conveyor frame design must align with EHEDG Guidelines, specifically Guideline 8 and 13. Blue or high-contrast PU belting also aids in manual visual inspection. It improves the accuracy of automated optical sorting systems for detecting foreign material.
Auditors look for specific vulnerabilities during unannounced inspections. They check the underside of the belt for biofilm buildup. They inspect the drive sprockets for trapped debris. A blue PU belt provides immediate visual contrast. If there is organic matter on the belt, it stands out clearly against the blue background. This makes pre-operational inspections faster and more reliable. Furthermore, the lack of fabric backing means auditors will not find the dreaded black mold spots that plague older conveyor systems.
The frame supporting the PU belt must meet strict hygienic requirements. You need open tubular stainless steel construction. The design must eliminate horizontal catch points. Continuous clean welds and self-draining surfaces are mandatory. Toolless belt lifters allow for rapid sanitation access. Poor chassis design will completely negate the hygienic advantages of a premium PU belt.
We often see plants upgrade to expensive PU belts but install them on legacy frames made of bolted angle iron. This is a critical engineering mistake. Bolted joints create crevices. Angle iron creates flat horizontal surfaces where water and flour pool to form a concrete-like paste. A true hygienic frame uses diamond-oriented square tubing. Water sheds off it instantly. Standoffs separate the bearings from the frame, allowing operators to wash behind them. You must engineer the frame and the belt as a single hygienic system.

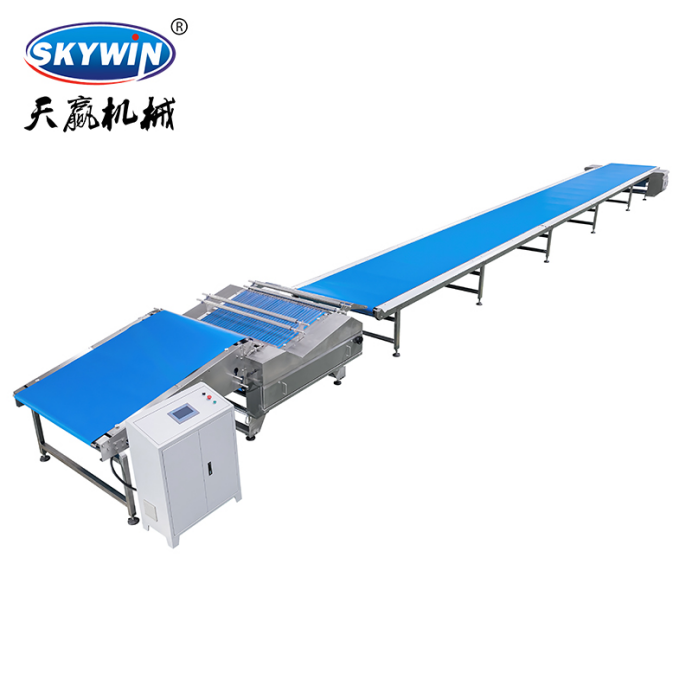

A PU-based biscuit cooling conveyor handles high-volume crumb fall-off and residual surface oils effectively. Baked goods shed debris continuously. Integrated pneumatic belt scrapers and catch pans designed specifically for PU surfaces manage this debris. They prevent cross-contamination and keep the production area clean.
Biscuit production generates fine particulate dust and larger broken pieces. If the belt has a textured surface, the fine dust packs into the texture. Over a shift, this dust absorbs oil from the biscuits, creating a sticky paste. This paste alters the release properties of the belt, causing subsequent biscuits to stick and break. A smooth PU surface prevents this packing effect. The pneumatic scraper maintains constant, even pressure across the belt width, shearing off the dust and oil before it can accumulate. The debris falls cleanly into the catch pan, keeping the floor clean and safe.
Thin-gauge PU belts offer excellent heat dissipation rates. This ensures uniform cooling across the biscuit base. Uniform cooling prevents condensation pooling on the belt surface. Proper heat transfer dynamics maintain the crisp texture of the biscuit and prevent structural weakness before packaging.
When a biscuit cools unevenly, internal stresses develop. The edges cool faster than the center. This causes the biscuit to warp or "cup." Cupped biscuits jam downstream packaging equipment. The thin profile of a PU belt allows ambient air to cool the underside of the belt almost as fast as the top side. This balanced thermal transfer ensures the biscuit remains perfectly flat. We specify belt thicknesses down to 1.2mm for applications requiring aggressive cooling profiles.

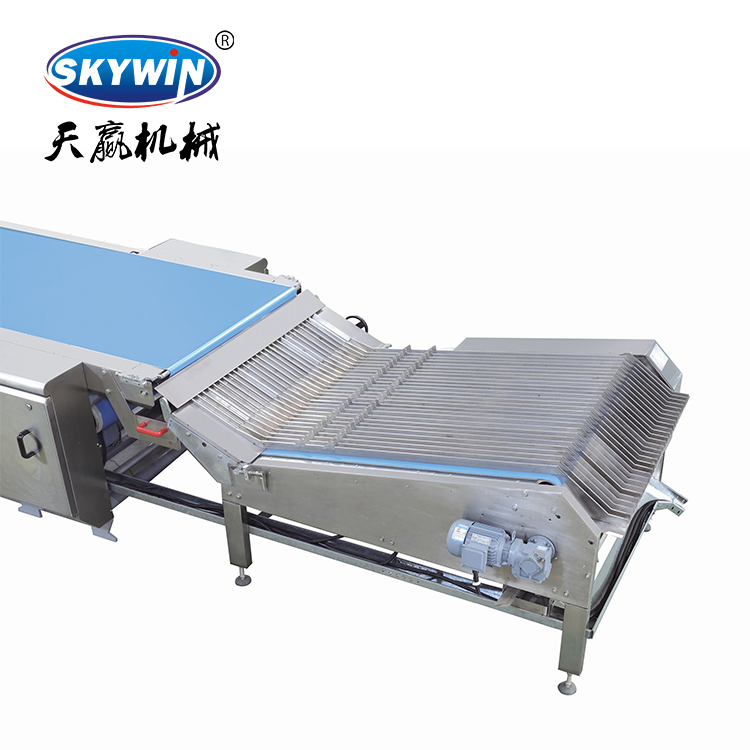

Small-diameter nosebars, down to 4-6mm, are essential for transferring delicate biscuits. These micro-pitch transfers move products without damage or orientation loss. Consistent tracking prevents lateral drift. Biscuits must remain in precise rows for high-speed feeding into a biscuit stacking machine. Controlled cooling on a PU conveyor belt ensures the structural rigidity and precise temperature required for automated packaging.
If a biscuit is too warm when it hits the stacker, the surface oils smear. The biscuits stick together in the slug. If the belt tracking drifts even a quarter of an inch, the rows misalign. The stacker star-wheels crush the misaligned product, causing a catastrophic jam. PU belts engineered with aramid tension cords provide zero-stretch performance. This keeps the tracking dead-center. The flexibility of the PU allows it to wrap tightly around a 4mm knife edge. The biscuit transfers across the gap smoothly, maintaining its exact position in the row. This mechanical precision is mandatory for high-speed automation.
Retrofitting an existing cooling line with PU belting requires specific engineering adjustments. You cannot simply swap a PVC belt for a PU belt and expect optimal performance. You must evaluate pulley diameters, modify drive profiles, and adapt tracking mechanisms. PU belts are generally thinner and more flexible, which changes the tension dynamics of the entire conveyor system.
First, check the drive pulleys. Legacy systems often use crowned pulleys to track thick PVC belts. Thin PU belts do not respond well to aggressive crowning; they tend to fold or crease in the center. We recommend machining the pulleys to a flat profile or using a very subtle cylindrical-conical crown. Second, evaluate the take-up tensioners. PU belts with aramid cords do not stretch. If your tensioner relies on gravity or heavy springs designed to compensate for PVC stretch, you must lock them down or replace them with rigid screw take-ups. Finally, inspect the slider bed. Replace worn UHMW wear strips to prevent scoring the back of the new PU belt.
Evaluate the trade-offs between friction-driven PU belts and positive-drive monolithic PU belts. Friction drives rely on tension to grip the drive pulley. This tension puts mechanical strain on the bearings and the belt splice. Positive-drive belts feature extruded teeth on the underside that engage with a custom sprocket. This allows the belt to run with zero tension.
Positive-drive systems excel in wet environments where friction drives might slip. They also eliminate tracking issues because the sprockets lock the belt in place laterally. However, positive-drive belts require a complete overhaul of the drive and tail shafts. You must install the specific sprockets designed for that belt pitch. Friction-drive PU belts are easier to retrofit onto existing flat pulleys, but you must maintain proper tension to prevent slippage. The choice depends entirely on your existing chassis design and your sanitation protocols.
Endless splicing of PU belts on the factory floor requires precise technical execution. You must control press parameters and temperature accurately. Quick-connect mechanical fasteners, like hygienic plastic zip laces, offer fast installation. However, thermal hot-melt vulcanization splicing provides the most hygienic and durable joint.
Prepare the belt ends using a precision finger punch tool to ensure perfectly interlocking joints.
Align the fingers in the splicing rail, ensuring the belt edges are perfectly straight to prevent tracking issues.
Apply the specific heating profile required for the PU formulation, usually around 160°C to 170°C.
Hold the temperature for the specified dwell time to allow the polymer chains to cross-link.
Cool the splice rapidly under pressure using a water-cooled press to lock in the dimensional stability.
Mechanical laces are acceptable for emergency repairs, but they introduce a crevice that harbors bacteria. We always recommend scheduling a permanent vulcanized splice during the next available maintenance window. A properly executed finger splice is virtually indistinguishable from the rest of the belt in terms of strength and hygiene.
Assess a biscuit production line manufacturer based on strict criteria. Look for custom engineering expertise and hygienic design certifications. Verify their testing facilities and past integration experience. A capable vendor understands the specific thermal dynamics of baked goods.
Do not accept off-the-shelf solutions for complex cooling applications. The manufacturer must calculate the exact cooling load based on your product weight, oven exit temperature, and target packaging temperature. They should provide thermal modeling data proving their conveyor length and belt speed will achieve the required heat dissipation. Ask to see their welding standards. If they cannot produce documentation showing continuous, polished welds on their frames, look for another vendor.

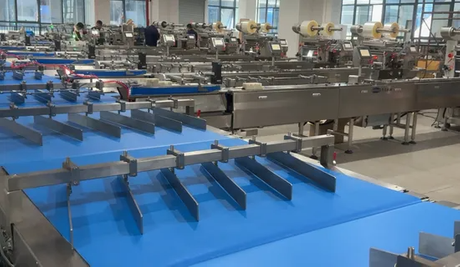

The manufacturer must coordinate the entire line flawlessly. This includes the oven discharge, the cooling conveyor, the stacking machine, and the packaging feed. Turnkey integration prevents bottlenecks. It ensures seamless communication between different machine control systems.
Integration failures usually happen at the transfer points. If the cooling conveyor runs at a slightly different speed than the stacker feed, the biscuits will shingle or gap improperly. A turnkey provider programs the PLCs to communicate in real-time. They use encoder feedback to synchronize the belt speeds perfectly. This single-source responsibility eliminates finger-pointing between different equipment suppliers when a transfer issue arises.
Guaranteed parts availability keeps your line running. Local belt splicing support minimizes downtime during maintenance. SLA-backed maintenance contracts provide operational security. Standardized components across the production line reduce your spare parts inventory requirements.
Look for manufacturers who use non-proprietary wear parts. Bearings, motors, and gearboxes should be standard off-the-shelf items from major brands. This allows you to source replacements locally in an emergency. The manufacturer should also provide comprehensive training for your maintenance team on how to track the PU belt, adjust the scrapers, and perform emergency splicing.
Always require a Factory Acceptance Test. Validate the conveyor's cooling efficiency, release properties, and tracking performance. Use your specific product formulation during the test. Do not sign off until the equipment proves it can handle your exact operational demands.
During the FAT, simulate worst-case scenarios. Run the belt at maximum speed. Introduce broken product to test the scrapers and catch pans. Stop the belt fully loaded and restart it to check for drive slippage. Verify the noise levels of the pneumatic systems. This is your only opportunity to force the manufacturer to correct engineering flaws before the equipment ships to your facility.
Polyurethane is the definitive standard for modern food processing cooling applications. Its hygienic and operational benefits far outweigh legacy materials. A monolithic PU surface eliminates bacterial hiding spots, speeds up sanitation, and ensures precise product tracking. If your current line suffers from failing swab tests, excessive sanitation time, or edge fraying, you need an upgrade.
Conduct a microbial swab audit of your current belts to identify contamination hot spots.
Calculate your current daily sanitation labor hours and water usage to establish a baseline for improvement.
Inspect all existing conveyor frames for horizontal catch points and bolted joints that compromise hygiene.
Request technical specifications and a site evaluation from a qualified production line manufacturer.
A: Standard PU belts typically operate in temperatures ranging from -30°C to +110°C. They handle ambient cooling and forced air cooling tunnels efficiently without losing dimensional stability or becoming brittle.
A: PU belts lack plasticizers and feature a non-porous, homogeneous surface. This prevents the micro-cracks that plague PVC. The absence of a raw fabric backing eliminates moisture wicking and bacterial harboring.
A: Yes, retrofitting is possible. You must adjust drive pulleys, tensioners, and minimum pulley diameters to accommodate the thinner, high-tensile PU material. Frame modifications may be necessary for proper tracking.
A: A high-quality PU belt can last three to five times longer than a standard PVC belt. Lifespan depends on operating hours, sanitation frequency, and the intensity of mechanical scraping.
A: Dry-cleaning procedures utilize precise polyurethane scrapers and air knives to remove debris. Operators follow up with visual inspections and apply alcohol-based sanitizers or use dry-ice blasting for deep cleaning without moisture.
A: Lateral movement causes product misalignment. Misaligned biscuits lead to packaging jams, high scrap rates, and downstream packaging failures. Precise tracking keeps products in perfect rows for automated handling.
