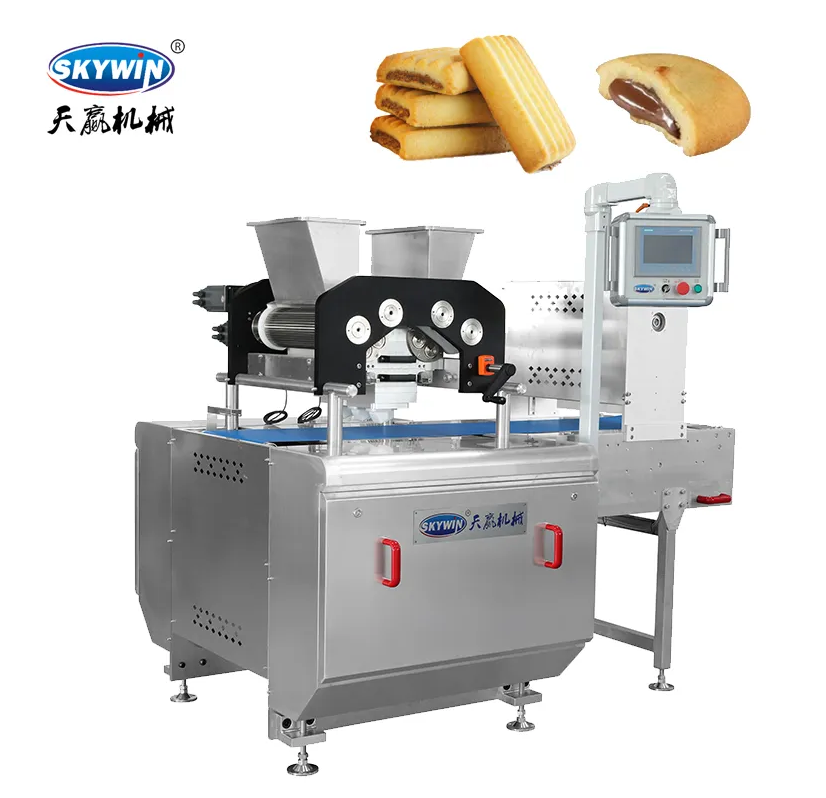

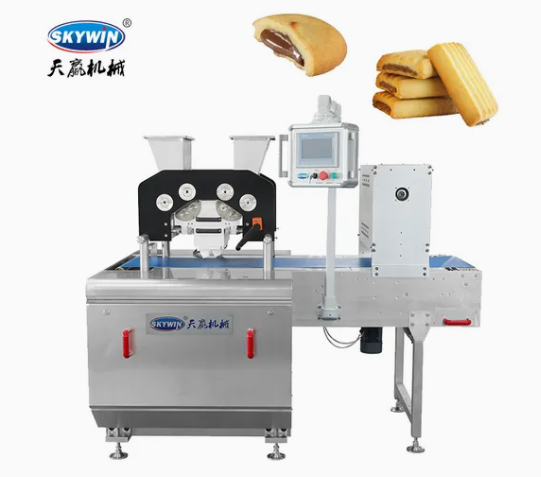

Skywin Two Colors Filling Date Bar Biscuit Forming Cookie Machine

Industrial-Grade Two-Color Cookie & Date Bar Production Solution | 100–1,500 kg/h | CE Certified

Product Overview

The Skywin Two Colors Filling Date Bar Biscuit Forming Cookie Machine is a high-performance industrial baking solution engineered for continuous production of filled cookies, date bars, two-color cookies, sandwich biscuits, and center-filled snacks. Designed for medium-to-large food factories and commercial bakeries, this machine integrates dough feeding, two-color extrusion, precise filling, wire-cutting, and forming into a single automated workflow.

With working widths from 400 mm to 1,200 mm and output capacities ranging from 100 to 1,500 kg/h, this forming line delivers consistent product weight, uniform shape, and reliable uptime exceeding 99.9% — making it a dependable core asset for high-volume biscuit production.

Key Product Highlights

Product Applications

This multi-functional forming machine is widely used for producing:

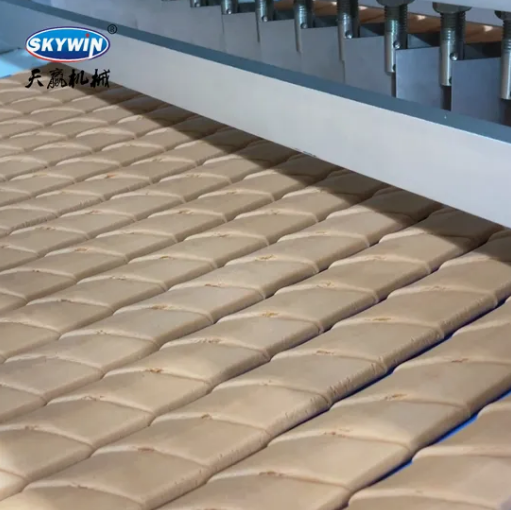

• Date Bar Biscuits — filled date paste bars, fig bars, fruit-filled cereal bars

• Two-Color Cookies — dual-dough patterned cookies with contrasting colors

• Center-Filled Cookies — jam, chocolate, cream, or date-filled centers

• Sandwich Cream Cookies — deposit and sandwiching capability

• Wire-Cut Cookies — soft dough biscuits with precise weight control

• Custom Molds — any shape possible by changing mold; custom mold design available

Machine Components & Build Quality

Skywin prioritizes component reliability and food safety throughout the design:

• Siemens PLC & Touch Screen — intuitive operation, multi-language support, recipe storage

• Delta Servo Motors — precise feeding and forming control for consistent product weight

• GUOMAO Motors & Gearbox — heavy-duty, stable performance (German brand optional)

• AirTAC Pneumatic Cylinders — for belt tension and deflection adjustment

• Steel Band Tunnel Oven Compatible — integration-ready for complete production lines

• Stainless Steel Construction — 1.2 mm food-contact surfaces, CE compliant

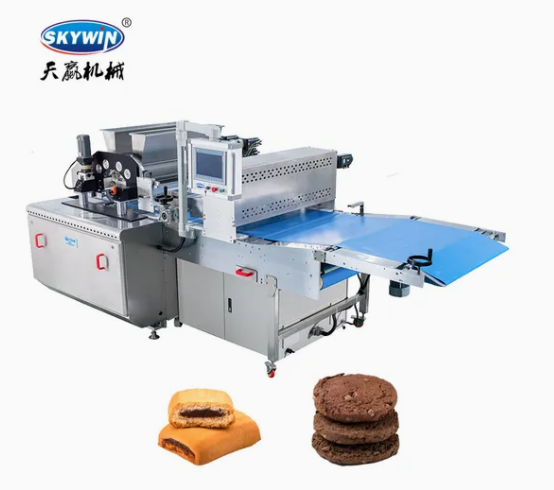

Skywin Two Colors Filling Date Bar Biscuit Forming Cookie Machine

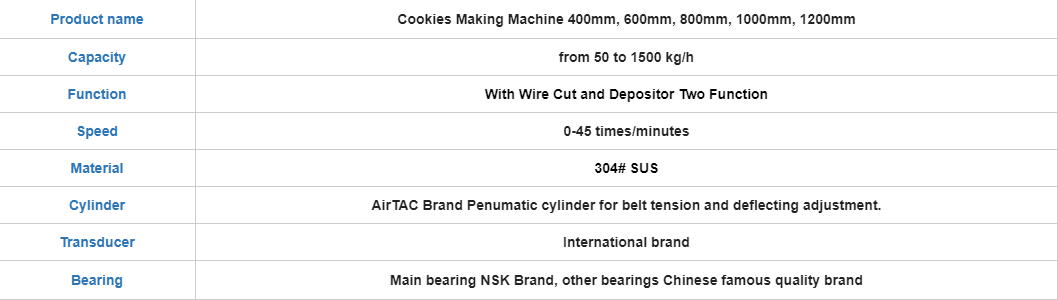

1. Model 400/600/800/1000/1200mm, capacity from 100-1500 kg/h.
2. It is widely available for making all kinds of Cookies (Wire cut Cookie, Deposit cookie, Two colors Cookie, Date Bar Biscuit, Center Filling Cookie, Sandwich cream Cookie)
3. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.

Machine Component:
1.Siemens Brand PLC & Touch Screen Controlled system,
2.International brand Electric components,
3.Chinese Famous Quality Brand GUOMAO Motors&Gearbox; (Germany brand for option)
4.AirTAC brand Penumatic cylinder for belt tension and deflecting adjustment
5.Cotton and PU conveyor belt 1.5mm
6.Steel Band Tunnel Oven
7.Stainless steel thickness 1.2mm

Any mould can be customized according to your cookie design.

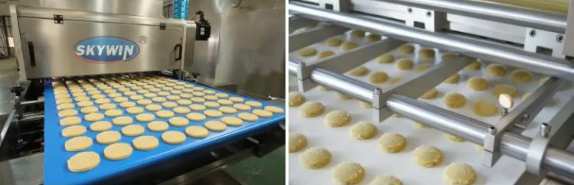

Wire Cut Cookies Forming

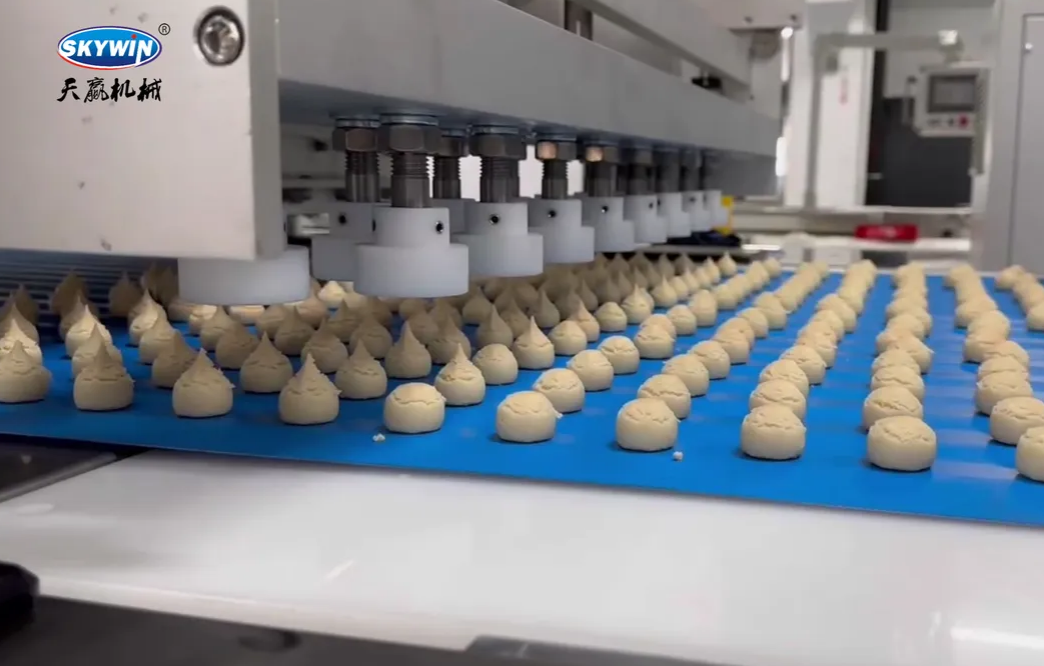

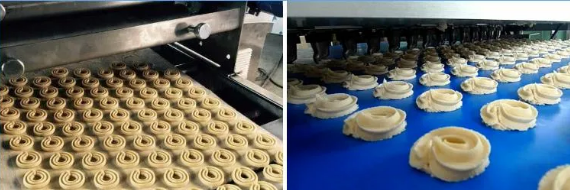

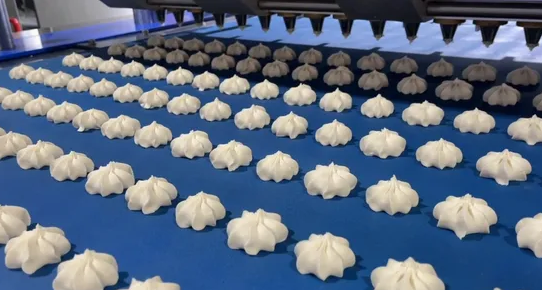

Deposit Cookies Forming

Main Features:
1.Cookies biscuits forming Machine by wire-cut, dropping and dropping with rotation PU conveyor belt, thickness 0.8mm, deflection and tension adjust by air cylinder.2.Air cylinder use famous brand, Gearbox use Chinese famous brand GUOTAI,Feeding and forming use Servo motor, Delta brand.

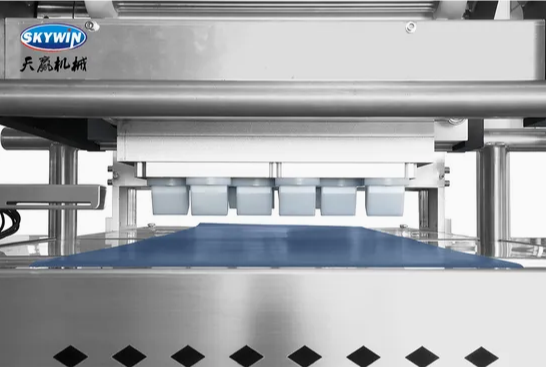

3.The nozzle is 7pcs (400MM),depositor about 30 times/min,cutter about 40 times/min
4.Hot wind circulation for color biscuit and good taste
5.Low energy cost(save 5% energy),high output(99.99%output).
6.Optional English or other languages screen display, easy and simple operation.
7.The section where the material contact is stainless steel as the body of machine is optional and all out machine have passed the CE Standard.
8.Our biscuit production line has standard line and high-end line for option,the high-end line is fully automated and high output,and all raw materials are the best.
