When Is a Tray Type Rotary Moulder the Right Choice?

Scaling short dough cookie production introduces a specific bottleneck. You must transition from manual forming to high-speed moulding without compromising intricate product designs. Facility constraints, batch-baking workflows, and specific dough rheology often make continuous, direct-to-band rotary moulders impractical for mid-tier manufacturers. You need a solution that fits your floor plan and matches your oven capacity. We will define the exact operational thresholds required to justify investing in a tray-depositing system over alternative forming technologies. You will learn how capacity limits, dough characteristics, and facility footprint dictate your equipment selection. We focus on the mechanical realities of processing short doughs. You will see how to match your specific recipe to the correct forming mechanics. This ensures you maintain industrial-grade weight accuracy and high-definition embossing while operating within a compact footprint perfectly suited for rack ovens.

• Dough Compatibility is Non-Negotiable: Rotary moulding requires short doughs (high fat, low moisture, no large inclusions); attempting to process soft or sticky doughs will result in extraction failures.

• Built for Batch and Semi-Automated Workflows: A tray type cookie machine is engineered for facilities utilizing rack ovens or intermittent baking processes, offering a smaller footprint than continuous band lines.

• Precision vs. Versatility Trade-off: While offering unmatched detail for embossed and engraved cookies, rotary moulders lack the multi-product versatility of wire cut, deposit, or encrusting machines.

• Capacity Thresholds Dictate ROI: Ideal for operations needing a small capacity cookie machine that still delivers industrial-grade consistency and weight accuracy.

Defining the Tray Type Rotary Moulder within the Cookie Production Line

The mechanical architecture of a tray type rotary moulder relies on a precise sequence of pressure and extraction. Understanding this sequence helps operators troubleshoot daily production issues. The system does not simply drop dough; it forces it into a specific volumetric shape and peels it out using controlled adhesion. The process follows a strict mechanical path.

1. Hopper Feeding: The dough mass enters a stainless steel hopper. It must feed evenly across the entire width of the machine to prevent hollow cavities on the outer edges of the die roller.

2. Forcing Roller Engagement: A deeply grooved or corrugated forcing roller grabs the dough. This roller pulls the mass downward, generating the high pressure required to fill the negative spaces of the die.

3. Die Cavity Filling: The dough is forced into an engraved bronze or heavy-duty plastic die roller. The pressure must be sufficient to push the dough into the deepest corners of the engraving, capturing logos and intricate patterns.

4. Scraping: A heavy-duty scraper knife sits flush against the die roller. It shears off the excess dough protruding from the cavities. This action creates a perfectly flat bottom for the cookie and returns the scrap dough to the hopper area.

5. Extraction: A rubber-coated drive roller presses a continuous web (usually cotton or polyurethane) against the die roller. The dough adheres to the web slightly more than it adheres to the die cavity. As the web pulls away, it extracts the formed dough pieces.

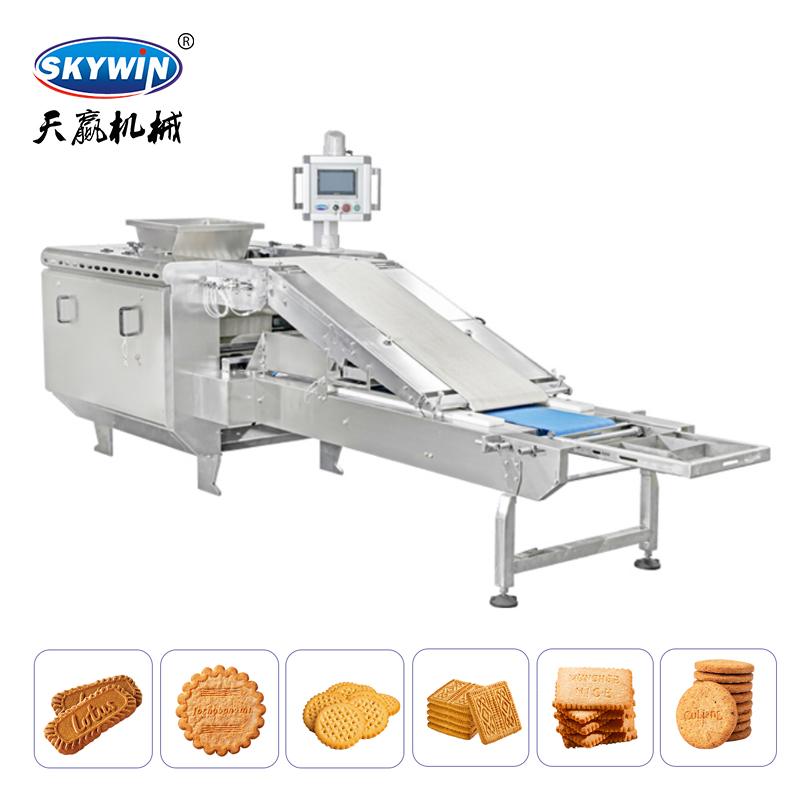

The extraction web then carries the formed dough forward. In a tray type system, the web deposits the dough pieces directly onto standard baking trays. A synchronized conveyor moves the trays underneath the extraction web. This defines the "tray type" distinction. Continuous rotary moulders operate differently. They deposit dough directly onto a moving steel or mesh oven band. The continuous band carries the product straight into a tunnel oven that can stretch for 100 meters. Tray systems interrupt this continuous flow. They stage the product for batch baking on racks.

This equipment targets specific production environments. Facilities with limited linear floor space benefit greatly. A continuous tunnel oven requires massive square footage and permanent installation. A tray-based system fits into compact rooms. It feeds directly into rotary rack ovens. It suits operations managing frequent product changeovers. A semi-automated cookie production line relies on this flexibility. Operators can swap die rollers quickly to change shapes. They can adjust the tray conveyor guides to match different oven racks. This modular approach keeps production agile without sacrificing the high-definition forming capabilities of industrial equipment.

Core Success Criteria: Is Your Product a Match for Rotary Moulding?

Dough rheology dictates the success of rotary moulding. The machine requires short, crumbly doughs. Examples include shortbread, speculoos, animal crackers, and digestive biscuits. These doughs possess high fat content and very low moisture levels. The high fat coats the flour particles during the mixing phase. This coating prevents water from hydrating the proteins, stopping gluten network formation. The resulting dough lacks elasticity. It holds its shape perfectly when pressed into a cavity and does not shrink back when extracted.

If a dough contains too much water, it becomes sticky and elastic. Sticky dough will not release from the die roller. It clogs the cavities, forcing operators to stop the machine and manually pick the dough out of the engravings. Elastic dough will extract, but it will shrink and deform on the baking tray, ruining the intricate designs. You must control the temperature of the dough meticulously. If the dough gets too warm, the fat melts. The dough becomes greasy, losing its cohesive crumbly texture, and slips against the extraction web.

Inclusions present a hard limitation for this technology. You cannot process doughs containing chocolate chips. You cannot use chopped nuts, large fruit pieces, or candy coated chocolates. The mechanical process explains this restriction. The forcing roller packs dough into tight cavities. The scraper knife shears off the excess dough. If a hard inclusion sits across the cavity edge, the knife hits it. The knife will drag the inclusion across the die. This tears the dough piece, leaving a jagged bottom. More importantly, dragging hard particulates damages the surface of the die roller. It scores the bronze or plastic, creating permanent defects in future production runs. Large particulates completely disrupt the forming mechanics and will eventually tear the extraction web.

Rotary moulding delivers superior piece-weight consistency. The volumetric filling process ensures exact dimensions. Every cavity holds the exact same volume of dough. The scraper knife guarantees a uniform bottom. This dimensional stability outshines extrusion methods. Packaging operations rely on this consistency. Uniform cookies stack perfectly in plastic trays. They feed smoothly through high-speed flow-wrapping machines without jamming the sealing jaws. The high pressure of the forcing roller also captures intricate surface designs. Logos, text, and detailed patterns transfer flawlessly to the dough surface, providing a premium appearance.

Comparing Forming Technologies: Rotary Moulder vs. Wire Cut vs. Depositor vs. Encruster

Different doughs require different forming technologies. You must match the machine to the recipe. Attempting to force a recipe through the wrong equipment results in massive product waste and mechanical failure. Choosing a wire cut cookie machine makes sense for specific scenarios. Wire cut systems handle sticky doughs easily. They excel with high-inclusion recipes. Chocolate chip cookies, oatmeal raisin cookies, and chunky macadamia nut cookies require wire cut technology. The dough extrudes downward through a die block. A taut wire or oscillating blade slices cleanly through the dough and the inclusions. The cut pieces drop onto the tray below. This process creates a rustic, homemade appearance. It does not compress the dough like a rotary moulder, allowing for a more open crumb structure after baking.

A deposit cookie machine serves a completely different product category. Depositors handle highly aerated batters. They process soft, flowable doughs that lack the structure to be cut or moulded. Macarons, spritz cookies, sponge cakes, and meringues require depositors. The machine uses a pump system. Gear pumps or lobe pumps push the batter through specific nozzles. The batter drops or pipes onto the tray. Stiff shortbread dough causes excessive backpressure in a depositor. The thick dough will break the internal pump gears or blow out the manifold seals. Depositors cannot handle the dense rheology that rotary moulders require.

Encrusting machines handle center-filled products. If your product requires a filling, you need an encruster. Mochi, maamoul, fig bars, and filled chocolate cookies rely on co-extrusion. The machine utilizes two separate hoppers. It pumps an outer casing dough through one channel. It simultaneously pumps an inner filling (paste, jam, or cream) through a center channel. A shutter mechanism cuts and seals the product into a sphere or cylinder. Rotary moulders cannot create filled products. They only form solid dough pieces. You must differentiate these technologies early in the planning phase to avoid purchasing incompatible equipment.

The tray type rotary moulder wins in very specific areas. It provides high-definition embossing that wire cuts and depositors cannot achieve. It guarantees uniform thickness across thousands of pieces, ensuring even baking. It offers high-speed forming of stiff doughs without breaking down the fat structure. It produces precise, sharp edges that other machines simply cannot replicate.

Technical Evaluation: Features That Drive Production Outcomes

Roller configuration dictates dough density and forming success. The forcing roller and the die roller must operate independently. Advanced machines feature separate Variable Frequency Drives (VFDs) or servo motors for each roller. This allows operators to adjust the speed ratio on the fly. A faster forcing roller packs the dough tighter. This increases the density of the final cookie and ensures dough reaches the deepest parts of the engraved cavity. The gap distance between the two rollers also requires precise adjustment. This gap controls the pressure applied to the dough mass. If the gap is too wide, the dough will not pack into the die. If the gap is too tight, it overworks the dough, causing the fat to separate and grease the rollers.

The extraction web plays a critical role in biscuit quality. The belt material impacts the release of the dough piece. Endless woven cotton belts absorb fat from the dough. This slight absorption creates the necessary adhesion. The adhesion pulls the dough out of the die cavity smoothly. Synthetic or polyurethane (PU) belts offer different release properties. PU belts are easier to clean, sanitize, and dry. However, they lack the fat-absorbing properties of cotton. You must audit your entire biscuit SKU portfolio. Select a versatile belt type that accommodates various dough fat contents. This prevents frequent belt changeovers between product runs. Many facilities keep both cotton and PU belts on hand, swapping them based on the specific recipe scheduled for the shift.

Precise tray handling prevents product waste. A tray type cookie machine requires exact synchronization. The conveyor moving the baking trays must match the speed of the extraction web perfectly. If the tray moves too fast, it stretches the dough piece, distorting the embossed design. If the tray moves too slow, the dough piece compresses, wrinkles, and overlaps with the previous row. Servo-driven tray tracking provides this precision. Touch screen PLC controls allow operators to set exact deposit spacing. Optical sensors detect the leading edge of the empty tray. The PLC calculates the exact moment to start depositing, preventing dough from falling onto the conveyor chain between trays.

Sanitation mechanics impact daily operational efficiency. Allergen compliance requires thorough washdown procedures. Evaluate the ease of die roller removal. Operators should extract the heavy bronze or plastic rollers without specialized tools. Look for tool-less belt tensioning systems. These allow maintenance teams to loosen the extraction web quickly. They can clean behind the rollers, sanitize the scraper knife assembly, and wipe down the forcing roller. Efficient changeover mechanics reduce downtime between different cookie shapes. A well-designed machine allows a single operator to swap a die roller and reset the scraper knife in under fifteen minutes.

Implementation Realities and Risk Mitigation

Operator training determines the success of the installation. Rotary moulding requires specific tactile skills and mechanical understanding. Operators must learn to adjust the scraper knife pressure accurately. Too much pressure wears down the expensive die roller prematurely. It scrapes away the intricate engravings over time, leading to dull cookie designs. Too little pressure leaves a thin film of dough on the roller. This film connects the individual cookies, creating a web of scrap dough that extracts onto the tray. Operators must also adjust web tension based on daily variations in dough temperature and ambient humidity. Slight changes in room temperature alter dough tackiness, requiring immediate web tension adjustments to maintain clean extraction.

Upstream dough handling introduces significant risks. Short doughs are highly sensitive to temperature and mixing time. Over-mixing develops the gluten network. This toughens the dough, causing it to shrink after extraction and bake into a hard, dense biscuit. Temperature changes between the mixer and the hopper alter the fat consistency. If the dough gets too warm, the fat melts. The dough becomes greasy and loses its crumbly texture. It will stick to the die cavities and refuse to extract. You must mitigate this with proper staging. Control the ambient temperature in the mixing and forming rooms. Minimize the resting time between mixing and moulding. Process the dough in small, consistent batches to prevent it from sitting in the hopper and warming up.

Integration with existing infrastructure requires careful mathematical planning. You must align the machine's output rate with your baking capacity. A small capacity cookie machine still produces a significant volume of trays. Calculate the continuous production rhythm. Determine your trays per minute. If the moulder produces 10 trays per minute, you generate 600 trays per hour. Audit your rack ovens. If one oven holds 36 trays and takes 15 minutes to bake, it processes 144 trays per hour. You would need four rack ovens to keep up with that forming speed. Prevent bottlenecks by matching manual tray handling capabilities with oven baking cycles. If the forming machine outpaces the ovens, the formed dough sits on racks, drying out and losing its structural integrity before baking.

Conclusion

1. Audit your current dough formulations to confirm they possess the high fat and low moisture required for successful rotary moulding.

2. Measure your existing baking trays and ensure the new machine's conveyor guides and optical sensors match those dimensions exactly.

3. Calculate your rack oven baking cycles to determine the exact trays-per-minute speed you need from the forming machine to prevent production bottlenecks.

4. Request a factory acceptance test (FAT) using your actual production dough to verify extraction success and embossing clarity.

5. Select an extraction web material that balances your facility's sanitation requirements with the specific tackiness of your dough portfolio.

FAQ

Q: What is the difference between a tray type rotary moulder and a continuous rotary moulder?

A: A tray type machine deposits formed dough pieces onto individual baking trays. A continuous machine deposits dough directly onto a moving oven band. Tray types have a much smaller footprint and suit batch baking in rack ovens. Continuous machines require massive linear space for tunnel ovens.

Q: Can a tray type rotary moulder handle chocolate chip cookie dough?

A: No. The mechanical scraper knife will catch on the hard chocolate chips. This tears the dough, damages the die roller, and disrupts the extraction process. You must use a wire cut machine for doughs with large inclusions.

Q: What is the typical production capacity of a small capacity cookie machine?

A: Small capacity tray type models typically produce between 100 kg to 300 kg per hour. In terms of rhythm, they usually output between 5 to 15 trays per minute, depending on the tray size and operator handling speed.

Q: How do you control the thickness of cookies on a rotary moulder?

A: Cookie thickness is primarily determined by the depth of the engraved cavities on the die roller. You can make micro-adjustments by altering the scraper knife angle and pressure, which changes how much dough is sheared off the bottom.

Q: Can I use a deposit cookie machine for shortbread dough?

A: No. Shortbread dough is too stiff and dense. It lacks the flowable characteristics required for a depositor. Pushing stiff shortbread through a depositor will cause excessive backpressure and break the internal pump mechanisms.

Q: How long does it take to change a die roller on a tray type machine?

A: Modern machines feature quick-release mechanisms and tool-less extraction. A trained operator can typically change a die roller and adjust the scraper knife in 10 to 15 minutes, making it highly efficient for multi-SKU facilities.
