A chocolate coating machine can add value to plain biscuits, cookies, crackers, and sandwich biscuits. A smooth chocolate layer improves both taste and appearance. However, the coating process can also create problems when biscuit feeding, chocolate flow, belt movement, and cooling are not working together.
An uneven coating does not always mean that the coating machine is broken. The real cause may begin earlier in the line. Biscuits may enter at the wrong angle, crumbs may collect in the chocolate area, or the product may not be cool enough after baking. Problems can also appear later if the cooling or packing section cannot match the coating speed.
This guide explains how to find common faults in a chocolate coating machine used as part of an industrial biscuit production line. Because machine designs and chocolate recipes differ, operators should use these points as a troubleshooting guide and follow the project manual before changing mechanical or electrical settings.
When coated biscuits begin to look wrong, it is easy to focus only on the chocolate. That can lead operators to change temperature, airflow, or belt speed before they understand the real cause.
A better method is to follow the product through the line. First, watch how the biscuits leave the upstream machine. Then check how they enter the coating section, move through the chocolate, pass into the cooling area, and reach the packing equipment.
The biscuits should enter in straight rows with a small and steady space between products. They should not overlap, tilt, or arrive in groups. The wire belt should move smoothly, and the chocolate should cover the full working width without visible gaps.
It is also useful to ask when the problem started. A fault that appears after changing the biscuit shape may be related to guides or spacing. A fault that starts after changing the chocolate may be caused by different flow or cooling needs. When only one side of the line is affected, the cause is more likely to be local buildup, poor alignment, or uneven flow.
Change one setting at a time. After each change, allow enough products to pass through the line before judging the result. Changing several settings together may hide the real cause and make the next production run harder to control.
Uneven coating may appear as waves, thick lines, bare areas, or different coverage on the left and right sides of a biscuit. In many cases, the first thing to check is product position.
A biscuit that enters at an angle will not pass through the chocolate in the same way on both sides. Products that touch each other may also block the coating between them. Before adjusting the chocolate flow, watch the infeed conveyor and make sure each biscuit reaches the wire belt in a stable position.
If the biscuit arrangement is correct, inspect the chocolate flow area. Hardened chocolate or biscuit crumbs may reduce the flow in one section. This can create a weak or broken chocolate curtain. Stop and isolate the machine before removing buildup, and use cleaning tools approved for food-contact parts.
Chocolate condition also affects coverage. Chocolate that does not flow easily may form heavy lines instead of spreading across the biscuit. Chocolate that flows too quickly may run off before the coating becomes even. The correct working condition depends on whether the factory uses real chocolate, compound coating, or another recipe. Operators should follow the approved recipe rather than apply one universal temperature.
A thick coating can hide the shape of the biscuit and increase chocolate use. It may also need more time in the cooling section, which can affect the speed of the full line.
The problem often appears when the chocolate is moving too slowly or when the biscuit stays under the chocolate flow for too long. Check whether the wire belt speed has been reduced. A slower belt may improve coverage in one area, but it also allows more chocolate to remain on each product.
If the machine includes a blower or air-removal section, inspect it for blocked outlets. Chocolate buildup can weaken or disturb the airflow, leaving too much coating on the top and sides. Cleaning the outlet may solve the problem without changing the air setting.
The condition of the incoming biscuit also matters. A biscuit that is much colder than expected may cause the chocolate to thicken quickly on contact. The product should therefore reach the coating section at a stable condition after baking and initial cooling.
Avoid making recipe changes on the machine floor. Adding oil, cocoa butter, or another ingredient may change taste, setting, labeling, and shelf life. Any formula adjustment should be approved by the product or quality team.
Thin coating may leave the biscuit surface visible or create a weak layer that breaks during handling. When this happens, first check whether enough chocolate is reaching the full width of the product.
A local blockage can create a gap in the chocolate flow. Low chocolate level or unstable circulation may also make the flow change during production. If the machine has a heated collection or return system, inspect it according to the supplier’s manual instead of assuming that every model uses the same pump or tank design.
Strong airflow can remove too much chocolate after coating. Before reducing the airflow, however, check the biscuit spacing and belt speed. A fast-moving belt or poorly aligned product may create a similar result.
Bare areas are also common when biscuits overlap. One biscuit can protect part of another from the chocolate flow. Skywin’s biscuit row multiplier is designed to rearrange biscuit rows for downstream processes such as chocolate coating or automatic packing. Stable row arrangement helps the coating section use its working width more evenly.
Overlapping often begins at a transfer point rather than inside the chocolate coating machine. A biscuit may tip when it moves from one belt to another, especially if there is a large height difference, an unsuitable transfer gap, or a sudden speed change.
Broken biscuits can make the problem worse. Pieces left near a guide may slowly push the next products out of line. Crumbs may also collect around a sensor and affect product detection.
Watch the line before the first overlap appears. If biscuits are already unstable when they leave the sandwiching or arranging equipment, correct the upstream flow first. Increasing the coating belt speed may only move the jam to the cooling section.

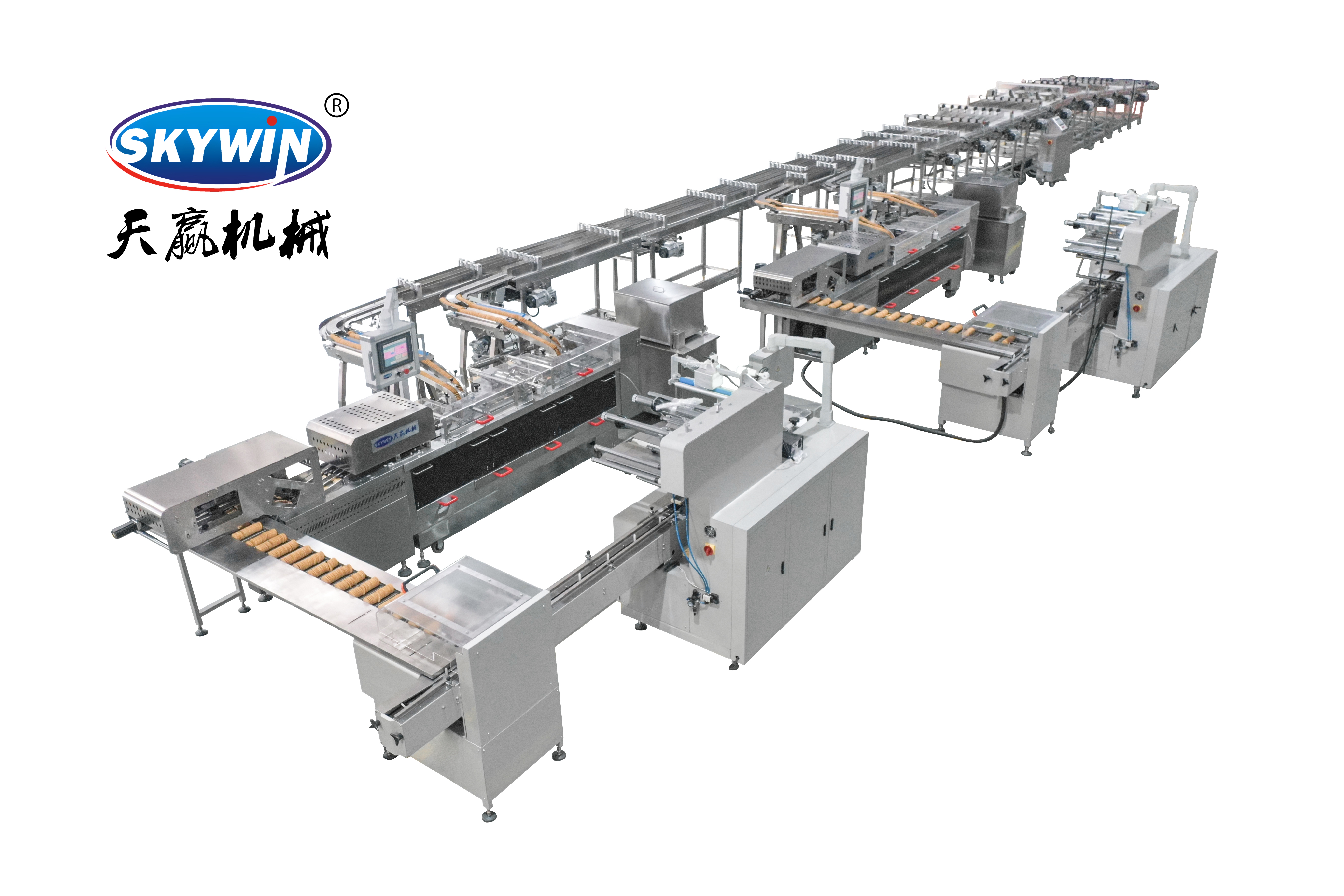

For coated sandwich biscuits, the coating machine may be connected with a wider biscuit sandwiching and packing system. The sandwiching, arranging, coating, cooling, and packing sections should be planned as one process. Each section must deliver products at a rate the next section can accept.
Chocolate tails are small lines, drops, or thick edges that remain under the product after coating. They usually form when excess chocolate is not removed cleanly before the biscuit enters the cooling section.
Begin by checking the wire belt and the area below it. Hardened chocolate can build up around the outlet and touch the biscuit base. Crumbs trapped in the mesh may also disturb the product as it leaves the coating zone.
Depending on the machine configuration, the system may use airflow, vibration, a bottoming device, or another structure to reduce extra chocolate. These parts should be clean and free to move. However, operators should not copy gap, height, or speed settings from another model. A setting that works for a thin cracker may not suit a thick sandwich biscuit.
If tails appear after changing the recipe, review the chocolate flow before making a mechanical adjustment. Chocolate that is too thick may continue to stretch from the product even when the machine parts are clean.
A wire mesh belt that drifts sideways can damage products and rub against the machine frame. The problem should be corrected early, before the belt edge or drive parts are damaged.
First, stop the machine and remove any chocolate or biscuit pieces from the belt and rollers. Buildup on one side can change how the belt sits and create uneven movement. Check the mesh for bent wires, broken links, or damage near the joint.
Uneven tension is another common cause. The belt may also drift when a roller is dirty, a guide has moved, or the frame is not level. These checks should be carried out by trained staff because incorrect tension can make the problem worse.
Repeated drift after cleaning usually points to a mechanical alignment or wear issue. At that stage, the drive, rollers, guides, and supporting structure should be inspected together rather than adjusting the belt again and again.
Chocolate may harden in a tray, return area, or corner after a long production stop. This often happens when the normal shutdown process is delayed or when heating is stopped before remaining chocolate has been removed.
The best time to clear the area is while the chocolate is still in a workable condition. Follow the machine instructions to collect or drain usable material. Do not use sharp metal tools, open flames, or uncontrolled heating to remove hardened chocolate.
If the same area repeatedly becomes cold or blocked, the issue may be more than poor cleaning. A heater, sensor, control setting, or circulation component may need inspection. The exact parts will depend on the configured machine, so internal heating and electrical faults should be handled by qualified technicians.
Biscuit crumbs can also make the chocolate harder to manage. Regular cleaning of accessible filters, screens, and collection areas helps prevent old crumbs from remaining in the system during the next run.
A dull or pale surface may appear immediately after coating, during cooling, or later in storage. Finding when the change begins will help narrow down the cause.
If the chocolate already looks poor when it leaves the coating machine, check the chocolate preparation, product temperature, and coating flow. If the surface changes inside or after the cooling section, review cooling time, airflow, conveyor speed, and condensation.
Moisture can create a rough or light-colored surface. Check for water droplets around the cooling entrance, tunnel covers, and nearby air outlets. The cooling area should be clean and dry before production starts.
The chocolate or compound supplier should provide the correct processing range for the recipe. Real chocolate and compound coating do not always need the same preparation or cooling process, so fixed room and tunnel temperatures should not be copied from an unrelated product.
A coating line may stop even when the coating machine itself is working. Products can collect at the inlet if the upstream section feeds too quickly. They can also build up at the outlet when the cooling conveyor or packing system cannot accept them.
Follow the product flow until you find the first place where movement becomes unstable. Check whether biscuits are reaching a full conveyor, touching a moved guide, or passing a sensor covered with crumbs. Repeatedly resetting the machine without clearing the cause may push more products into the blocked area.
After cooling, coated biscuits may enter an automatic biscuit feeding and packaging system. When coating, cooling, stacking, and packing speeds are matched correctly, a change in one section is less likely to stop the whole line.
Operators often remember that a fault happened but not what changed before it appeared. A simple production record can make repeated problems easier to solve.
The record should include the product type, chocolate recipe, machine settings, time of the fault, visible symptom, action taken, and result. It is also useful to note whether the line had just started, restarted after a stop, or changed to another biscuit.
Over time, this information may show a pattern. Coating may become thick only after a long stop, for example, or belt drift may appear after a certain number of production hours. These patterns help maintenance staff focus on the real cause instead of repeating random adjustments.
Normal cleaning, lubrication, belt inspection, and sensor checks should follow the operating hours and maintenance plan for the actual equipment. Skywin provides technical and spare-parts information through its services and parts page.
Normal coating changes can often be checked by trained operators, but production should stop when the equipment shows a possible safety or mechanical fault. This includes strong vibration, grinding sounds, smoke, overheating, a damaged wire belt, repeated electrical alarms, chocolate leaking near electrical parts, or a safety device that does not work.
Do not continue running the line only to complete a batch. A small fault in the drive, heating, belt, or control system can become more costly if the machine remains in operation.
The fastest way to solve a biscuit coating problem is not to change every machine setting. It is to follow the product in process order. Start with biscuit spacing and temperature, then review chocolate flow, wire belt movement, cooling, and downstream packing. This approach makes it easier to separate a recipe issue from a feeding, cleaning, or mechanical problem.
A chocolate coating machine also performs better when it is treated as one part of the full biscuit line. Skywin can review how the coating stage connects with biscuit arrangement, cooling, feeding, and packaging based on the product shape and planned output. For help with a new line or a repeated production fault, share the biscuit details and current layout through the Skywin contact page.
Uneven coating may come from poor biscuit spacing, a blocked chocolate flow area, crumbs, unstable belt movement, or chocolate that is not in the correct working condition.
Check the chocolate flow, belt speed, product condition, and any blower or air-removal section. A blocked air outlet may leave more chocolate on the biscuit.
The biscuits may be touching, tilted, or moving too quickly. A local gap or blockage in the chocolate flow can also leave bare areas.
Chocolate buildup, crumbs, uneven tension, damaged mesh, dirty rollers, or poor alignment may cause belt drift. Stop the machine before inspecting it.
Possible causes include chocolate preparation, product temperature, moisture, condensation, cooling conditions, or storage. Check the point where the color first begins to change.
Ask for technical support when the same fault returns after normal cleaning and adjustment, or when the problem involves the motor, heating, controls, belt damage, electrical alarms, or safety parts.
