Unplanned downtime and allergen cross-contamination in confectionery production directly erode profit margins. In high-volume operations, every hour spent disassembling complex machinery equates to significant yield loss. Fat-based masses like chocolate present unique sanitation challenges. Introducing water risks microbial growth, such as Salmonella, and causes chocolate to seize. Inadequate cleaning leads to mechanical wear, inconsistent coating weights, and compliance failures.
Establishing a rigorous, evidence-based maintenance and sanitation protocol is non-negotiable. This guide breaks down the structural methodologies for cleaning, preventative maintenance schedules, and how to evaluate equipment based on sanitary design to maximize operational efficiency when managing a chocolate enrobing line.
Dry Cleaning is Standard: Water is the enemy of chocolate production. Effective sanitation relies on scraping, purging, and controlled application of food-safe solvents or oils rather than traditional wet washdowns.
Sanitary Design Dictates Downtime: Equipment featuring tool-less disassembly, roll-out enrobing trolleys, and accessible internal components drastically reduces changeover times and labor costs.
Preventative Maintenance Prevents Yield Loss: Routine calibration of blowers, detailers, and wire belts ensures consistent coating thickness, preventing product giveaway and mechanical failure.
Cooling Tunnels Require Distinct Protocols: Managing dew points, humidity, and condensation in cooling zones is critical to preventing chocolate bloom and maintaining food safety compliance.
Mass Recovery Maximizes OEE: Recovering residual mass through pigging, gravity draining, and mechanical scraping before sanitation minimizes ingredient waste and effluent load.
Defining the metrics of a successful maintenance program requires looking at hard data from the production floor. Key performance indicators include reduced Mean Time Between Failures (MTBF), minimized allergen changeover times, and zero food safety incidents. A well-maintained line operates predictably. You get consistent throughput and safeguard your brand reputation. When operators spend less time fighting equipment jams or scraping hardened mass off belts, they focus on quality control and line optimization. We measure success by how rarely we have to stop the belt for unscheduled interventions.
Poorly maintained blowers and detailers lead to excess chocolate pooling on products. This increases raw material costs rapidly. Recovering up to 95% of residual chocolate mass before starting the cleaning cycle offers significant return on investment. Efficient mass recovery reduces waste and lowers the burden on wastewater treatment systems. You must implement physical scraping and gravity draining protocols at the end of every production run. Every kilogram of chocolate left in the piping or enrober bowl is lost revenue. We use specialized food-grade squeegees and reverse-pump operations to pull as much mass back into the holding tanks as possible.

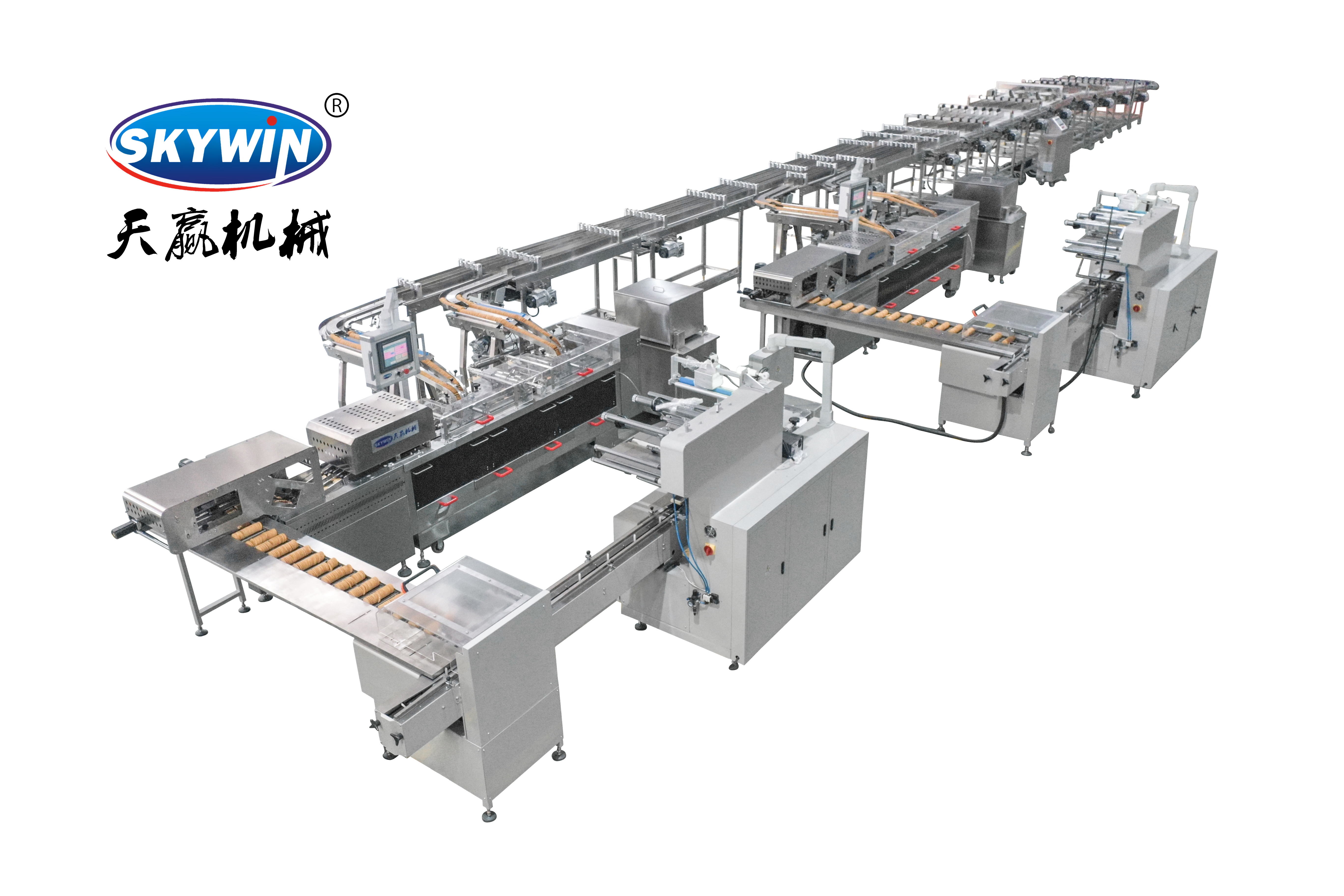

Crumbs from a biscuit sandwiching and coating line often migrate into the chocolate reservoir. This contamination increases mass viscosity. It causes pump wear and disrupts the chocolate curtain. Implementing effective filtration and crumb removal systems keeps the coating quality high. You need continuous wire mesh filters on the return loop. Operators must check and clear these filters hourly. If crumbs bypass the filter, they carbonize on the heating elements or clog the depositor nozzles, leading to uneven coating weights and rejected product batches.
Documented cleaning logs are necessary for GFSI, SQF, and BRC audits. Allergen management requires strict oversight. Switching from milk chocolate to dark chocolate requires validated cleaning procedures to prevent cross-contamination. You must maintain detailed records of every flush, scrape, and inspection. Swab testing for allergen proteins validates the cleaning process. Without these records, you risk failing audits and facing product recalls. We train our sanitation crews to treat every changeover as an auditable event, ensuring no steps are skipped or rushed.
Maintenance Metric | Poor Maintenance Impact | Proper Maintenance Outcome |
|---|---|---|
Mass Recovery | High waste, increased effluent load | Up to 95% recovery, lower material costs |
Allergen Changeover | Extended downtime, high cross-contamination risk | Rapid turnaround, validated safety compliance |
Coating Consistency | Uneven weights, product giveaway | Precise thickness, optimized yield |
Equipment Lifespan | Frequent breakdowns, seized pumps | Extended MTBF, reliable operation |
Keeping the environment dry is paramount. Utilize plastic scrapers, vacuuming, and cocoa butter or oil flushing to remove residual mass without introducing moisture. Water causes chocolate to seize. It creates blockages and fosters microbial growth. We rely on heavy-duty industrial vacuums equipped with HEPA filters to remove dry crumbs and dust. For the fat-based residues, operators use flexible plastic scrapers that conform to the curves of the enrober bowl. Metal scrapers scratch the stainless steel, creating micro-crevices where bacteria can hide. Dry cleaning takes patience, but it prevents catastrophic line failures caused by water ingress.
Keep heating jackets fully active during the purging and dry cleaning stages. These utilize hot water or glycol loops. Maintaining temperature prevents residual chocolate from solidifying inside pumps and pipe walls. This ensures smooth evacuation of the mass. If you let the jackets cool down before the pipes are completely empty, you will spend hours using heat guns to melt the blockages. We monitor the return loop temperatures constantly during the evacuation phase. Only after the pipes are blown clear with food-grade compressed air do we initiate the controlled cooldown sequence for the jacketed systems.
Establish a framework for validating cleanliness between runs. Facilities must weigh the trade-offs between dedicated lines for specific allergens versus rigorous flush-and-clean protocols. We use neutral fat flushes, like warm cocoa butter, to push out the previous batch. This fat flush acts as a solvent, dissolving the remaining chocolate without introducing water. After the flush, we perform ATP swabbing and specific allergen protein tests. If the tests come back positive, we repeat the flush. Dedicated lines are ideal, but when space and capital are limited, a validated neutral fat flush is the most reliable method for safe changeovers.
Removable parts such as spindles, nozzles, and pumps should be cleaned in dedicated COP washing stations. Heated ultrasonic baths work exceptionally well for intricate parts. This approach eliminates manual scrubbing. It ensures complete soil removal and reduces labor costs. When parts are removed from the line, they must be transported in dedicated sanitary carts to the washroom. After the COP cycle, parts must be thoroughly dried in a heated, dehumidified chamber before being reinstalled. Even a single drop of water left inside a pump housing can cause the first batch of chocolate to seize upon startup.
Wet cleaning is required only in rare scenarios. These include severe microbiological contamination or annual teardowns. When necessary, exhaustive drying processes are mandatory. We use heated air blowers and environmental dehumidification to strip all moisture from the room and the equipment. You cannot reintroduce chocolate until the ambient humidity drops below 40% and all equipment surfaces are bone dry. We use moisture meters to verify the dryness of internal pipe walls and pump cavities. Rushing the drying phase always results in seized equipment and lost production time.
Begin by reversing the chocolate pump to return excess mass to the holding tanks. This is the most critical step for yield protection. Use food-grade compressed air or physical pigging systems to clear jacketed transfer pipes. Pigging involves pushing a flexible polyurethane plug through the pipes to scrape the walls clean. This maximizes mass recovery and minimizes waste. Ensure the receiving tank has enough capacity before initiating the reverse pump sequence. Monitor the pressure gauges closely during pigging to prevent blowouts or pipe damage.
Verify receiving tank capacity and open return valves.
Engage reverse pump operation at low speed.
Monitor jacket temperatures to ensure mass remains fluid.
Introduce food-grade compressed air to clear remaining mass.
Deploy pigging system for final pipe wall scraping.
Safely release belt tension and remove physical debris from the chocolate coating machine. Scrape the main chocolate reservoir and manage the tempering return loop. Clean and inspect the detailer spindle to ensure smooth rotational movement. Prevent chocolate accumulation on the spindle, as this causes tails on the finished product. We use specialized wire brushes to clean the mesh band, ensuring no broken biscuit pieces remain trapped in the links. The enrober bowl must be scraped down to the bare metal using non-abrasive tools.
Flush pumps, nozzles, and distribution manifolds of the chocolate depositor machine with warm oil or cocoa butter. Evaluate the cleanability of rotary valves and pistons. Prevent mass buildup and seized components by ensuring the flush liquid reaches all internal cavities. We cycle the depositor pistons multiple times during the flush to dislodge any stubborn residue. After the flush, we disassemble the nozzle plate and inspect the individual depositing heads for wear or blockages. Replace any damaged O-rings or seals immediately to prevent leaks during the next production run.
Address the specific risks of condensation and mold in enclosed cooling environments. Ensure the internal air temperature remains above the dew point of the room during maintenance. This prevents condensation from forming on the cold surfaces. Clean conveyor belts, inspect insulated covers, and sanitize evaporator coils. Do this without damaging sensitive HVAC components within the cooling tunnel for chocolate biscuits. We use dry vapor steam cleaners for the tunnel belts, which sanitizes effectively while leaving minimal moisture behind. Leave the tunnel covers open overnight to allow for complete air circulation and drying.
Routine checks keep the line running smoothly and catch minor issues before they escalate into major breakdowns. Operators must take ownership of these daily tasks. We rely on visual inspections and auditory cues to identify abnormal machine behavior. A squeaking bearing or a misaligned belt requires immediate attention.
Inspect wire belt tracking, tension, and drive roller alignment.
Verify the functionality and alignment of the chocolate curtain and bottoming station.
Check blower nozzles for blockages and verify air-knife pressure settings.
Monitor heating jacket fluid levels and verify temperature sensor readings.
These audits require maintenance technicians to dive deeper into the mechanical and electrical systems. We schedule these during planned downtime windows. Proper lubrication and calibration are the focus here. Using the wrong grease or ignoring sensor drift leads to catastrophic failures and rejected product.
Lubricate drive chains and bearings using NSF H1 food-grade lubricants.
Calibrate temperature sensors in the enrobing cabinet, tempering units, and cooling zones.
Check detailer spindle rotational speed versus wire mesh belt speed to ensure clean product releases.
Inspect integration points to ensure synchronized timing and optimal crumb-extraction vacuum performance.
The annual teardown is a comprehensive overhaul of the entire line. We replace wear parts regardless of their current condition to guarantee reliability for the upcoming year. This is also the time to conduct structural integrity tests on the jacketed piping and heat exchangers.
Identify wear parts like seals, gaskets, scraper blades, and drive belts that require scheduled replacement.
Pressure-test jacketed pipes for internal micro-fissures to prevent heating water from leaking into the chocolate mass.
Inspect electrical panels for loose connections and verify motor insulation resistance.
Modern sanitary design translates directly to labor savings. Compare legacy machines requiring tools for breakdown against modern systems designed for rapid sanitation. Upgrading can significantly reduce downtime and improve overall operational efficiency. If your maintenance team spends two hours unbolting covers just to access the enrober bowl, you are losing money. Modern equipment uses quick-release clamps and hinged panels. This allows a single operator to open the machine and begin cleaning in minutes. We evaluate equipment purchases based on the time it takes to perform a full allergen changeover.
Assess the value of slide-out enrobing sections, removable flow pans, and fully accessible catch basins. These features allow off-line COP. This minimizes production interruptions and simplifies the cleaning process. A roll-out trolley means you can swap a dirty enrober section for a clean one in under fifteen minutes. The dirty section is then wheeled to the washroom for deep cleaning while the line continues running. This modular approach to equipment design is a game-changer for high-volume facilities dealing with multiple product changeovers per shift.
Choose equipment with hermetically sealed, washdown-rated electric motors, sensors, and control panels. High IP ratings prevent electrical failures during deep cleaning cycles. This ensures equipment longevity and safety. IP69K means the component can withstand high-pressure, high-temperature water jets. Even though we prioritize dry cleaning, accidental water exposure happens. Having IP69K rated components provides a critical layer of defense against short circuits and sensor failures. It also allows for more aggressive cleaning methods when dealing with severe contamination events.
Evaluate the ROI of automated CIP systems for chocolate piping and pumps versus the upfront capital expenditure. Automated systems reduce manual labor and ensure consistent cleaning results. They require a higher initial investment but pay off in reduced downtime. CIP systems use automated valves and pumps to circulate hot oil or cocoa butter through the piping network. This eliminates the need for manual pigging and teardowns. However, CIP systems require complex programming and dedicated holding tanks for the flushing liquids. You must calculate the labor savings against the installation costs to determine if CIP makes sense for your operation.
Residual water in the system leads to seized pumps, blocked piping, and microbiological hazards. Mitigate this risk by implementing strict moisture-control SOPs and conducting post-cleaning moisture testing. Never use high-pressure water hoses near the enrobing line. Train your sanitation crew to understand the catastrophic effects of water on chocolate. We use dedicated dry-cleaning tools that are color-coded to prevent cross-contamination from wet-wash areas of the plant. If water does enter the system, you must immediately flush the affected area with large volumes of warm oil to displace the moisture.
Introducing cold flushing liquids into heated systems can warp precision enrober parts or crack jacketed pipes. Prevent thermal shock by utilizing gradual temperature-ramp protocols during cleaning and maintenance procedures. Always pre-heat your flushing oils to match the operating temperature of the chocolate line. If you pump cold cocoa butter into a hot jacketed pipe, the sudden contraction can cause micro-fractures in the stainless steel. These fractures eventually lead to leaks, allowing heating fluid to contaminate the chocolate mass. We use automated temperature controllers to ensure flushing liquids are always at the correct temperature before injection.
Over-lubricating chains or using non-food-grade grease leads to product contamination. Standardize lubrication maps and utilize visual management tools to ensure proper application of food-safe lubricants. More grease is not always better. Excess grease drips onto the product belt or attracts dust and crumbs, creating a grinding paste that destroys bearings. We use precise, metered grease guns and train our technicians to apply the exact amount specified by the manufacturer. All lubrication points are marked with color-coded tags indicating the correct type of NSF H1 lubricant to use.
Failing to calibrate temperature probes leads to improper tempering. This results in fat bloom, poor gloss, and rejected batches. Routine metrology checks are essential for maintaining product quality and consistency. Chocolate tempering requires precise temperature control within a fraction of a degree. If your sensors drift, the cooling curve is compromised. We calibrate all critical temperature probes monthly using certified reference thermometers. Do not trust the digital display without verifying it against an independent standard. Sensor drift is a silent killer of product quality.
Audit your current cleaning SOPs against the dry-cleaning framework to identify areas where moisture might be introduced.
Calculate your annual downtime costs attributed to sanitation and allergen changeovers to justify equipment upgrades.
Implement a strict, color-coded tool program to separate dry-cleaning implements from wet-wash tools.
Consult with an equipment manufacturer to evaluate high-efficiency coating systems featuring tool-less disassembly.
Establish a routine calibration schedule for all temperature sensors and heating jacket controls.
A: Deep cleaning frequency depends on production volume and allergen changeovers. Most facilities perform a comprehensive teardown and deep clean quarterly or bi-annually, relying on daily dry-cleaning and flushing for routine maintenance.
A: Water should be strictly avoided whenever possible. Introducing water causes chocolate to seize and creates a breeding ground for bacteria. Dry cleaning with scrapers, vacuums, and oil flushes is the industry standard.
A: Cooling tunnels should be cleaned using dry methods for loose debris, followed by targeted sanitization of the belt. Insulated covers must be opened to allow internal components to dry completely and prevent condensation buildup.
A: Keep the heating jackets active during the purging process. Maintaining the temperature ensures the residual chocolate remains fluid, allowing it to be effectively flushed out with warm oil or cocoa butter.
A: The detailer spindle, or tail-remover, rotates to remove excess chocolate from the bottom of the product as it exits the enrober. Proper maintenance ensures a clean product release and prevents chocolate accumulation on the belt.
A: We use validated neutral fat flushes, such as warm cocoa butter, to dissolve and push out the previous batch. This is followed by rigorous dry scraping, COP for removable parts, and ATP swabbing to verify cleanliness.
