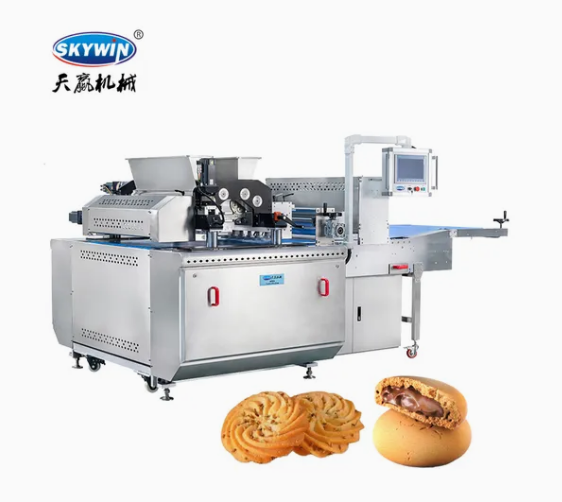

Skywin Automtic Two Colors Wire Cut and Deposit Cookie Making Machine

Skywin Automtic Two Colors Wire Cut And Deposit Cookie Making Machine
1. Skywin Model 400/600/800/1000/1200mm, capacity from 100-1500 kg/hr.
2. It is widely available for making all kinds of Cookie(Wire cut Cookie, Deposit cookie, Two color Cookie, Date Bar Biscuit, Center Filling Cookie, Sandwich cream Cookie)

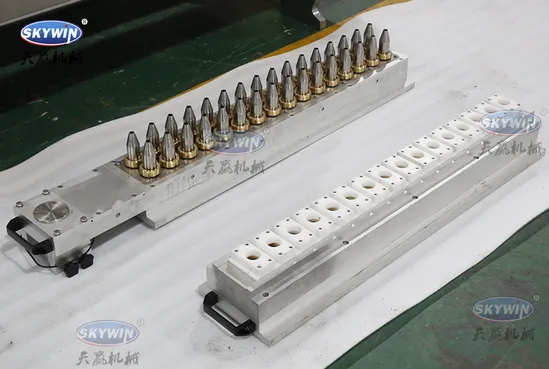

3. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.

Machine Component:
1.Siemens Brand PLC & Touch Screen Controlled system,
2.International brand Electric components,
3.Chinese Famous Quality Brand GUOMAO Motors&Gearbox;
4.AirTAC brand Penumatic cylinder for belt tension and deflecting adjustment
5.Cotton and PU conveyor belt 1.5mm
6.Wire mesh belt V type
7.Plates covered hard chrome, thickness 18mm
8.Stainless steel thickness 1.2-1.5mm

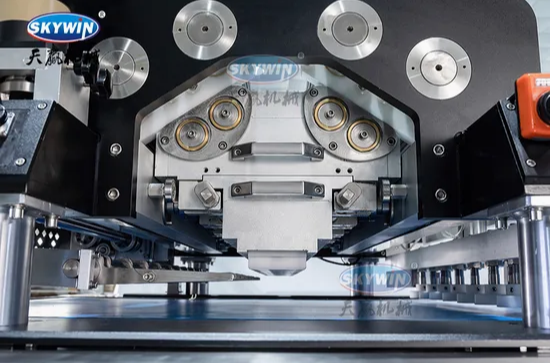

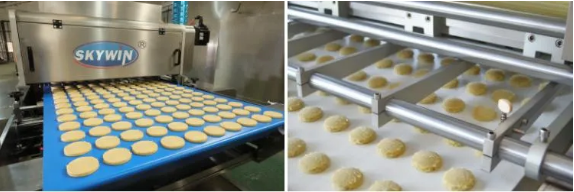

wire-cut cookie forming

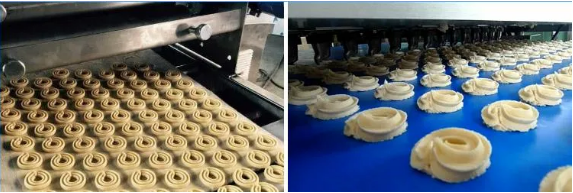

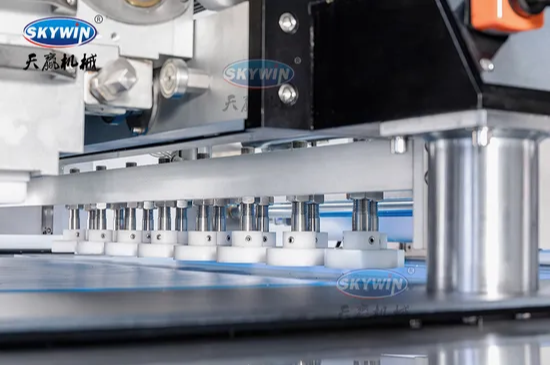

deposit cookie forming

Main Features:
1.Cookies biscuits forming Machine by wire-cut, dropping and dropping with rotation PU conveyor belt, thickness 0.8mm, deflection and tension adjust by air cylinder.2.Air cylinder use famous brand, Gearbox use Chinese famous brand GUOTAI,Feeding and forming use Servo motor, Delta brand.
3.The nozzle is 7pcs (400MM),depositor about 30 times/min,cutter about 40 times/min
4.Hot wind circulation for color biscuit and good taste
5.Low energy cost(save 5% energy),high output(99.99%output).
6.Optional English or other languages screen display, easy and simple operation.
7.The section where the material contact is stainless steel as the body of machine is optional and all out machine have passed the CE Standard.
8.Our biscuit production line has standard line and high-end line for option,the high-end line is fully automated and high output,and all raw materials are the best.
