Skywin Good Quality Cookie Forming Machine Prodcution Line Foodstuff

Skywin Good Quality Cookie Forming Machine Prodcution Line Foodstuff

Name: Skywin Good Quality Cookie Forming Machine Prodcution Line Foodstuff
Brand: skywin
Rating: 5.0 (35 reviews)

The cookie production line can be combined according to the customer's workplace or biscuit making technical requirement. By changing the molds and recipes,this biscuit forming machine can be able to produce various types high quality biscuits,we also can design mold for you as per your details.

Model:
400/600/800/1000/1200mm
Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

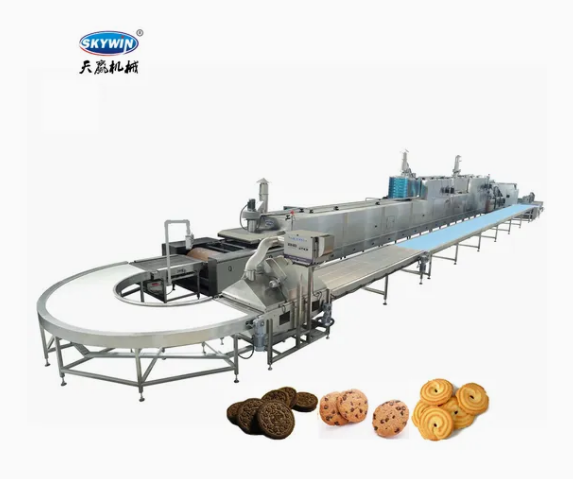

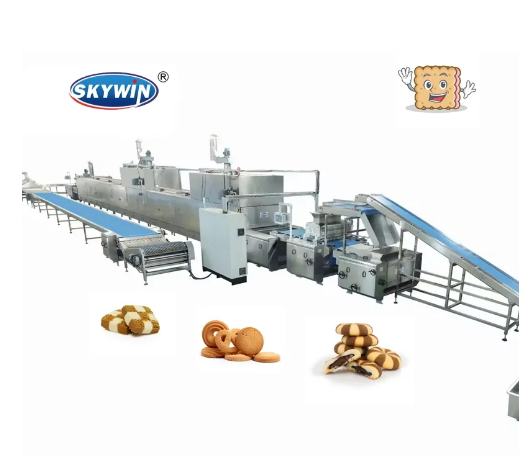

High Efficiency Cookie Production Line

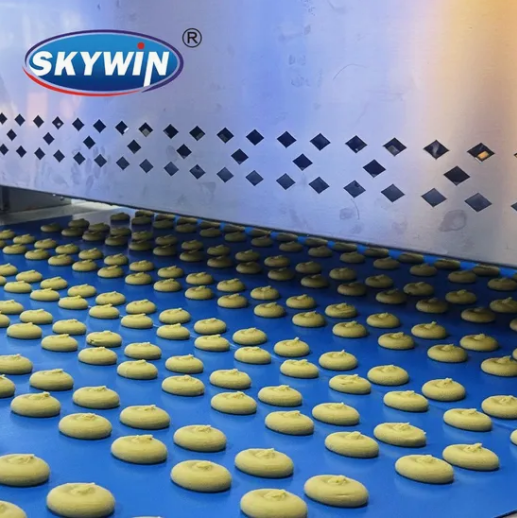

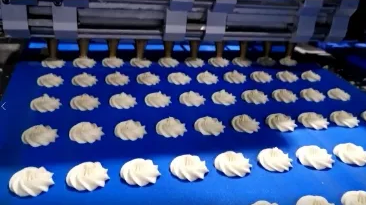

Wire-Cut Cookie & Deposit Cookie

Mixing
Horizontal Dough Mixer Capacity:150KG/300KG/400KG/600KG/750KG
↓
Forming

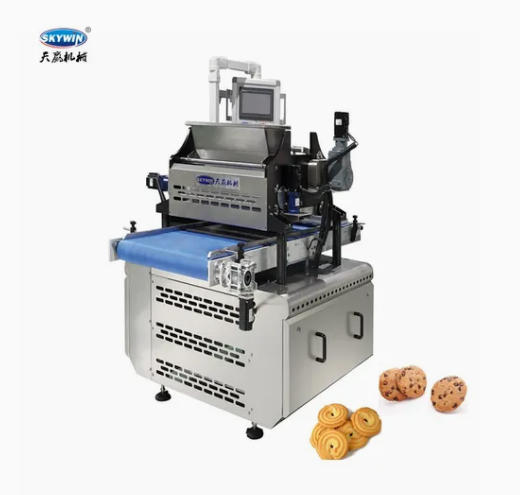

Wire-Cut Cookie/Deposit Cookie
Model:400mm/600mm/800mm/1000mm/1200mm
↓
Baking
Gas/Electricity/Diesel Oil Tunnel oven for option
↓
Cooling
Cooling Conveyor
↓
Packing
Stacker&Flow Packing/On-Edge Packing

Specification:
1.304 Stainless steel Cover, thickness 1.5-2.0mm
2.Feeding roller diameter 160mm, with groove
3.Oven belt width 1000mm-1100mm
4.Dynamic structure, total 2 servo motor control. Feeding roller motor 2kw, wire cut forming 2kw

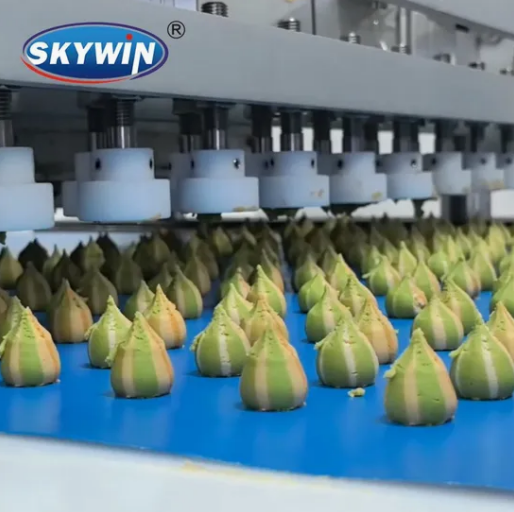

5.Deposit forming by 5 servo motor controlled
6.Provided two sets of cookies moulds as per pictures
7.Dimension: 1700 x 1300 x 1600mm (L x W x H)
8.Capacity: Wire cut 600-700kg per hour
9.Speed: Cut 90-110times/min, Deposit 50-60times/min
10.Siemens electric parts and PLC touch screen control
11.Delta servo motor & gearbox
