Skywin Small Automatic Soft Biscuit Production Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Skywin Full Automatic Soft Biscuit Machine Production Line
Skywin is new manufacturer specialize in biscuit making machine, biscuit production line. It is full automatic control whole line.
Advantage:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

  • 400mm ,620mm,800mm,1000mm,1200mm

  • Skywin

Availability:
Quantity:


Automatic soft biscuit line


Skywin Full Automatic Soft Biscuit Machine Production Line


Skywin is new manufacturer specialize in biscuit making machine, biscuit production line. It is full automatic control whole line.
Our factory is the top biscuit machine supplier and exporter in China.
Our gas baking oven has ELECTRICAL for your option.
The gas system adopt Siemens PLC control system.

As the main forming part of the leavened cookie production line, the horizontal rotary moulder is indispensable. It can be combined with machines such as dough mixer, laminator, rotary cutter, and tunnel oven to form a fully automatic leavened cookie production line. It can also be combined with mixer and tunnel oven to form a small leavened cookie production line.

Samll soft biscuit machine

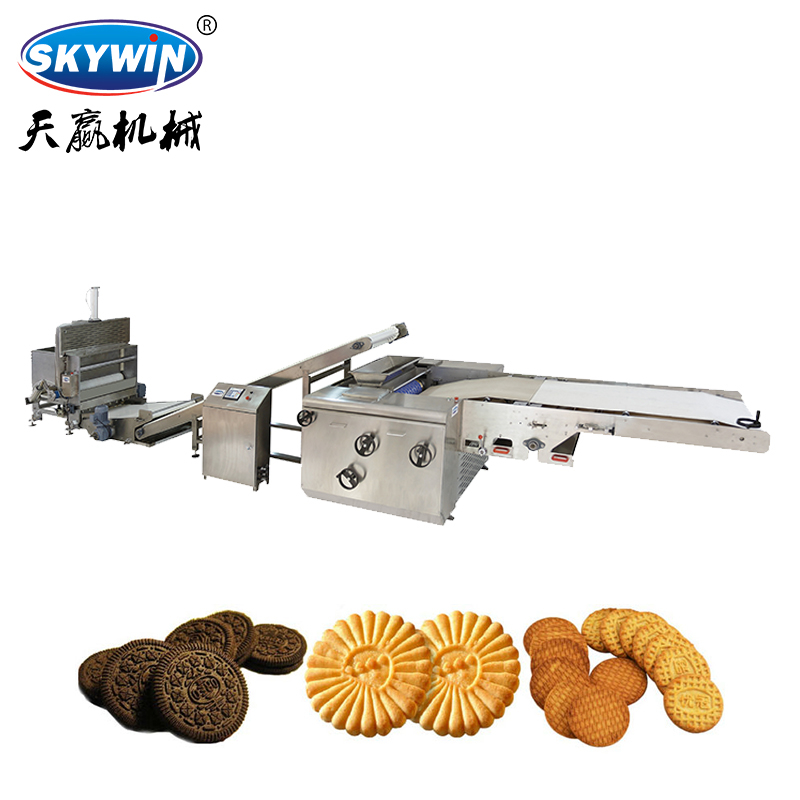

Small Automatic Soft biscuit line


A whole line consist of:


1.Horizontal dough mixer

2.Automatic dough tipper and feeding system

3.Horizontal rotary moulder

4.Enter Stove Machine

5.Baking tunnel oven




6.Horizontal-Dough-Mixer-2

Horizontal Dough Mixer


This equipment is used for dough mixing.After the kneading, rolling and folding process, dough has a smooth surface with good elasticity, toughness and extensibility. It is suitable for both hard and soft biscuit. The mixing beaning is designed that seal is separated from the bearing to prevent the grease from contaminating the dough in case of broken seal.



56ae518a450c63bd31ff86404b41fda3

Dough Cutting and Sending machine (for hard dough and soft dough convey)

This machine use for cutting and sending the dough to the forming machine hopper.

1. Auto cutting hard dough in small pieces, then feed to hopper of three-roll pre-sheeter

2. For soft dough, it has breaker roller to broken the dough loosen

3. 304 Stainless steel

4. Food Grade PU belt


Horizontal rotary moulder


rotary moulder

Rotary molder is use for making soft biscuit. It comprise of three rolls and two of them use to press the dough into the mold. The shape of the biscuit mold can be customersized and material can be optional. It use canvas belt and it is easy for the biscuit separate with the mold.

                  speed: 16m/min




入炉机

Enter Stove Machine

This unit connected with forming machine to transport biscuit sheet to the belt of oven.

1. Oven Belt Driven System

2. With Belt tracking device

3. Roll diameter: 900mm




tunnel oven


Baking tunnel oven


1. There are three types of tunnel oven (electric, gas and diesel oil).
2. Main body made by 304# stainless steel. It has 2 to 4 temperature areas which are high efficiency and energy saving to ensurethe biscuit's technology.
3. The length of the oven determine the biscuit capacity. (Capacity from 50-2000 kg/hr)
4. The oven can bake different kind of biscuit including stick biscuit, cookies, hello panda biscuit, wafer biscuit, crackerbiscuit, cookies and so on.
It depends on the natural resources of different countries. Some countries is abundant in gas.


酥性饼干模具

Soft bicuit mould


Main Feature

1. Shape and design as per customer require

Biscuit molds can be done as per customer's requirements (sizes, design, color) ;

Hard biscuit, soft biscuit moulds, pet mold and so on are design by customer's requirements.


2. Easy change on the biscuit line

Range of mono or twin rotary cutting rollers (one cutting and one imprinting) are manufactured with interchangeable rings both completely made of bronze or both totally made of plastic, alternatively bronze cutting roller and plastic imprinting roller, or interchangeable biscuit shapes .




Soft biscuit sample

soft biscuits
酥性饼干





阿里一平台(半自动辊印详情)20250623-09


阿里一平台(半自动辊印详情)20250623-10
