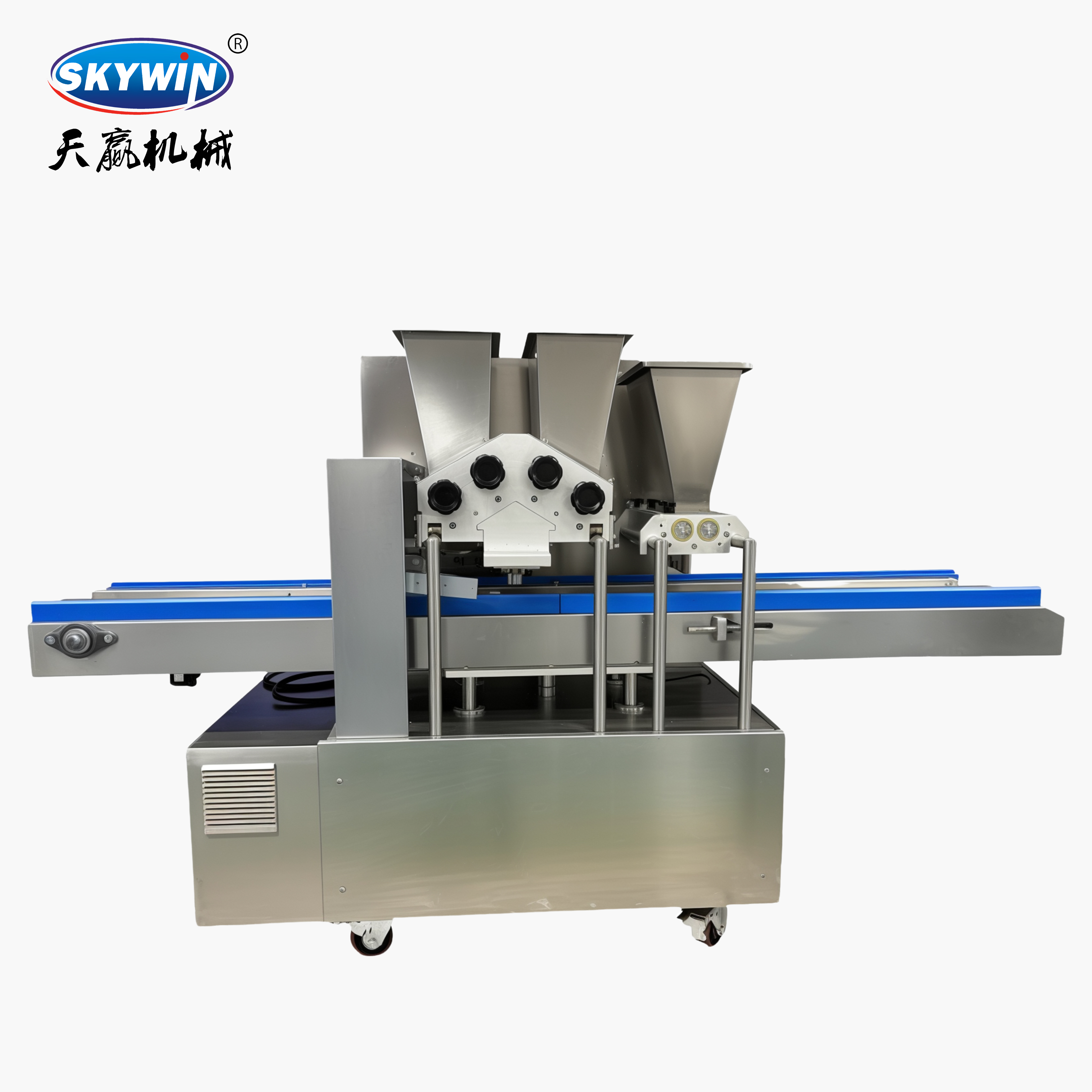

Skywin Tray Type Two Color Cookie Making Machine with Jam Deposite Function

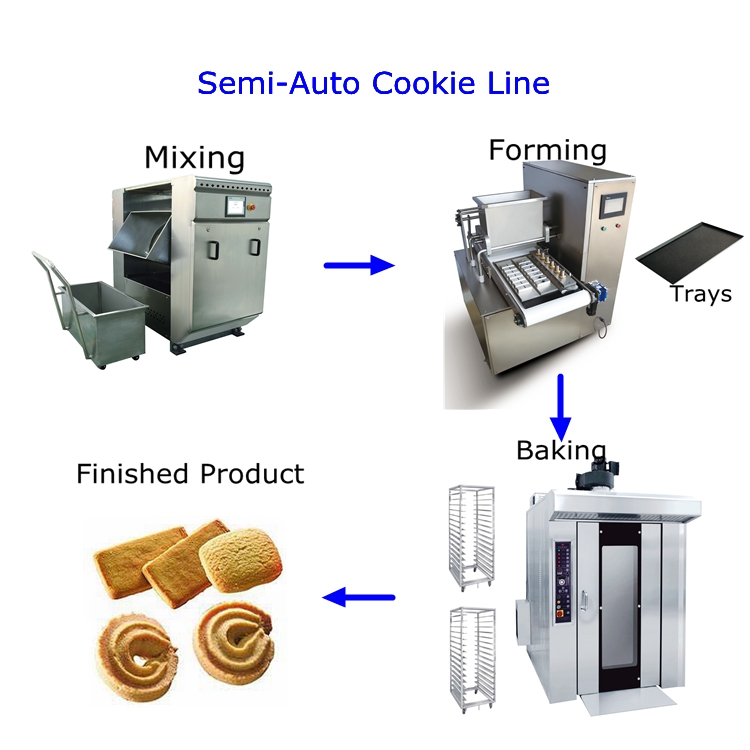

Semi Auto Tray Type Two Color Cookie Production Line

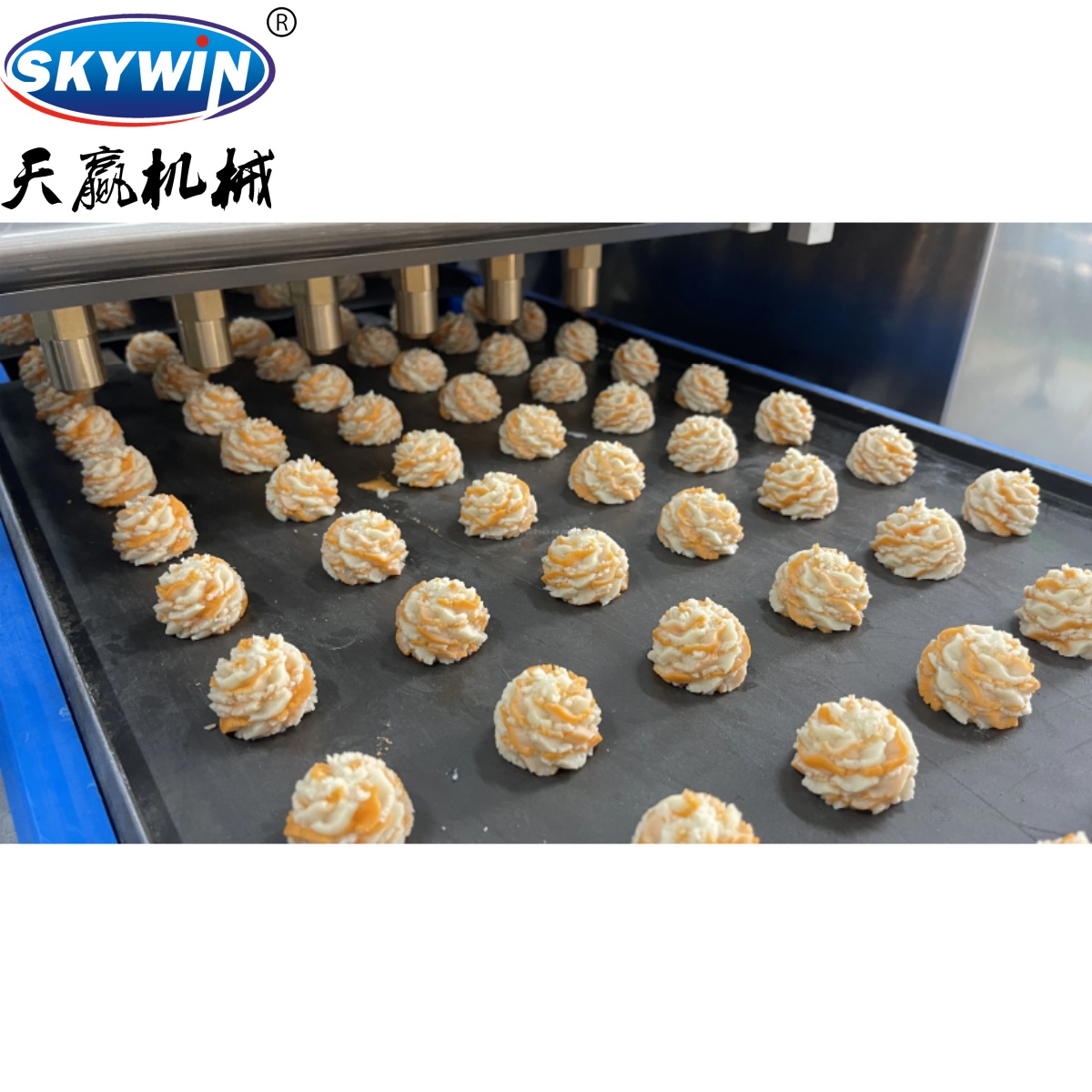

• Triple Forming Versatility – Effortlessly switch between wire-cut cookies, deposited soft dough, and eye-catching two-color designs. Simply change the mold set to transform your product lineup in minutes; custom mold designs are also available upon request.

• Integrated Jam Depositor – Stand out in the market with the innovative jam/chocolate filling function. Add fruit jam, chocolate sauce, or flavored creams to your cookies, creating premium layered tastes that combine buttery richness with fruity or chocolate notes.

• Space & Labor Saving – The compact machine dimension (1330×900×1340mm) and semi-automatic operation minimize factory floor usage and manpower requirements, making it ideal for boutique bakeries or production lines with limited space.

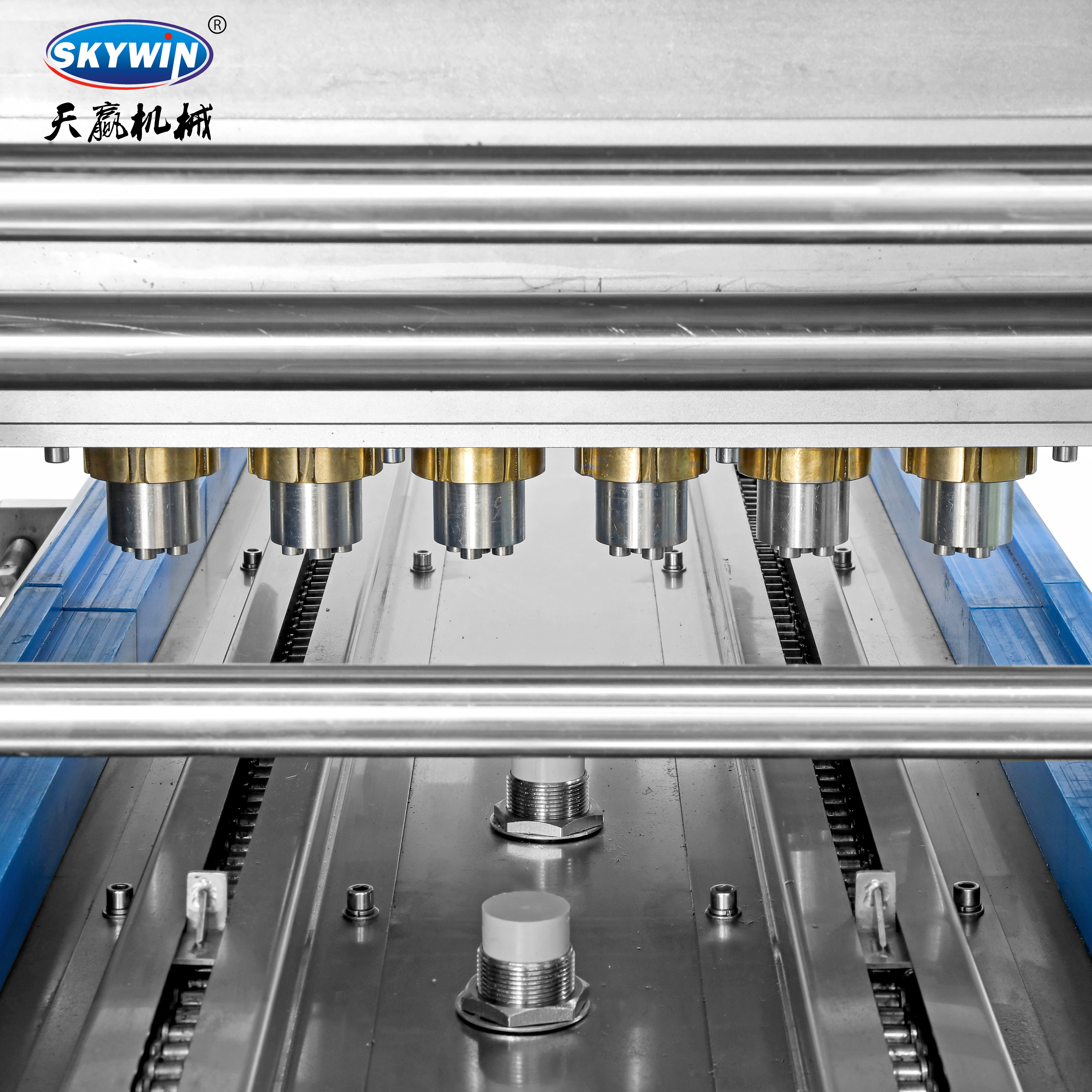

• Precision Servo Control – The core forming unit is driven by a servo motor, ensuring accurate dough cutting and depositing even for intricate or complex pattern designs, guaranteeing consistent piece weight and appearance.

• Hygienic & Durable Build – All food-contact parts and covers are crafted from 304 stainless steel, ensuring corrosion resistance, easy cleaning, and full compliance with international food safety standards.

Key Technical Parameters

Item	Specification
Working Width Options	400mm (6-7 nozzles) / 600mm (8-10 nozzles) / 800mm (10-14 nozzles)
Capacity	50 – 200 kg/h (depending on product type and recipe)
Power Supply	380V/220V/50Hz, 1.5kW
Machine Dimension	1330 × 900 × 1340 mm
Machine Weight	450 kg
Included Accessories	2 sets of cookie molds (wire-cut + deposit) + 1 standard jam depositor

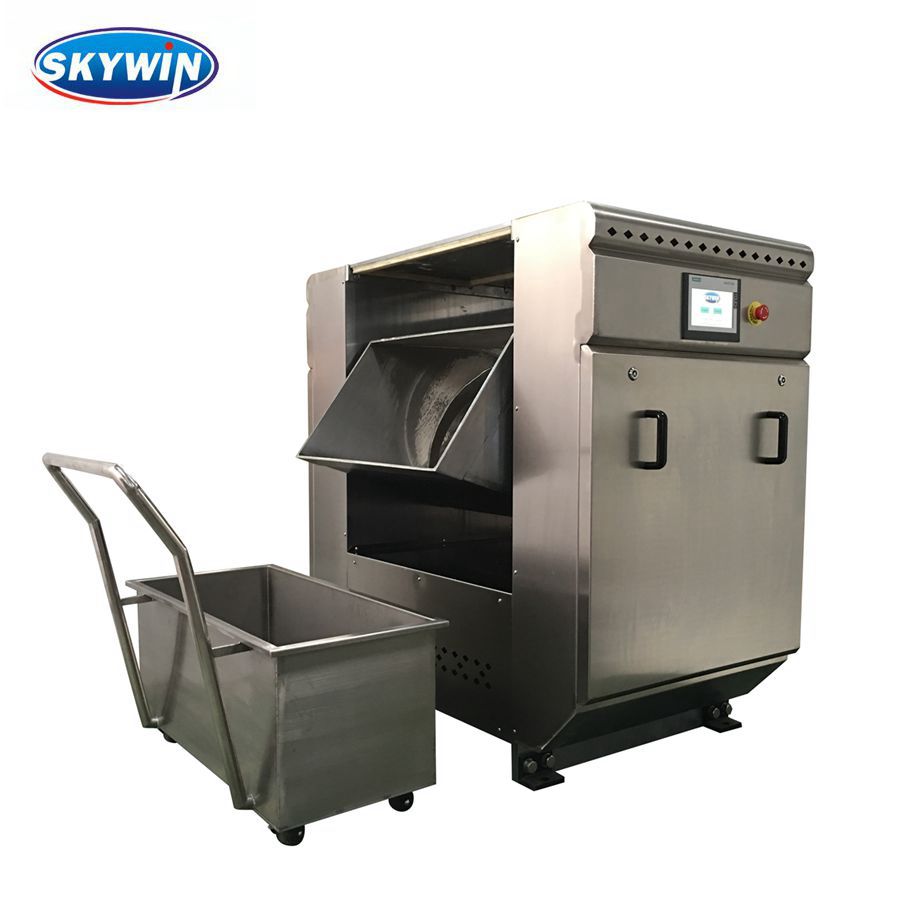

Dough Mixer

• Suitable for both soft and hard dough recipes.

• Mixing blade and bowl cover are constructed from food-grade 304 stainless steel.

• Hydraulic tipping system for easy, safe, and labor-saving dough discharge.

• Available capacities: 150kg, 250kg, 300kg, 500kg, 750kg per batch (other sizes customizable).

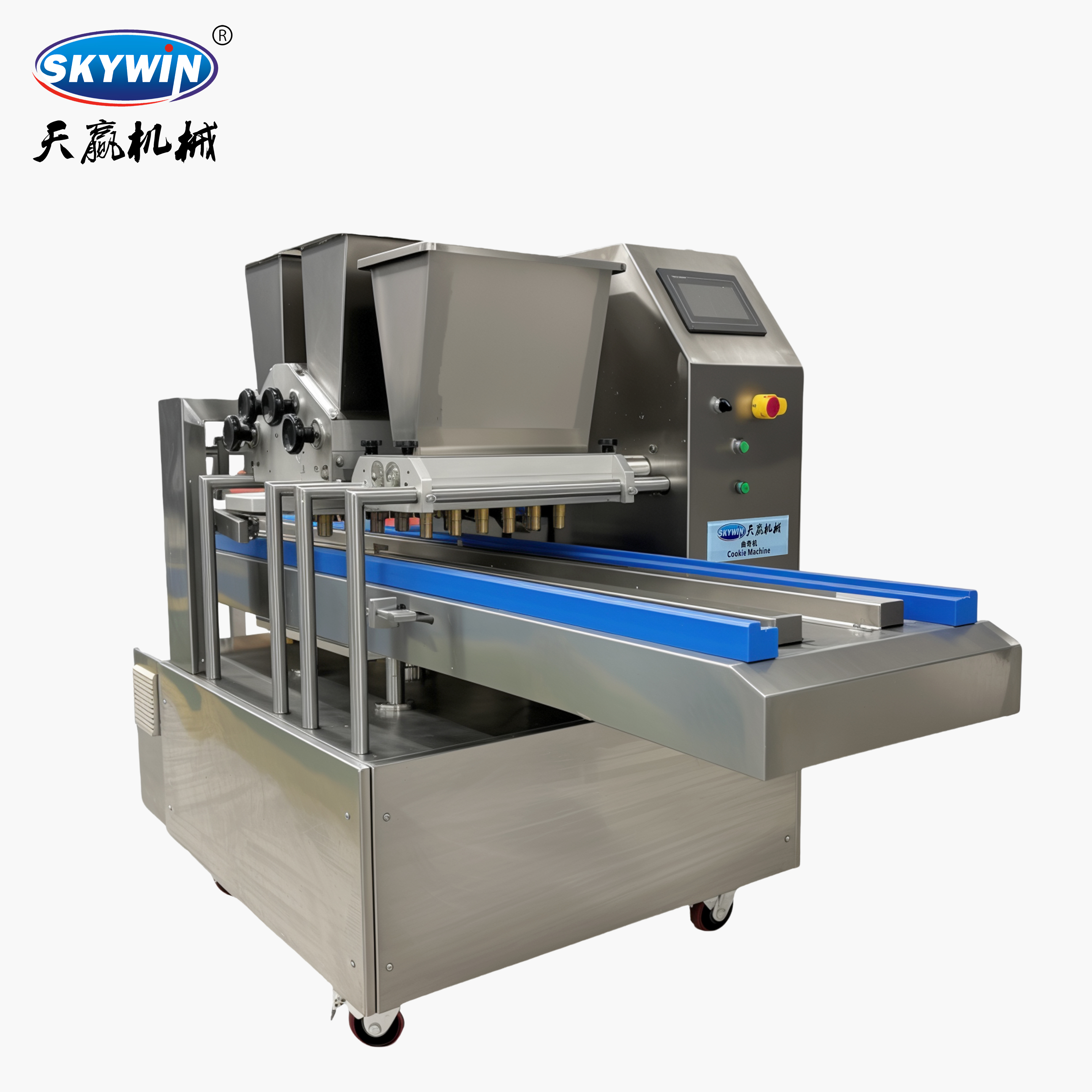

Tray Type Two Color Cookie Making Machine with Jam Depositor

• Servo-motor driven system ensures ultra-precise forming for delicate or complex shapes.

• The integrated depositor precisely fills each cookie with jam, chocolate, or cream, adding significant product value.

• Switching between wire-cut and deposit modes requires only a simple mold change, dramatically reducing downtime.

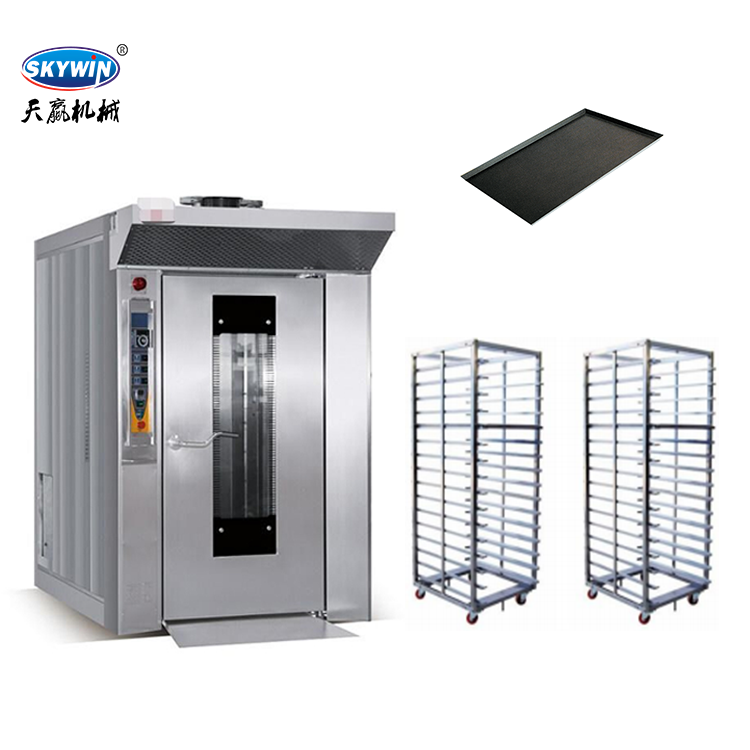

Rotary Oven

• Tray capacity: 32 trays or 64 trays (both options available).

• Standard tray size: 600×400 mm (compatible with the forming machine).

• Energy options: Natural gas (with Italian or Japanese brand burner), electricity, or diesel.

• Equipped with a hooked trolley system for safe, stable, and uniform heat circulation.

• Multi-functional: In addition to cookies, it efficiently bakes chewy biscuits, bread, pastries, and even meat products.
