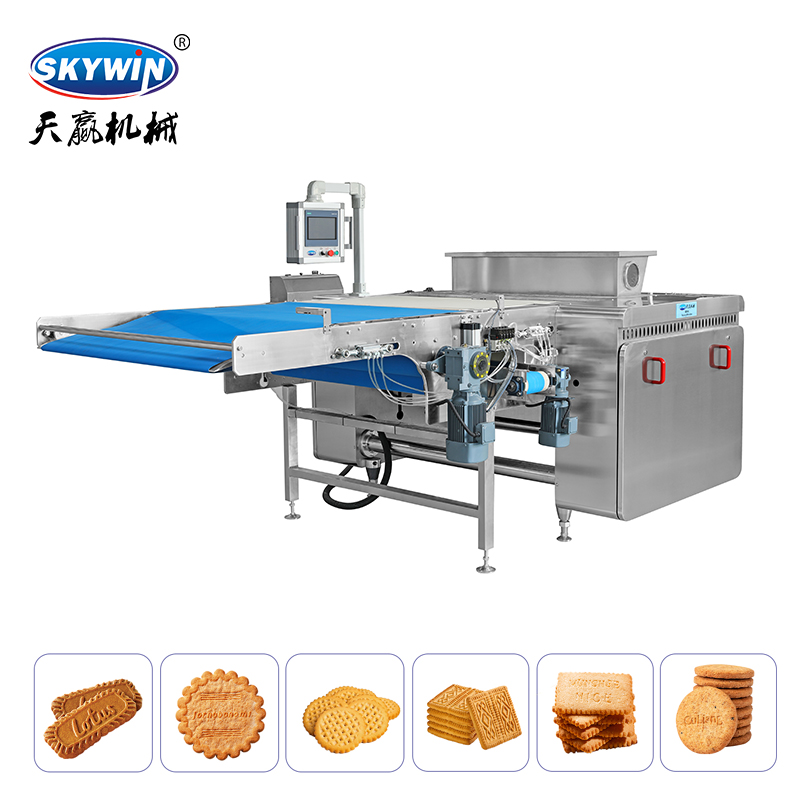

High-volume soft dough production demands absolute precision on the factory floor. Minor deviations in piece weight or extraction mechanics directly degrade profit margins and ruin product uniformity. Scaling a soft biscuit production line introduces complex variables in dough rheology. High fat and sugar contents cause standard vertical or angled forming machines to struggle. These legacy systems stretch the dough, cause structural tearing, and force operators into excessive downtime for manual belt tracking. Solving this requires a mechanical shift.
Understanding the specific mechanical advantages of a horizontal rotary moulder is mandatory for technical buyers evaluating upgrades. You must analyze its extraction geometry, tensioning systems, and recipe-driven automation. This equipment fundamentally alters how delicate dough matrices are handled immediately after shaping. We will break down the engineering differences, operational metrics, and integration requirements necessary to optimize your bakery floor and eliminate gravitational distortion during the forming process.
Mechanical Distinction: Horizontal configurations utilize a flat, cantilevered extraction plane that minimizes gravitational distortion on soft doughs immediately after the moulding roll, ensuring fast and controlled forming.
Precision Metrics: High-end horizontal rotary moulders achieve exceptional weight accuracy (Coefficient of Variation [CV] ≤ 1%) at operating speeds up to 30 meters per minute.
Operational Flexibility: Modern units drastically reduce downtime through tool-free exchangeable moulds, tool-free belt replacement, automatic belt tracking, and recipe-controlled HMI settings.
Risk Mitigation: The primary adoption risks involve upstream dough consistency and floor space requirements, which must be validated prior to integration into an existing soft biscuit production line.
Standard rotary moulding machine designs often rely on steep extraction angles. This geometry presents a massive physical challenge when processing delicate, high-fat dough pieces. As the dough is pulled from the die roll, gravity acts upon the unsupported mass. This downward force stretches the product before it safely reaches the baking band. For round biscuits, this stretching results in ovalization. For rectangular bars, it causes tailing and uneven thickness. These structural deformations lead to inconsistent baking, packaging jams, and higher rejection rates at the end of the line.
When operators try to compensate for this stretching, they usually increase the web tension. High tension forces the extraction belt deeper into the die roll, but it also compresses the belt material. If you are using a cotton web, squeezing it under high tension forces the absorbed fats to the surface, glazing the belt and ruining its release properties. You end up trading a shape distortion problem for a dough-sticking problem.
The horizontal alignment of the extraction web solves this gravitational problem entirely. It provides immediate, flat support to the dough piece the exact millisecond it is pulled from the die roll. The web travels tangentially to the bottom of the die cylinder. This flat plane eliminates the vertical drop. It enables fast and highly controlled forming because the dough rests securely on the belt rather than hanging from the die cavity.
The physics of reduced web tension directly protect the product. Horizontal systems rely on optimal contact angles rather than brute tension. The belt gently peels the dough from the cavity while fully supporting its bottom surface. This mitigates tailing and preserves the delicate internal aeration of the dough matrix. You get a biscuit that matches the exact dimensions of the die cavity, every single time.
Comparison of Extraction Mechanics by Machine Type | |||
Feature | Horizontal Extraction | 45-Degree Angled Extraction | Vertical Extraction |
|---|---|---|---|
Gravitational Impact | Minimal; dough is immediately supported on a flat plane. | Moderate; dough experiences partial stretching. | High; dough hangs and stretches during transfer. |
Web Tension Required | Low to moderate; relies on tangential contact geometry. | High; requires significant tension to force extraction. | Extreme; relies entirely on web compression for release. |
Product Deformation Risk | Low; prevents ovalization and tailing. | Moderate; prone to minor tailing on thick pieces. | High; prone to severe stretching and structural tearing. |
Speed Scalability | Excellent; maintains registration at high speeds. | Average; speed increases exacerbate stretching. | Poor; high speeds cause missed extractions. |
Modern horizontal designs feature cantilevered extraction frames. This architecture is engineered for pulling out pieces seamlessly while drastically reducing maintenance burdens on your mechanics. A cantilevered frame supports the internal drive and tensioning rollers from one side of the machine only. The opposite side remains open or features quick-release bearing housings.
This specific architecture allows for rapid belt replacement. In traditional closed-frame machines, changing a continuous extraction web requires mechanics to dismantle the core drive shafts, remove bearings, and re-align the entire system. This process can take hours and usually requires a specialized maintenance crew. With a cantilevered design, operators simply release the pneumatic tension, remove the side guards, and slide the new endless belt directly over the rollers. It simplifies sanitation and cuts mechanical downtime to a fraction of traditional expectations.
The baseline success criteria for any high-performance soft biscuit forming machine is achieving a Coefficient of Variation (CV) of ≤ 1% across the entire width of the band. Weight accuracy dictates profitability. Overweight pieces give away free ingredients, while underweight pieces violate packaging regulations and trigger automatic rejections downstream. Achieving this tight tolerance requires precise control over dough density.
Independent drives for the forcing roll, die roll, and extraction web make this precision possible. The forcing roll pushes the dough mass into the die cavities. The die roll dictates the volumetric shape. The extraction web pulls the formed piece out. By independently adjusting the speed and torque of these three components, operators can fine-tune the pressure and shear applied to the dough matrix. If the dough is too dense, reducing the forcing roll speed relative to the die roll lowers the cavity packing pressure, instantly correcting the piece weight without stopping the line.
Plant managers rarely get the luxury of running a single product all year. The machine must demonstrate the capability to produce a vast array of product profiles. This ranges from the thinnest crisps to the thickest dough bars, without compromising structural integrity. Deep cavities require high forcing pressure to fill completely, while shallow cavities require gentle handling to prevent flashing, which is when excess dough bleeds over the cavity edges and creates a web of scrap.
Horizontal extraction ensures dimensional consistency at high outputs across these varying thicknesses. Because the dough piece drops onto a flat, moving plane, thick bars do not compress under their own weight. Thin crisps do not fold or ripple during the transfer. The horizontal layout maintains the exact footprint of the die cavity, ensuring that every product enters the oven with identical dimensions.
Scaling production introduces trade-offs between speed and extraction quality. Pushing a standard machine to 30 meters per minute often results in missed extractions or mangled dough pieces. The horizontal configuration mitigates these trade-offs. The tangential extraction point provides a longer, more stable contact window between the web and the dough.
Maintaining registration and spacing at high speeds is critical for downstream packaging automation. If biscuits drift or rotate on the belt, automated wrappers will jam, causing massive bottlenecks. The horizontal layout ensures that pieces are placed onto the transfer conveyor in perfect alignment. The independent servo drives maintain exact speed synchronization, preventing the micro-stretching that ruins row alignment at 30 m/min.
Soft doughs are notoriously difficult to machine. They are sticky, crumbly, and highly sensitive to ambient factory temperatures. A horizontal rotary moulder manages these matrices without clogging the biscuit forming equipment. The flat extraction path prevents the dough from tearing under its own weight, which is the primary cause of crumb buildup on the web.
Managing release properties requires specific mechanical interventions. Adjustable scraper knives clean the forcing roll and die roll. Precise angle and pressure adjustments prevent dough from wrapping around the rollers, which would otherwise alter cavity filling pressures. Temperature control is also vital. Advanced units incorporate chilled forcing rolls to prevent the fat within the dough from melting under shear stress. Low-pressure air assist manifolds can be introduced at the extraction point to break the vacuum seal between sticky dough and the die cavity.
Extraction Web Material Selection Guide | |||
Web Material | Best Suited For | Release Mechanism | Durability & Maintenance |
|---|---|---|---|
Heavy Woven Cotton | High-fat, butter-heavy shortbreads. | Absorbs surface fats to create a natural non-stick layer. | Requires frequent washing; prone to stretching over time. |
Polyurethane (PU) Blend | High-sugar, highly cohesive doughs. | Smooth surface provides a sharp, mechanical release. | Highly durable; resists glazing and edge fraying. |
Silicone-Coated Synthetic | Extremely sticky, marshmallow or caramel-infused doughs. | Chemical non-stick properties prevent adhesion. | Excellent lifespan; requires specialized cleaning agents. |
Operational flexibility hinges on changeover speed. Assess the operational impact of standard units equipped with exchangeable moulds and extraction belts that do not require heavy lifting equipment or specialized hand tools. Traditional die roll changes require overhead cranes, multiple mechanics, and significant downtime. Modern horizontal machines utilize slide-out cassettes and quick-release locking mechanisms.
This engineering directly reduces the Mean Time to Repair (MTTR) and changeover downtime. Fast switching between products improves Overall Equipment Effectiveness (OEE). When a die roll can be swapped by a single operator in under ten minutes, bakeries can profitably run shorter, highly customized production batches. Tool-free extraction belt replacements further compound these time savings, turning a major maintenance event into a standard shift-change procedure.
The standard procedure for a tool-free belt changeover involves specific, streamlined steps:
Disengage the pneumatic tensioning cylinders via the HMI control panel to introduce slack into the web.
Remove the lightweight, sanitary side guards on the open end of the cantilevered frame.
Release the quick-disconnect bearing housings on the tail and drive rollers.
Slide the old endless belt off the open side of the frame.
Clean the exposed rollers and inspect the scraper knife for wear.
Slide the new endless belt over the rollers, re-engage the bearings, and activate the pneumatic tensioner.
Manual machine adjustments rely heavily on tribal knowledge. Experienced operators know exactly how many turns of a handwheel are needed to fix a weight issue. When they retire or call in sick, that knowledge vanishes, and your scrap rates spike. Evaluate the integration of PLC/HMI touch screen interfaces featuring semi- or fully-automatic control to solve this problem.
Recipe-driven parameter recall eliminates guesswork. When a new product is selected on the HMI, the machine automatically adjusts roll speeds, gap settings, and belt tension to pre-validated parameters. This reduces operator error and ensures that the first biscuit of the run is identical to the last. It standardizes production across different shifts and different operators, ensuring consistent quality regardless of who is running the line.
Extraction webs are subjected to continuous stress, moisture, and fat absorption. This causes the material to stretch and wander off-center. Detail the mechanics of pneumatic or servo-driven automatic belt tension and tracking systems. These systems use edge sensors to monitor the web's position in real-time.
If the belt begins to drift, the tracking system automatically adjusts the angle of the tail roller to steer it back to the center. These features prevent web drift and drastically reduce edge wear, extending the lifespan of expensive extraction belts. Furthermore, automatic tensioning ensures consistent extraction pressure across the entire production run. As the belt stretches throughout the day, the pneumatic cylinders automatically take up the slack, maintaining the exact tension required for perfect dough release.
A moulder is only as good as the dough it receives. Identify the prerequisites for dough presentation to maintain a consistent head of dough above the forcing roll. Continuous kibbler feeds are vastly superior to batch feeding. A kibbler breaks large dough masses into uniform chunks, distributing them evenly across the width of the hopper.
Analyze the risk of dough bridging or starvation. Bridging occurs when dough clumps together, forming an arch over the forcing roll and starving the dies. This leads to underweight or missing biscuits. Horizontal systems integrate seamlessly with automated feed conveyors and level sensors. When the dough level drops, the sensor triggers the upstream delivery system, ensuring a constant, uniform pressure head. This continuous feed is mandatory for maintaining a CV of ≤ 1%.
Common Dough Feeding Faults and Solutions | ||
Fault Condition | Symptom on the Line | Mechanical Solution |
|---|---|---|
Dough Bridging | Intermittent missing biscuits; sudden drop in piece weight. | Install an active kibbler shaft in the hopper to break up large dough masses. |
Hopper Starvation | Consistent underweight pieces across the entire band width. | Calibrate laser level sensors to trigger the feed conveyor earlier. |
Uneven Lateral Feed | Heavy biscuits on the left side, light biscuits on the right side. | Adjust the oscillating chute on the upstream delivery conveyor for even distribution. |
Temperature Spikes | Dough sticks to the forcing roll; fat separation visible in hopper. | Activate the chilled water jacket on the forcing roll to stabilize dough rheology. |
The transfer from the moulder to the oven is a critical failure point. Evaluate the transfer points from the horizontal rotary moulder to the oven panner or baking band. The height difference must be minimized to prevent the dough from folding or stretching as it drops onto the next belt. A knife-edge transfer is usually required for small or delicate pieces.
Precise speed synchronization is an absolute necessity. You must implement cascading speed control. This means the soft biscuit production line operates as a single, unified system. If the oven band slows down, the panner, extraction web, and die rolls must automatically slow down in exact proportion. Without cascading control, speed mismatches will cause product bunching, overlapping, or severe stretching during the transfer phase, ruining the geometric precision achieved by the moulder.
Upgrading equipment changes your maintenance profile. Break down the maintenance requirements of independent servo drives versus traditional chain-and-sprocket systems. Chains stretch, require constant lubrication, and generate metal dust that poses a contamination risk. Servo drives are direct-coupled, virtually maintenance-free, and provide infinitely precise speed control. They eliminate the mechanical backlash that degrades weight accuracy over time.
Evaluate hygienic design elements and their impact on sanitation labor. Modern horizontal units feature sloped surfaces to prevent water pooling. Washdown-rated motors allow for aggressive wet cleaning. Accessible, slide-out crumb catchers prevent dough buildup from becoming a fire hazard or a biological contamination risk. These features drastically reduce the man-hours required for daily sanitation and ensure compliance with strict food safety audits.
Integrating new machinery always carries inherent physical and operational risks that must be managed before installation.
Footprint constraints are a primary concern. Horizontal units utilize a flat extraction path, which inherently requires a longer linear footprint than stacked or vertical configurations. This can cause bottlenecks in tight bakery layouts. Conduct precise 3D spatial mapping of your facility. Evaluate entry-level versus highly scaled options before procurement to ensure facility fit. Ensure that the extended length does not interfere with aisle clearances or downstream panner integration.
Operator resistance to digital controls is common. Veteran operators used to handwheels may distrust or struggle with HMI touchscreens and automated recipe recalls. Mandate vendor-supplied training programs focused specifically on the recipe-controlled HMI and semi-automatic features. Transition operators by showing them how the digital controls make their daily tasks physically easier and more predictable.
Incompatible dough rheology can halt production. Highly aerated or extremely stiff doughs may not process well on equipment optimized for soft, high-fat matrices. Never purchase without a trial. Send your exact ingredients to the manufacturer for live testing to validate extraction performance.
Audit your current production line to measure the exact CV of your piece weights and document the specific locations of product deformation.
Map your available floor space in 3D to confirm that the extended linear footprint of a horizontal unit will integrate seamlessly with your existing oven panner.
Request a Factory Acceptance Test (FAT) using your specific, proprietary dough formulations to validate machine performance under real-world conditions.
Require documented proof of weight accuracy (CV ≤ 1%) and extraction consistency during the trial phase before finalizing any purchase order.
A: The primary difference is the flat extraction plane. Horizontal configurations pull the dough piece onto a flat, fully supported web immediately after the die roll. This prevents the gravitational stretching and deformation common in angled or vertical extraction paths, allowing for faster, highly controlled forming of soft doughs.
A: It improves accuracy through the use of independent servo drives for the forcing roll, die roll, and extraction web. This allows operators to precisely control dough density and cavity packing pressure, consistently achieving a Coefficient of Variation (CV) of ≤ 1% across the band.
A: This equipment is specifically engineered for soft, high-fat, high-sugar, and crumbly dough matrices. It excels at handling a wide variety of profiles, from the thinnest crisps to thick dough bars, without causing shape distortion or tailing.
A: Modern units feature tool-free mould changeovers and slide-out cassettes. This design eliminates the need for heavy lifting equipment or complex shaft removal, reducing changeover times from several hours to just a matter of minutes.
A: Yes, they can be retrofitted. However, integration requires careful auditing. While PLCs can easily sync with existing lines using cascading speed control, the physical footprint is longer. Transfer heights and linear space must be validated prior to installation.
A: A cantilevered frame supports the rollers from only one side. This allows operators to slide the continuous extraction web on and off from the open side without disassembling the machine frames, drastically reducing maintenance downtime during belt replacements.
