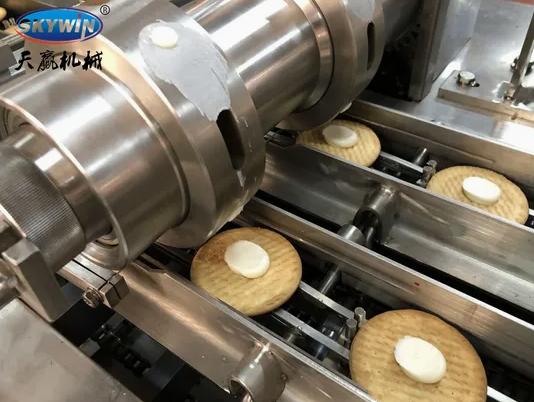

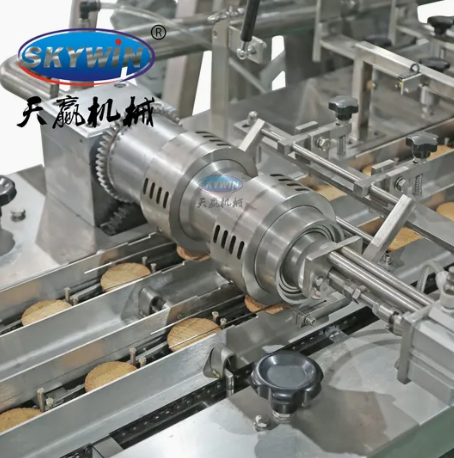

Skywin High Capacity Sandwiching Biscuit Making Machine with Multiplier

Skywin High Capacity Sandwiching Biscuit Making Machine with Multiplier

Name: Skywin High Capacity Sandwiching Biscuit Making Machine with Multiplier
Brand: skywin
Rating: 5.0 (76 reviews)

Skywin High Capacity Sandwiching Biscuit Making Machine with Multiplier offered by China manufacturer Skywin. Buy Skywin High Capacity Sandwiching Biscuit Making Machine with Multiplier directly with low price and high quality.

Brand:
skywin

Availability:

Quantity:



Inquire Add to Basket

Product Description

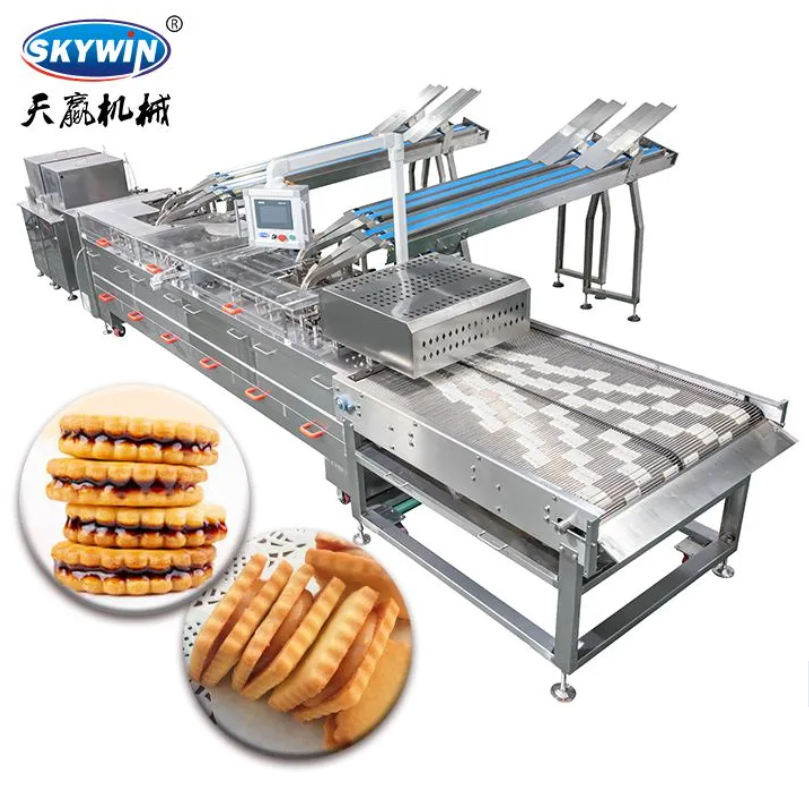

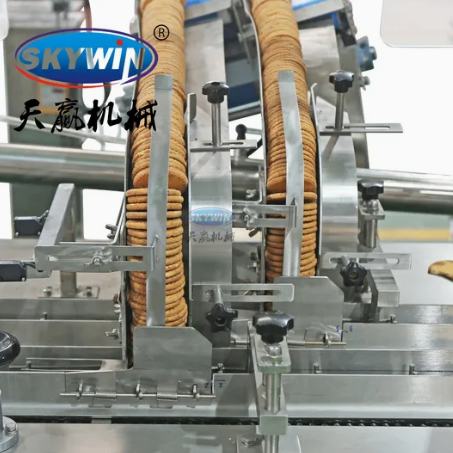

Skywin Sandwich Biscuit Machine Connected With Row Multiplier

118e7288ae8f92556ca5042226bac7e8

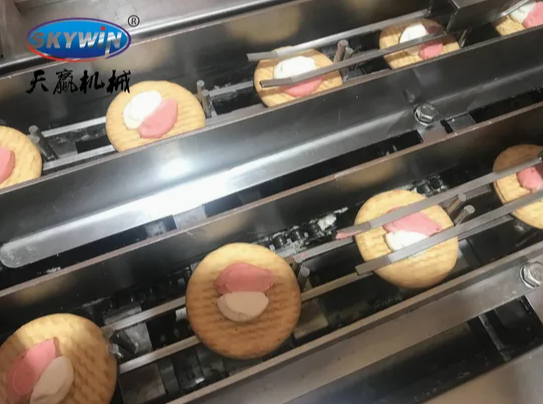

Skywin High speed sandwich biscuit machine by advance structure & design.

1	One color, two colors, three colors cream for option.
2	2+1, 3+2, 4+3 sandwich biscuit making for option
3	Sandwich biscuit with cream, jam, chocolate and so on.
4	Single row, two rows, four rows, six rows for option.

b9a886f903119f2b40cf1dea253bb927

Biscuit Specification	Single Lane Sandwiching Machine	Two Lane Sandwiching Machine
Biscuit Size	L(35-70)x W(30-60)x H(3-8)mm	L (35-80) x W(40-65)mm
Biscuit Size	Φ35-70mm thickness:3-8mm	Φ35-Φ65mm thickness:4-8mm
Capacity	100-600 sandwiches/min	600-1200 sandwiches/min
machine size	7000x1900x1470mm	7430x3300x1500mm
Weight (Cream tanks capacity )	1120kgs (40L)	1350kgs (50L)
Total power	4Kw	4Kw
Total power	4Kw	4Kw

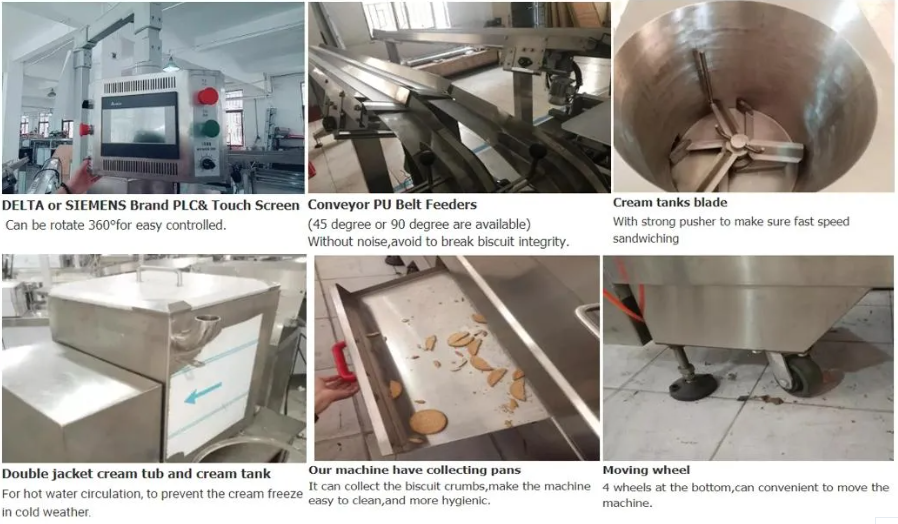

Main Feature:√ PLC for simple operation including machine set-up, hopper controls, speed adjustments
√ Removable scrap trays are provided for simple scrap collection and machine cleaning
√ Easy to operate: Simple adjustments for machine speeds, cream volume
√ Sanitary design with stainless steel for food contact parts,including cream stencil & interchange faster
√ Separating cream holding tank and feeding system
√ The pusher with double chain assure machine running stable and cleaning and maintenance
√ Every cream hopper with independent motor and reducer
√ Mobile cream hopper can cleaning while finish working separately
√ SUS304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.
√ Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes

Main electric component (Standard type):
No.	Description	Manufacturer
1	Main motor	Delta
2	Cream motor	Chinese
3	Motor of Conveyor table	Chinese
4	Programme control	SIEMENS
5	Touch screen	SIEMENS
6	Bearing	NSK(creaming), Chinese

c71d8e28e510c65f0d567567369a5bfb

52281d3043cab4366913acb792546a03

d3aadd110f1b7eda855a711647abc124

6c234a919ce2323a25c3e39122974d83

FAQ:
1.Q:Are you manufacturer?
A: Yes, we are factory specialized in Biscuit Making Machine, and have group of 30 years experienced engineers, advanced processing equipment.

2.Q: Why choose us?
A:--- We are China leading snack food machinery supplier.
--- Best quality & best service with competitive price.
--- Engineers available to service machinery overseas.
--- Machine has One year warranty and whole life after sales service.
--- Training how to install and use the machine.
--- Energy saving and manpower saving help you cost less.

3.Q: Is there a variety of language options for your operating system?
A: We use PLC controller system, it has Russian, English, Chinese, Korean, Arabic and other languages.

4.Q:How long is your biscuit line?
A:we can design the biscuit line according to the layout of your workshop.

5.Q: How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in the third party inspection organization .
