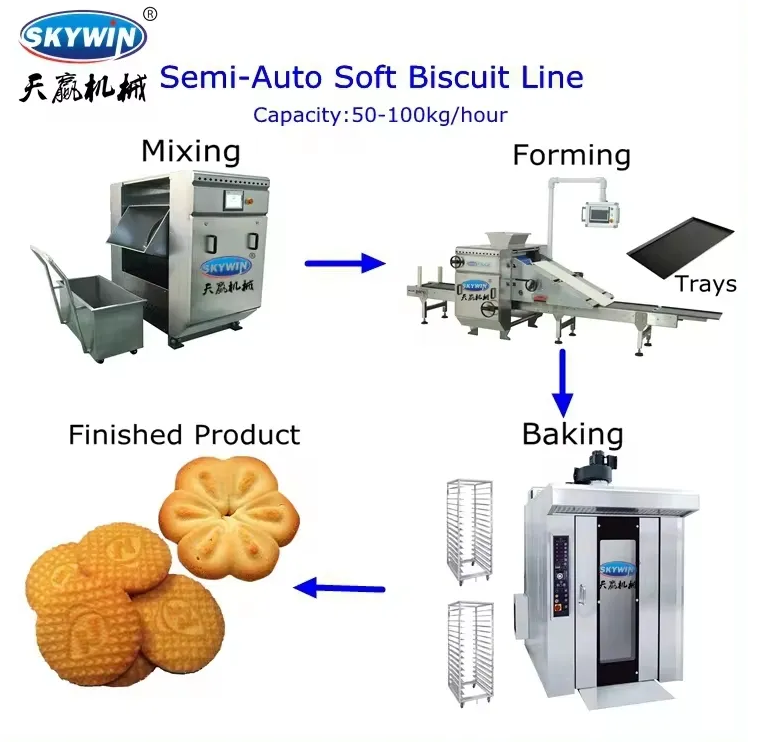

Small Tray Type Soft Biscuit Making Machine

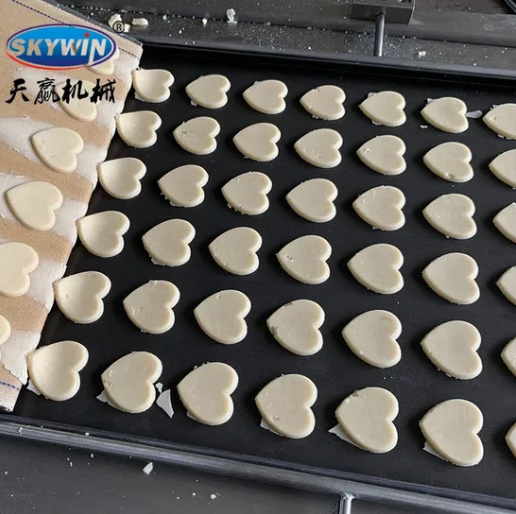

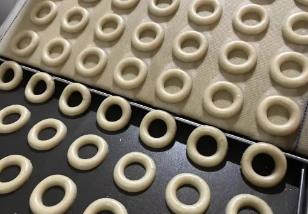

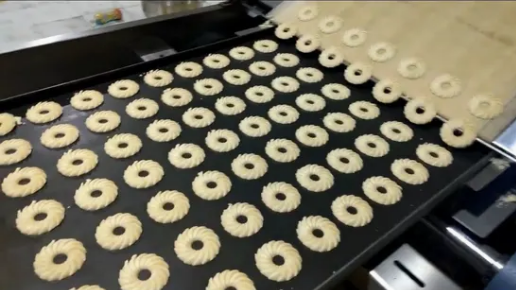

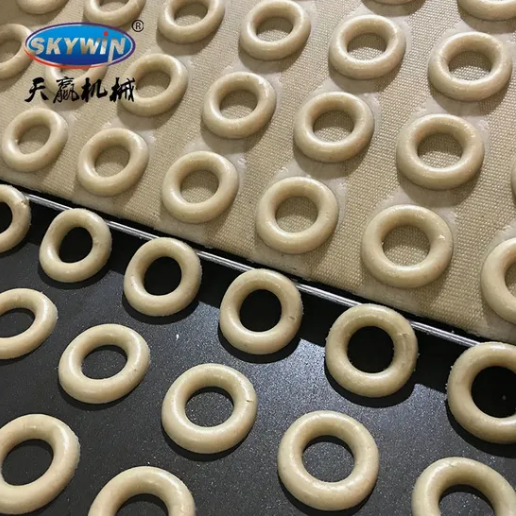

This machine is used for making soft biscuit, simple operation, occupancy small, high capacity.This machine can produce all shapes of soft biscuit, just only to change the biscuit mould.

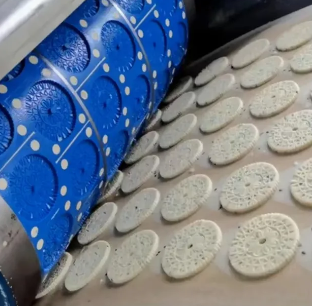

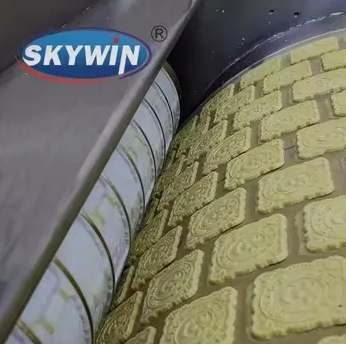

The biscuit mould also can be customized.Model-400 Tray Type Rotary Moulder is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit, biscuit machine suitable for rectangular biscuit,square and round, animal shape and other shapes depends on biscuit mould.
The machine can reduce labor costs and waste, increase production, efficiency, quality and flexibility.
Specification:
* Capacity:about 50kgs/hour~150kgs/hour
* Biscuit size:depends on mould
* Working width 400mm.
* Tray size: W400 x L600mm
* Double motor driver, Chain driverfor dough feeding and moulding,more stronger.
* Stainless steel 304#cover thickness 1.0mm
* Frequency speed adjusted, Siemensbrand PLC&Touch Screen.
* Dough Grooved roller ¢216 216mm,galvanization plated.
* Food standard Rubber roller ¢220,endless canvas conveyor.Ø
* Belts support by stainless steel 304# 3mm thickness.
* Strong Stainless steel 420# Dough scrap knife .
* Transducer: Chinese famous quality brand Motor
* Reducer: Chinese famous quality brand GUOMAO
* With pan holding space and pan longer transport conveyor
* With flexible waste dough collection pans, easier cleaning.
* Machine dimension: 4000mm length x 1000mm width x 1050mm height
* Voltage:Power: 4.5kw,380V/50Hz
* Power:4. 3kw
* Gross Weight:1300kg

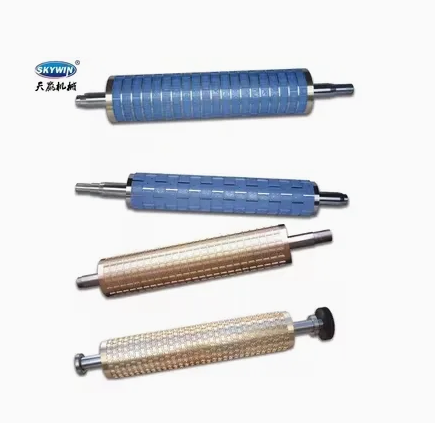

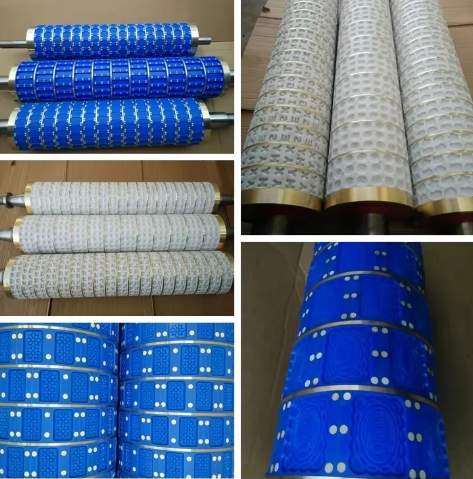

Soft biscuit mould
It can make different shapes of biscuit, just need to change the biscuit mould.
