This Machine is special for hotsale Oreo Biscuits, Marie Biscuits, Cream Crackers and the other regular shape Biscuits cream sandwiching and cheese biscuit making.
Funtion | Double-lane single flavor cream / jam sandwiching machine | |
Round | Square | |
Biscuit size | 30-70mm H3-8mm | L35-70mm W30-60mm H3-8mm |
Capacity | 800-1200sandwiches/min | |
Operating voltage | Single-phase AC 220V 50Hz | |
Machine size | 4500*1900*1470mm | |
Total power | 4Kw | |
Weight | 850kgs | |
Special specification is acceptable | ||
Production Features:

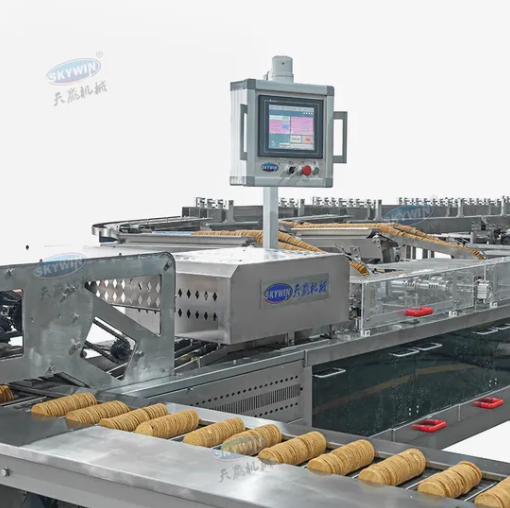

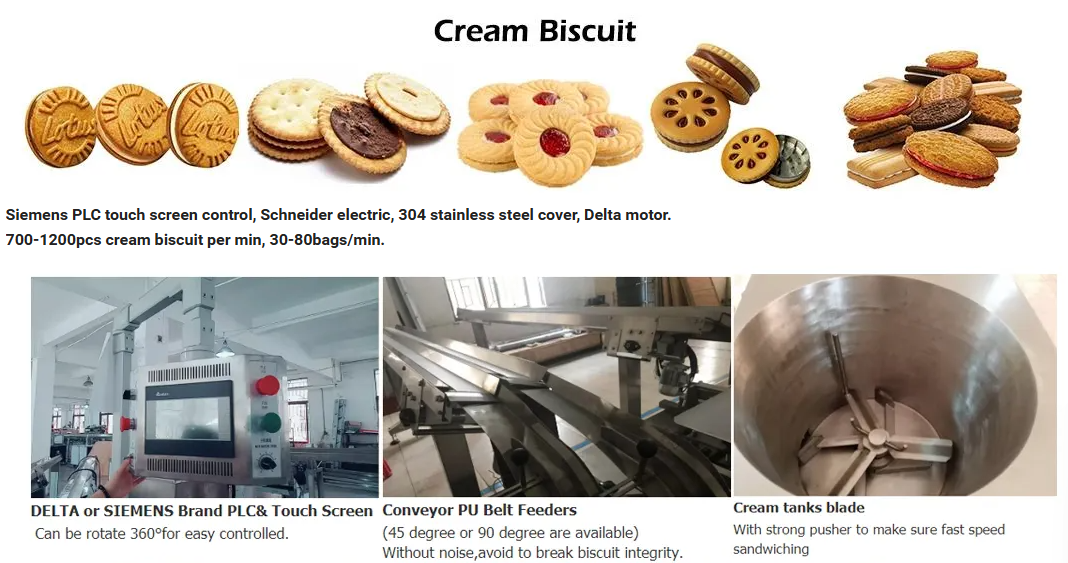

√ PLC for simple operation including machine set-up, hopper controls, speed adjustments

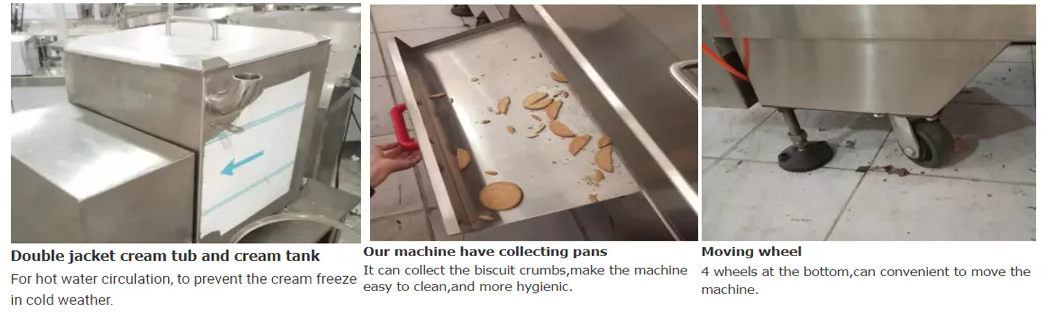

√ Removable scrap trays are provided for simple scrap collection and machine cleaning
√ Easy to operate: Simple adjustments for machine speeds, cream volume
√ Sanitary design with stainless steel for food contact parts,including cream stencil & interchange faster
√ Separating cream holding tank and feeding system

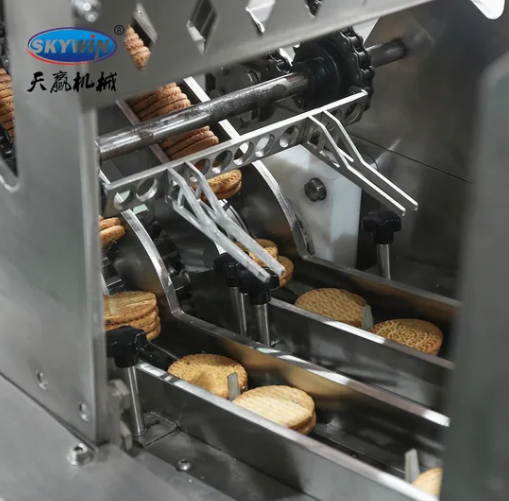

√ The pusher with double chain assure machine running stable and cleaning and maintenance
√ Every cream hopper with independent motor and reducer
√ Mobile cream hopper can cleaning while finish working separately
√ SUS304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.
√ Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes

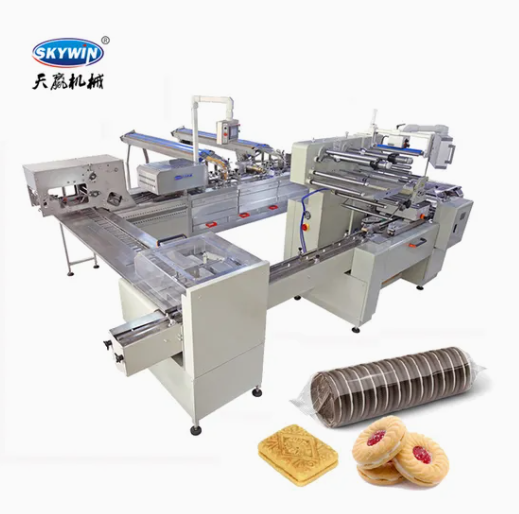

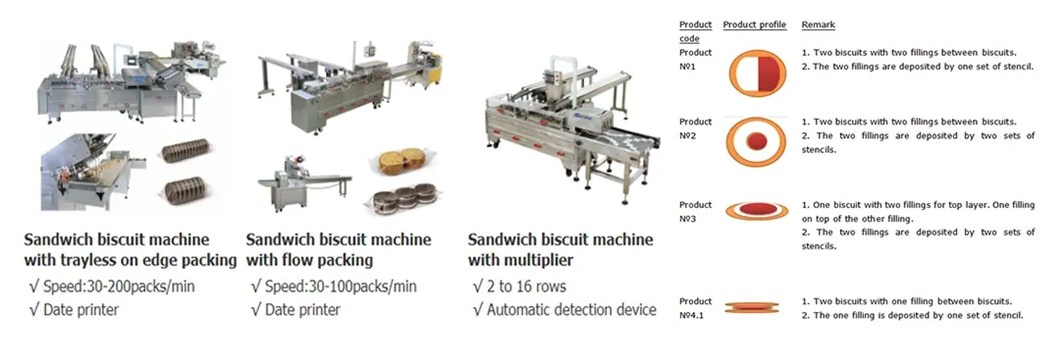

Skywin High speed sandwich biscuit machine by advance structure & design.
1 | One color, two colors, three colors cream for option. |
2 | 2+1, 3+2, 4+3 sandwich biscuit making for option |
3 | Sandwich biscuit with cream, jam, chocolate and so on. |
4 | Single row, two rows, four rows, six rows for option. |
Single Lane Sandwiching Machine | Two Lane Sandwiching Machine | Mini-type Sandwiching Machine | |
biscuit size | Square | Rectangle | Square |
L(35-70)x W(30-60)x H(3-8)mm | L (35-80) x W(40-65)mm | L (20-35) xW(20-35)xH( 3-7)mm | |
Round | Round | Round | |
Φ35-70mm thickness:3-8mm | Φ35-Φ65mm thickness:4-8mm | Φ20-35 mm, thickness:4-7mm | |
Capacity | 100-600 sandwiches/min | 600-1200 sandwiches/min | 100-400 sandwiches/min |
operating voltage | single-phase AC 220V 50Hz | single-phase AC 220V 50Hz | single-phase AC 220V 50Hz |
machine size | 7000x1900x1470mm | 7430x3300x1500mm | 4980x1340x1120mm |
Weight(Cream tanks capacity ) | 1120kgs (40L) | 1350kgs (50L) | 1000kgs (36L) |
total power | 4Kw | 4Kw | 3.8Kw |
Three types of packing machine for your option
Pr-Sales Service
*Inquiry and response immediately
*Sample testing service
*Factory visit.
*Special design plan
After-Sales Service
*Machine installation training
*Engineers always online to solve your problem.
We also can provide biscuit recepe!!
Company profile:
SKYWIN Food Machinery Group Company was founded in 2010, which is located in Beijiao, Shunde, Foshan, Guangdong, CHINA
* Foshan City is stainless steel Birthplace.
* Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One is for Automatic Biscuit Sandwiching Machine with Packing System.
* We have more than 60 professional staffs to match delivery time, base on "International Quality, Competitive Price".
* We insist on:
Premium Quality Standards
High Value for Money
Lasting Partnership
Technical Monopoly Protect
After Sales Dependability
-15mins from Guangzhou South Railway Station
-30mins from Guangzhou metro station
-45mins from Guangzhou airport
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Packing&Delivery:
Our regular packaging is multilayer packing, safe transport, shipping by sea:
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
FAQ
Q1: Which kind of biscuit you can produce for your biscuit line?
A. Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
Q2. What kind of oven you supply?
A. We can supply gas oven or electrical oven according to your requirement.
Q3. How long is your biscuit line?
A. we can design the biscuit line according to the layout of your workshop.
Q4. Which brand of motor you use for the line?
A. we can supply European motor reducer(SEW) or Chinese famous motor for your options.
Q5. Are you manufacturer?
A. Yes, we are a biscuit machine manufacturer in China.
Q6. How is the payment?
A. We accept 40% T/T deposit before production and 60% T/T balance before shipment,and Western Union or L/C.
